My 1997 Aerostar with a 4.0L doesn't start.

davr7749

Member
Joined
April 26, 2021
Messages
12
Reaction score
1
City, State
Lakeland
Year, Model & Trim Level
1997 areostar
I'm having issues idling my areostar. It seems to have spark and fuel. But stalls right after the key is turned. Fuel pump and filter has been replaced along with spark plugs and ignition wires. I believe the current orientation of the wires is 1-5 2-6 3-4. I could have the order on wrong but I've not gotten a definitive order online. If anyone has the order or any other suggestions.. fuses are all good. I'm starting to suspect the coil.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Josh P

Shaggin Wagon
Elite Explorer
Joined
February 18, 2015
Messages
1,644
Reaction score
281
City, State
Phoenix Az
Year, Model & Trim Level
1991 aerostar
I had a bad maf sensor cause a stalling issue, unplug the sensor and see if it stays running

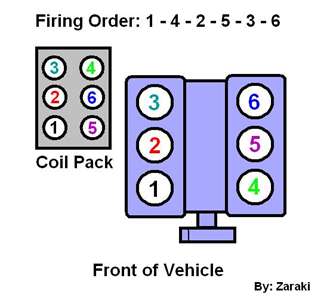

4.0 Firing order.jpg









BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,840
Reaction score
624
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars








BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,840
Reaction score
624
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




don-ohio

Well-Known Member
Joined
March 22, 2013
Messages
364
Reaction score
21
City, State
jackson,ohio
Year, Model & Trim Level
1994 Aerostar extended
Your coil pack is not in order possibly. The plugs are like the diagram, but the coil pack is switched one position. Other than that, crank position sensor?
