Completed Project My 98 super charged EX

Use this prefix for completed projects that are not "How to" articles or threads asking for help.
1998 Explorer 4.0 SOHC
Bought it with a melted alternator/wiring harness from a junkyard for $1,000
Fixed it, drove it for two weeks, then I boosted it.
Started with an M90 supercharger kit from www.Bansheesuperchargerkit.com
Upgraded to an M112 Lightning supercharger that was a prototype kit.
Next was the M122 off a 2012 GT500
I have reached 20 lbs of boost (with ARP head studs) and a 12.83 in a quarter mile.

Pictures
1. How it looked when I brought it home.
2.The M90 supercharger installed
3.The GT500 supercharger installed
4.How it looks now
5.Wheelie
green ex.jpg
Lowered Rear.jpg
Exploder wheelie.jpg




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





belt

Very nice indeed. Sometimes we need a vacation just to get things done at home! I'll be interested in if you get any belt slippage as well. Seems like a lot of blower for that engine!

I was wondering about the belt slippage too. I wonder if there is a way to have custom pulleys made with more ribs for all the pulleys under my hood.
Probably $$$$$$.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





I've put a lot of thought into an 8 rib set up. I think the hardest and most expensive part will be the harmonic balancer. I think there are companies out there that will make a custom one. Mine is zero balance so that should be even easier.







pulleys

JD4242 mentioned a place that makes custom pulleys, I will have to go back and find the post to remember the name of the company. I have them bookmarked in internet explorer somewhere if I can find it. lol.
Having something custom made always cost more, but how much more and how much you are willing to pay are what determines if it gets done or not.
I was looking into having an electric water pump made for the 4.0 SOHC, would take around 2000.00 to get one made. I wonder how much the pulleys would cost and if we could use any pulleys off other vehicles like the alternator etc.







Awesome!








Hey asp can make the 8 rib pulley.the alternator and power steering pulleys comes from a f150 lightning and are direct bolt on for me.the idler and water pump will handle a 8 rib ;) couldnt post in your thread, need to update my status


http://autospecialties.com/index.html

O one more thing.from what ive read its a BIG BIG no no to more the output port on the bottom of the charger, like what you did in the pictures in post 273..couple people were doing that to run the m112 blades inside the m90 case and everyone of them had issues.

Edit: I moved jd4242's post from his thread to this one because he couldn't post it here. (2000StreetRod)







im trying to remember who gave me this link. i am thinking it was mr.boostman (the guy i bought my m90 off). if i remember, he had said they made his 8 rib balancer (once again, his is a 5L truck)

http://autospecialties.com/index.html

maybe give them a call and see. i am still aways away from having to worry about belt slippage lol.







im trying to remember who gave me this link. i am thinking it was mr.boostman (the guy i bought my m90 off). if i remember, he had said they made his 8 rib balancer (once again, his is a 5L truck)

http://autospecialties.com/index.html

maybe give them a call and see. i am still aways away from having to worry about belt slippage lol.

The alternator and AC clutch pulleys are easy, and from the Super Duty trucks. I have a spare compressor now with the 8-rib pulley in case.

The crank and power steering pulleys will be the toughest. The PS pulley is a great three bolt piece, but not common among aftermarket choices.

ASP is the best choice to see about something special like those.


Great work John, rest up and keep going.







Dont quote me but I would look at 03/04 cobra for the power steering pulley, its a similar pump but I cant remember the hub or bolt setup on it, I love mixing and matching factory parts, it appeals to my cheapskate hotrodder side,







Asp

[MENTION=91966]jd4242[/MENTION]
Thanks for posting the link JD4242, that's the place. I was looking into them a while back after you mentioned them. I was thinking of getting a bigger diameter to spin the M112 faster. Don't need faster now with the M122, but I may need more ribs. I wont know till I get it done. I am back to work now and already have to work some double shifts. Come on Saturday!
What year Lightning for the pulleys?

I only half understand what you posted about superchargers failing. Chance We take to do custom things I guess. On a Lightning forum someone brought out the idea that the plate that the supercharger mounts to had to be almost perfectly straight, within thousandths of an inch.

@ 2000streetrod
Can JD post now?

Thanks everyone else too for the pulleys ideas and such.
I have some other things to workout first before I can even start it to see if the belt slips. Need to make a throttle plate adaptor, new air filter to throttle plate tube, IAC mount, coil mount, EGR tube, route all my vacuum lines, and change my left and right side spark plug wires since the coil will be on the other side now. I probably left something out. lol.







Dont quote me but I would look at 03/04 cobra for the power steering pulley, its a similar pump but I cant remember the hub or bolt setup on it, I love mixing and matching factory parts, it appeals to my cheapskate hotrodder side,

You hit the nail right on the head. I am a cheapskate hotrodder and I love cheap used factory parts that I know will last long. lol.
whoops, I just quoted you.







The alternator and AC clutch pulleys are easy, and from the Super Duty trucks. I have a spare compressor now with the 8-rib pulley in case.
The crank and power steering pulleys will be the toughest. The PS pulley is a great three bolt piece, but not common among aftermarket choices.
ASP is the best choice to see about something special like those.
Great work John, rest up and keep going.

Thanks!
Tell me more, Do you have them on a 4.0 sohc? What year and model Superduty? Diesel or V10?







for the coil mount, do you know if you will have enough room to hang it off the side of the supercharger like the EE kit? if you think you might, i can always mail you a template to follow, or make one and send it down to you. after all, i think the front of the housing is the same as the m112.







Thanks!
Tell me more, Do you have them on a 4.0 sohc? What year and model Superduty? Diesel or V10?

You can use the alternator, a/c compressor clutch, & idler pulleys off of a diesel superduty. I have one at home that I have been eyeing up for this purpose. I have been wondering if the alternator pulley would fit but I don't see why it wouldn't. I've been looking at the 7.3 diesels. Maybe a 6.0 or new would work too.








for the coil mount, do you know if you will have enough room to hang it off the side of the supercharger like the EE kit? if you think you might, i can always mail you a template to follow, or make one and send it down to you. after all, i think the front of the housing is the same as the m112.

How about posting a picture of the coil mount here?
The snouts are slightly different between the M122 and M112.
The M112 off the lightning and cobra seem to have the same bolt pattern but the lightning snout is shorter. Could come in handy if you need to Frankenstein one. The M122 has a different bolt pattern.







You can use the alternator, a/c compressor clutch, & idler pulleys off of a diesel superduty. I have one at home that I have been eyeing up for this purpose. I have been wondering if the alternator pulley would fit but I don't see why it wouldn't. I've been looking at the 7.3 diesels. Maybe a 6.0 or new would work too.

I have some 6.0 and 7.3 engines at work on stands, I will see if they have pulleys on them. Maybe I could test fit them.











you hang it from the front two bolts, then wrap it so it runs down the side. not really hard to make if you have a metal break







Bracket

Nice design. Looks like it would work for the M122 also.
How much is a metal break?

I measured the alternator shaft on a 2005 excursion with a 6.0L.
It was about 5/8 inch diameter. Did it with a tape measure with the pulley still on so it not the most accurate measurement. I have to work too many hours in the next 2 days but when I get time I will measure one of my alternator shafts to see what size it is.







How much is a metal break?

do you guys have a body shop at work? they should have one. that or some angle lron, vice, block of wood and a hammer. thats a pour mans metal break lol







body shop

As big as that place is, no body shop. I think there is one in our Houston campus.
Angle iron I have. Huge piece in my garage. I was wondering what I could use it for. Great Idea!




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Progress?

Got some work done. In a hurry because one of my other trucks wont move on its own again. I don't like to rush, when I do things don't turn out the way I like and I end up redoing them later.
http://www.explorerforum.com/forums/showthread.php?p=3323908#post3323908

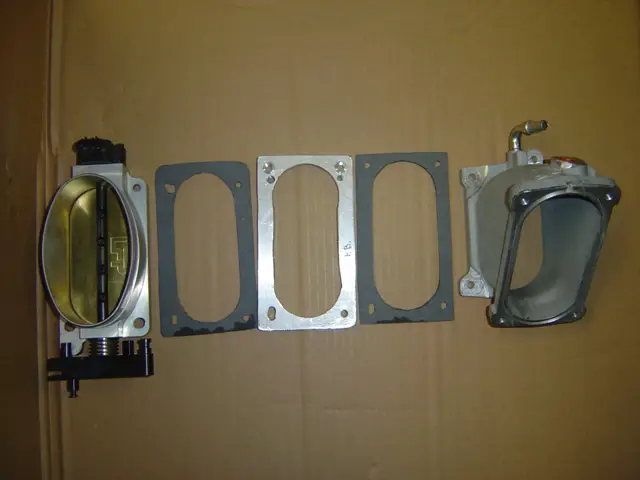

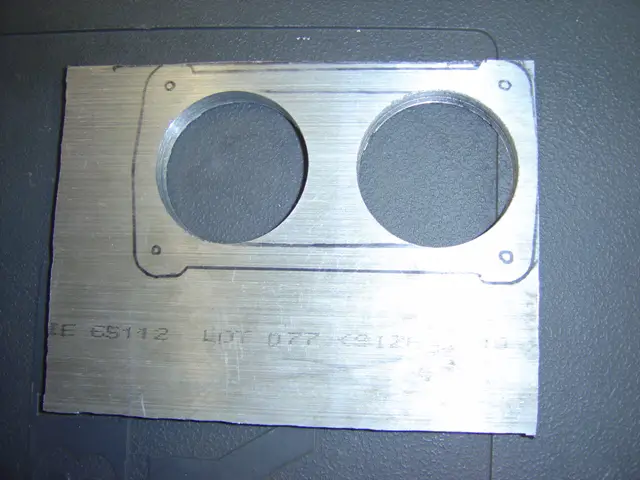

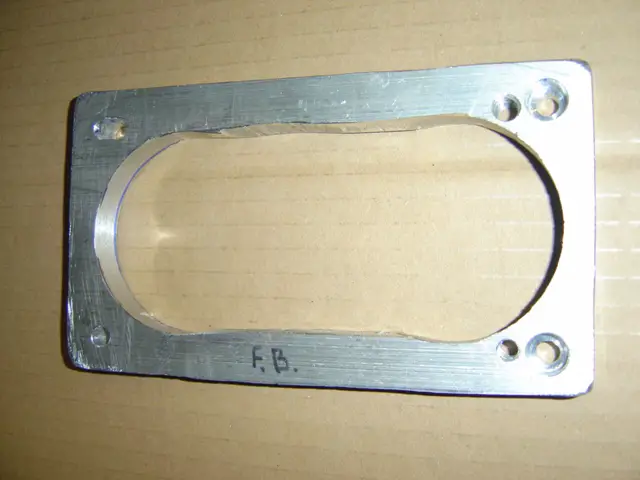

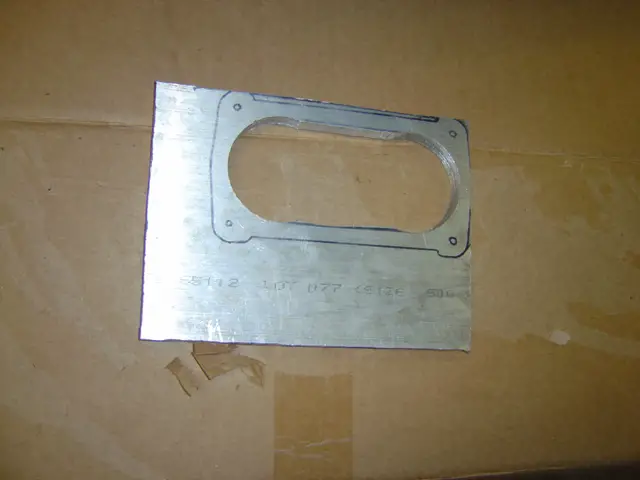

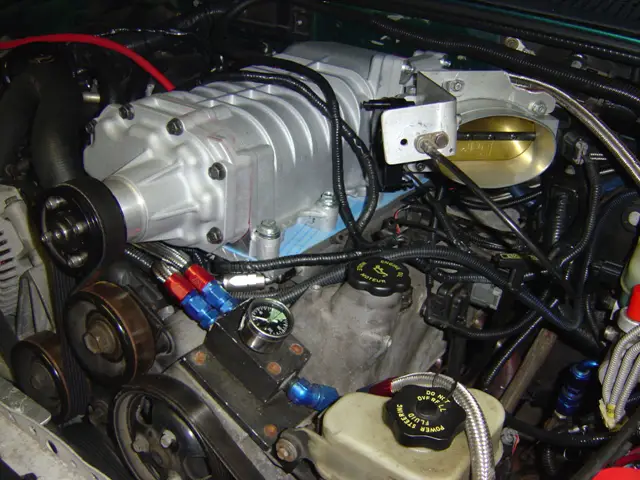

Had to make an adaptor for the throttle plate. My horrible cutting skills show that I cant cut a straight line. Having no artistic talent handicaps me. Being in a hurry prevents me from hiding it with filing or grinding.
