My Baer (Alcon) brake install.

Before I say anything else let me say whoa they stop on a dime and bill me $5 for lost rubber from the tires. They really give the abs a workout on dry pavement.

Lets start with some pics

Here they are before powdercoating


After



During a test fit

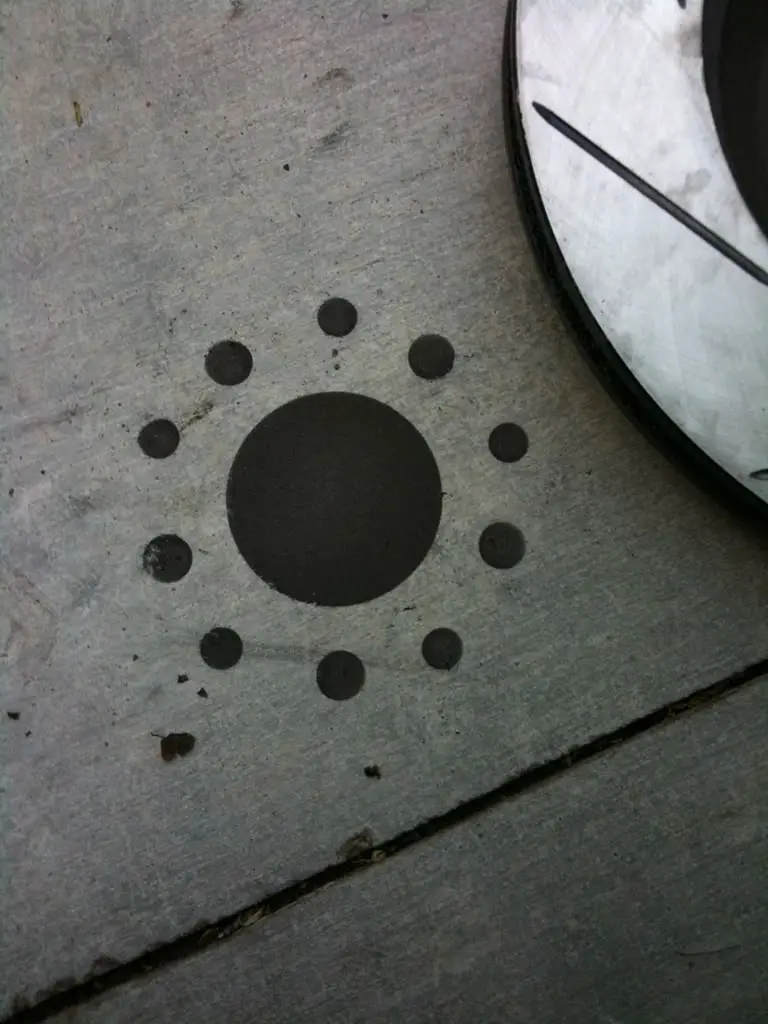

The rotors from r1 concepts were not properly drilled out in the center hub like I specified so I had to pull out the dremel to remove the .03 of an inch to make them fit on the hub. Here is a cool pic from the grinding.


Bracket on

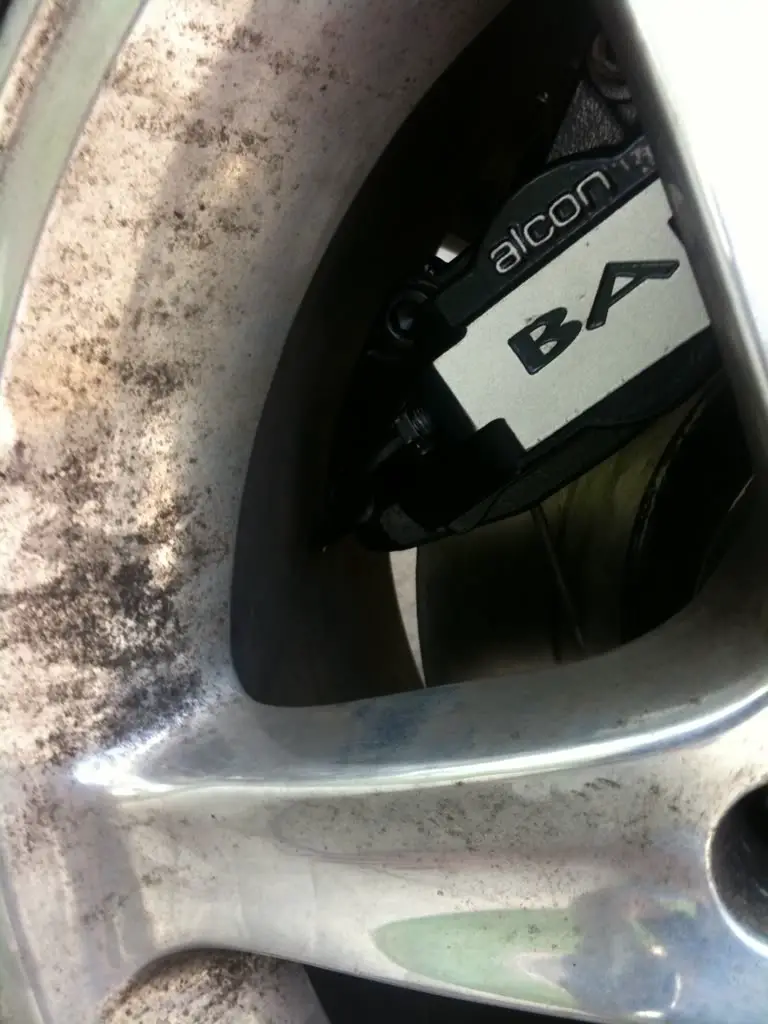

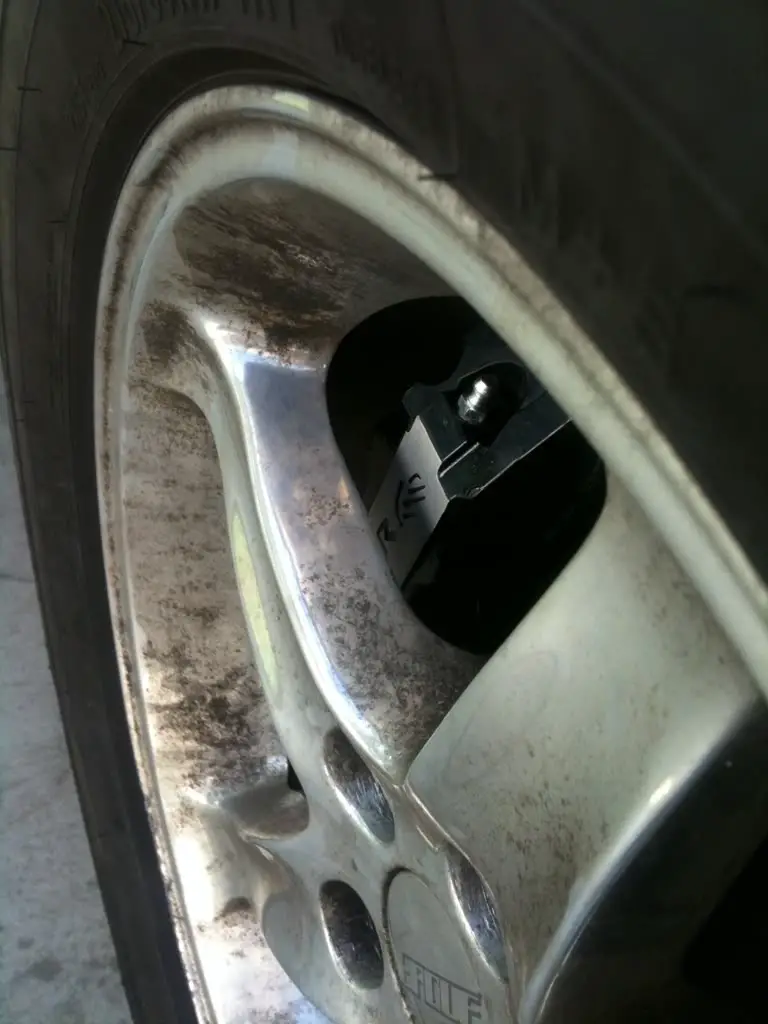

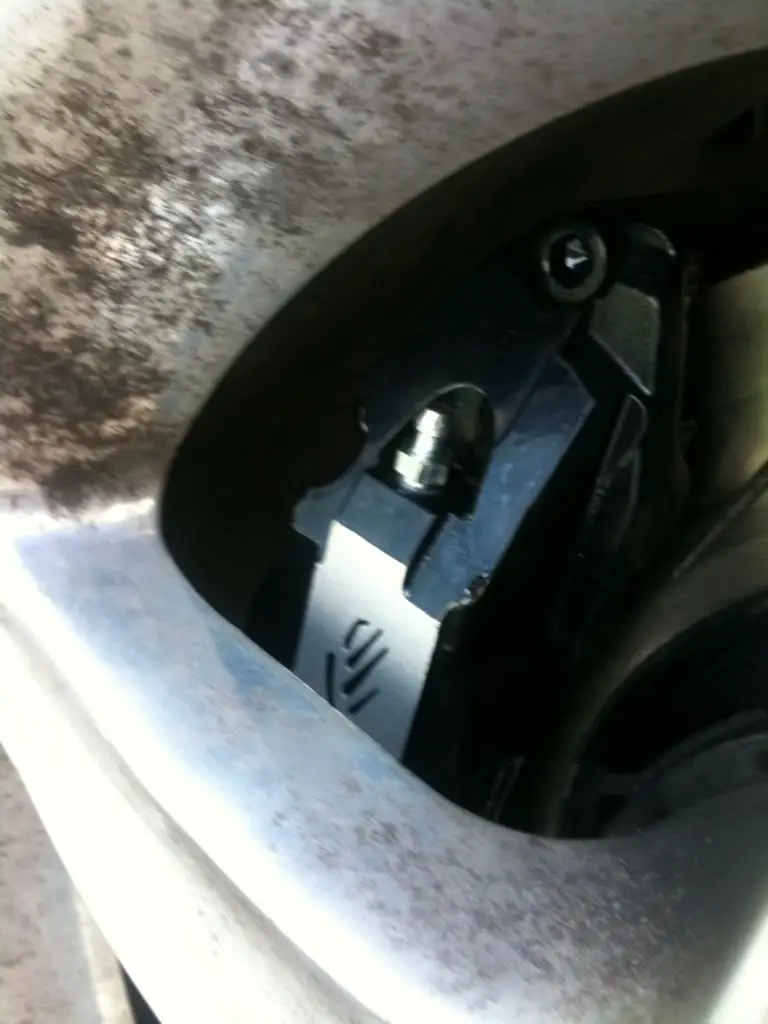

and some wheel clearance shots




I will post more pics after I clean up the very dirty wheels. Next post will have details of the parts used.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




techieman33

Explorer Addict
Joined
January 29, 2005
Messages
7,996
Reaction score
4
City, State
Topeka, KS
Year, Model & Trim Level
00 V8 Mountaineer
Ok so I paid $450 for the used calipers and brackets, here are links for similar parts new.

As far as I can tell this is the same caliper, just made for Rousch $867
http://www.jcwhitney.com/alcon-front-calipers/p2016270.jcwx

Brackets
This bracket should be the same dimensions as what I have. 2 x $95
http://www.streetwiseparts.com/osco...d=707&osCsid=72df9bfd467c3b059985f13b47a28501

Rotors
They are for a 94 vette with "heavy duty" suspension they are 13" rotors. These are what I used but any heavy duty 94 vette rotors will work. $265 for the pair drilled to 5x4.5 to my door.
http://www.r1concepts.com/chevrolet-corvette-1994-hvyduty-PS.62046.htm

On to the pads
Hawk hps hb105 1 set at $135.27
http://www.amazon.com/Hawk-Performa...H46C/ref=sr_1_1?ie=UTF8&qid=1304039596&sr=8-1

Braided stainless brake lines, competition grade. Who cares about DOT. 2 x 19.97 each
http://www.amazon.com/gp/product/B000CPJIF6

Banjo bolt adapters 2 x $7.23
http://www.amazon.com/gp/product/B000CPJI88

Some fancy german brake fluid 1 x $16.05
http://www.amazon.com/gp/product/B003VXRPL0

ended up wasting a lot of it fighting the passenger side, so to the amsoil man for 3 pints of amsoil dot 4 600 brake fluid ~$35 for 3 pints. Still have 2.5 pints left that will get used later when I put speed bleeders in the back calipers
http://www.amsoil.com/storefront/bf4.aspx

Then 4 speed bleeders ~$20
New banjo bolt to replace broken one ~$8
$20 at the machine shop to chase some threads for the bleeder screws.

And I think that is about it as far as parts and expenses go.

Grand total $1003 and some change, not to bad.

If I had to buy new ~$1800





techieman33

Explorer Addict
Joined
January 29, 2005
Messages
7,996
Reaction score
4
City, State
Topeka, KS
Year, Model & Trim Level
00 V8 Mountaineer
Now a couple of notes for myself about the install, there is a thick ~ 1/8" washer that goes between the caliper bracket and knuckles to make the caliper line up with the rotor. My guess is that some one did this in the past to avoid buying the stupid expensive saleen rotors ($1050 for a pair).
