My Custom Cold Air Intake (Lots of Pics)

96743explorer

Well-Known Member
Joined
July 21, 2013
Messages
231
Reaction score
1
City, State
Big Island, Hawaii
Year, Model & Trim Level
06 explorer V6 4x4

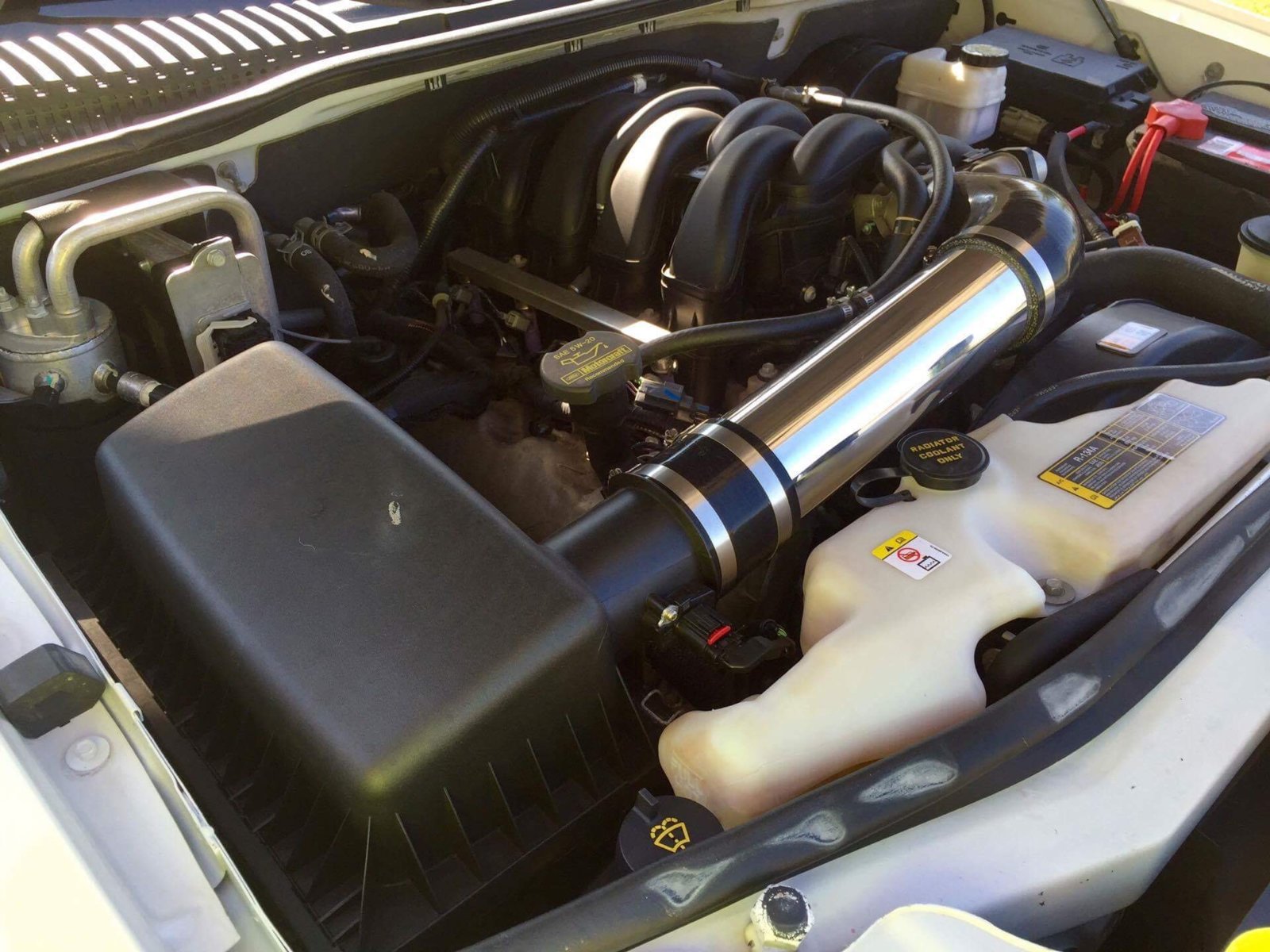

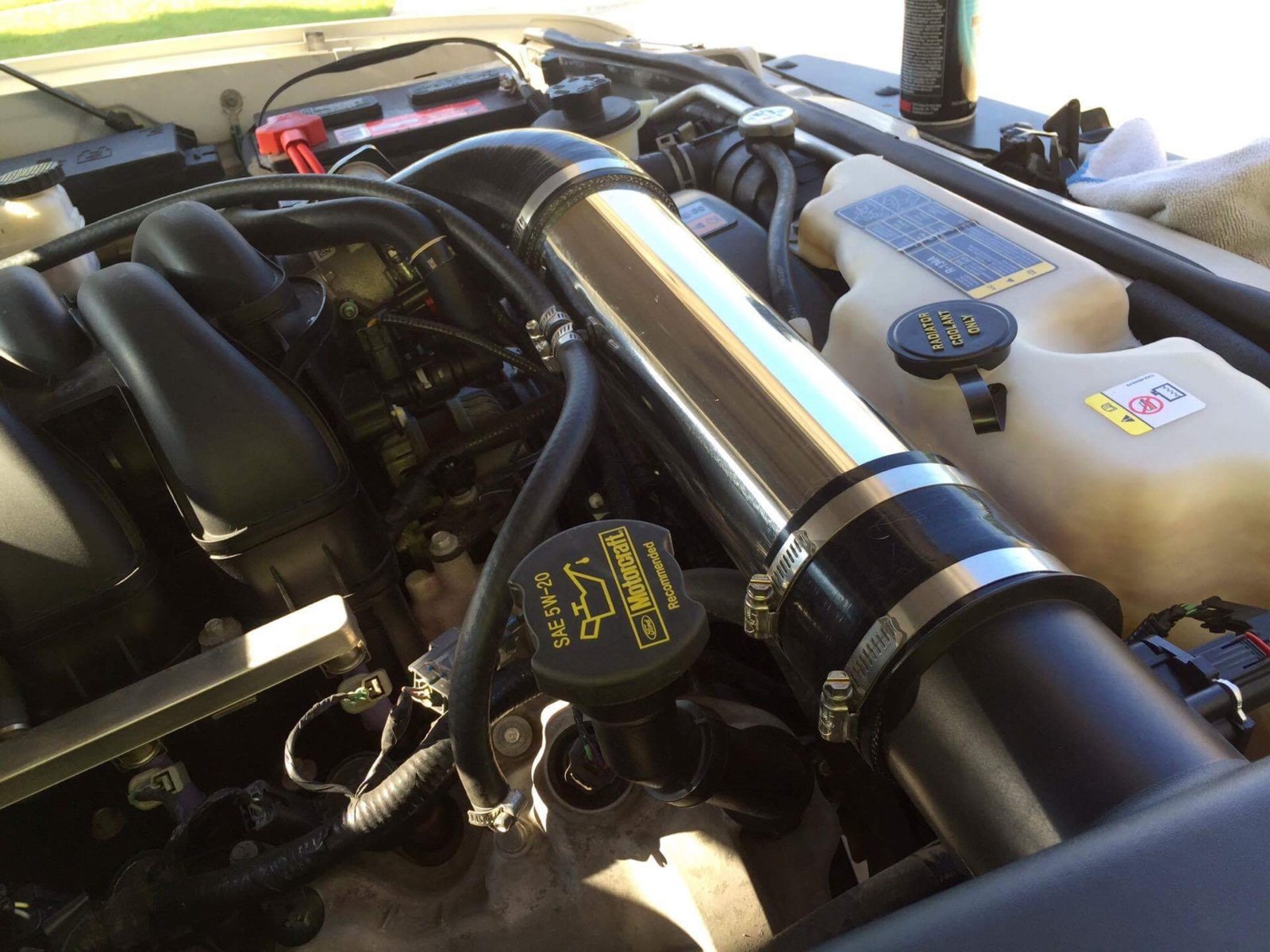

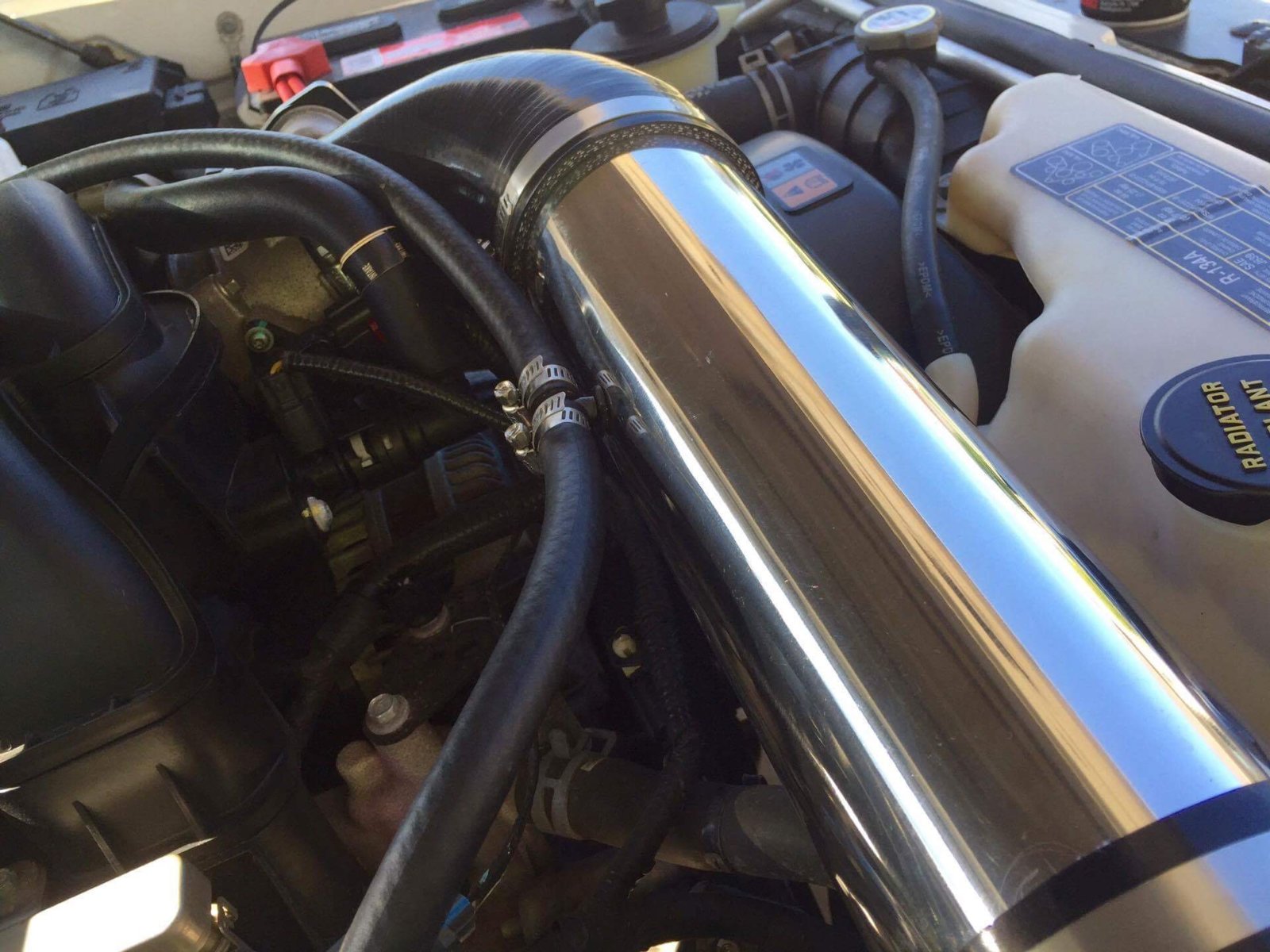

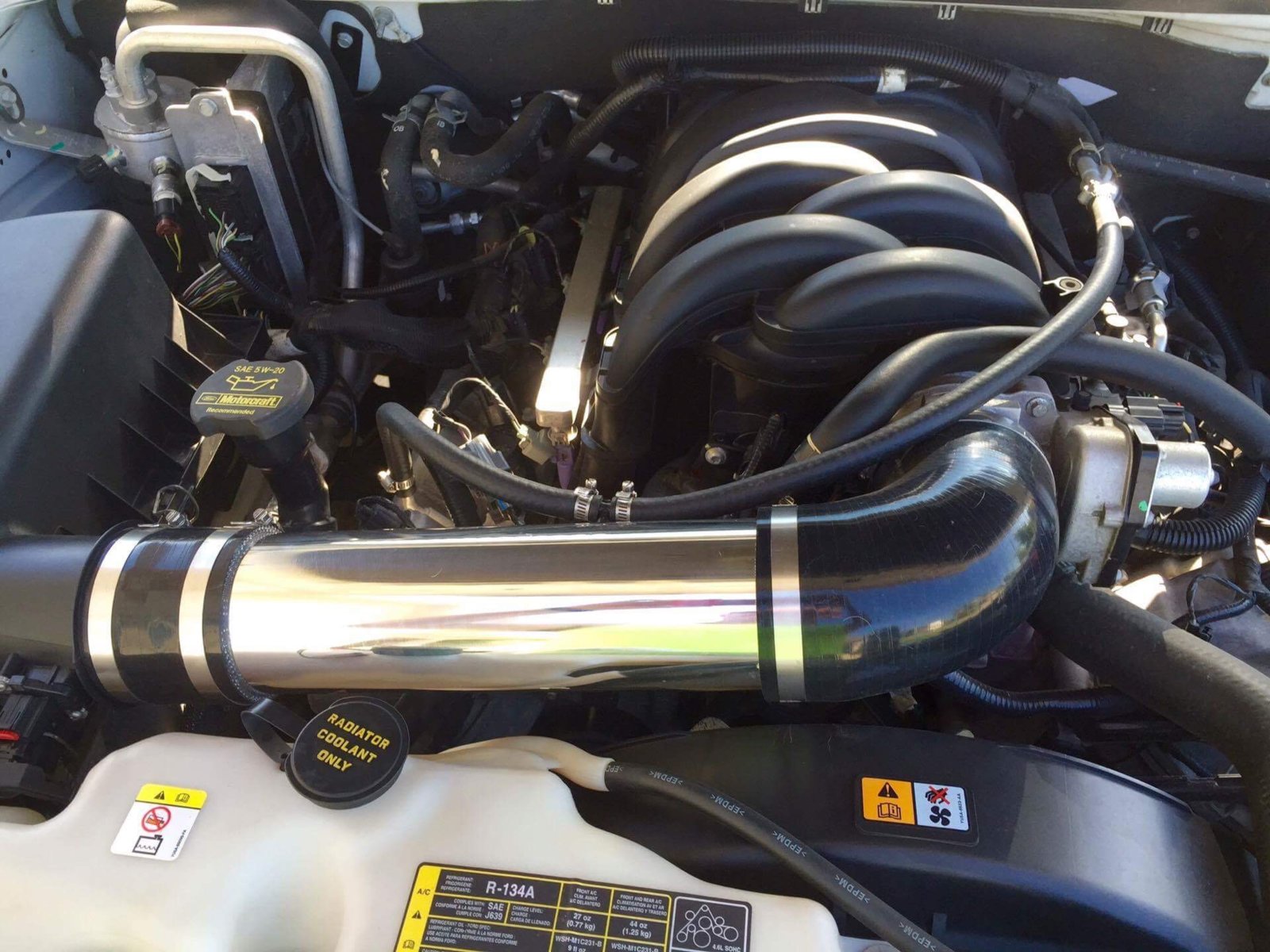

The only mods I made was taking all or as much of the oem stock intake piping out and replaced with silicone hose, aluminum tube and aftermarket air filter.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Brian Jordan

Member
Joined
March 28, 2006
Messages
26
Reaction score
4
City, State
Ontario, Canada
Year, Model & Trim Level
2010 Limited V8
Love this site, but people really need to start updating their threads. A solid 90% of the threads I click on with how to info, are full of pics, don't work anymore. :(





jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Love this site, but people really need to start updating their threads. A solid 90% of the threads I click on with how to info, are full of pics, don't work anymore. :(
Its because the sites that were used to upload have started charging to share..





swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,625
Reaction score
566
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)
All those "third party" blank pics are from Photobucket. Here's some pics from the OP using Google Images.

PB fix for Chrome. Firefox fix included in link below.
Photobucket Embedded Image Fix





Brian Jordan

Member
Joined
March 28, 2006
Messages
26
Reaction score
4
City, State
Ontario, Canada
Year, Model & Trim Level
2010 Limited V8
Its because the sites that were used to upload have started charging to share..
Strange. I've been using photobucket for near a decade now and it's never cost me a dime? :dunno:


Thanks swshawaii, I'm seeing now he's running a 4.0L. Too bad, I was looking for something for one of the 4.6 3V's. Can't stomach the cost, or for that matter at the look of the K&N intake available for our trucks. The aftermarket really left the 3V 4th Gens in the cold. :(





jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Strange. I've been using photobucket for near a decade now and it's never cost me a dime? :dunno:



Thanks swshawaii, I'm seeing now he's running a 4.0L. Too bad, I was looking for something for one of the 4.6 3V's. Can't stomach the cost, or for that matter at the look of the K&N intake available for our trucks. The aftermarket really left the 3V 3rd Gens in the cold. :(
Just changed not long ago..try and post a picture on here..





Brian Jordan

Member
Joined
March 28, 2006
Messages
26
Reaction score
4
City, State
Ontario, Canada
Year, Model & Trim Level
2010 Limited V8
Just changed not long ago..try and post a picture on here..

Let me know if this works?






jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger








SixPonies

Elite Explorer
Joined
February 19, 2015
Messages
234
Reaction score
38
City, State
Mahomet, IL
Year, Model & Trim Level
2017 Ford Explorer Sport




Brian Jordan

Member
Joined
March 28, 2006
Messages
26
Reaction score
4
City, State
Ontario, Canada
Year, Model & Trim Level
2010 Limited V8




SixPonies

Elite Explorer
Joined
February 19, 2015
Messages
234
Reaction score
38
City, State
Mahomet, IL
Year, Model & Trim Level
2017 Ford Explorer Sport
Shiney! Does it give your ECU fits, or have you got a tune to go along with it? Pick up a lot of intake noise?

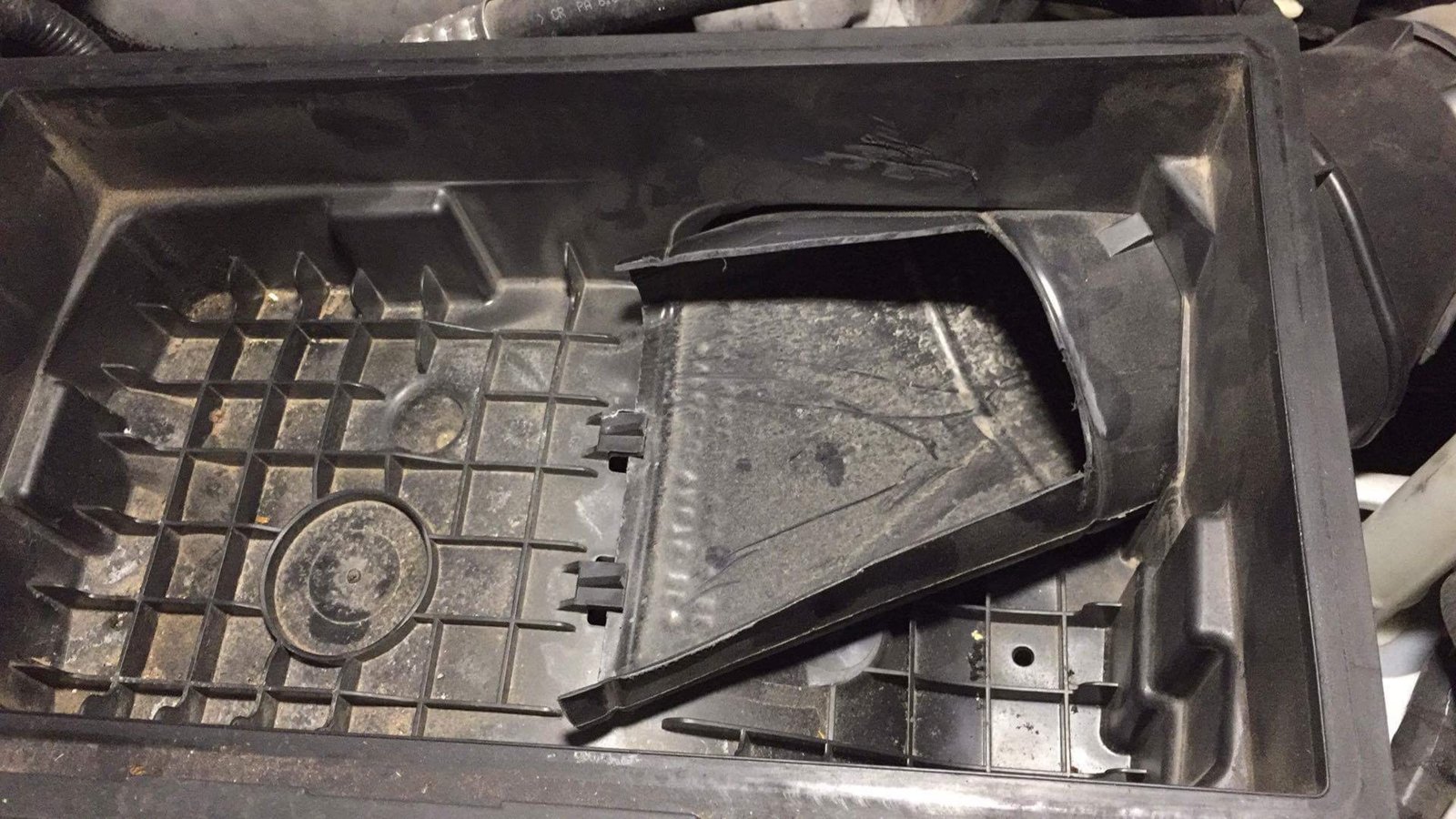

When I installed this, I was still running on a stock tune. That's the beauty of this setup. Because the MAF is built into the OEM air box, the metered air is monitored before the intake pipe, so it won't throw any CEL codes. Also, the replacement pipe is the same diameter as the OEM pipe (3.5"); it's just less restrictive.

As for intake noise, there's a little more engine noise at wide open throttle, but it's not all that noticeable--especially when compared to an open-filter style intake like the K&N CAI.

If you'd prefer a less "shiny" pipe, the website I listed above also sells the same size pipes in carbon fiber. They're also available here at a little cheaper price: intakehoses.com. Either way, I bought a 24" pipe and cut it down to about 14". That was about a perfect fit. But with the aluminum pipe, you'll have about $60-70 invested in this setup for the couplers, clamps, and pipe. If you prefer the carbon fiber pipe, they cost a bit more.

I'm no longer running this intake on my truck. I'm currently running a K&N 77-2573KP Air Intake that a friend gave to me a while back. Having run both of these setups, I can tell you that you definitely get a more "throaty" growl with the K&N at WOT.





MotorCityFats13

Explorer Addict
Joined
January 25, 2015
Messages
1,080
Reaction score
78
City, State
Flatrock MI
Year, Model & Trim Level
2007 Explorer XLT 4.0L
I bought a bunch of parts to make one for my 07 4.0..... too bad I didnt measure because the TB is only 3" and my 90 degree was 3.5" so had to order another 90 degree in 3.5 to 3" .... my 3.5" 45 fits the airbox perfect





SixPonies

Elite Explorer
Joined
February 19, 2015
Messages
234
Reaction score
38
City, State
Mahomet, IL
Year, Model & Trim Level
2017 Ford Explorer Sport
I bought a bunch of parts to make one for my 07 4.0..... too bad I didnt measure because the TB is only 3" and my 90 degree was 3.5" so had to order another 90 degree in 3.5 to 3" .... my 3.5" 45 fits the airbox perfect

Can you post any pictures of your custom CAI for your 4.0L V6?





MotorCityFats13

Explorer Addict
Joined
January 25, 2015
Messages
1,080
Reaction score
78
City, State
Flatrock MI
Year, Model & Trim Level
2007 Explorer XLT 4.0L
Can you post any pictures of your custom CAI for your 4.0L V6?

once its finished I will post as much as humanly possible with all data and details to build it yourself for cheap as possible.... im putting this between 30-50 bucks..... its also looking like the pipe between the 2 silicone couplers might be around 5 inches max there really isnt that much space to connect the tb and airbox.... I bought a 12" 3.5" pipe and if there is such a thing as a 3.5" exhaust this can be even cheaper





MotorCityFats13

Explorer Addict
Joined
January 25, 2015
Messages
1,080
Reaction score
78
City, State
Flatrock MI
Year, Model & Trim Level
2007 Explorer XLT 4.0L
new update...... there is no 45 degree coupler in this setup...... all I needed was a 90 degree 3" to 3.5" a 3.5" pipe and a 3.5" to 3.5" straight coupler..... my 45 is now in my parts bin and lucky I bought a 12" silicone pipe in 3.5" so I just cut some off of that to make the straight coupler once I figure out the valve cover breather hose Ill start my own write up.... im going to wrap the pipe in gloss black vinyl so it matches the silicone couplers.... as of right now I feels no different but I will run some side by side comparisons using the torque app..... 0-30 0-60 and 1/8 mile and compare HP and TQ numbers
