My New Rock Sliders

Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,367
Reaction score
556
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Well I just finished my rock sliders today, version 2.0 :D My old rock sliders have done a good job for the last 6 years or so and have taken many hard hits. I decided to make some new and improved sliders so I got to work designing them a few days ago.

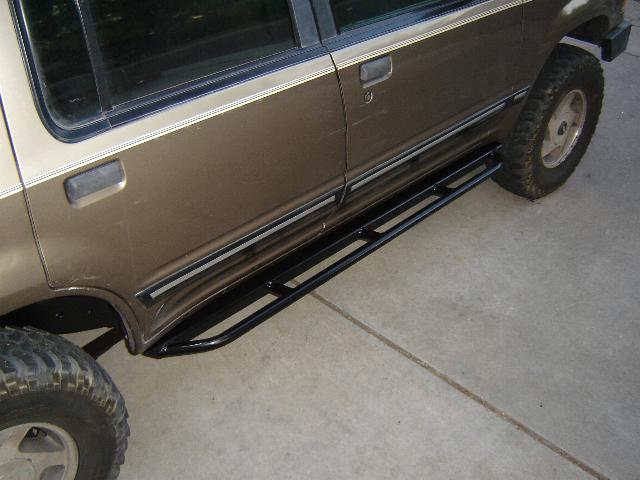

The new design I came up with is 100% bolt on with no welding to the frame, no drilling the frame and no dropping the gas tank. These 3 things I wanted to avoid entirely. They are made from 2"x4"x3/16" for the main slider with 1.5"x.120" tube for the outer bars. The ends are angled 45* from the ground up to the body to allow rocks to slide under the rock sliders easier. The outer bars are angled up 10* and have 45* ends. They stick out approx 1" from the outermost part of the doors/body. The 'legs' to the frame are 2"x2"x.120". Gussets are made from 1.25"x.120" tube scraps I had.

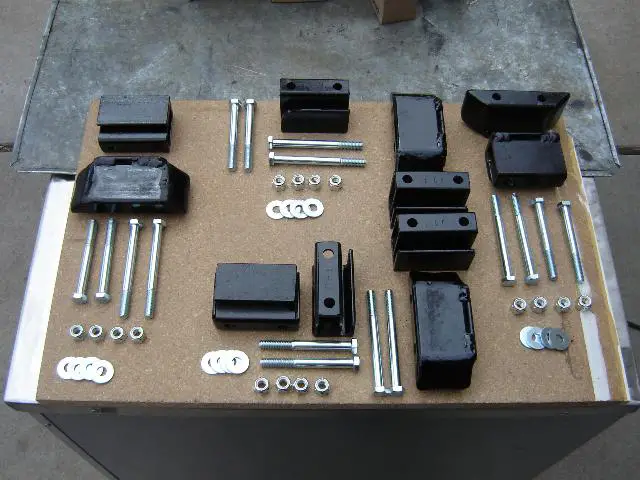

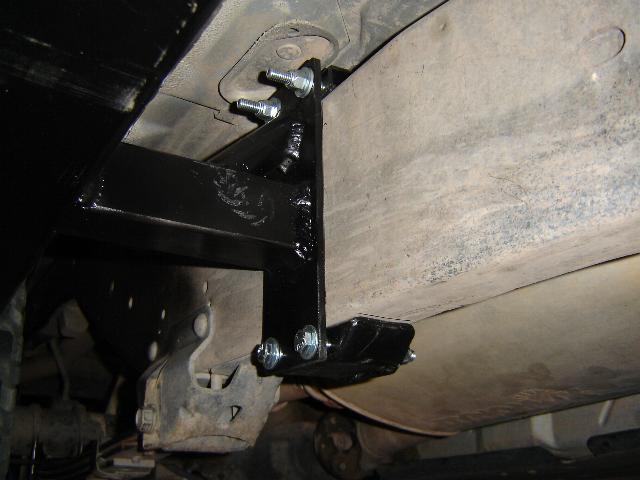

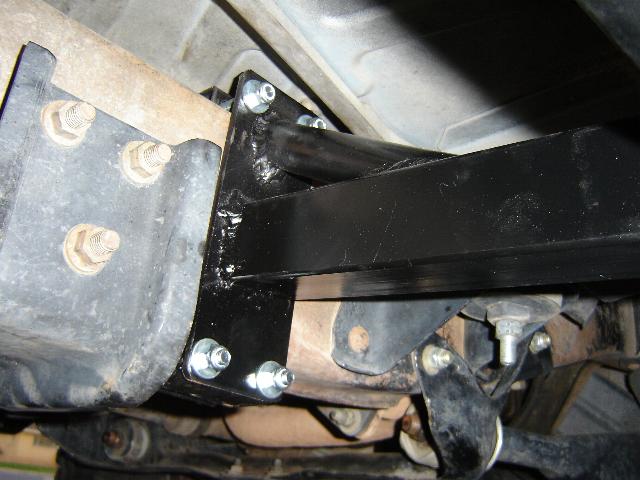

To bolt them to the frame I fabricated 12 brackets that hook onto the frame and then the slider frame plates (3 per side) bolt to the brackets. Below is a pic of 11 of the brackets and hardware. The lower brackets do hang down 1" from the frame but I felt it was a trade-off that had to be made to reach my design goal. To combat the brackets hanging below the frame I ramped them to a 45* angle for rocks to pass over them easier.

I am really happy with how they turned out and they should be really solid. They are 1" higher than my old sliders were and they will protect the outer body much better. I did a test with the hi lift jack and there was very little deflection of the sliders in relation to the body. The real test will be in Moab a few days from now!


Attachments

  • sliders2.JPG
    53.3 KB · Views: 2,285
  • sliders10.JPG
    41.6 KB · Views: 5,660
  • sliders12.JPG
    46.3 KB · Views: 2,452
  • sliders13.JPG
    37.6 KB · Views: 3,544



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,367
Reaction score
556
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ

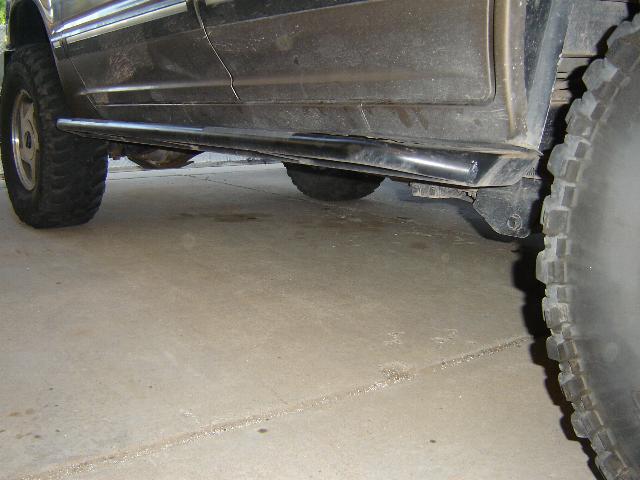

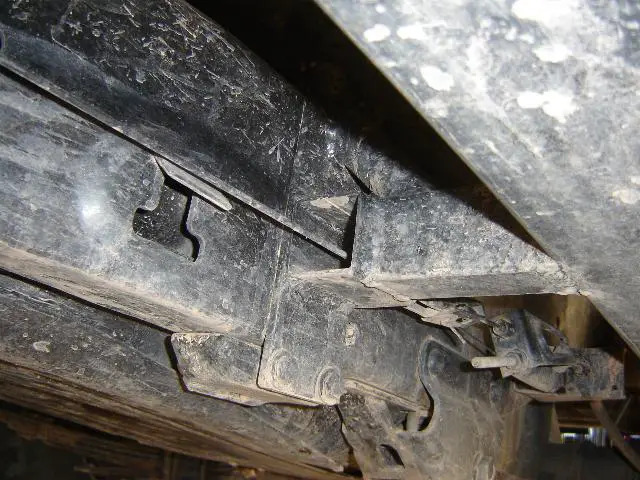

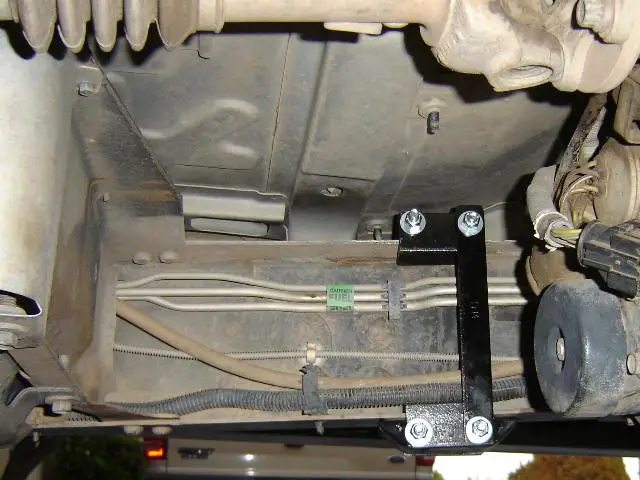

A couple more pictures of the inside of the frame at the middle leg and the driver side slider. Notice the box tube turned sideways for the e-brake cable to pass through.


Attachments

  • sliders14.JPG
    51.7 KB · Views: 2,343
  • sliders3.JPG
    39 KB · Views: 2,278
  • sm_e-brake provision.JPG
    sm_e-brake provision.JPG
    67 KB · Views: 1,773
  • sm_slider level view.JPG
    sm_slider level view.JPG
    42.3 KB · Views: 3,634






Diff Whack Daddy

And the Roll Over Posse! Under the Hood Moderator
Elite Explorer
Moderator Emeritus
Joined
February 19, 1999
Messages
3,781
Reaction score
11
City, State
Mount Vernon, WA
Year, Model & Trim Level
1st Gen XLT 4dr
Callsign
KG7VTT
Very nice.:thumbsup:













zhanx

Explorer Addict
Joined
April 6, 2004
Messages
1,453
Reaction score
4
City, State
Up state NY
Year, Model & Trim Level
2000 xls
good job man







SkanlaxJMO

Explorer Addict
Joined
September 30, 2005
Messages
3,097
Reaction score
3
City, State
Syracuse, New York
Year, Model & Trim Level
96 XLT
wow great job those look prefesinally done...almost like you took them out of a box.







21robbie21

Elite SPort
Joined
January 11, 2004
Messages
384
Reaction score
7
City, State
duluth, ga
Year, Model & Trim Level
explorer sport 2001
when will i be recieving my set in the mail :D Great work man :thumbsup:







blueox

Elite Explorer
Joined
July 19, 2003
Messages
382
Reaction score
0
City, State
Near Bloomington, Indiana
Year, Model & Trim Level
94 4x4
Beautiful :thumbsup:













Diff Whack Daddy

And the Roll Over Posse! Under the Hood Moderator
Elite Explorer
Moderator Emeritus
Joined
February 19, 1999
Messages
3,781
Reaction score
11
City, State
Mount Vernon, WA
Year, Model & Trim Level
1st Gen XLT 4dr
Callsign
KG7VTT
Tube-check
Notcher-check
Bandsaw-check
Bender- :(

Well let's see, what do you think my next tool purchase will be. I already have rock sliders, and they look just like those, just without the tubing and I really, really like.

So, motivation is also complete and I will now Giter dun:D













Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,367
Reaction score
556
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Thanks for the compliments everyone :thumbsup:

FROADER said:
I like! Similar to mine. :thumbsup: So I need a rear bumper, think you could build one up real quick and bring it to Moab? :p See you there!!

Sure let me just grab one off the shelf LOL. I saw your post about your sliders and liked them. These are also similar to RangerX's with the rectangular main slider tube and outer round tube. I also saw a few other rigs with similar sliders and also got part of the mount idea from a late model Land Cruiser. See you in a few days.













mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,824
Reaction score
9
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
yeah, those are excelent. glad i didnt mount mine yet because that is an awesome idea. i was going to drill holes in the frame and bolt plates to it.. but the clamp-type idea is excelent.







supergildo

Well-Known Member
Joined
October 26, 2004
Messages
188
Reaction score
0
City, State
fort collins, co
Year, Model & Trim Level
02 ranger
they look great. awesome work!













mynameisaric

Explorer Addict
Joined
January 18, 2004
Messages
1,824
Reaction score
9
Location
Illinois
City, State
Bolingbrook, IL
Year, Model & Trim Level
98 XLT
Callsign
KD9OWX
so how excellently do these hold up? the mounts ever catch enything ( i know they are angled, but they still hang down a little, so thats why i ask). and is there anything you would do differently if you had to make them again?













410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
28,700
Reaction score
5,045
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
I am guessing, from recently seeing Brians Explorer and the armor, that these sliders will hold up just fine. That sucker is a tank and the quality, fit and work is impressive.
Nice work again! those are badass. How much do they weigh??




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
8,992
Reaction score
26
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Wow that is nice im gettin ready to make some so i can start my cage and i think i am gonna have to steal ur mount idea
