Mystery hose behind intake manifold ‘06

Cdownhour

New Member
Joined
March 26, 2021
Messages
2
Reaction score
0
City, State
IN
Year, Model & Trim Level

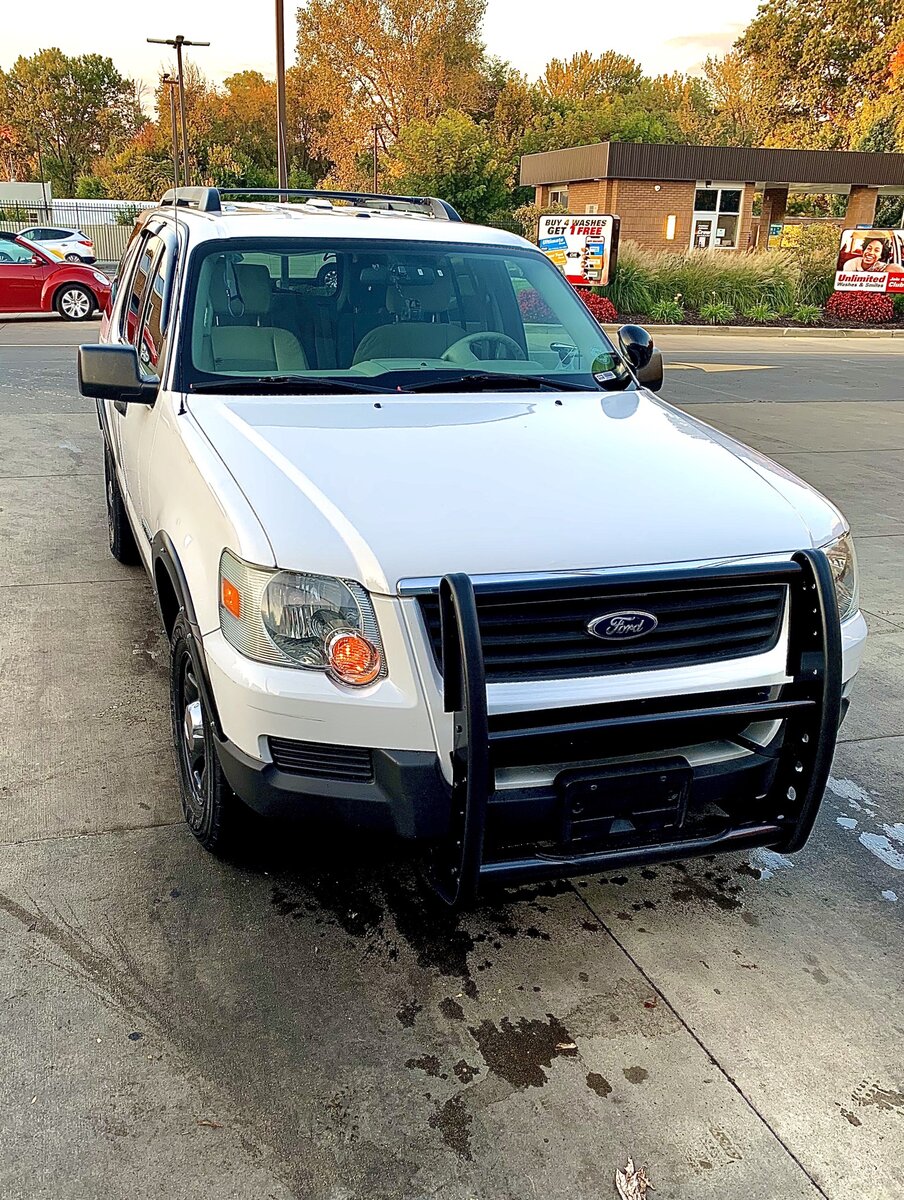

2006 Ford Explorer 4.0 V6

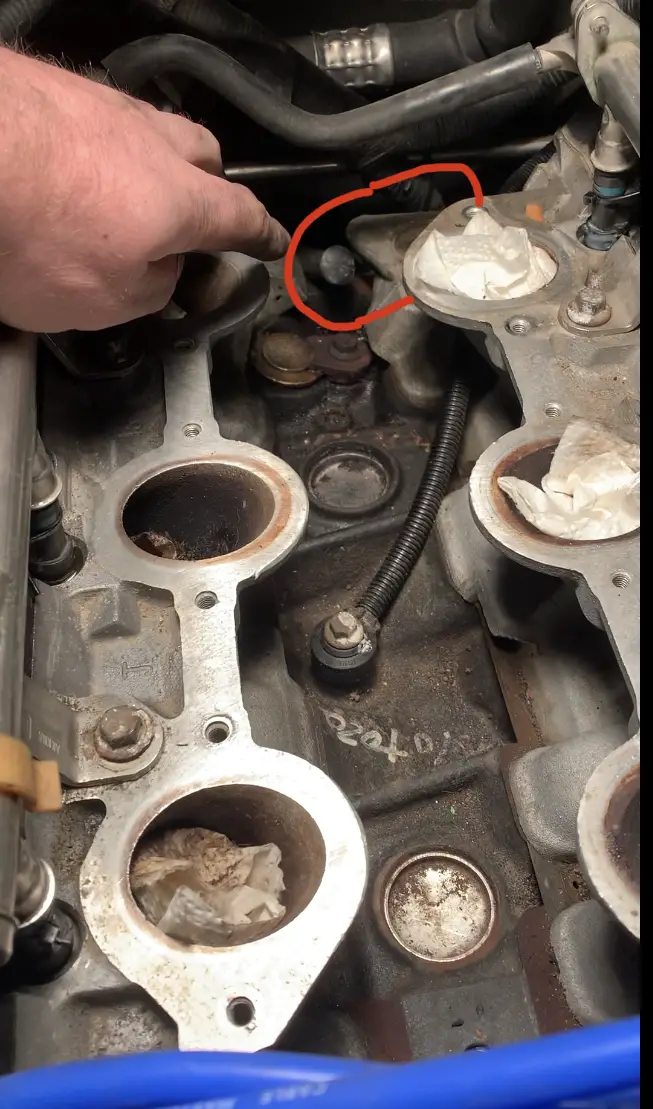

I was changing my intake manifold gaskets and was alarmed by this capped off hose behind my intake manifold. (I have attached photos... let me know if they don’t show). My vehicle is operating normally so it seems to be an intentionally capped hose, but what is it?? I couldn’t find info regarding the line direction... and also, there are those three empty bolt holes right next to it that appear to be for an aftermarket part. Any insight about this system would be greatly appreciated. (My guess, hose for trans, and that empty spot is an upgrade option, i.e. pump, since it’s a closed system)



<



boominXplorer

Elite Ranger
Elite Explorer
Joined
September 16, 2002
Messages
9,416
Reaction score
795
City, State
Virginia Beach, Va
Year, Model & Trim Level
00 4x4 Mounty
Transmission vent tube has a push pin in the top to let air in and out but keep out debris.

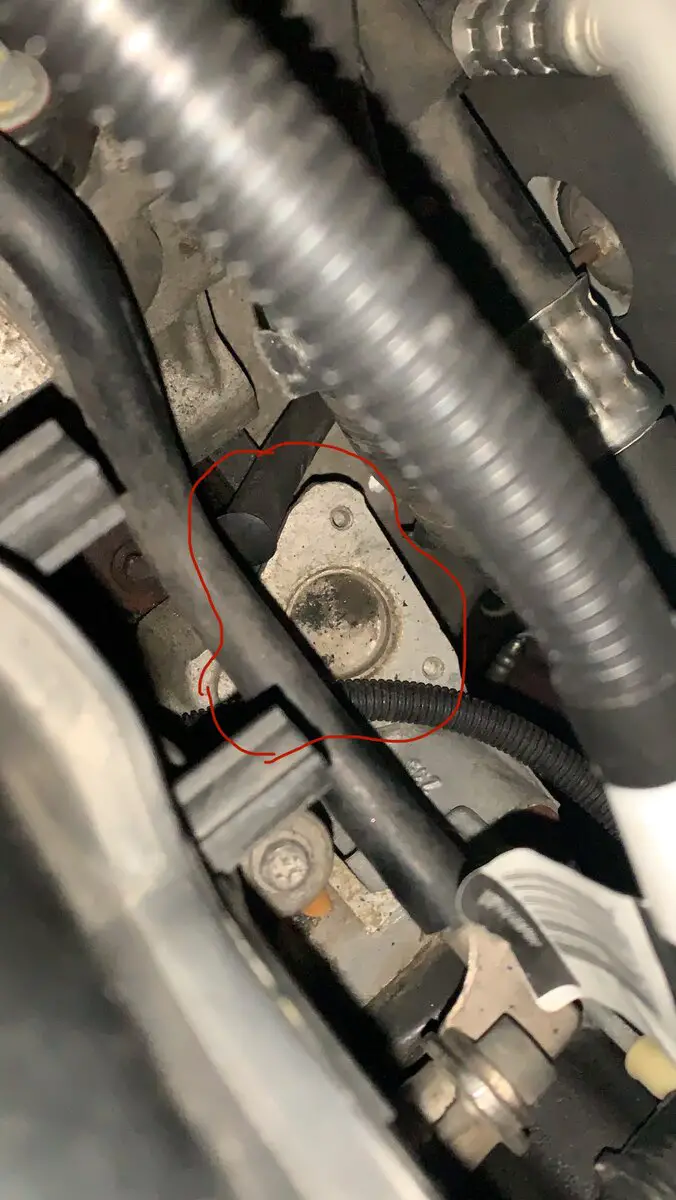

The heads are cast the same so that 3 bolt port is the same as where your thermostat housing bolts to.

<



Cdownhour

New Member
Joined
March 26, 2021
Messages
2
Reaction score
0
City, State
IN
Year, Model & Trim Level
2006 Ford Explorer 4.0 V6
Transmission vent tube has a push pin in the top to let air in and out but keep out debris.

The heads are cast the same so that 3 bolt port is the same as where your thermostat housing bolts to.
Thanks for the reply. The casting symmetry makes since for those bolts.
That hose is plugged with a plastic push cap, like the ones you find on fenders and such, so it can’t be the trans vent. I’ve seen that same hose capped the same way on videos of these engine tear downs. But no one ever mentions it.

<
