Negative wire diagram 2012 explorer

Vicsan8045

Member
Joined
December 16, 2021
Messages
12
Reaction score
0
City, State
Riverside ca
Year, Model & Trim Level
2012 base model explorer

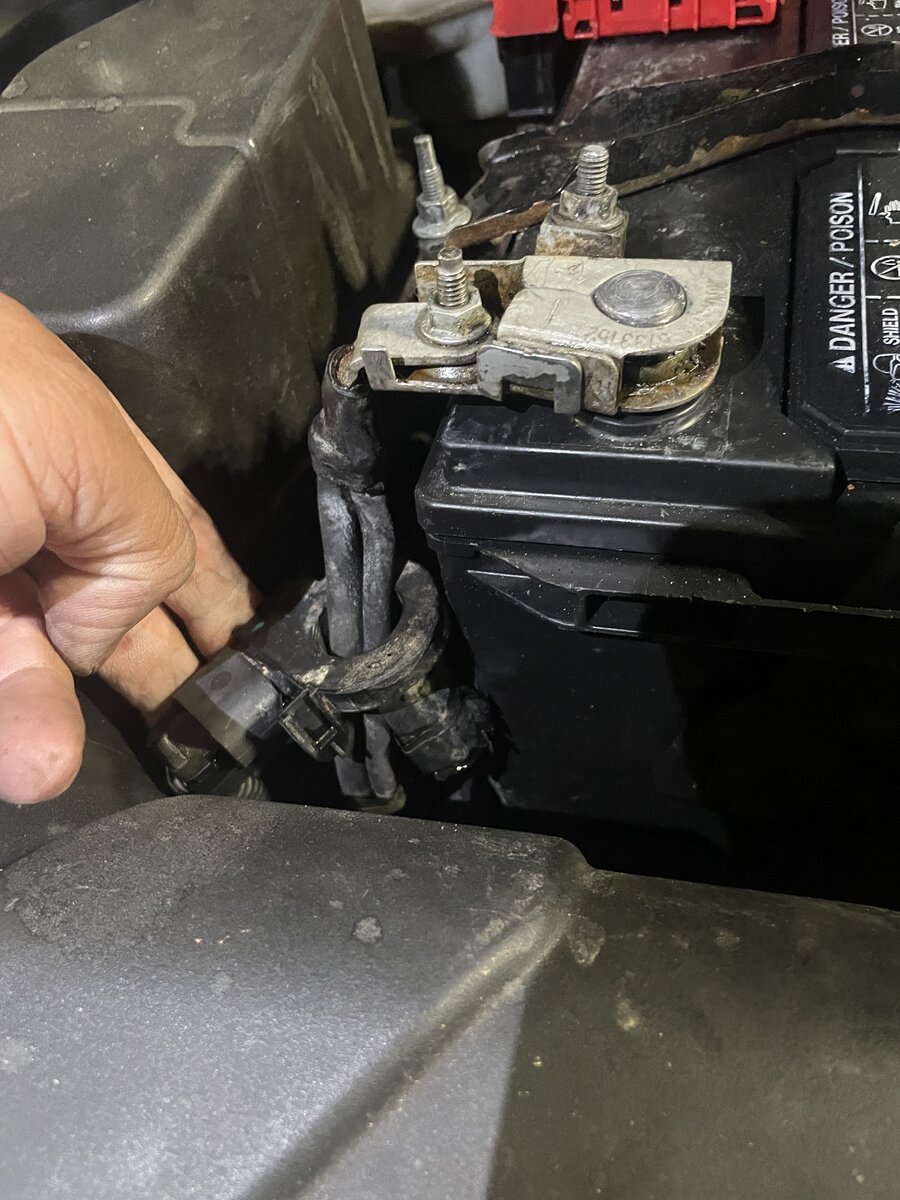

Anyone have a diagram or cantell me where the negative wire ends up ? Want to tighten or replace the ground every time I move it my lights go crazy




Join the Elite Explorers for $20 each year or try it out for $5 a month.

Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Have you tried grounding it with a jumper cable to a metal point on the engine/frame to see if that fixes the issue?

Peter













I did it didn’t fix it
In that case, it might not be a 'grounding' issue. Hopefully, a member will be able to help in determining where the negative cable is grounded.
Have you had the battery tested? Good luck.

Peter







In that case, it might not be a 'grounding' issue. Hopefully, a member will be able to help in determining where the negative cable is grounded.
Have you had the battery tested? Good luck.

Peter
I replaced
In that case, it might not be a 'grounding' issue. Hopefully, a member will be able to help in determining where the negative cable is grounded.
Have you had the battery tested? Good luck.

Peter
If the ground is lose or bad shouldn’t it just not start in theory ? I gave ford a call they said the ground is attached to the battery harness







I replaced


If the ground is lose or bad shouldn’t it just not start in theory ? I gave ford a call they said the ground is attached to the battery harness
Yes, I believe so but you mentioned the problem is intermittent. There are several ground points as well in the Explorer for different systems.
Attempting to track down electrical gremlins can be quite a chore.

Peter







Yes, I believe so but you mentioned the problem is intermittent. There are several ground points as well in the Explorer for different systems.
Attempting to track down electrical gremlins can be quite a chore.

Peter
The thing I’m getting is check charging system “all the time “ but sometimes my lights go crazy and Bluetooth ac etc turn off and back on and then off and on lol







When the dash lights up like a Christmas tree, the cause to some reports here, was a bad or failing battery.

Peter







When the dash lights up like a Christmas tree, the cause to some reports here, was a bad or failing battery.

Peter

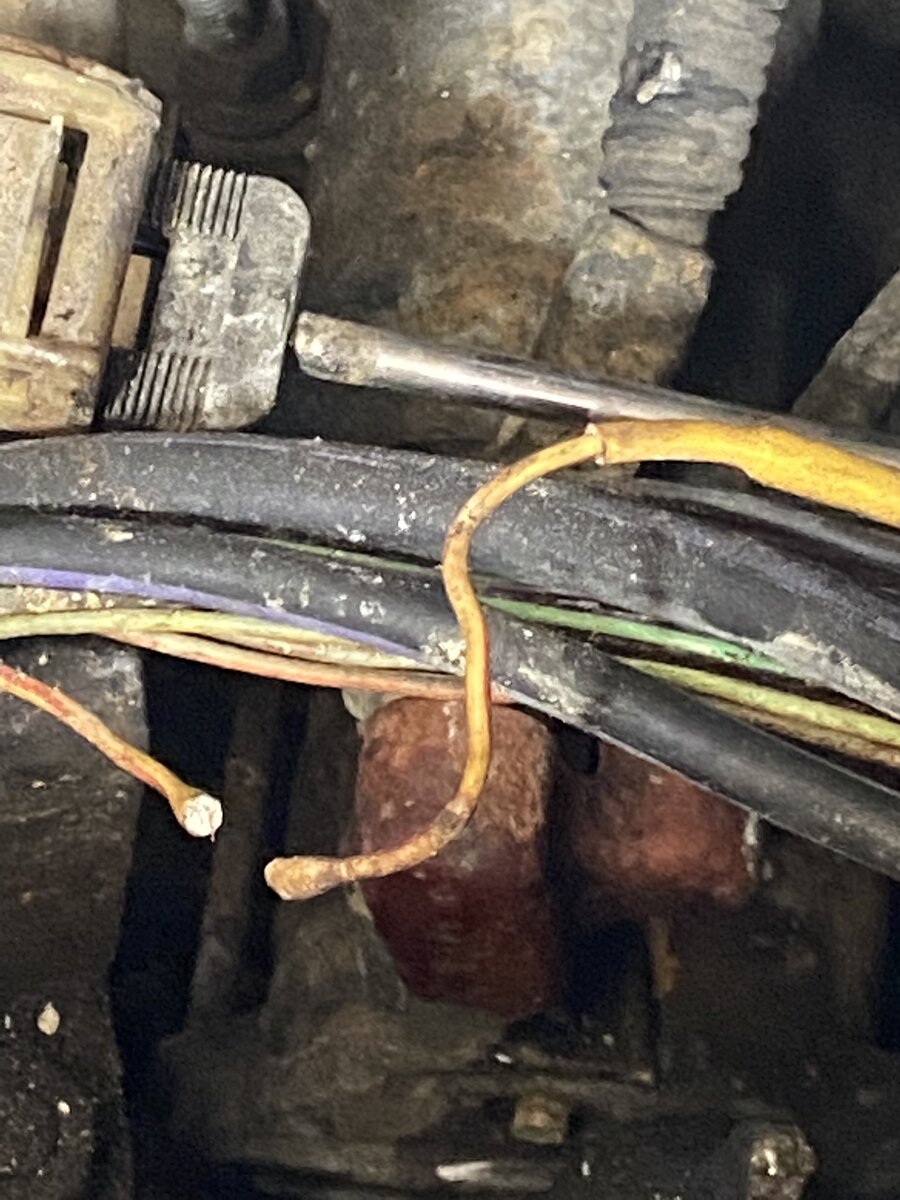

Thank you guys I love y’all I found the fault lol







I guess that could be an issue. :D
