New ARB Safari Snorkel

DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
1
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
So after hearing plenty of horror stories about hydolocking and having a close call myself I decided I needed a bit of protection. I looked around and the only manufacuter of snorkels was ARB, and of course they didn't make one for an Explorer. So I go and do what most of us Explorer owners do and build one myself.

The thing I really loved about the ARB models was the fact that they have these channels built into the intake scoop that would remove water, say if you're driving in the rain. I went down to a local 4x4 shop and ordered just the intake scoop. BTW, this was back in October, the part was on backorder from Australia so it didn't arrive until last week. Anyhow, since cutting into my conical airbox would be a bitch, I decided to swap it out for the box type off Spas' 98 SOHC since she got a KKM (Thanks Spas!). Now of course my intake tube is too big to just fasten on to the end of the MAF, so I cut apart my old box, and fabbed up an adapter to make it all work. I drilled a 4" hole in it with a 3" PVC 90 degree piece that went into a 2.5" PVC conduit. The 2.5" conduit is 3" on the outside which matched the snorkel's diamater. I cut a hole in my fender and trimmed it a million times before it all lined up, bolted it all down with conduit hangers and then, since the 3" PVC bend didn't exactly fit the 2.5" conduit I used PVC glue and great stuff all over the place to seal it all (wear gloves when working with this crap, it doesn't like to come off your hands and it gets on everything).

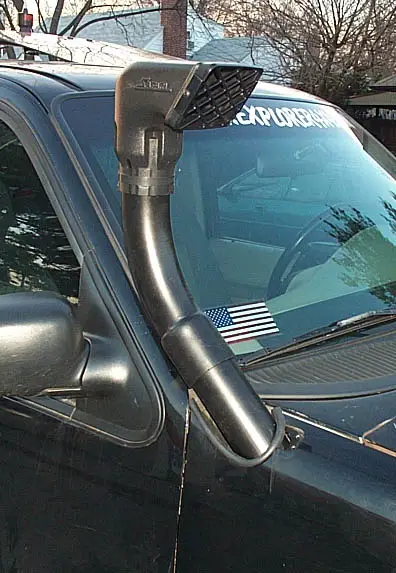

So it came out looking better than I thought it would, and was cheaper than buying a whole snorkel system from ARB and hoping you could make it adapt. There's a couple of bonus advatages to having it too. First, you're getting cold air from outside, it works like a ram air, and it sounds badass having your intake right next to your window. So lets get on with the pics!:













Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Alec

Elite Moderator
Moderator Emeritus
Joined
April 25, 2000
Messages
15,997
Reaction score
1
City, State
Houston, Texas
Year, Model & Trim Level
2008 JK
Very nice ;)

I thought about doing this, but I have vulnerable stuff below my intake so that's not the limiting factor. Also, a setup like that would probably starve my supercharger for air.

It looks great on your truck. Make sure all your breather lines and electricals are protected now.





IAmTodd

4x Explorer Veteran
Joined
April 8, 2002
Messages
8,887
Reaction score
7
City, State
Johnstown, PA
Year, Model & Trim Level
2015 Jeep
Looks awsome! Now you'll drowned before the X does!!:D





RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,119
Reaction score
370
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Damn! Looks store-bought! :D Good job!

I don't think that would pass California smog inspection. I guess you don't have that worry in NY?





jasonb

Jackstand Wheeler
Moderator Emeritus
Joined
April 16, 2001
Messages
6,041
Reaction score
1
City, State
Suwanee, GA
Year, Model & Trim Level
'99 Sport 4x4
that's awesome. looks good!









Digger196

Explorer Addict
Joined
February 14, 2002
Messages
2,510
Reaction score
0
City, State
Winston-Salem, NC
Year, Model & Trim Level
98 Cherokee
Very nice! that'll go on my in the furture as well once i get into college and don't car about drilling a 3" hole in the fender!





DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
1
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
We have emmissions testing here in NY, but I'm registered in TN so I don't have to bother with any of my inspections.

Alec- I've still got to extend breather lines, and try and figure out a way to protect the computer and vital stuff, I don't really want to ford streams that are that deep, but it's good to have some protection.









AlaskanJack

Elite Cabin-Fever Captain
Joined
March 24, 2002
Messages
4,539
Reaction score
0
City, State
Centralia, Washington
Year, Model & Trim Level
91 , 93 & 01 Sports
I like it!!! That inspires me. But I am having trouble seeing how the snorkel comes into the airbox. I looked at the pic over and over and just couldn't see it. How does it run from the outside of the fender to the airbox or MAF?





parli22

Loco en cabeza
Joined
August 5, 2001
Messages
659
Reaction score
0
City, State
New York
Year, Model & Trim Level
92 Explorer UNEDDIE
how much did the arb snokel parts cost you?
just wondering because doing the same things. But didn't way.





Doug

Moderator Emeritus
Joined
August 30, 2001
Messages
5,723
Reaction score
3
City, State
Sykesville, MD
Year, Model & Trim Level
2020
looking good matt, ready to put it to the test if i ever get around to organizing a run down in the pines this year? :)





hvac man

Elite Explorer
Joined
November 30, 2002
Messages
1,139
Reaction score
0
City, State
Rifle, CO
Year, Model & Trim Level
93 Sport
That is possibly the best home made snorkel I have ever seen. Great job on the fender trimming also, it looks very professional.









DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
1
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
Alaskan Jack, there's a 90degree PVC bend that goes right into the bottom of the box where I drilled a 4" hole for it, there's also a 4" hole in the fender wall that the PVC goes though. there's only like .5"-1" gap between the box and the fender wall.

On side note, I was just looking at the pic of my air box there and realized that I didn't exaclty tighten my fender bolts down. I should do that over lunch or something.





cdsl227

Elite Explorer
Joined
June 25, 2001
Messages
1,121
Reaction score
0
City, State
Brooklyn, NY
Year, Model & Trim Level
2001 Explorer XLT
I must be missing something because I don't see where it breaks off to the snorkel...

Any pics of the air duct routing? I want to ditch my air box and this does look sweet.

I have plans for the wasted space the air box is taking up... :D





Doug

Moderator Emeritus
Joined
August 30, 2001
Messages
5,723
Reaction score
3
City, State
Sykesville, MD
Year, Model & Trim Level
2020
He still has a stock airbox in the stock location. I do believe.





DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
1
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
Well, it's sort of stock, it's a stock airbox out of an SOHC instead of the round one that came on my OHV. I cut a hole behind the fender and into the airbox where I stuffed a 3" PVC 90degree bend pipe. I don't have a pic of it because it's behind the fender.





GJarrett

Elite Explorer
Moderator Emeritus
Joined
February 13, 1999
Messages
7,168
Reaction score
12
Location
SC
City, State
Chief GPS'um and Still Lost Native Texan
Year, Model & Trim Level
'99 EB 4x4 "Herc" RIP
Good job, looks great!

Matt, this summer I am planning to route PVC exactly as you have inside the fender to make a snorkel, but mine will be a "slealth" snorkle and breathe through the intake in front of the windshield instead of exiting upwards back out of the fender.

My question to you is concerning the 2.5" size of the PVC pipe you fit inside the fender. I want to go bigger. Was there enough extra space to route a 3" pipe inside the fender, or is 2.5" as big as you can get in there?

BTW, good job on your snorkel, looks great!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
1
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
Thanks, Gearld, Um, I'm not sure if 3" will work, it might, but it was pretty tight with the 2.5". One thing you'll have to do is cut out the box that's in there. I'm not sure how to describe it, but there's like a renforcement box type thing behind the fender that you have to cut out in order to fit it back there.
