New build log...

XonDubs

Well-Known Member
Joined
September 5, 2003
Messages
324
Reaction score
1
City, State
wisconsin
Year, Model & Trim Level
97 5.0 AWD Limited
First and foremost big thanks to TMH for designing and building the wall(I helped but he did most :P) lol

Tested at 150.4DB @ 31hz sealed legal on TL. Truck now peaks at 30-31hz.
Also did a 151.8 outlaw...
Set up;

Head unit(s)
Alpine 9887 in front
Alpine 9833 out the rear
--------
Front stage
2 DD 6.5 components in each door
Crunch GP 1600.4 amp
--------
Rear stage
1 DD 6.5 component set
Crunch GP 700.2 amp
--------

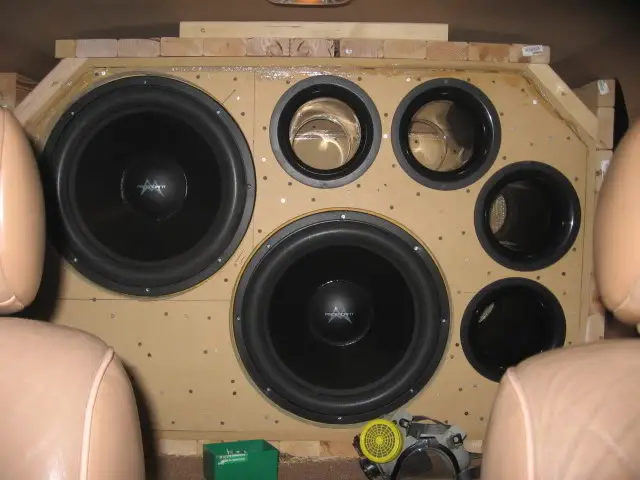

Sub stage
2 18" AA mayhems D1ohm
~16.5C.F wall tuned to 28-29hz
4 6" Aeroports

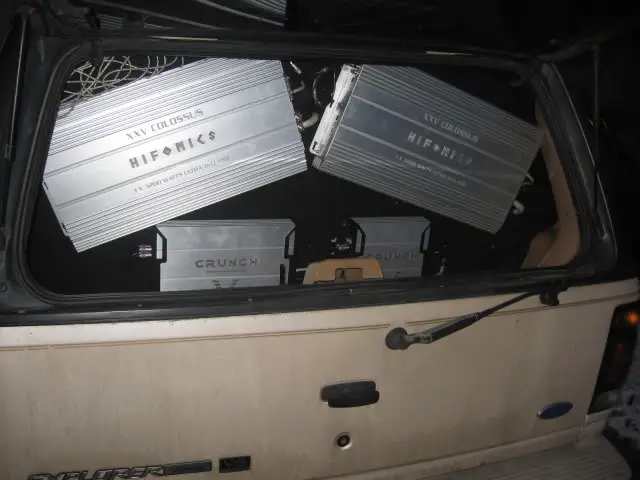

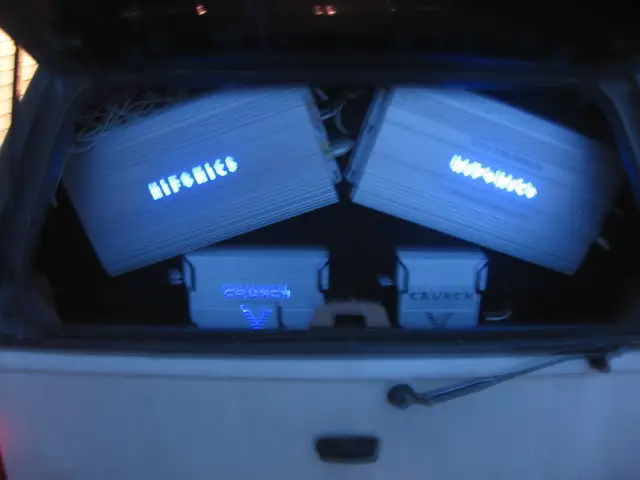

2 Hifonics XXV volossus amps

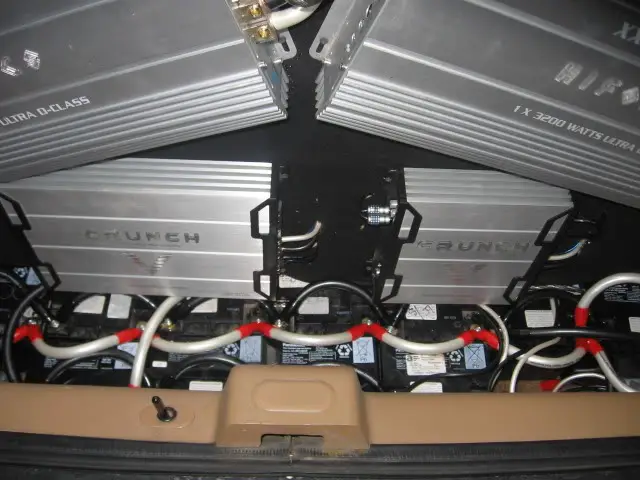

12 Panasonic AS00815-1 28ah batteries in the back
DC power 320a alternator
2 runs 3/0 welding cable

Now onto the pics....


http://i108.photobucket.com/albums/n19/slammedblackpgt/system/NEW12345.jpg
http://i108.photobucket.com/albums/n19/slammedblackpgt/system/new123456.jpg
http://i108.photobucket.com/albums/n19/slammedblackpgt/system/amp4.jpg










http://i108.photobucket.com/albums/n19/slammedblackpgt/system/wall11.jpg










Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





"bass gets you laid", haha!
setup looks sick tho, i can't even imagine what that must sound/feel like..







:eek::eek::eek::eek::eek::eek:


I'm speechless....... that is a serious speaker box.



















The basket looks like a FI btl 18







The basket looks like a FI btl 18

Ascendant audio is made by FI audio, it's their dealer line. The Mayhem is pretty much their fully optioned BTL with old style motor.

Here is a new video(thanks brian!)
http://www.youtube.com/watch?v=DKejoVshwC8

lol I made the sticker, but I'm sure you can find it somewhere online.

Thanks for the compliments, hopefully I compete well this year.

Here is a video of some testing we did last night before the cops crashed the party... lol
http://www.youtube.com/watch?v=80oJwRZWGH0







Can you still listen to your music without all the bass like a sound quality thing, or is it a DB drag vehicle? like do you have a way of still hearing other things besides the bass. Not knocking it at all, that's a extremely wicked setup.







Yes, I can turn the subwoofer output down so the bass doesn't kick as hard. the highs/mids/subs are really close to equal even though it doesn't show it in the video.







i gotta give it to ya man, that is awsome! i built a wall in my 92 with 4-15". i thought you were building a house at first,lol. looks sweeeet! keep up the good work.
