no dash or radio lights

whiteriver

New Member
Joined
January 24, 2015
Messages
2
Reaction score
0
City, State
northeast Arkansas,USA
Year, Model & Trim Level
1996 explorer
The dash and radio lights quit working. I was told the bulbs are blown but what would cause all the bulbs to blow at one time. the specialty bulbs such as the warning, high beams, and cruise control, etc. still work. only the instruments and radio and heater control lights don't work. fuse is good. Any help /words of wisdom would be greatly appreciated.
regards, parker aka whiteriver

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




nardbuster

Member
Joined
January 31, 2015
Messages
19
Reaction score
0
Year, Model & Trim Level
1999 ford explorer xlt
I would think your tails lights don't work either.
Brake lights will, blinkers not the tail lights
But, you mentioned the fuse was good.

<



ZWilson07

Elite Cowboy
Joined
July 24, 2009
Messages
569
Reaction score
8
City, State
Louisville, Kentucky
Year, Model & Trim Level
2000 Ford Explorer
Which fuse did you check? Or did you make sure to check multiple ones?

<



bobflood

Elite Explorer
Joined
May 27, 2010
Messages
1,578
Reaction score
31
City, State
Powder Springs, GA
Year, Model & Trim Level
1997 Eddie Bauer V8 2WD
Could also be the dimmer switch.

<



SoNic67

Explorer Addict
Joined
January 24, 2010
Messages
3,051
Reaction score
15
City, State
Newport News, VA
Year, Model & Trim Level
2001 V8 (Eddie Bauer) AWD
^ This.

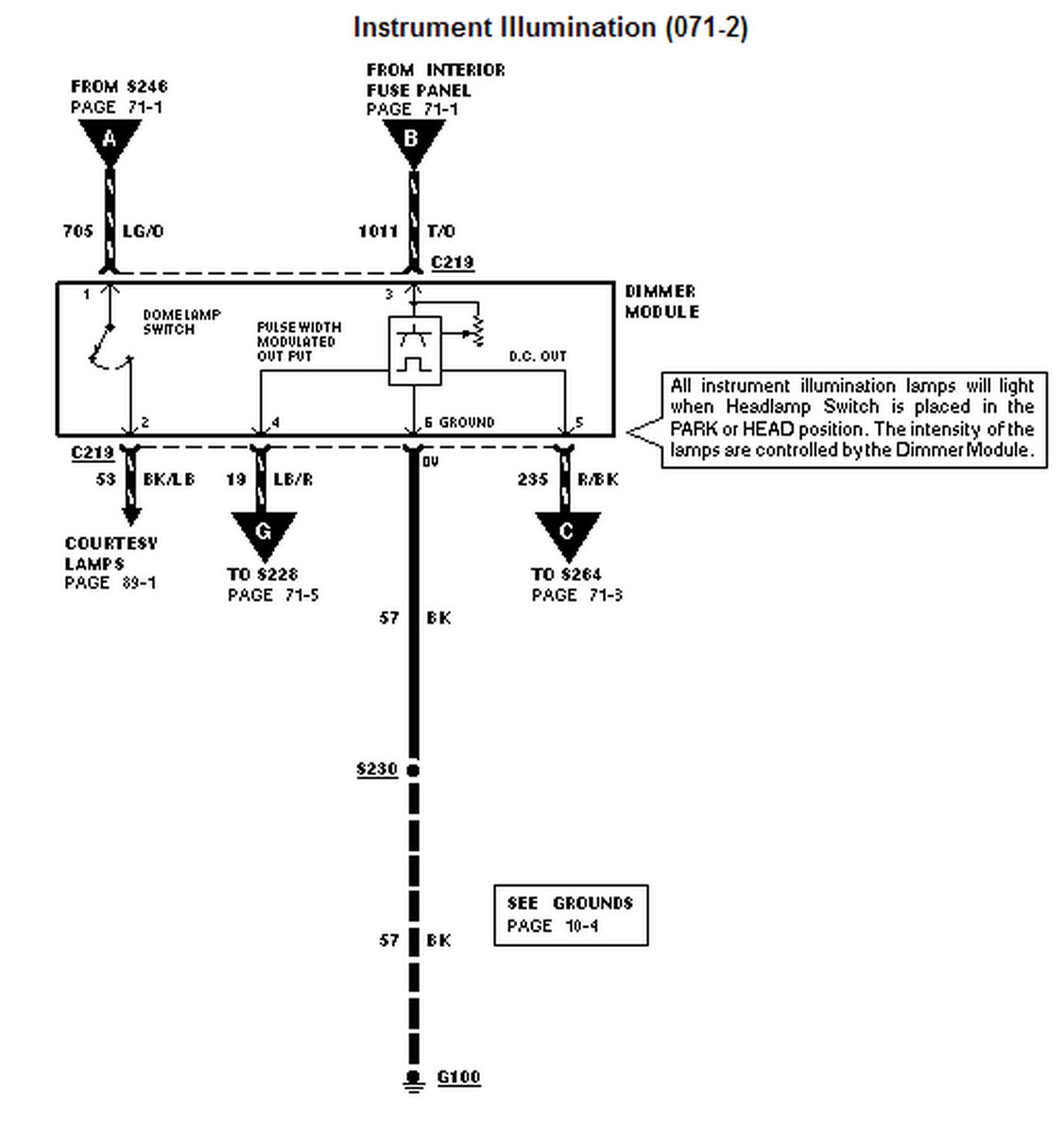

Either the Dimmer is bad or a ground connection is lose. See below.




<
