This is David's (N2Ford) 01 sport trac V8 swap thread. It will be getting a 4406 electric tcase installed at the same time. It will also be getting a disc brake upgrade as well as a limited slip carrier installed. My life has had some changes recently, so I'm limited to only a couple of hours or so per day during the week to work on this, so it'll be slow but hopefully steady. David is not in a rush to get this completed, so I won't be rushing this swap, it'll be done correctly and with detail, just as if it were my own truck. I won't go into detail on the removal from the donor, but I will mention what is needed from the donor, and will go into detail when installing the engine into the trac. Here is the donor explorer, a 98 AWD involved in a light front end collision, 98k on the clock...



The engine...



The recipient, a Job 2 2001 sport trac 4x4...



I originally wanted to start the engine in the donor to make sure everything operated as it should. Since I was missing the radiator, the trans cooling lines were exposed. So I chose to skip this step, and started by removing the front clip. The core support had extensive damage, so removing the core support made it easier to remove the engine....



Recently I had to change the heater core in my trac, and found you have to remove the heater box in the engine compartment to change it. I realized that it only takes 4 bolts to remove the heater box, and gives you ample room to pull the motor. My numerous previous swaps I've removed and installed the motor with the box in place, this is the first time I'm removing the box to perform the swap, and I think I'll be doing it this way from now on. It takes less than 5 minutes to remove all the bolts and wiggle the box out, and all the bolts have easy access. Here is a shot of the box removed, and the clearance I now have. Notice some mice have took residence inside the cab. I'll have to closely inspect the dash wiring harness when I go to pull it...

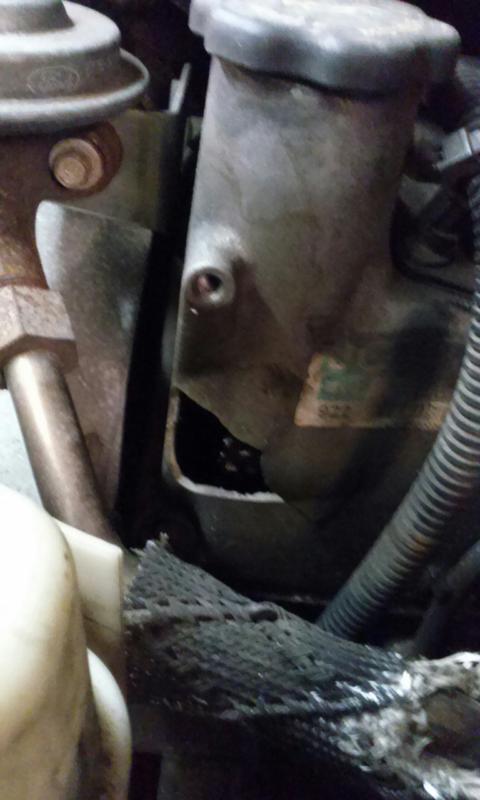

After removing the heater box, I got a closer look at the passenger side engine bay, and I found this. I'll have to see if I can use the tube from the trac's 4.0, otherwise I'll need to order one...



Over on the driver side, I removed the entire engine bay harness at the firewall. The engine harness stays with the motor....



Here is the complete engine bay harness, from the driver side firewall connectors around to the heater box connections...



Here is where I stopped for today, and how it looks.



The fuel lines were disconnected, power steering pressure and return lines, the battery hold down brackets to the frame, the cruise module, and the heater hose lines. All thats left up top is the throttle cable from the pedal, as it'll be reused. Down under both driveshafts, the trans crossmember, shifter cable and the exhaust need to be disconnected and the motor, trans, and tcase can be removed in one piece. I plan to have the drivetrain and the rear axle for tomorrow's progress. Stay tuned...

SVT



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Dan95-5.0

Active Member
Joined
December 24, 2008
Messages
132
Reaction score
1
City, State
winnipeg, Manitoba
Year, Model & Trim Level
2004 Sport Trac
Im keeping a close eye on this. Progress looks great. Whats your expected turn around time for this swap ?





just1me

Active Member
Joined
July 3, 2010
Messages
483
Reaction score
2
City, State
Pryor, OK
Year, Model & Trim Level
1998 Ranger Stepside 2.5
Looking good, your doing a great job, keep it up.





MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,540
Reaction score
9
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
:popcorn::dpchug:

I'll be watching this closely as I'm doing a 351w/C6/1356 manual transfer case swap into my '03 ST. I know it won't be the exact swap but a lot of the detailed pictures and info will be greatly extremely helpful to me.

Great job so far man.









RangerSVT

Active Member
Joined
January 22, 2010
Messages
262
Reaction score
1
City, State
Indian Mound, TN
Year, Model & Trim Level
02 V8 Sport Trac 4x4
:popcorn::dpchug:

I'll be watching this closely as I'm doing a 351w/C6/1356 manual transfer case swap into my '03 ST. I know it won't be the exact swap but a lot of the detailed pictures and info will be greatly extremely helpful to me.

Great job so far man.

The 351w and the 302, iirc, share the same block mounting bosses, so you can use the stock explorer mount plates and motor mounts, your trans crossmember you will have to fab as the C6 is shorter. I'd run the E4OD if it were me...

SVT





just1me

Active Member
Joined
July 3, 2010
Messages
483
Reaction score
2
City, State
Pryor, OK
Year, Model & Trim Level
1998 Ranger Stepside 2.5
Yeah overdrive would be a bonus with the 351w. As for the Sport Trac 5.0 swap are you eliminating Pats, or installing Pats B from the donor? I assume your going to be using a tuner with the donor ABS module/G-sensor to correct for gear ratio and/or tire size?





MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,540
Reaction score
9
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
Thanks for that info, I'll look around and see if I can find a E4OD. I mainly bought the whole truck for the motor and transfercase, I would rather have a 4 speed overdrive trans so it's easier on the highway.













N2FORD

Elite Explorer
Joined
January 20, 2002
Messages
706
Reaction score
47
City, State
Kingston,TN
Year, Model & Trim Level
2001 Sport Trac 4wd
Well I guess I should chime in since its my truck. Thanks to RangerSVT for working on this project. I have had about ten Explorers/Mountys over the years. I have had 2 V-8 models and the rest V-6's. I had another ST a few years back and have come back to them about a year ago. I felt like the V-8 into the ST would be a great combo for size and power. I have had and have several F150's but they are a little big for my needs. I have bought another ST with a bad engine with the plans of the engine from the red ST that's getting the V-8 going into it also with RangerSVT's help. While the engine is out of the red one it will get chains, guides and fix any leaks. It runs good and does not use oil but does have a little of the chain rattle. The white ST is pictured below as I am getting the things I can do in shape while it waits for the engine. The engine broke the front chain it appears and knocked a hole in the valve cover and sounds like it has no compression when it turns over. Anyway thanks to all on this forum and ttbit for the ideas and helpful sticky thread.


Attachments

  • 0215141758.jpg
    37.1 KB · Views: 1,248
  • 0215141757.jpg
    40 KB · Views: 1,201




just1me

Active Member
Joined
July 3, 2010
Messages
483
Reaction score
2
City, State
Pryor, OK
Year, Model & Trim Level
1998 Ranger Stepside 2.5

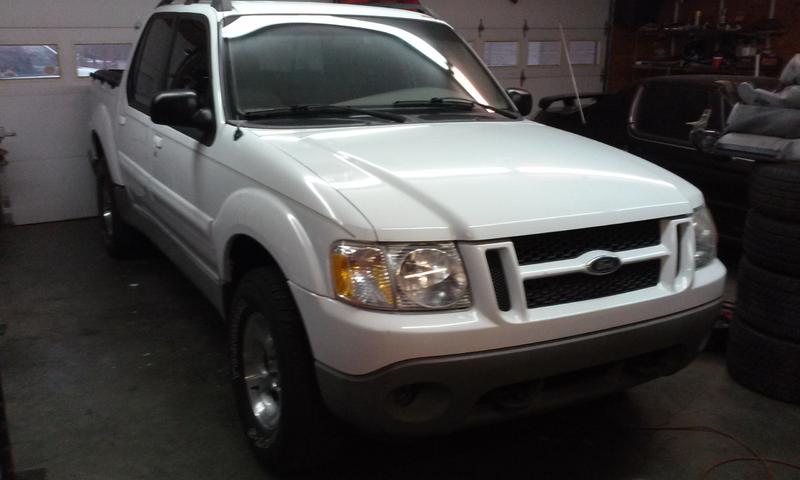

Is that white Sport Trac a 2001 also? It looks like a Job 1 model.
