P0171 & P0174 4.0L SOHC's Sport/Sport Trac

ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,737
Reaction score
8
City, State
Denver,NC
Year, Model & Trim Level
'94 F150 4x4 SWB 4.9L
There are regular posts looking for answers to the P0171/P0174 DTC's. The 2001-2003 Sports and 2001-2005 Sport Tracs are legendary for throwing the codes together. Although there ARE instances where intake gaskets, among other issues, are the cause the overwhelming majority of these codes are caused by the PCV elbow cracking on the bottom and causing a substantial vacuum leak. Over & over owners replace gaskets/solenoids/etc only to have this code remain and finally finding the elbow cracked. It's a cheap part, easy to examine/replace so I'm simply posting this to advise those suffering with this code combo to check the elbow thoroughly before looking further. It's so simple that it's ridiculous NOT to check it first.

To be clear, this arrangement is NOT on Job 1 builds of the 2001 year models.

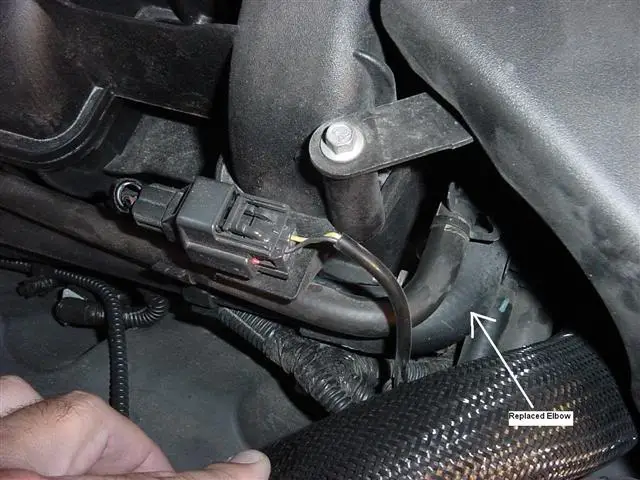

As a reference, this is the 2001 Job 1 arrangement.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,462
Reaction score
430
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)
+1 ncranchero Great post Steve! Log in to see pics.

The key word here is "bottom". Sprays will not always detect the leak, Elbow must be carefully removed.

On rare occasions, aftermarket ignition coils have also been known to throw the PO171/174 codes.

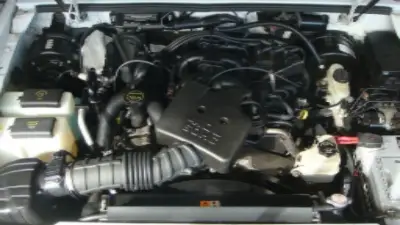

Job 1 engine (No PCV elbow) Leaking intake gaskets common. Oil fill on driver side.



Job 2 engine with PCV elbow. Inspect the UNDERSIDE of the PCV elbow. Oil fill on passenger side.


Aftermarket rubber elbows only. (Dorman 48011)
Dorman Products - 48011

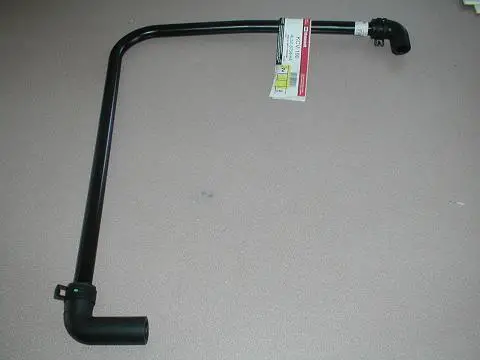

Aftermarket complete assembly (Gates EMH 153)
More Information for GATES EMH153





MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,540
Reaction score
9
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
Yep, I couldn't see it on mine until I took off the elbow and squeezed tube to see the split. The whole assembly in the second picture was $28 from the Ford dealer.





trac power

New Member
Joined
February 24, 2010
Messages
34
Reaction score
0
City, State
York, PA
Year, Model & Trim Level
03 Explorer sport trac
I had the exact same codes thrown on my truck and i replaced that elbow because it was gone on the bottom and after i replaced it i still had the code and when i started delving into it more i found out that the pcv valve was stuck and it needed to be replaced. but the biggest thing i found was the dress up breather tubes that you get to replace the hose on the bank one valve cover was throwing the code. once i got rid of it and replaced the pcv valve the code went away. after that i went and talked to my buddy who is a ford technician and he said that those breather tubes are a bad idea unless, you dont have a inlet on your intake for it.





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,737
Reaction score
8
City, State
Denver,NC
Year, Model & Trim Level
'94 F150 4x4 SWB 4.9L
Right you are/he is. Any/all of the above cause the closed crankcase ventilation system to draw outside air, thus the vacuum leak.





WWasem

Active Member
Joined
January 4, 2003
Messages
208
Reaction score
0
City, State
Lehigh Valley, PA
Year, Model & Trim Level
'07 Explorer EB '01 Sport
This thread saved me such aggravation! My truck threw the codes and after reading this, I immediately went to check that elbow. Sure enough it was cracked on the top in the corner. Now my question... What is the part number I need to order to replace the elbow?






ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,737
Reaction score
8
City, State
Denver,NC
Year, Model & Trim Level
'94 F150 4x4 SWB 4.9L
Motorcraft part number is KCV-190 for the complete line.
Some say 9807 NAPA (cut to fit) will work for just the elbow. Haven't tried it myself.





1mojoranger

New Member
Joined
October 1, 2011
Messages
1
Reaction score
0
information correct

thanks for this solution. i repeatedly received 171 and 174 codes and wd clear them only for them to return after a few days. first saw the intake manifold gasket repair advice and knew this wd be a long saturday afternoon at best to resolve. fortunately saw this post re: the pvc elbow and dead on balls correct. it was almost disintegrated at the top and bottom. suffice to say money is tight and likely saving hundreds of $s and/or many hours of self help is very much appreciated. note also kragen did not carry the motocraft part so i went with the napa cut to fit hose. worked perfectly. you Sir are a mensch. peace.





BWheetley

New Member
Joined
May 26, 2011
Messages
26
Reaction score
0
City, State
Fayetteville, NC
Year, Model & Trim Level
2002 Sport Trac 4x4
I just replaced the PVC hose on my ST. It's an easy fix, but man Ford is crazy with the prices of their parts. Local dealer charged me $38 for that hose. Ridiculous!





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,737
Reaction score
8
City, State
Denver,NC
Year, Model & Trim Level
'94 F150 4x4 SWB 4.9L
Amazon comes up with some awesome deals on auto parts occasionally. I bought my Monroe air shocks off of Amazon.





sparks51774

New Member
Joined
February 23, 2012
Messages
2
Reaction score
0
City, State
Raleigh, NC
Year, Model & Trim Level
2002 Explorer Sport
Hey guys. I have the same codes. I have removed and checked the elbow on either end but found no cracks. There is a lot of sludge all around the PCV valve. Does that throw a red flag up for anyone? Anyone have any other ideas? Thanks.









sparks51774

New Member
Joined
February 23, 2012
Messages
2
Reaction score
0
City, State
Raleigh, NC
Year, Model & Trim Level
2002 Explorer Sport
You say "hose." Are you referring to the elbows or to the plastic hose between the elbows? I removed and checked both elbows good (top, bottom, side) and found no cracks. :usa:





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,737
Reaction score
8
City, State
Denver,NC
Year, Model & Trim Level
'94 F150 4x4 SWB 4.9L
If the rubber elbows are good and seal tightly, the PCV is clean and fits tightly then you may actually have leaking intake gaskets. Check all of the vacuum lines, hose to the booster, etc.





flavurflave

New Member
Joined
March 12, 2012
Messages
1
Reaction score
0
City, State
Pennsylvania
Year, Model & Trim Level
2003 Sport Trac XLT
Motorcraft part number is KCV-190 for the complete line.
Some say 9807 NAPA (cut to fit) will work for just the elbow. Haven't tried it myself.

I just found the same crack in my hose and ordered the cut-to-fit from NAPA. I'll let you know how it works out.





the_ferret

New Member
Joined
November 15, 2011
Messages
5
Reaction score
0
City, State
North Texas
Year, Model & Trim Level
2003 Explorer 4.0L
I just found the same crack in my hose and ordered the cut-to-fit from NAPA. I'll let you know how it works out.

were you able to fix it? i am curious b/c i am doing to same swap and i have having a pita removing the elbow from the connection into the manifold. can't get it to budge





swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,462
Reaction score
430
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)
Does your hose feel soft or spongy? If so you will need to replace it eventually anyway.
Buy the NAPA 9807 or Motorcraft KCV-190 first. Slice the stuck elbow lengthwise with a sharp blade.
Make sure you go all the way through the hose without damaging the nipple. Twist it off, not difficult.





the_ferret

New Member
Joined
November 15, 2011
Messages
5
Reaction score
0
City, State
North Texas
Year, Model & Trim Level
2003 Explorer 4.0L
Does your hose feel soft or spongy? If so you will need to replace it eventually anyway.
Buy the NAPA 9807 or Motorcraft KCV-190 first. Slice the stuck elbow lengthwise with a sharp blade.
Make sure you go all the way through the hose without damaging the nipple. Twist it off, not difficult.

the hose was for sure soft and spongy around the crack in the bend. i finally was able to get the hose off with a pair of channel locks and a thick cotton rag. took me a while. but went up to oreilly's and got a length of pre bent PCV hose there. Cut it to size and it works like a champ now.





01STrunner

Staff member
Moderator
Elite Explorer
Joined
December 16, 2010
Messages
3,619
Reaction score
30
City, State
Greer, SC
Year, Model & Trim Level
2001 SAS'd Sport Trac
My elbow was horribly cracked and way too brittle for its own good. Problem: Online hose costs $29. Actual price at the dealer? $45. WTH Ford?

Edit: Forgot to say how easy of a fix it was. Less than 10 minutes later I had the new hose in and the truck was running. At first it was a real rough idle and would die but after revving it up a bit she smoothed right out and runs better now.
