P51's HID Headlight (Projector) and Fog Conversion (PICS)

MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Here is my writeup for doing a Bi-Xenon HID Projector Retrofit for 96-01 Explorers, and HID Fog Light conversion for 99-01 Explorers.

Parts:

Clear Housings
E46 Bi-Xenon Projectors
3" Projector Shrouds
D2S HID Kit @ 5000k (Now 4300k)
H1 HID Kit @ 5000k (Now 4300k)

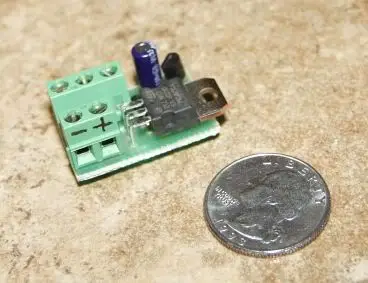

High Beam Controllers
3 Relays (30amp)
2 Diodes (3amp)
Fuse block (or inline)

To start you need to open up the headlight housings
First remove all the mounts from the housing


Then put the light on a baking tray with tinfoil in the oven and preheat the oven to 400 degrees. put the headlight in the oven and wait about 5-10 min, CONSTANTLY MONITOR IT and make sure it doesn't get soft.


Now its time to modify the housing to fit the protector


Cut out all the plastic from the inside of the circle. I found that the barrel sander Dremel attachment worked the best.


Now cut along the bottom to make room for the projector solenoid


The Projectors (Note: They are upside down)


Fit the projector into the housing




Now onto the High Beams, I didn't have the actual wires, so I desoldered the connection off the board and soldered on my own leads.


Mark and Drill the holes to mount the Projectors


I used some of my old LEGOS as spacers, and used Plexiglase to seal the light back up. (NOTE: Cut the excess screw off it will interfere with installation later.


Done (No shrouds at the moment)


Now This isnt necessary but its a nice touch. I put 3 LEDs in to come on when the mirror lights come on. When you click unlock on the key fob these come on and do give off quite a bit of light. Cover with silicone.


These are the LEDs not the HIDs


Pax side Ballast locations


Driver side Ballast locations


HIDs vs Friends Subaruaruaru Stock Halogen


Fogs

The only major modification needed to do the fog conversion is to modify the bulb socket. Cut out the center of the ring and thats all. Sorry about the piss poor pic but all I had was my cell phone camera.


Seal up the socket with some silicone and splice into the pigtail wire that goes from the chassis to the bulb, and connect that with the power in lead of the HID ballast.


Close up of Pax side Fog Ballast


Done, Getting ready to go Skiing behind the Explorer :)

NOTE: The all Ford fleet.:thumbsup:



Good Luck

EDIT: Daytime Pictures and Pics with shrouds installed on post 27
EDIT: Cutoff Pictures added on post 109



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








aldive

Elite In Memoriam
Joined
January 17, 2001
Messages
24,711
Reaction score
15
Year, Model & Trim Level
1999 XLT
Ryan, thanks so much for posting that nice writeup.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8




not8taxi

Well-Known Member
Joined
March 26, 2006
Messages
620
Reaction score
0
City, State
queens, ny
Year, Model & Trim Level
02 XLT
did you wire the ballast with a wiring harness/ relay or off the 2 wires from the stock bulb harness? i did a retro into my 3rd gen explorer and threads i read stated that the ballast itself draws a lot of power at start up and needs to have its own wiring harness...positive, negative connecting to the battery and then the relay would make it work when you turn your lights on...





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Yes I ran power directly off the battery. If you look at the diagram you see that I used 2 relays that are switched on and off by the stock headlight harness.





wjg

Member
Joined
October 4, 2005
Messages
27
Reaction score
0
City, State
Puerto Rico
Year, Model & Trim Level
'00 XLS
nice...i have projs in my fogs and normal HIDs in the heads :)





IAmTodd

4x Explorer Veteran
Joined
April 8, 2002
Messages
8,887
Reaction score
7
City, State
Johnstown, PA
Year, Model & Trim Level
2015 Jeep
Excellent write-up. If I were planning on keeping my Explorer for much longer I would invest in this.





















Afboy143

Explorer Addict
Joined
September 23, 2003
Messages
2,620
Reaction score
1
City, State
Tampa,FL
Year, Model & Trim Level
1999 Ford Explorer Sport
Wow, really nice job ! I did the e46 into diamond cut thing about a year ago, but 2 things I have different

I cut off the highbeam solenoid as I didnt think about cutting out the bottom. Wish I wouldnt have. Oh well!

I painted the housing black. This GREATLY reduces glare!!! I am also running 8k bulbs and am using ballasts and ignitors off a wrecked BMW

One thing to think about- your fog ballasts might get wet there during rain. Might want to put plastic over it or something





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Thank you
I'm sure the fog ballasts will get a little wet, They are fairly well protected by the front fascia, but I don't really think that the ballasts getting a little wet will be a problem since I mounted them with the vent facing down. Time will tell.





Afboy143

Explorer Addict
Joined
September 23, 2003
Messages
2,620
Reaction score
1
City, State
Tampa,FL
Year, Model & Trim Level
1999 Ford Explorer Sport
Thank you
I'm sure the fog ballasts will get a little wet, They are fairly well protected by the front fascia, but I don't really think that the ballasts getting a little wet will be a problem since I mounted them with the vent facing down. Time will tell.

Yeah, other than that, great setup and very nice write up! I wish I had a write up when I did mine! Boy it was fun! The only thing I would do now is tape up the projectors and paint the diamont cut background flat black. Youll thank me later because right now I bet you're giving off some glare :cool:













MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
Wow very nice. Either 8000k is that dim or something is wrong with my kit lol.

I have seen the output of 8000k and it is much dimmer then 5000k.





Afboy143

Explorer Addict
Joined
September 23, 2003
Messages
2,620
Reaction score
1
City, State
Tampa,FL
Year, Model & Trim Level
1999 Ford Explorer Sport
with 8k, you sacrifice color for output
