Painted Undercarriage (8.8" Axle & Springs)

I wish I would of painted all the suspension and undercarriage parts before I installed the lift kit; but I was too excited to get the kit on and make sure those 34's were going to fit.

Well, now I finally got the time to do it, and well I wanted to show you all as well. I've seen a few post about "what to paint my underbody with" or something of that nature. Here's another write up by me: :p


What Is Exactly Needed:

I used a truck bed coating for the painting, but you can use anything such as just black spray paint, rustoleum, undercoating, POR15, or you can expensive and get it powdercoated :thumbsup: :thumbsup:
You will also need something to tape up such things as your differential cover (unless you are painting your steel cover) or shocks. I covered up my sway-bar links, shocks and diff cover. Everything got painted except those stated, and the dust shields on the rear brakes (you'll see).

What Parts Exactly:

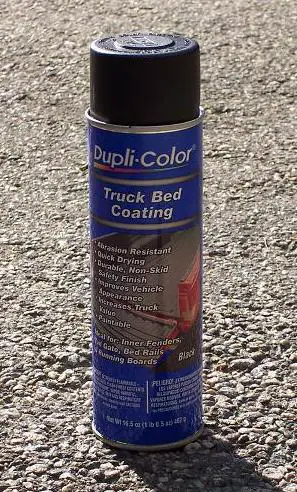

- Dupli-Color Truck Bed Coating
- A Can Of Black Paint Or Similar
- Masking Tape
- Newspaper Or Similar

NOTE: I used ramps to drive the rear wheels on so I could get underneath the vehicle as well. I would also recommend a roll-a-round creeper so you can move easily.


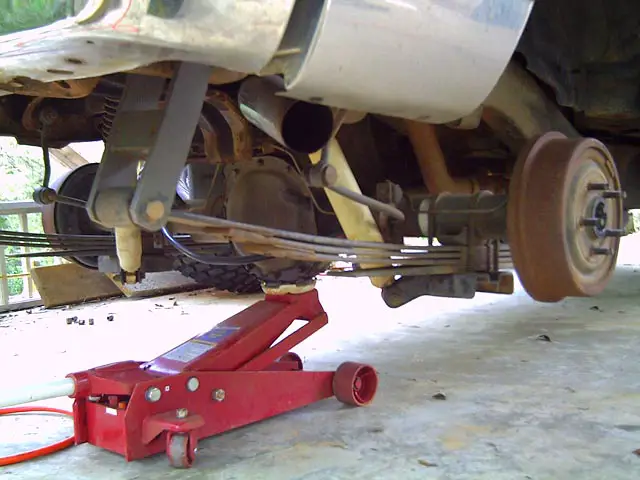

Let Us Get Started:

You will basically just need to spray down and scrub dirt, dust, debris, whatever can be removed before painting off of the surface. I would recommend a powerwasher if accessable. I have one at work, but I just sprayed it off with the hose and took a few rags and brushes to get rid of most of the stuff. Some I didn't even bother about -- it doesn't have to be perfect -- remember, you are saving tons by doing it yourself and not getting it powdercoated. So do not look for a professional job once you are finished.

Ok, after everything is somewhat clean and dry, tape up everything you need to cover up. Having enough protection should NOT be a problem. For example, your differential cover, use tape for the edges so you know paint won't get through that, and then just cover the other exposed areas with a few sheets of newspaper. The edges are what you need to watch for because that is where most of your aim will be at and the more chance of a "spray-on" will be. The newspaper will probably just take overspray or just a light load of paint.

Before you start going spray happy, check everything again to make sure you didn't miss anything. Once you got it all good and ready to go -- start painting with the black spray paint or similar to get a type of base coat. Then, when you are happy with that and have let that dry a little, pick up the good stuff and paint over that.

Let dry and then take another look to see if you missed anything. If you missed something, no big deal - shake the can up and go finish it. This project is very easy and I think anyone with a steady hand could do this. Good luck.


-Drew

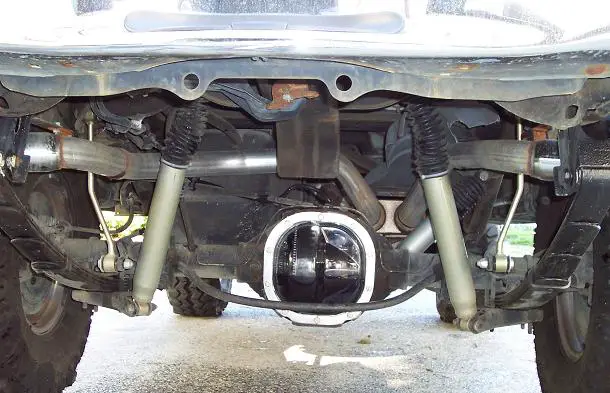

Attachments

  • 000_0510.JPG
    53.8 KB · Views: 13,979
  • 000_0512.JPG
    52.8 KB · Views: 13,030
  • 000_0511.JPG
    62.3 KB · Views: 2,950


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL

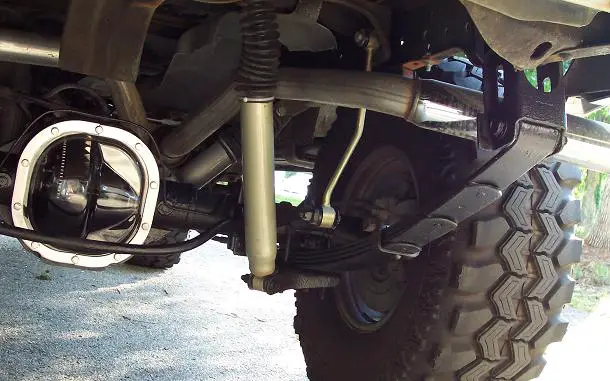

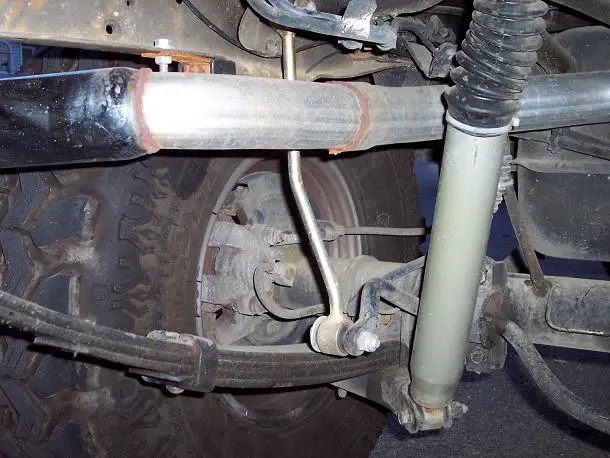

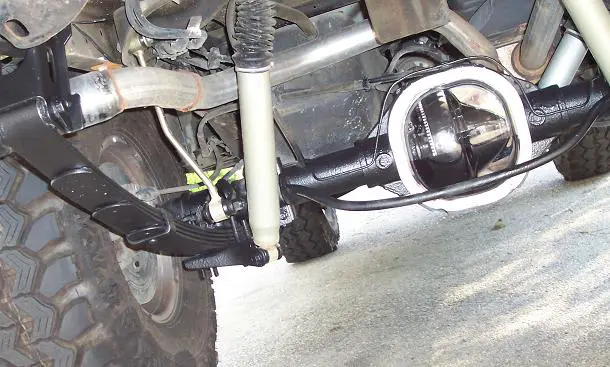

More Pictures:
