Pics of Sub Boxes

pipesmash

Member
Joined
April 25, 2005
Messages
42
Reaction score
0
City, State
Madison WI
Year, Model & Trim Level
1997 Explorer Eddie Bauer
im still working on mine but lets see all of yours




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Click to enlarge

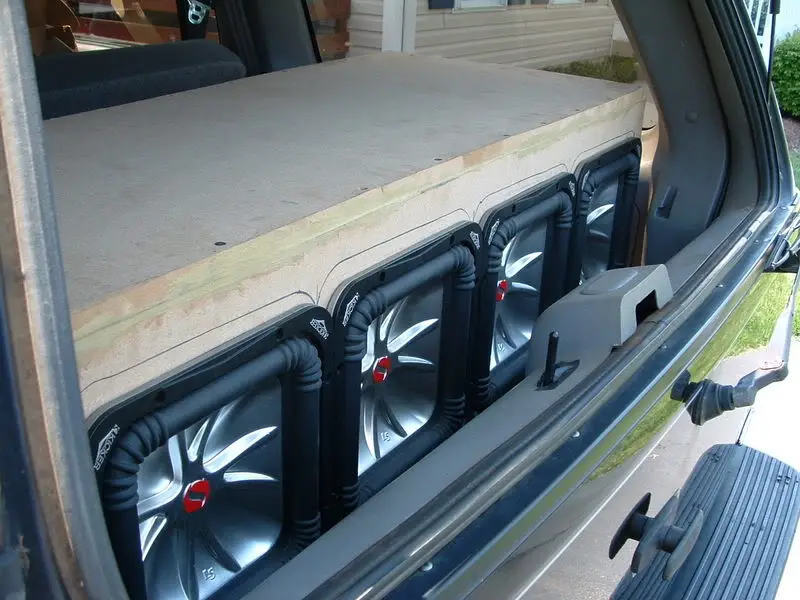

Here is mine. Need to finish painting box but still sounds good.
four Kicker comp 10" and JBL 1200.1







too lazy to write it all up

5.1 surround
3 mtx 9500 15s
about 150 dbs with a box tuned to 31 hz
7 amps
around 8000 wrms
dual head units (one in the back for rear control/playing two songs one out the back and one in the truck at shows)
27 speakers
removed some screens to make it cleaner- 23", 17", and 7" left

current pictures are sort of non-existent


Attachments

  • IMG_0701.JPG
    25.5 KB · Views: 16,350
  • IMG_0706.JPG
    31.2 KB · Views: 16,357
  • IMG_0464.JPG
    40.8 KB · Views: 16,327






Ehh....mines not too bad i guess, just loud, not pretty

2nd at SLAP finals this past year with a score of 152.4 on the AC 190 (pressure sensor very even with the termlab if ya have even been on that- ***** of a meter)

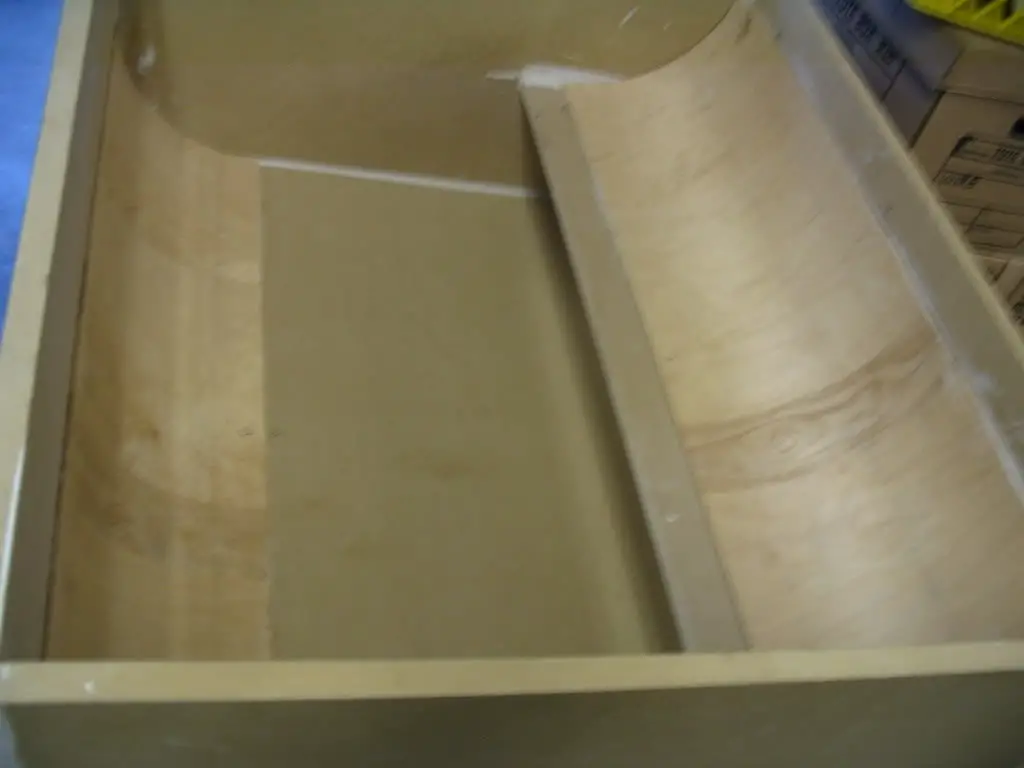

dbmonster sent me these earlier. I was impressed. look how the box follows contour. I guess he built this himself, his websit is in his profile I believe


Attachments

  • explorer_pics_020.jpg
    57.3 KB · Views: 7,651
  • explorer_pics_013.jpg
    49 KB · Views: 7,652
  • explorer_pics_015.jpg
    45.9 KB · Views: 7,631

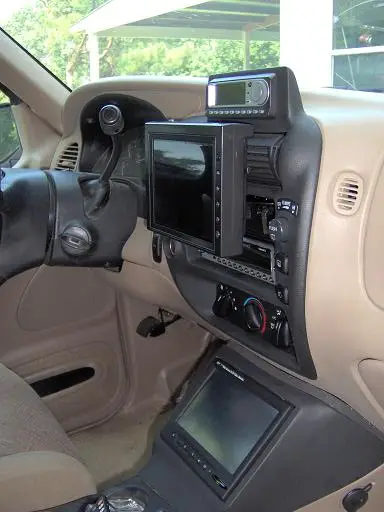

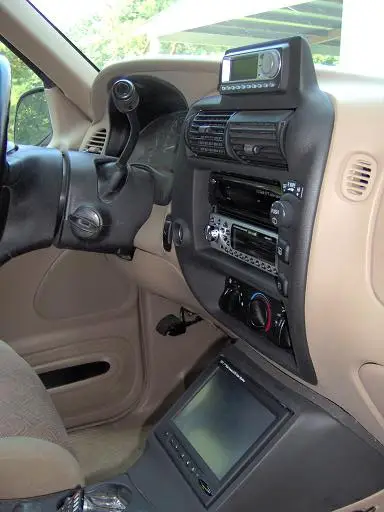

Here is mine. It isn't a SPL system like most of yours, but its pretty elaborate. My amps are in a stealth setup, they are hidden under the plastic of the rear compartment.

-Carputer w/ Windows XP, DVD burner, GPS, Navi

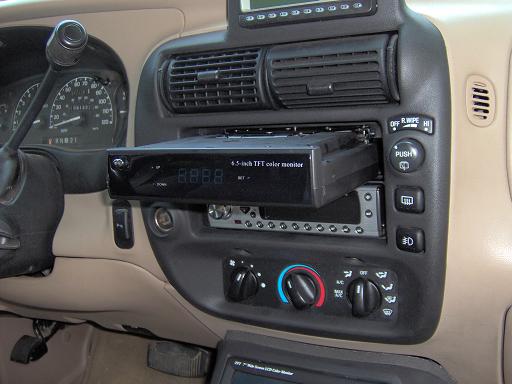

-7" touchscreen VGA monitor molded into console
-Innovatek flip out 6" monitor in dash
-Innovatek 6" monotor molded into overhead console for rearview camera
-Innovatek DVD/MP3 receiver, plays MP3s from DVD-r
-Terk Commander XM radio molded into radio surround
-interior pieces sprayed with bedliner
-Components in all doors
-8" AudioBahn in stock location.

http://www.explorerforum.com/forums/showthread.php?t=138634&page=1&pp=20&highlight=carputer


Attachments

  • carputer 046.jpg
    carputer 046.jpg
    102.3 KB · Views: 6,459
  • carputer 042.jpg
    carputer 042.jpg
    41.6 KB · Views: 6,452
  • carputer 045.jpg
    carputer 045.jpg
    101.7 KB · Views: 6,450






a few more....


Attachments

  • jet ski 079.jpg
    jet ski 079.jpg
    22 KB · Views: 6,426
  • jet ski 071.jpg
    jet ski 071.jpg
    30 KB · Views: 6,434






heres mine, no longer have this setup, and nvr got it measured on Termlab but it was definately loud. :eek:







Here "was" mine. Still have everything, just dont have the explorer.









All Alpine power, 4 amps, Boston speakers and subs...

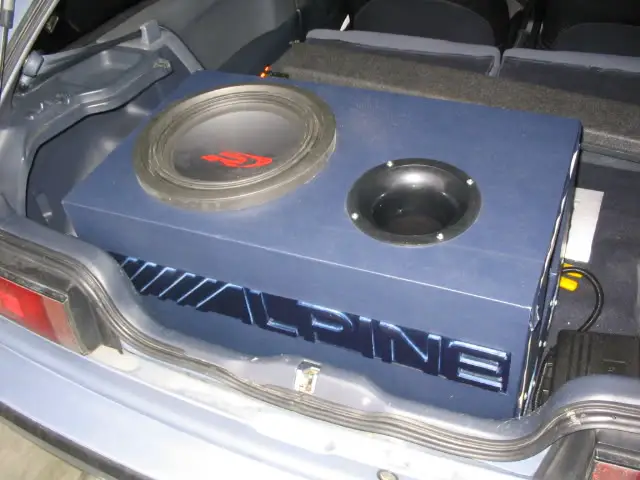

here is a pic of my old sub box.... this is from like 2000 in my old EB


Attachments

  • 597594_5_full.jpg
    25.8 KB · Views: 13,395






uhhh heres mine im still in the works... only have 150 watts goin to each sub for now hopefully gonna get a better amp by thanksgiving that is 2000 watts to put enough into each sub.... but yeah

here are the subs i have now

here are my OLD ones but with the lights i have in the box...









:eek:

J/K, It's an aftermarket tape deck :help:

Me = :crazy:

I'll get a CD player installed this winter :D

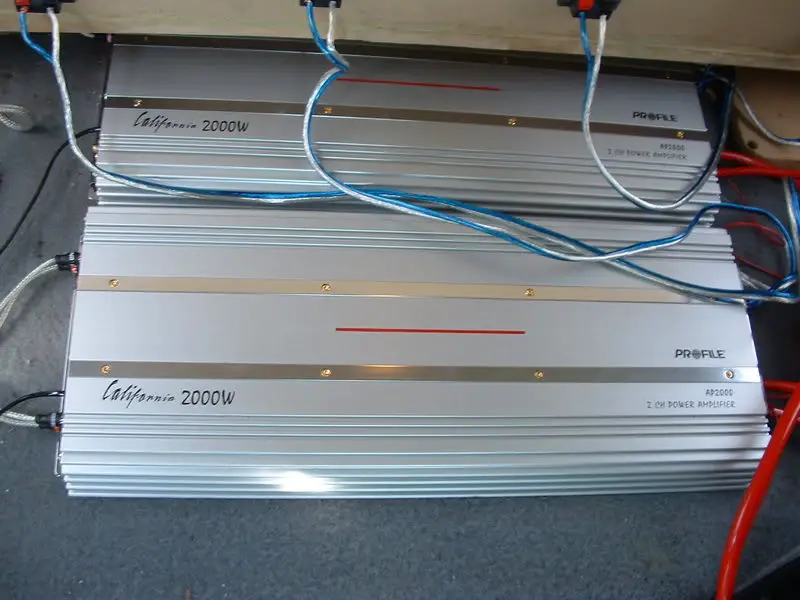

My 4 10" kicker L5s, 4.5 cu.ft. box, 6 inch port @ 34hz, 2 2000 watt Ap2000 amps, batcap 400,146.8 db with music, Alpine 9851 mp3/wma,sounded pretty good but i'm going bigger!














I can play with the big dawgs!! ;)



Attachments

  • DSC_0002_1 (Small).JPG
    DSC_0002_1 (Small).JPG
    46.9 KB · Views: 5,385

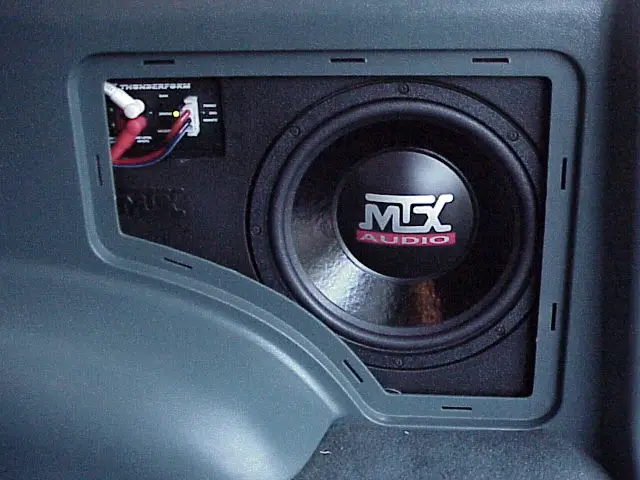

  • MTX ThunderForm.jpg
    MTX ThunderForm.jpg
    62.3 KB · Views: 8,971






Well, this thread's been dead for a few days, so I decided to revive it with a few pics of my system. It's by no means "killer" ...especially compared to the systems in this thread, but it sounds great and it's probably loud enough to make my ears bleed. Don't ask me how loud, because I haven't had it measured yet. Anyway, on to the specs and pics...

Sources/Sound Processing:
Clarion DXZ955MC HU
Pioneer DEQ-7600 EQ/DSP
Creative Zen Vision:M 30GB

Front Stage:
Pioneer 4 way 6x8s

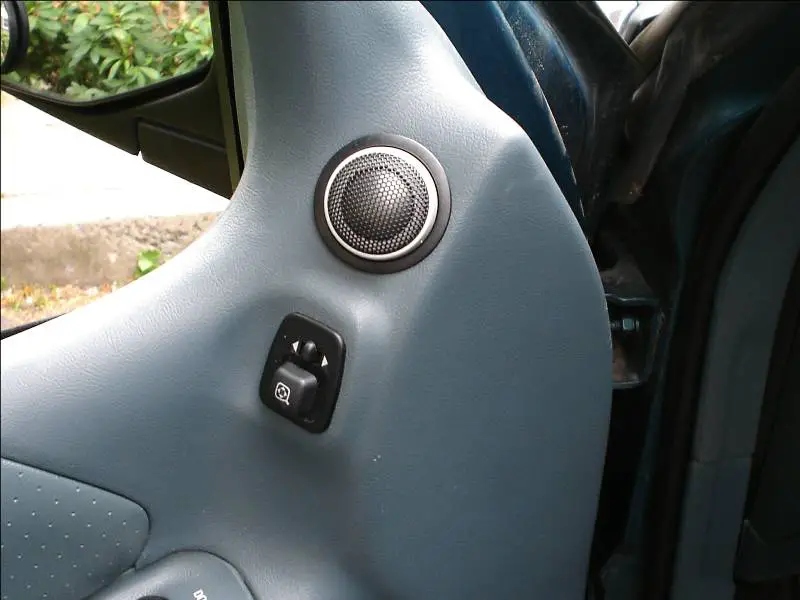

Infinity 1011t Reference component tweeters

Rear Stage:
Pioneer 2 way 6x8s

Subs:
12" MTX Road Thunder subs in custom boxes

Power:
Rockford Fosgate P325.1 sub amp
Rockford Fosgate P4004 4 channel amp
Lightning Audio digital 0.5 Farad Cap
200A Powermaster Alt.
Optima Red Top

11/5/06 Added pics of subs & amps and Infinitys


Attachments

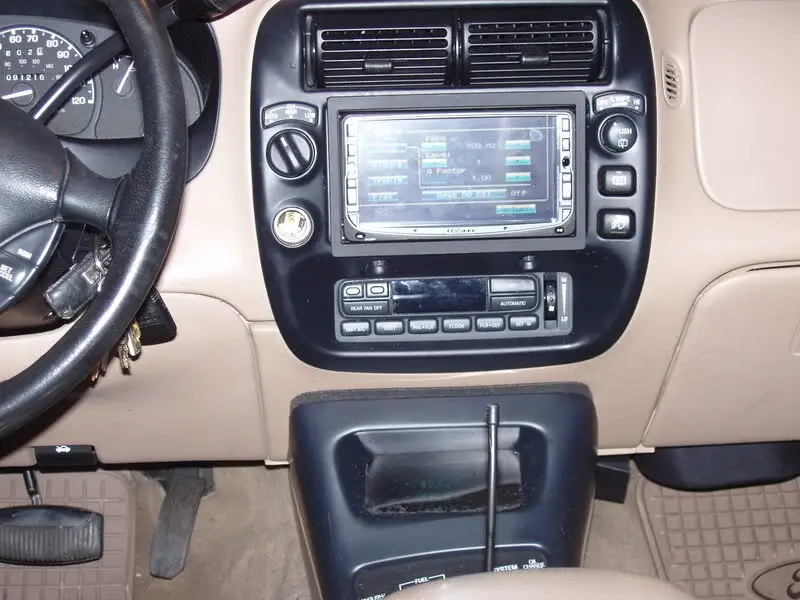

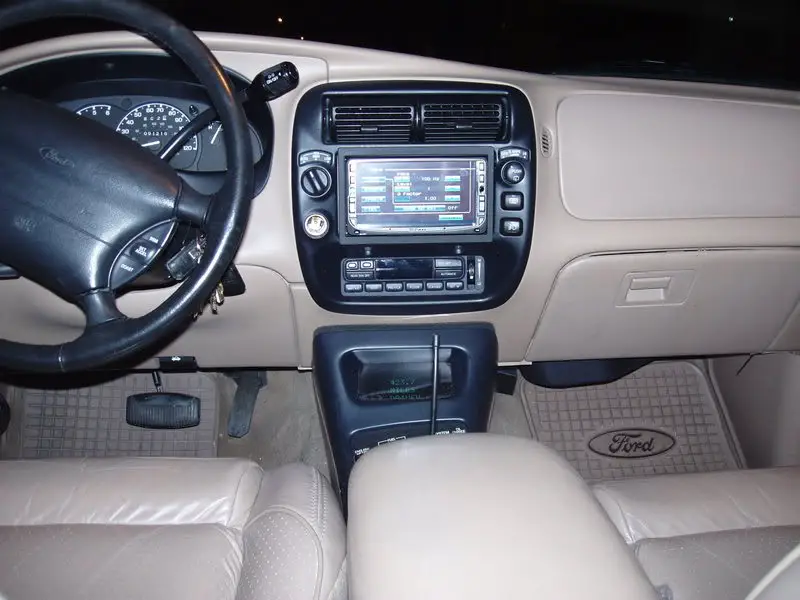

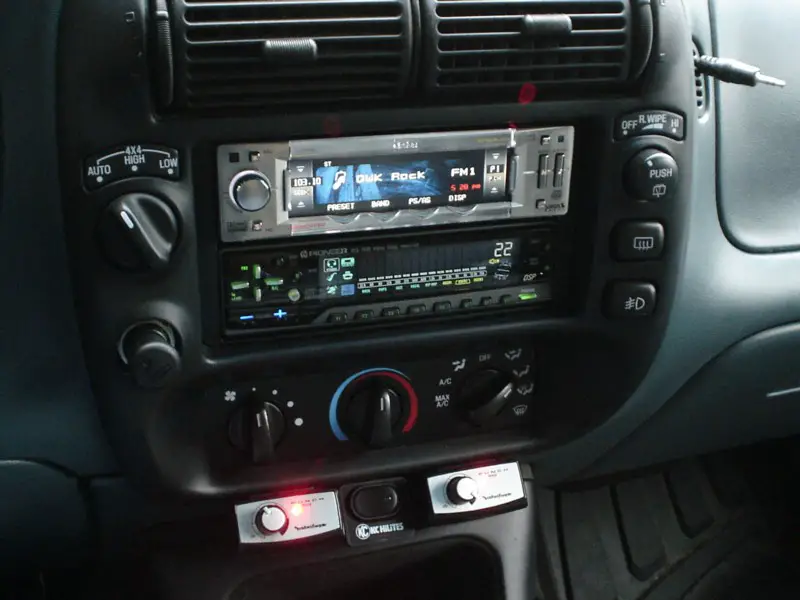

  • ClarionHU_PioneerEQDSP2_small.jpg
    99.2 KB · Views: 6,049
  • MTXSubs_RockfordAmps.jpg
    78.5 KB · Views: 5,254
  • Infinity_DriverDoor.jpg
    50.3 KB · Views: 5,249
  • Infinity_PassengerDoor.jpg
    71 KB · Views: 5,296










Just have to do some wire clean up, and everything should be good for now. I plan to install another 4 channel amp that pushes atleast 70 x 4 @ 4 ohms. I'll probably have a set of rims in about a month.. somewhere between 20 and 22 inches. I have some plans for the Explorer, but time will tell.







whats up guys... I got linked to this from my buddy D Lo so I thought I'd share my little setup...
Also, Toby and I are good friends so thats pretty cool he signed up to post.

This box setup didnt do as well as I wanted, also all those batts are yellow tops, even the one painted green :P







Here is the other box setup... this one was actually in Toby's Exploder and did something around a 151 with alot less power than what he has in his pix.

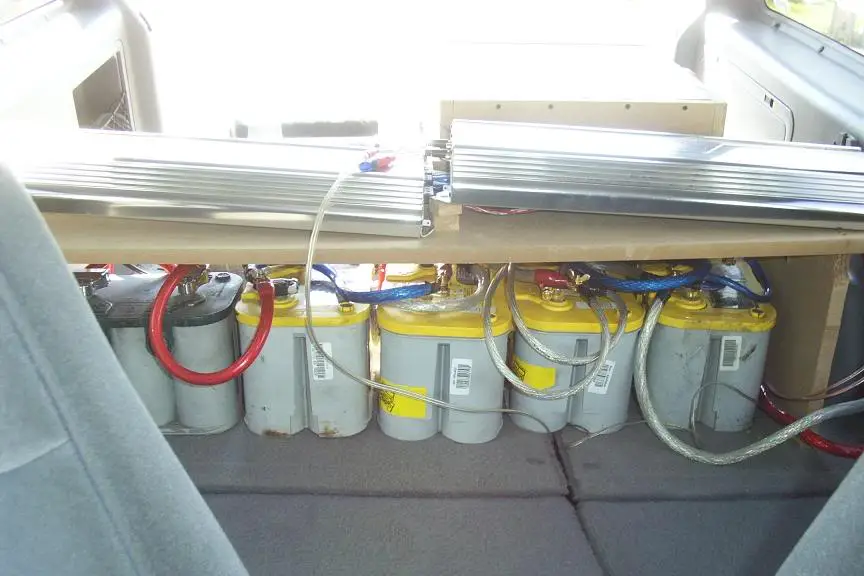

here is a pic with 3 of the 5 batteries hooked up



enjoy

Jason







my killer system-

yep, pioneer receiver and cd-2 pros


Attachments

  • IMG_1657.jpg
    20.2 KB · Views: 5,203
