Pics of Sub Boxes

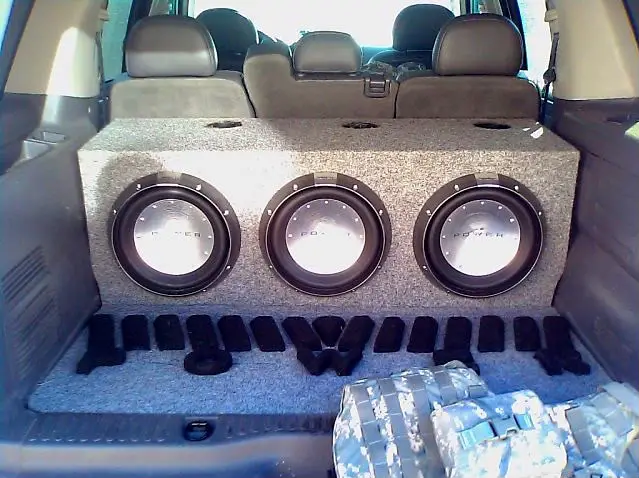

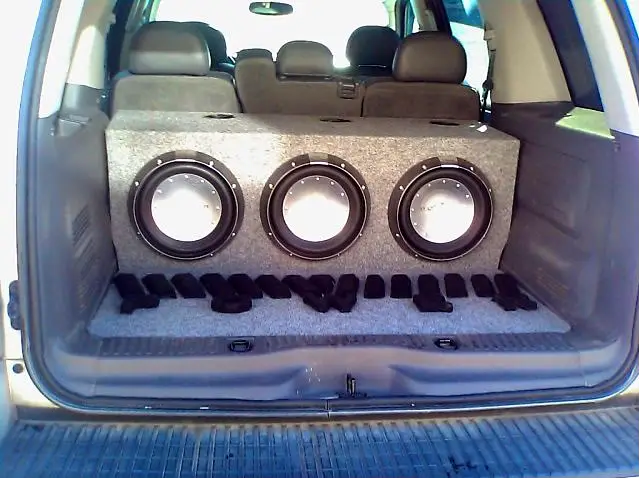

This is just a throw in, an old box I had for my Escape. Right over 3 cu ft tuned to 36 hz with a little more than 50" of port.

Here is what is in the box - Nightshade 15

Here is the power for it, havent been able to put it on the meter but I would expect a 45-47 since the tuning is so low.





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

















i don't know if i posted on here yet but 3 rockford T1s, t1500-1bd amp, focal 2 way components front and rear, red top battery, 220 amp alternator. diamond audio d6 600.4 amp for compnents, big 3 mod and i think thats about it so far. its loud enough to make your ears ring











my first setup.. don't mind the wires, they were for the tv tuner on my old concept indash screen.. and don't mind the cobra radar detector (that got replaced real fast with the passport 8500 x50 in blue)

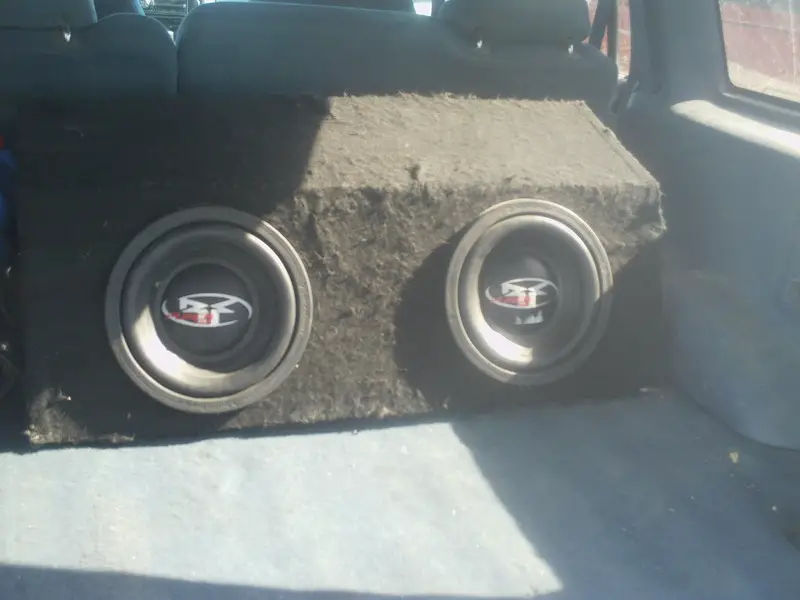

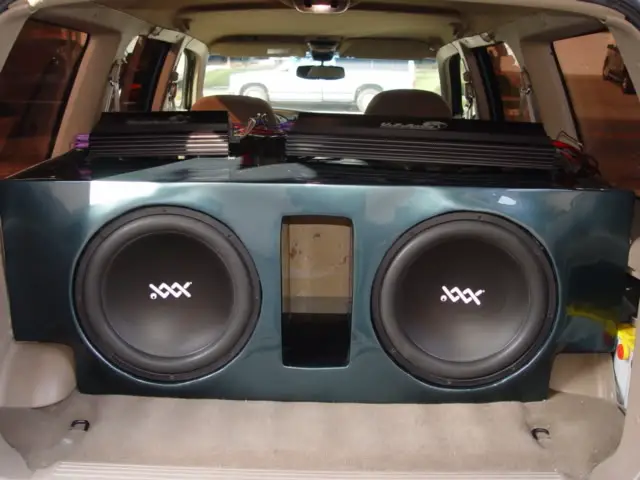

my second setup.. still rockin a carpeted box, but i was getting tired of the carpeted boxes, so i decided to get a fiberglass box



in with the new setup.. got rid of the concept indash screen and replaced it with an alpine ivad300 pulse touch ..



close up of the amp



more pics of it on my cardomain site
http://www.cardomain.com/ride/735307







damn havent been on here in a long ass time LOL. well here a pic and a vid =)

this is the burping port tuned at 56hz.




yeah i know i gotta redo my seats and the car was derty but its the only time i had the cam on me =)

enjoy let me know what u think.....also this port is tuned at 20hz.

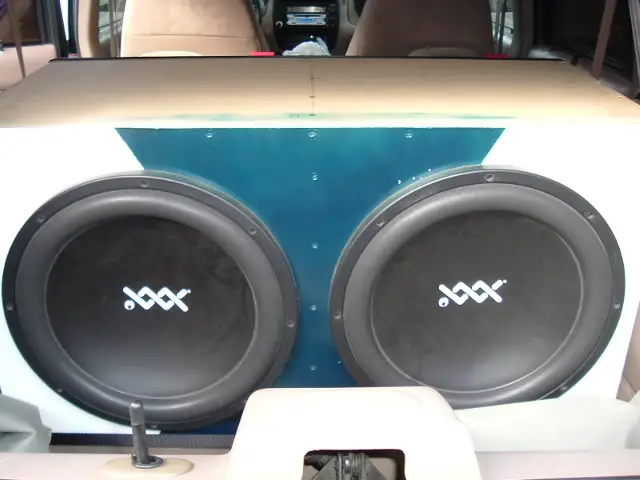

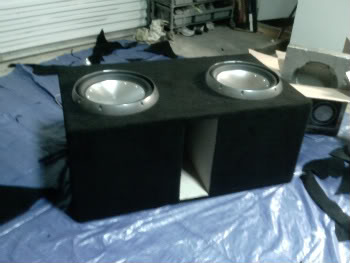

Heres one i built about a year ago for a friend. I talked him into getting rid of those T1's and getting some AA Havocs, which is what he did. Ill be building my box for my 18's pretty soon. ill maske sure to post the pics

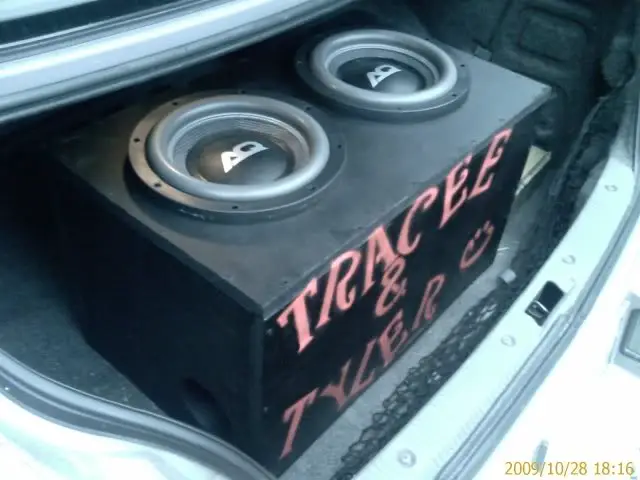

Heres another one i built for his girlfriend. Loudest pair of 10's ive heard.
I have a couple more, but cant find the pics.

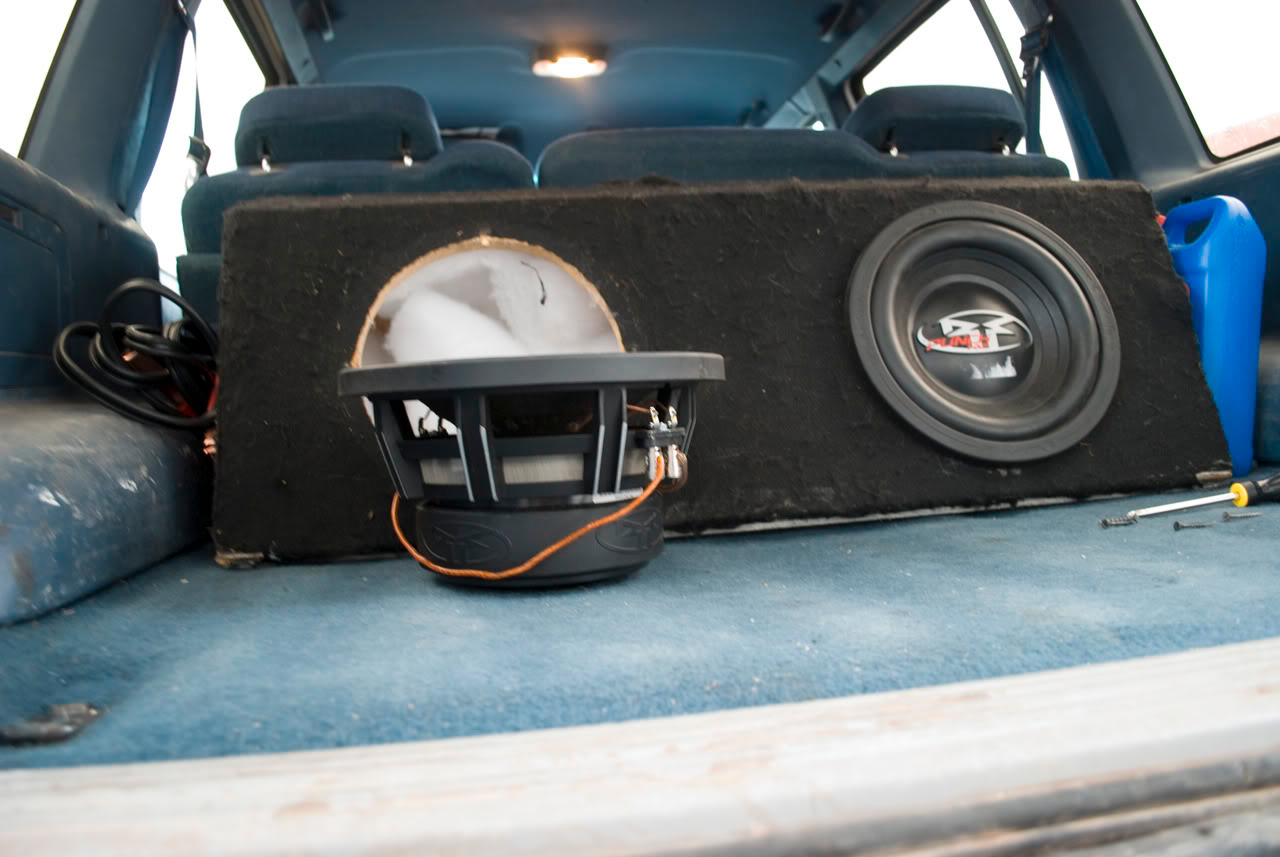

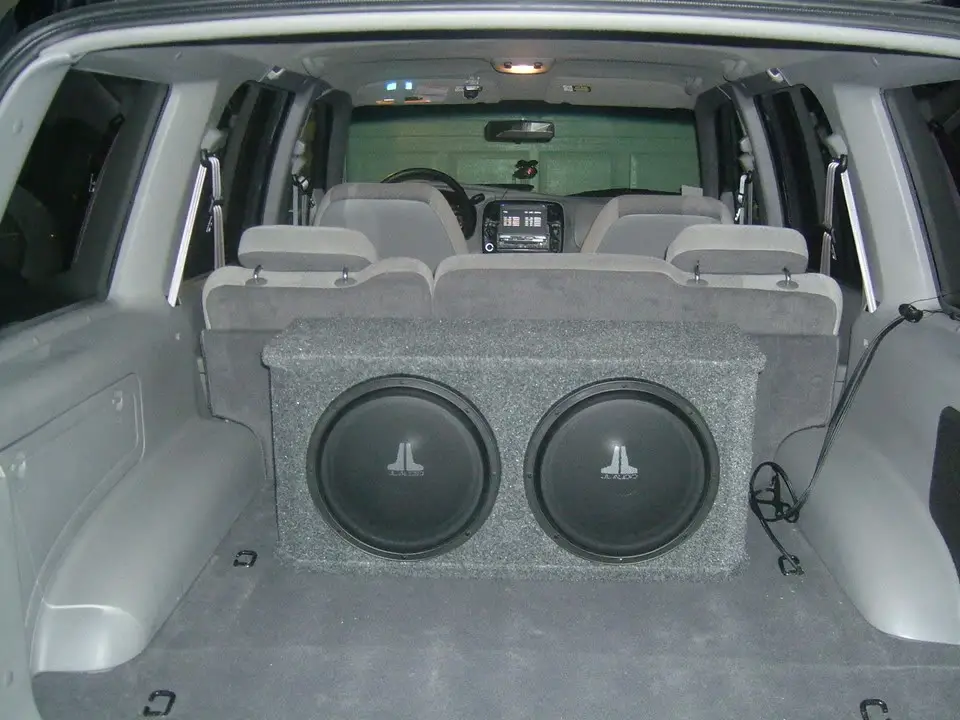

Here is my speaker box I made for my 98 explorer! I got 6 10" JL Audio w0's with a JL Audio 1000/1 Amp.









I love the amp, and in my opinion, its way underrated. Never once had a problem with it, and it can push those subs like crazy.

I dont have the money to get a better box, this is what it will pretty much look like again when im done








this is my little set up. nothin crazy, but it gets the job done.
i need as much trunk space as possible. i go wheelin, not crusin.
please excuse the crappy cell phone quality.
















Went from the fist picture to the second





Im considering doing something smaller to get some of my cargo space back. or something that would protect the subs from anything thats loose in the back. Also something that would conceal a lot more of the wiring.







nothing fancy but they hit harder than youd think powered by a kicker zx amp







Finally replacing my DD 12's that were stolen last year. Heck, it's almost been exactly a year without any boom in my ride. :'-(

All images are clickable thumbs.



Sub Specs:
Phoenix Gold RSDC124 12" Competition Subwoofer
Impedance (ohms) = 4+4
Frequency Response = 27-250Hz
Power Handling (RMS) = 600W
Power Handling (Peak) = 1200W
Mounting Diameter = 10.75" (279mm)
Mounting Depth = 5.80" 6.24" (159mm)
Weight = 17 lbs (7.7 kg)



Amp Specs:
Planet Audio TQ1601D
CLASS D MONOBLOCK POWER AMPLIFIER
1200W RMS
ONE OHM STABLE
Switchable Input Sensitivity: 100mV-2V or 2V-8V
Switchable Phase Shift (0-180º)
Variable Bass Boost (0 to +18dB)
Continuously Variable Low Pass Crossover
Remote Subwoofer Level Control
Variable Subsonic Filter (15-40Hz)
Low Level Inputs and Outputs
Heavy Duty Set-Screw Style Terminals
Illuminated Logo
Strapping Capability:
Strap two amps together for twice the power
MAX POWER (1 OHM)
1600W x 1
RMS POWER (1 OHM)
1200W X 1
RMS POWER (2 OHMS)
800W X 1
RMS POWER (4 OHMS)
500W X 1
SIGNAL-TO-NOISE RATIO
100dB
FREQUENCY RESPONSE
50-150Hz
DIMENSIONS:
14-1/4”L x 2-3/8”H x 10”W



Enclosure Specs:
(These are measured specs, not what the manufacturer has listed *COUGH-LIES-COUGH*.)
Atrend ZV12D - Kandy Kolor Dual 12" Vented Enclosure
Box volume is 1.445 cubic feet per sub.
Port volume is 0.321 cubic feet per sub.
Port tuned to 36.56 hertz.



Don't worry, the prefab enclosure is JUST temporary. Just until I can design and build a new box that will do these subs justice. The manufacturer specs the subs as needing 2.5 cubic feet each. I bought the box based on Atrend's listed specs and those are WAAAAAAAAAAY off.







Got some temporary boom for my 95 X to hold me over till I get a chance to wall it off. =D

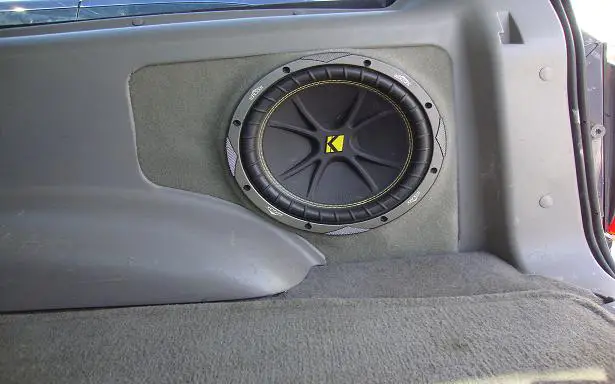

Just finished this....PAIN IN THE ASS!


Attachments

  • DSC00818.JPG
    68.5 KB · Views: 2,427
  • DSC00819.JPG
    76.3 KB · Views: 2,449
  • DSC01060.JPG
    53.8 KB · Views: 2,386
  • DSC01061.JPG
    65.5 KB · Views: 2,404

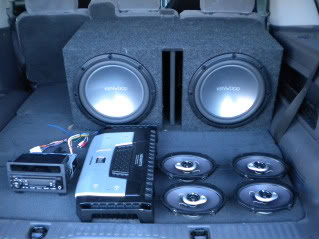

here's and updated set up to be installed in my new 05 XLT



Kenwood W3012's ( upgraded from 3011's )
Kenwood 3-way 5x7's
Dual HU ( free )
Dual 2/1 Channel Amp ( free )




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Thats pretty close to what i was going to do. what size sub is that and do you have any other pics?

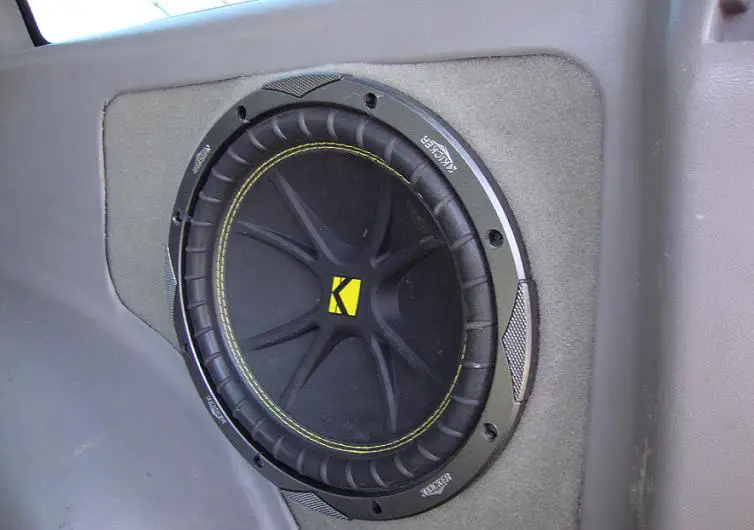

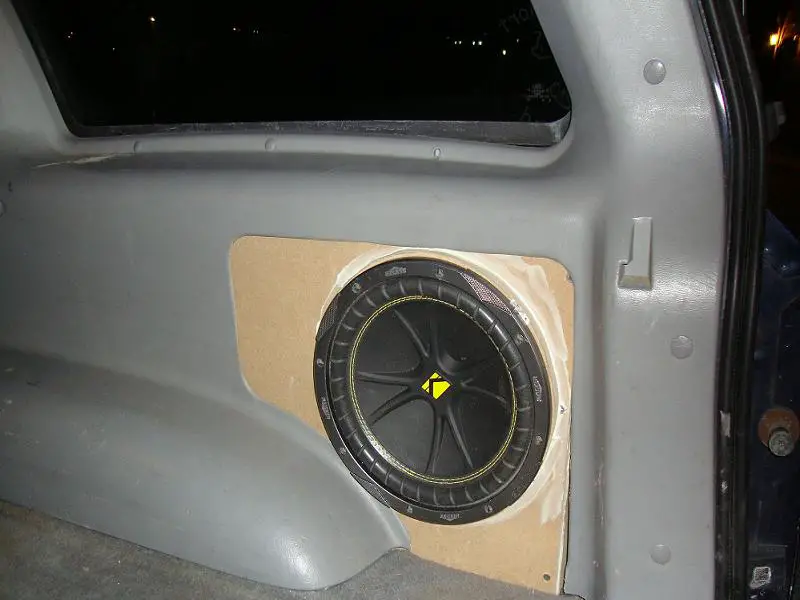

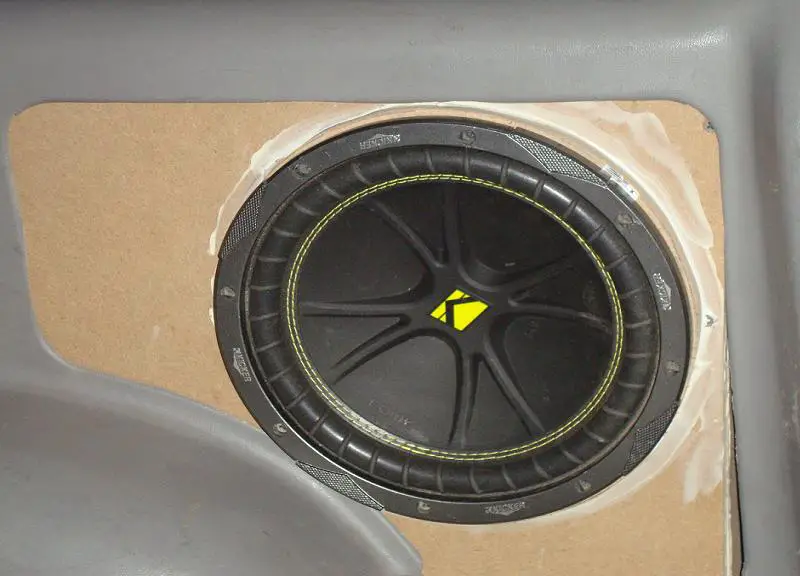

Its a 10". I have to take it out to put deadener on the rear quarter so maybe this week i'll shoot a pic of box when its out. It looks like ****(dont have a table saw) but is completely sealed. The hard part was having it together and having to sand the inside walls to allow the magnet to fit because the hole for the sub is too high up.
