"popped" Cv joint?

volcomkrew2

New Member
Joined
July 4, 2014
Messages
4
Reaction score
0
Year, Model & Trim Level
1998 explorer

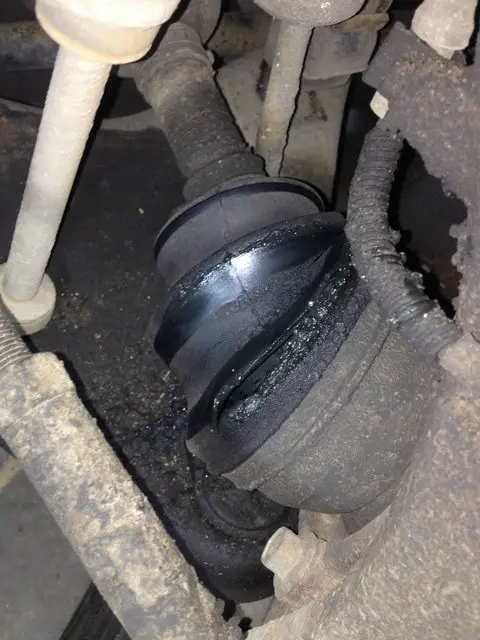

Im not too sure wether this is my cv joint or not (Im still neew to trucks) but i noticed the other day there was a large rip in it and green stuff (Nearly oil like) was coming out and was everywhere..Should i be worried and have to replace it?







Hello volcomkrew2, yes that is your driver's side outboard CV joint. The rubber bellows boot has torn, and the grease is being flung out.

Do you have any idea how long the boot has been torn?

No matter what, this is bad. You have 2 courses of action for resolution:

-remove the CV axle assembly, disassemble the outboard CV joint, clean, relubricate it, and install a new boot

-install a new CV axle assembly and be done with it. Rockauto.com has new CV axles for 2nd generation Explorers for around $50 plus shipping.

Here is a link to the Rock Auto catalog, look under 'Drivetrain' for CV halfshaft assembly.

http://www.rockauto.com/m/mobilecatalog.php

The consequences of doing nothing are a failed CV joint. With the boot torn, grease gets out, dirt and water get in. If left long enough, the CV joint could lock up.

Good Luck!

Seth K. Pyle
