Power Down Back Window Switch Repair

Paul Fithian

Elite Explorer
Joined
October 12, 2016
Messages
336
Reaction score
106
City, State
Long Beach, IN
Year, Model & Trim Level
2007 Job 1 RWD V8 Limited
Thanks to the excellent troubleshooting documentation that I received from ncranchero, I was able to pinpoint my problem with the power down back window to the switch in the dash.

This switch is removable and can be fixed. My problem was a missing circuit trace for the ground path to tell the smart motor to go to the full up position.

This was easily fixed with the use of a conductive circuit pen, here is what I used:
https://www.amazon.com/gp/product/B01LYAA814/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1

Works perfectly now!

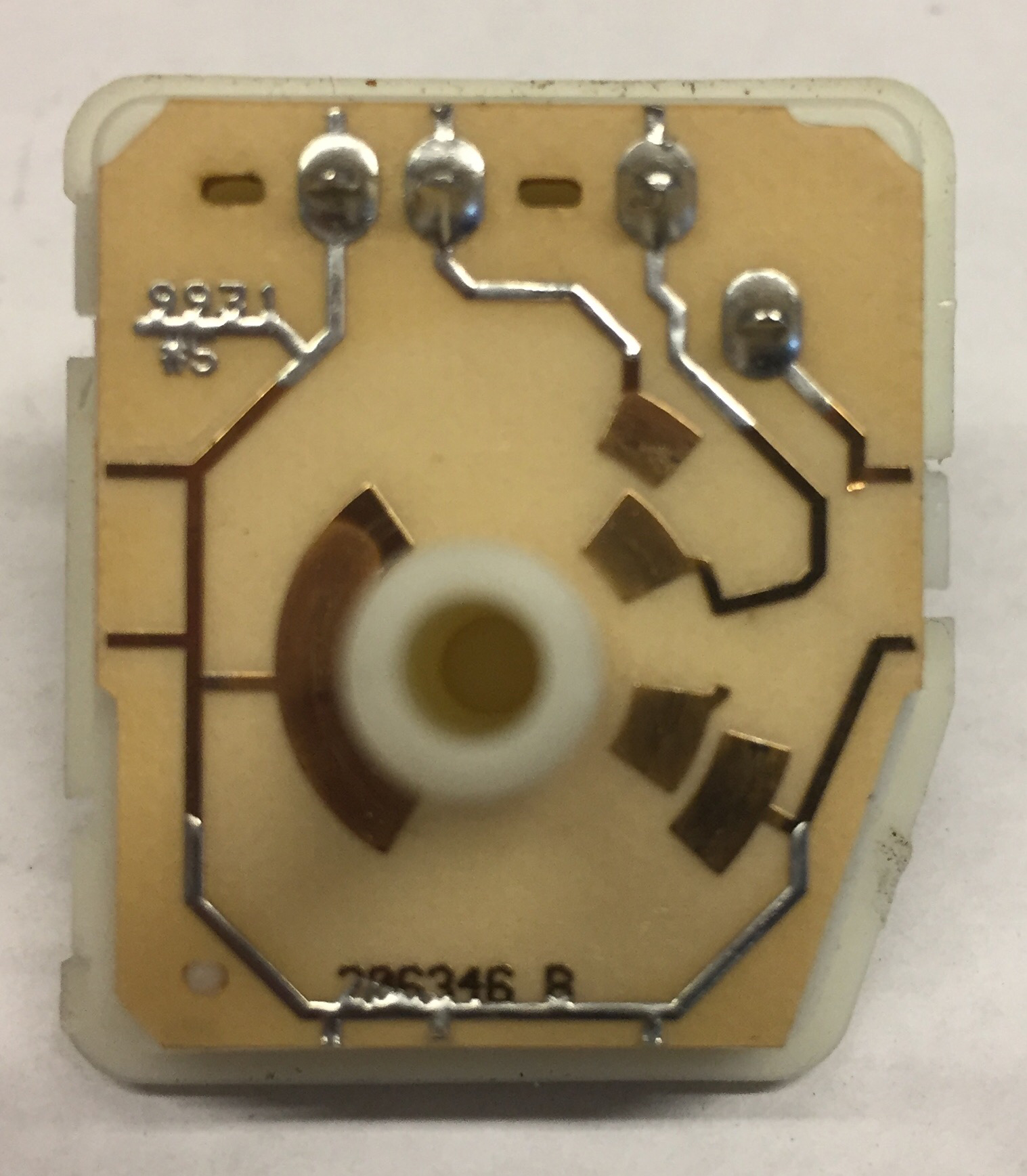

Circuit Trace Defect.jpg

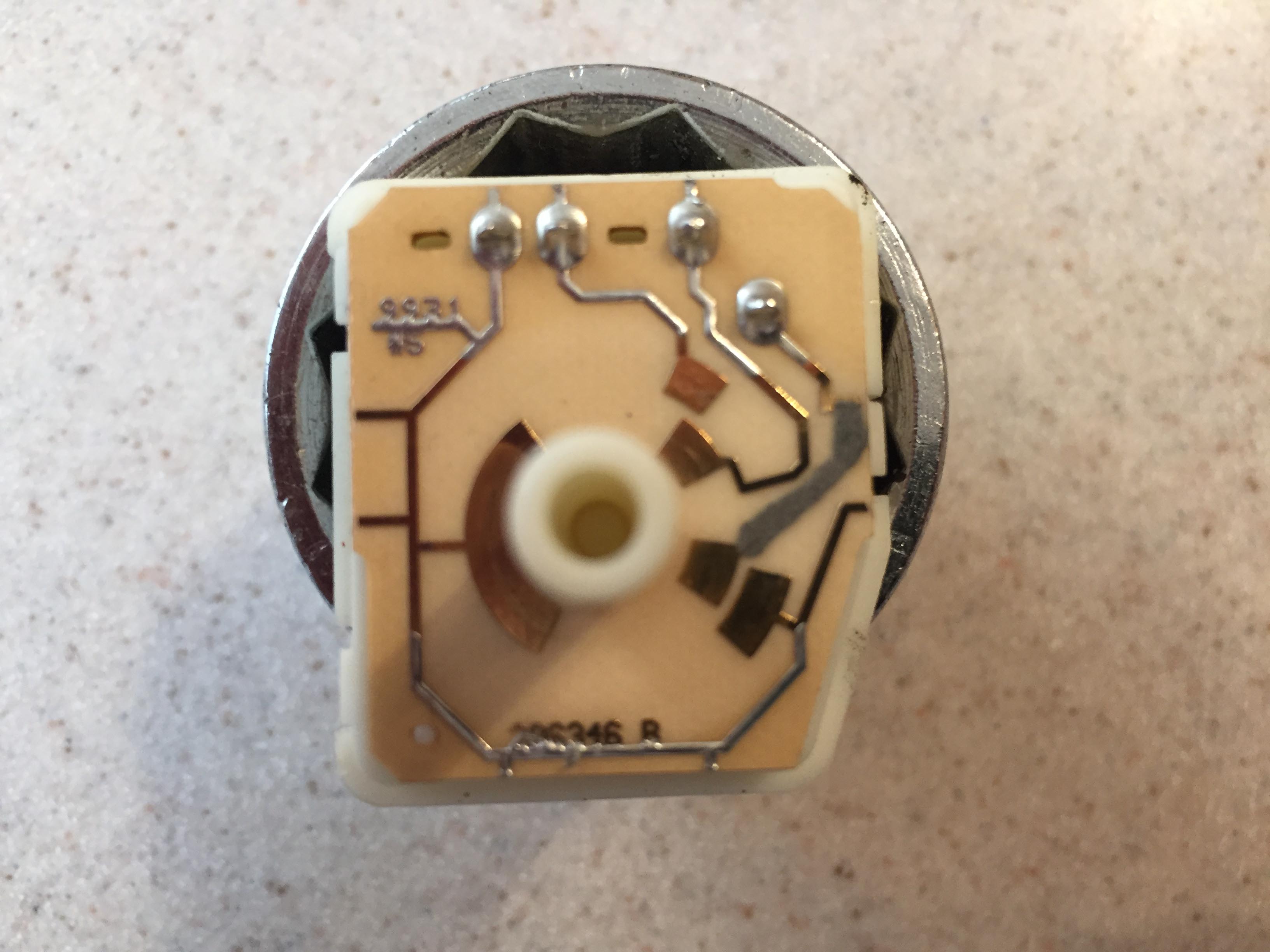

Circuit Trace Repair.jpg

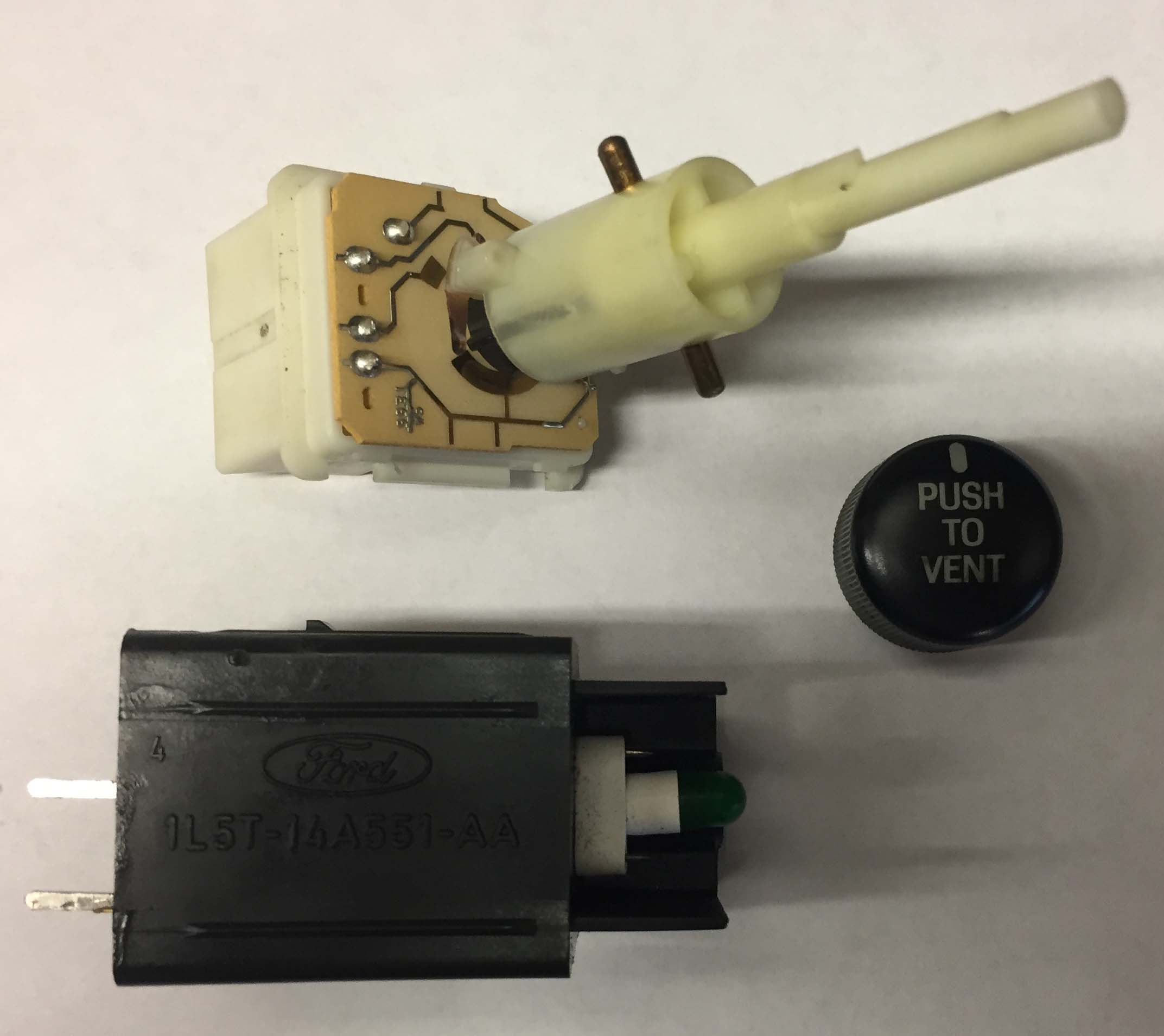

Swtich Components 1.jpg

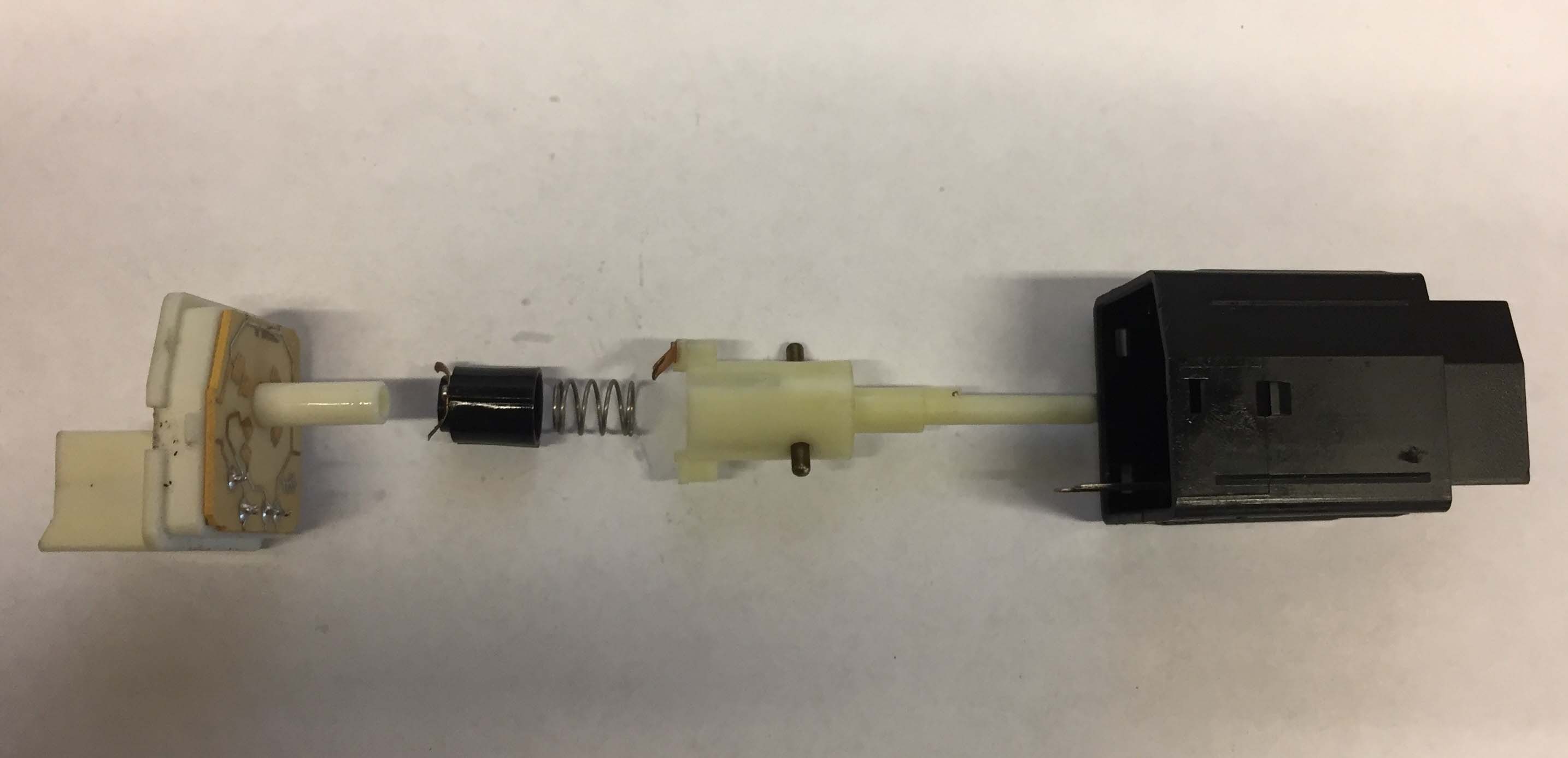

Swtich Components 2.jpg







Fantastic work. I initially thought my motor or switch was bad and was going to redo the whole system with a simple up/down switch. The side window motors (right side rear) from 3rd gen explorers are a direct fit for our rear window but without the smart parts. A reset worked however so that's a project for another day.







Update, the repaired switch failed, would not close the window all the way. I purchased a new Motorcraft SW7145 on eBay and installed it, works perfectly now.
