How to: Project Frankentranny "AKA" A4LD / 4R55E / 5R55E Hybrid Project - A MUST READ!

Prefix for threads which are instructional.
Not open for further replies.


Well-Known Member
June 14, 2004
Reaction score
City, State
Golden, CO
Year, Model & Trim Level
'92 4X EB and '91 4X XLT
[ By Glacier991: As a moderator I have taken the liberty to post a prologue here. What this thread represents is the very best in amateur automotive engineering. What Brain (Brian in real life) has done here is to diassemble 10 years of FORD upgrades to the venerable A4LD...and explain them. In the end he shows us that we CAN use a 5R55 gear train in the A4LD, and enjoy the best possible of all worlds.... ALL the A4LD mechanical failings fixed, without the add on troubles the all electronic shift 5R55 suffered at first. To me, this is the very best thread on this entire board. IF you are thinking of rebuilding your A4LD YOU MUST READ this thread. Why? Because when you finish, if you pay attention, you will know more about the evolution of the design that most transmission repairmen. THIS IS AN AWESOME THREAD if you are interested in FORD Explorer transmissions.]

* * * * * * * * * * * * * * * * * * ** * * * * * * * * * * * * * * * * *

This is a current work in progress, so be patient if you think this is incomplete I agree it is at this point.

First I'll start off with a little bit of history of why I started this project and why it could be useful and interesting to others. I have a 92 Eddie Bauer that I have used to tow some trailers (kiss my butt U-Haul). The problem is that I didn't follow the owner's manual's directions and I towed in the overdrive shifter position. At 85K miles I had the front seal blow out and it cost a bunch of money to get a cheap seal replaced, but I was on the road so I didn't have the option of doing it myself. That was a failure that set the stage for the second failure. At 125K miles, the overdrive band broke and basically chewed up everything in the front half of the case. That band was worn away faster because of my towing in overdrive, and because I had overheated it at the 85K mark when it ran for a minute or two without fluid. When that band broke, the freed band anchor plate got stuck between the overdrive drum and the case, causing the front half to run off of the centerline (****ed up) and causing parts to collide. This caused enough friction to weld things together that shouldn’t have been.

When a dealership gave me an estimate of $2500 to replace the old A4LD (referred to as the A4 for the rest of this series) with a rebuilt unit, I declined and let the truck sit until I had time and money to fix it myself. When I pulled it apart and saw what kind of damage was done and how many parts I was going to have to replace, I started to research the upgrades that were available to the A4. There are quite a few available out there, but I kept hearing about front seal problems with the A4 that I hadn’t heard of with the 4R55E (the next gen A4 used from ’95-’96, referred to as the 4R for the rest of this series), the 5R55E (the third gen A4 used from ’97-’02, referred to as the 5R for the rest of this series), or the 5R55W (the fourth gen A4 used from ’02 and up, not mentioned again). It seemed to me that hearing this problem over and over again, that somebody would have found a way to fix it. The problem is that there is no “fix†for it if you want to keep all of the A4 as it was produced without using some mix-and-matching of parts from later years. In my opinion, it was a flaw inherent in the design (but it takes some knowledge of fluid dynamics to fully understand the problem). I decided that fixing a bunch of other potential problems wouldn’t be worth it for me if I couldn’t find a way to deal with that front seal and bushing problem.

While I was researching and learning about the A4 and its offspring (which itself originated from the C-3), I found that Ford had redesigned how the lubrication for the front bushing and seal was supplied. I also found out that many of the bushings were eventually replaced with roller bearings and that the numerous thrust washers were replaced by really thin Torrington bearings. If anybody is interested in the A4, they have probably read through Glacier991’s posts about rebuilding the A4 in the most “bulletproof†fashion possible. In those posts he hits the nail on the head at the beginning and end of the series when he said that the best you could do is try to use as many parts and design ideas from the 5R as possible. His efforts inspired me to do this write-up, as well as peaked my curiosity. Hence my journey in hybridization of transmissions, Project Fankentranny, began.

First I wanted to find a solution to the front seal lubrication issue. I found that the A4 and the 4R bellhousings were the same except for a different design for the lubrication of the front bushing, an extra pump bolthole, and one elongated hole feeding the case. The 5R bellhousing was the same as the 4R, except the pocket for the starter was shaped differently (which makes sense because it was behind a different motor). So, if I wanted to have the updated way of lubricating the front bushing and seal, and keep the standard starter setup and bolt pattern, a 4R bellhousing was a must. It serves as my “adaptor plateâ€.

A4/4R bellhousing front

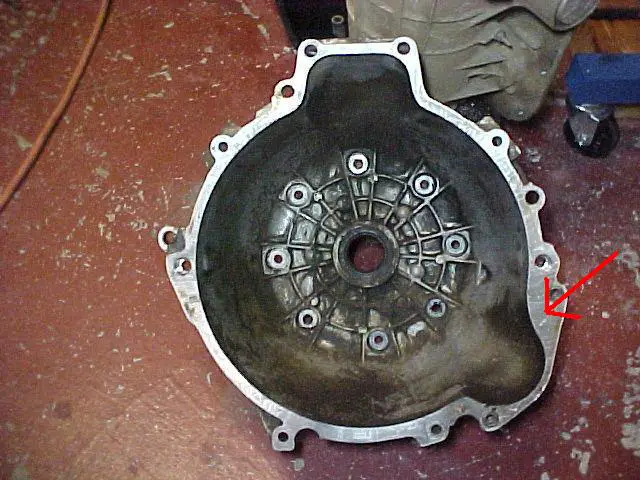

5R bellhousing front (notice the different starter pocket shape)

A4 bellhousing back

4R/5R bellhousing back - stock

4R/5R bellhousing back - stock lube pathways


4R bellhousing back - modified lube pathways (bigger drainback hole and cut back supply restrictions)


Notice that the part numbers (year reference) are stamped in the back of the bellhousings with the A4 having the number starting 90GT (starting in '90), the 4R has a number starting 95GT ('95), and the 5R starting 97GT ('97). The right one to wark as an adaptor between the 4.0L and using the new way of lubricating the front seal and bushing is the 95GT.

Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!

This requires the use of a separator plate from either a 4R or 5R (they are the same).

A4 separator plate

4R/5R separator plate

These different kinds of separator plates work together with the front of the pump and the back channels in the bellhousings to make the different fluid pathways. Here is a look at the different types of channels on the front of the pumps.

A4 front pump channels

4R/5R front pump channels

I modified the drainback hole on this 5R one (enlaged according to a tech bulletin)

I find it very curious that Ford would publish a tech bulletin about enlarging the drainback holes and not incorporate it into every subsequent design and build, meaning it comes from the factory needing modifications. :rolleyes:

The pump produces pressure by spinning two gears together in an eccentric fashion. Where the volume is increasing, suction is created, and where the volume is collapsing, pressure is created. There is a difference between the A4 gears and the 4R/5R gears, as the A4 must have fluid pass by the inside of the small gear to lubricate the front bushing and seal, where the 4R and 5R have an o-ring on the inside of the small gear and route fluid around the outside of the gears to lube the front bushing and seal. I also find it interesting that the original factory gears had more teeth and the replacements had fewer of them. The A4 rebuild shown in Glacier991's post has this, and the 5R gears that I have show this also. I will be using the last set of gears shown (4R/5R replacement gears) in Frankentranny.

Original A4 pump gears

Original 4R/5R pump gears (with o-ring)

Replacement 4R/5R pump gears (with o-ring)

Upgrading to the new way of lubricating the front bushing and seal require the use of either a 4R or 5R pump, but they are NOT the same. The A4 and 4R pump works with the “old†overdrive drum (stamped lightweight unit riding on a bushing), but the 5R pump can only be used with the “new†5R overdrive drum (solid heavyweight unit riding on bearings).

The fifth gear of the 5R is achieved by overdriving first gear (for an extra gear between first and second), which means that the overdrive band is applied in second and fifth gears in the 5R (4th gear from the A4 became 5th in the 5R, 3rd became 4th, 2nd became 3rd, and a “new†2nd was born). What this means is that the 5R has the same lowest and highest gear ratio as the 5R, so it doesn’t change the low end pulling power or the fuel efficiency and speed of the high gear ratio…they are the same. This also means that there are no new gear components to try to fit in the case, and that a complete “guts†swap may be possible. This would allow the use of the newer components without needing to swap the computer/controller packages or rely on specialty controller packages like this one ($425):

Ford redesigned the overdrive drum because the band is applied much more often and needed to be more durable. The specifics on the drum come later, but first come the bearings that support the drum. After I saw these bearings I knew I wanted them in my tranny, even if I had to do some machining and finagling to get it to work out right.

Bushing support of the A4/4R pumps for the “old†overdrive drum

Bearing support of the 5R pump for the “new†overdrive drum

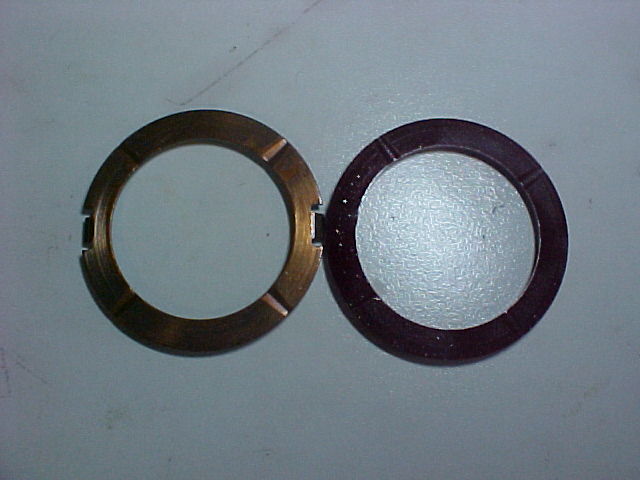

Between the pump and the overdrive drum there was originally a metal thrust washer, and this was eventually replaced with a plastic (polymer) thrust washer. I’m not sure if the 4R had metal or plastic. It is referred to as the #1 selective washer because you can get them in different thickness so that there isn’t too much/too little play (slop). This is one of only two thrust washers in the whole 5R transmission (the other one is metal and at the other end of the case). It is also one of only two selective washers or selective bearings in any of the A4/4R/5R transmissions. The plastic one for the 5R on the right has a little bit bigger hole in the center so that it slips easily over the roller bearing on the pump, but the metal one can fit over it too, it is just a tight fit.

A4 and 5R #1 selective thrust washers

Now we get to the overdrive drums. The original A4 and the 4R had a stamped lightweight unit riding on bushings. The one used in the 5R is solid, heavy, and needs the support of the roller bearings on the pump snout. There is a bearing race (steel) on the inside instead of a bronze bushing (which rode against the steel race on the A4 and 4R pumps, as shown earlier).

A4/4R overdrive drum inner bushing (beat up really bad)

5R overdrive drum inner bearing race

I must tell you now all that my pictures of the old drum show how bad the drum can be. This is where my tranny failed so I don't have a A4 drum in good condition, but it works to illustrate what changes were made and why I think one is better than the other.

A4/4R overdrive drum - stamped construction (those are parts of what used to be springs)

5R overdrive drum – solid contruction

The A4/4R used three friction plates in the overdrive drum where the 5R used only two. You might think that this provides less holding power, but the 5R drum uses a bigger piston to put force these plates. Where the A4/4R pistons have a large step in for the outer piston seal, the 5R doesn’t have as large a step. This larger outside diameter is where the increase in piston size comes from, as the inner piston diameter and seal is the same size.

A4/4R on the left, 5R on the right -> overdrive piston top

There are 20 posts to put springs on on both pistons, but the A4 and 4R only use 15 springs (5 empty), where the 5R version has all 20 spring posts filled (to supply more force to return the piston).

overdrive drum piston bottoms

pistons side by side, side view

The top surface is the same diameter, but the step in accounts for the smaller diameter outer seal in the A4/4R. The 5R version is also slightly shorter.

The numbers work out that the stock holding force is about equal between the two (three plates and smaller piston size vs. two plates and larger piston size). I calculated a value showing that they are within 4% of each other (the A4/4R being slightly higher). Now, there are a couple of reasons I don’t like the two-plate setup of the 5R. It’s true that most people drive around in the overdrive position and don’t tow stuff in the drive position very often, so fuel economy is increased (not much) by not having the viscous drag (fluid friction) of an extra plate in a clutch pack that isn’t engaged. My thoughts are that I’m going to be towing things with this vehicle (not U-Haul though – kiss my butt), and that three plates will provide 50% more life if this is the first clutch that wears out. The other issue is that although Ford uses the same number of teeth on the friction plates (same as the A4 and the 4R, as well as the C-3 for that matter), by reducing the number of plates and keeping the force that those plates are holding the same, they are increasing the localized stressing the splines of the planet carrier by 50% over the three plate design. This wouldn’t be an issue if Ford had thought about this and used a stronger/harder material for the splines on the planet carrier where the friction plates transmit their force, but they used the same material, and I’m seeing evidence of yielding in those locations.

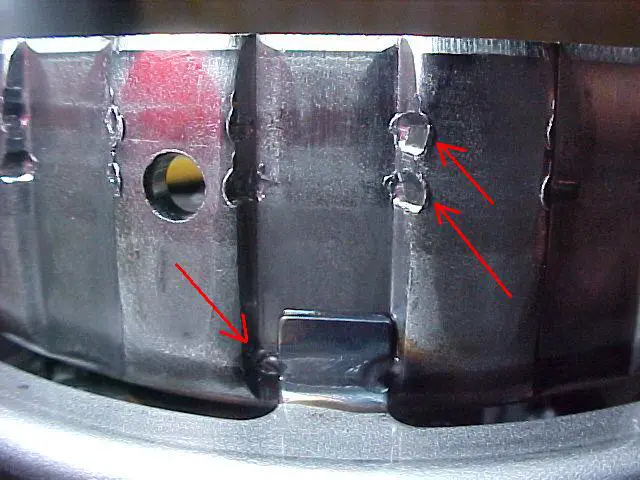

Damaged 5R overdrive planet carrier friction splines
