Project TNT...

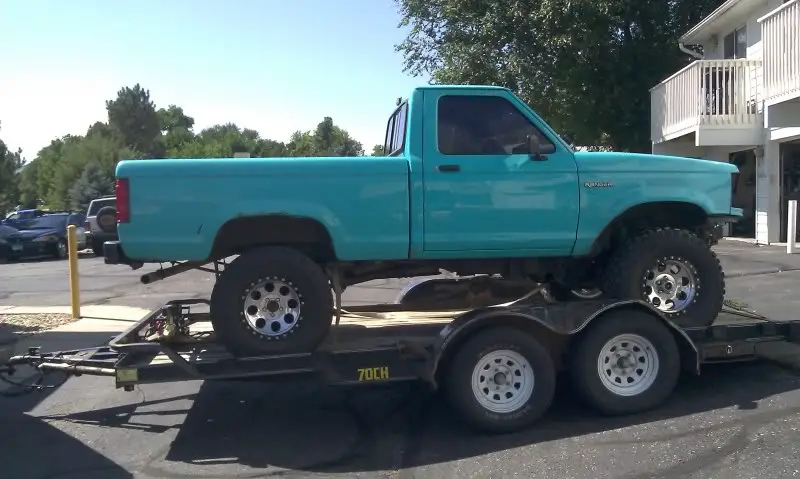

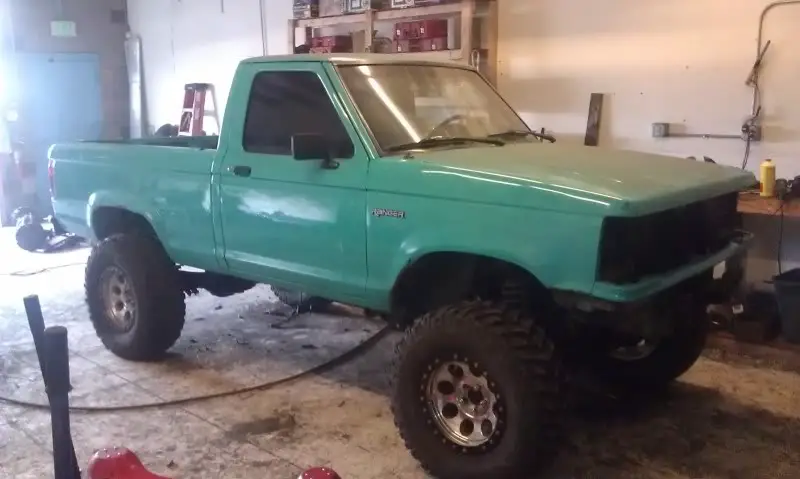

Project Torque 'N' Teal(factory paint color). 92 Ford Ranger 4.0L 5 speed(customers rig and he has been helping me). This will probably the first of many SAS swap Rangers. Already have two more lined up after this one. :biggrin: Let's get to the goodies.


Short bed regular cab. Wheeling friend 107 inch wheel base.

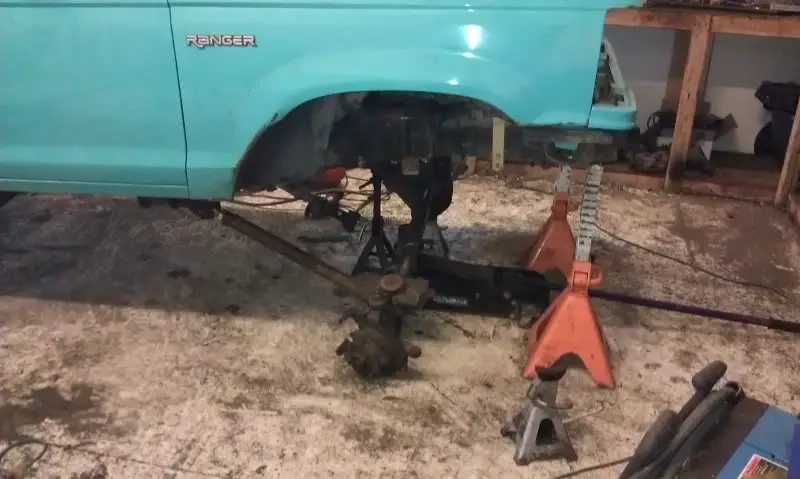

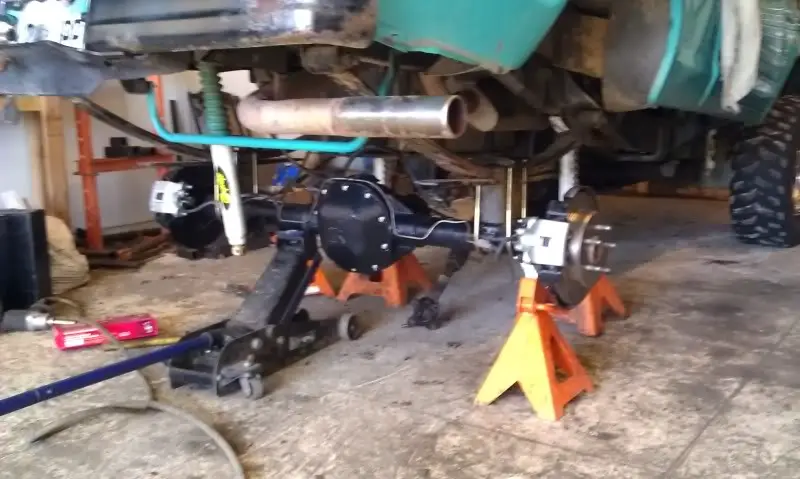

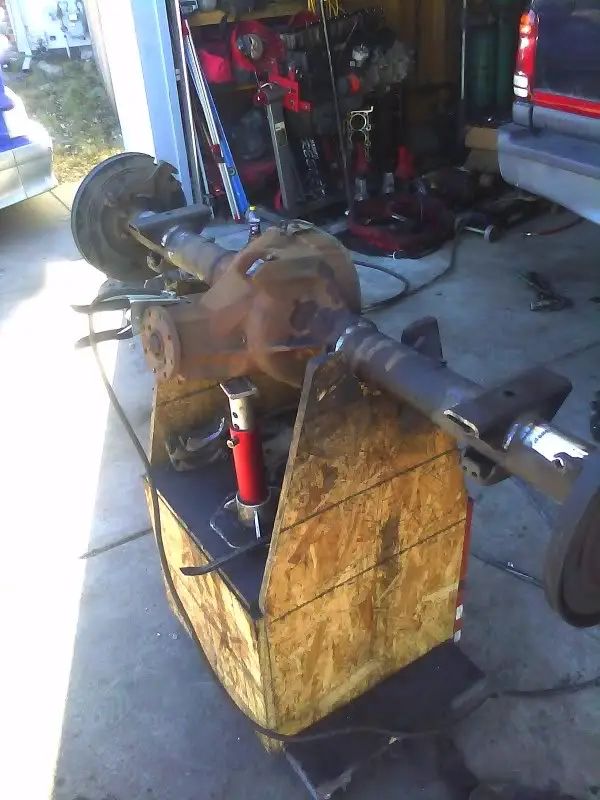

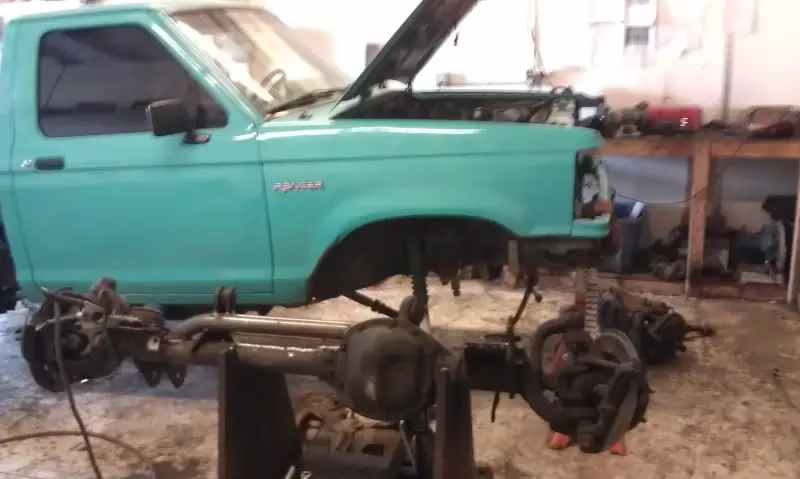

First order of business Explorer disc brake 8.8 axle swap, 4.56 gears, E locker, and Riddler cover...

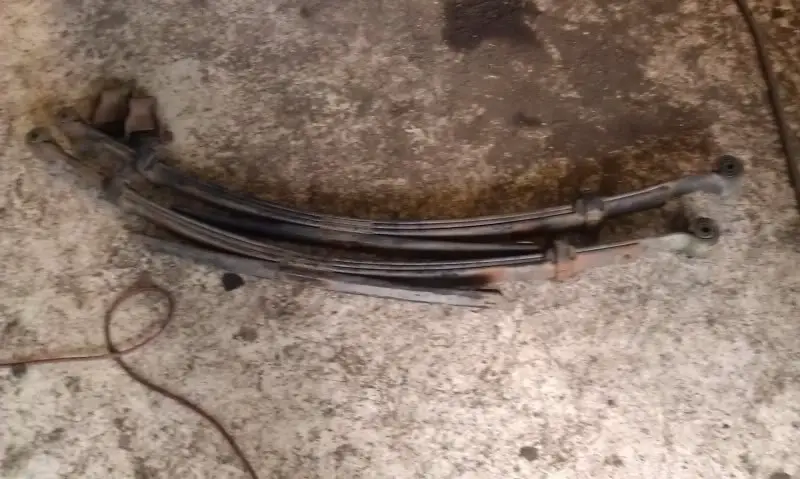

Next we picked up some monster 63 inch( about 6 inches long then stock) Chevy 1500 leaf springs 40 bucks at the JY for a set. We decided we wanted mad flex.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer

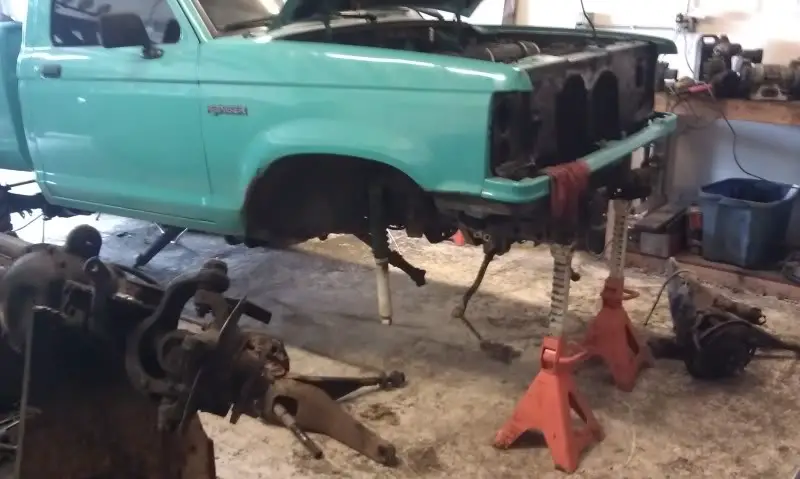

We had to move the bed to make it easier to move the front spring hanger.


Brackets new location...

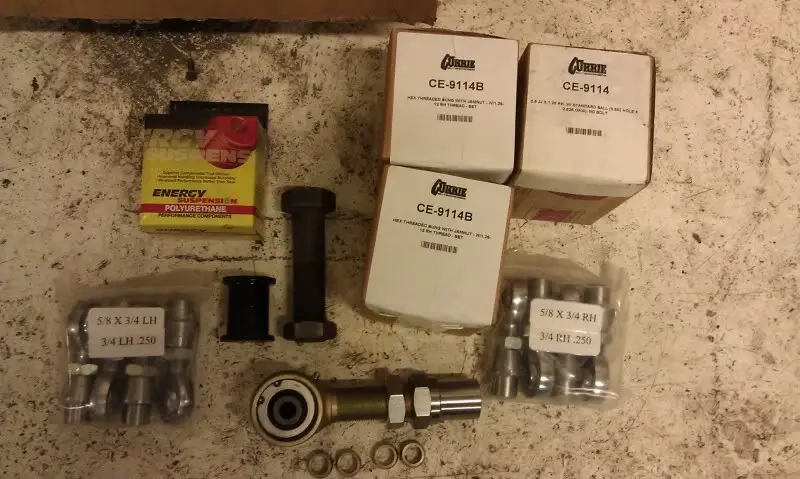

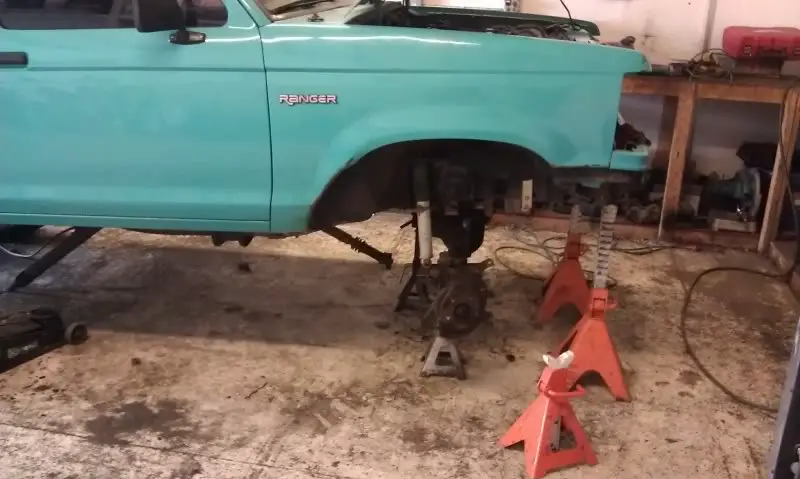

Now the back was sitting back on rear axle we move to the front. Here are some of the parts...

<



<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer

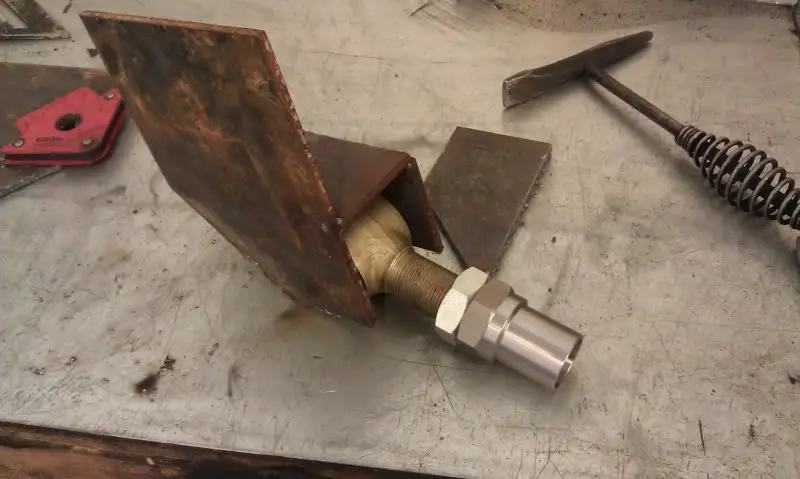

Frame bracket fabbed up...

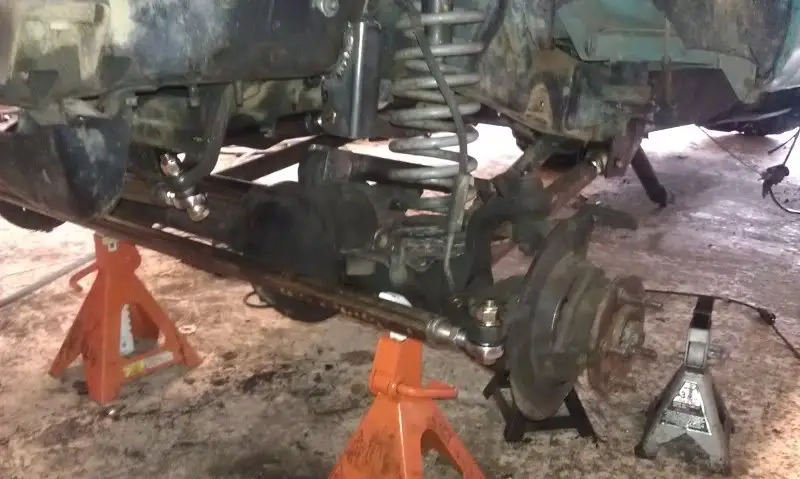

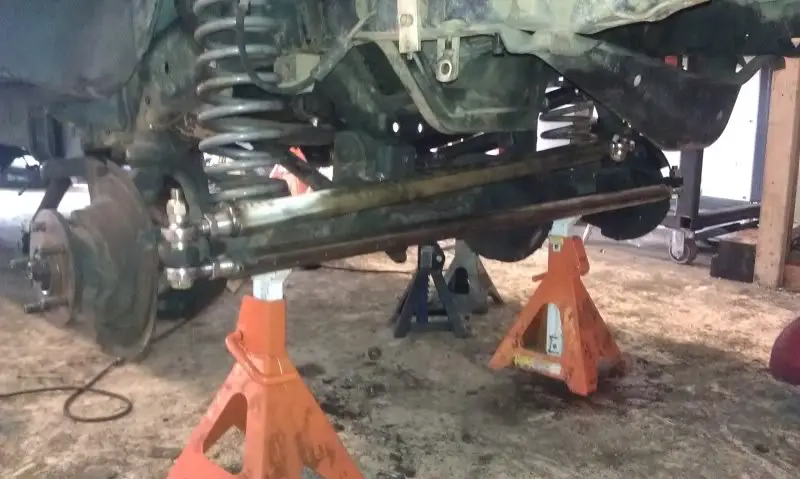

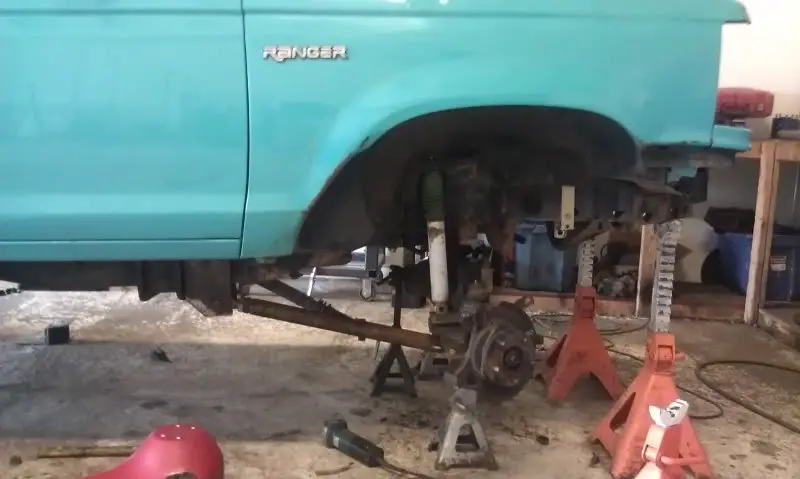

Pass side lower long arm mocked up...

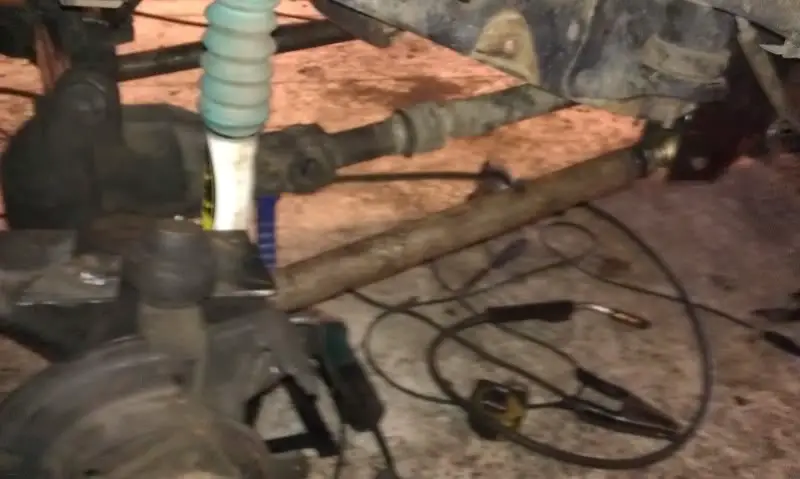

Drivers side low loose fit. You can see even the stock drive shaft reaches...


This is so much easier then the Merc that there is a good chance it will road worthy by next week. Only major things I have left are upper arm for the front Y link, track bar, steering(it already has steering box just have to build the links and drill out for 5/8" bolts), and sway bars.

<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer

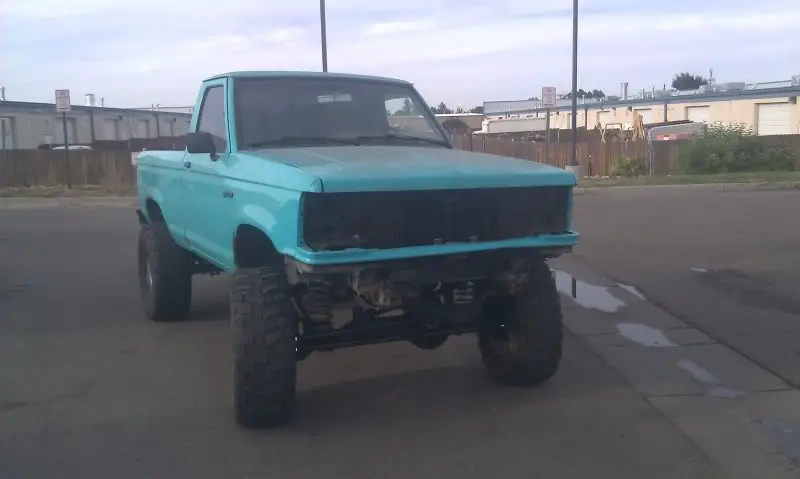

More pics today.


Coil retainers done on the top...

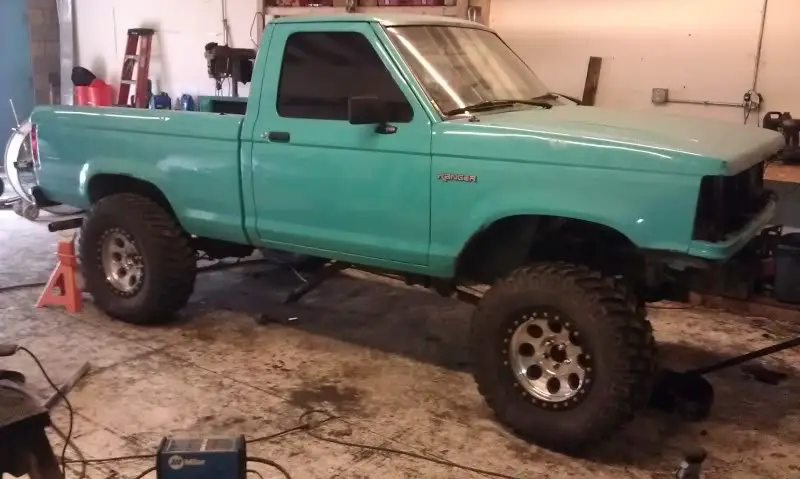

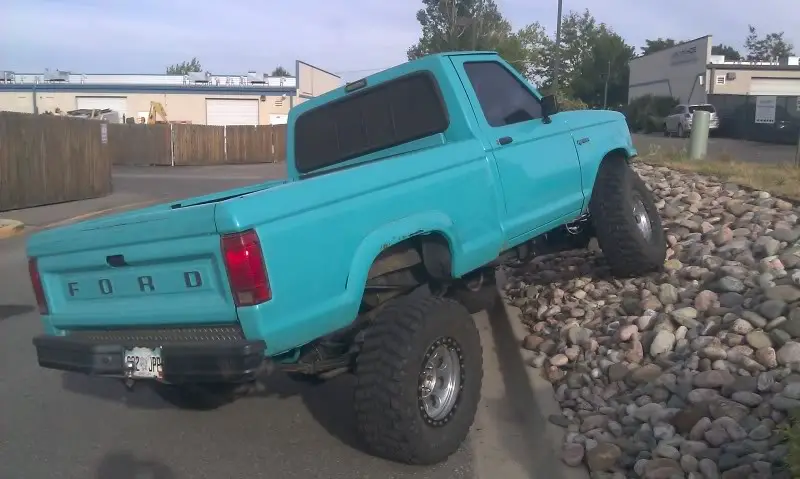

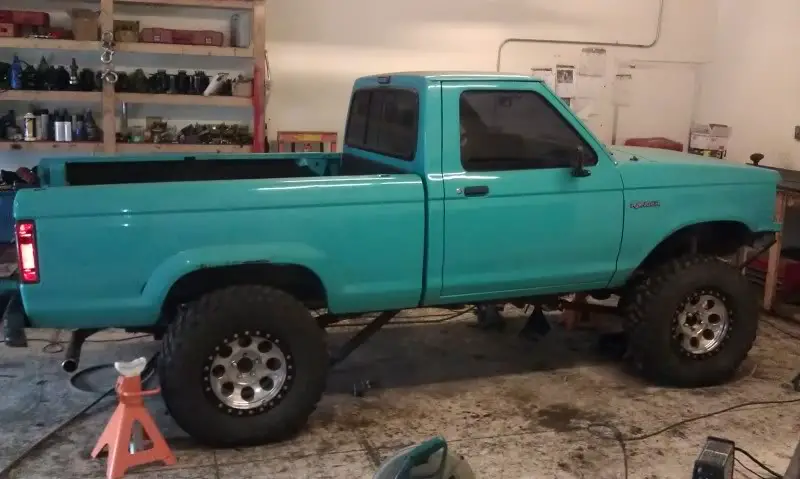

Sitting on tires checking ride height. Going to try some different coils.


The rear is 4 inches lower right now but should be 3 inches higher after new shackles and the perches are changed to raised anti warp perches.

<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer

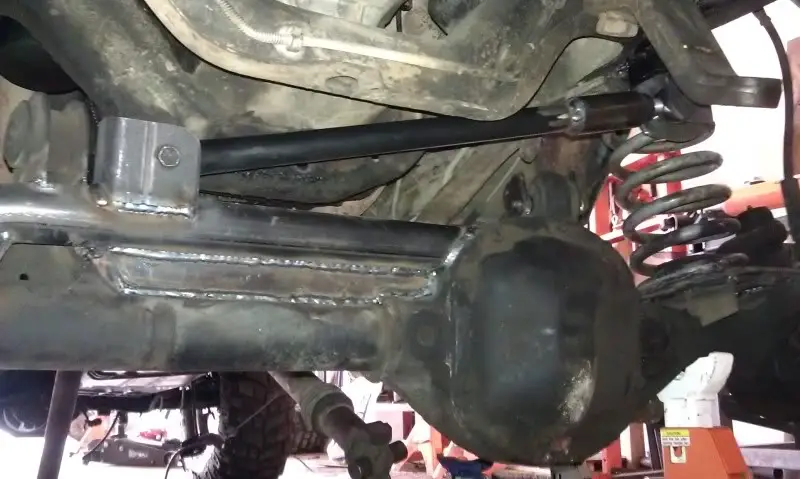

Track bar...


Steering...





Pretty close to being done. Need a few parts for the brakes and some bolts. Figure out the shocks. But that stuff is all easy. Right now I have between 10-12 hours in the front. Has to be one the easiest SAS there is.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...Any pictures of the rear anti axle wrap perches?

..Looks like you already got some pretty tall blocks in the rear..What are you swapping in?

<



<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..I guess I'm not seeing what you are using for the anti axle wrap..:dunno:

..I am curious as I'm also running the chebby springs but with no overload on them..The Detroit wants to wrap the springs and I'm keeping an eye out on solutions as they come up..

..Great to see another Ranger gettin some lovin'..:biggthump

<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer
The anti wrap perches are almost 3 inches longer then stock perches. So they help keep the leafs from wrapping. They work good on the Merc. Merc has 4.88s, Detroit, and being pushed by a 5.0 V8.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..Ok..Gotcha now..

..I thought you were doing a link set up..:confused:..Those look like a Currie product..Where did you find them/price/etc..?

<



<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..I got lucky with my guess..:D

...Currie also makes some killer shock tabs for the 8.8 ..;)

<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer
..I got lucky with my guess..:D

...Currie also makes some killer shock tabs for the 8.8 ..;)

You got lucky or maybe you saw the pic above with all the parts and a box that says Currie on it. ROFLMAO!!!! Subliminal message... :rolleyes:;)

I have a plasma cutter so I make my own shock tabs. Ballistic Fab makes some good ones too.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer
I have used them before on a few axles not that impressed since about there are about 100 companies now making stronger versions of them. I build 8.8 axles for Jeeps at my shop the ones I use for the Wranglers are way stronger then those.

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
I build 8.8 axles for Jeeps at my shop the ones I use for the Wranglers are way stronger then those.

...That's ok...We won't hold it against you..:p:

<



<



Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer

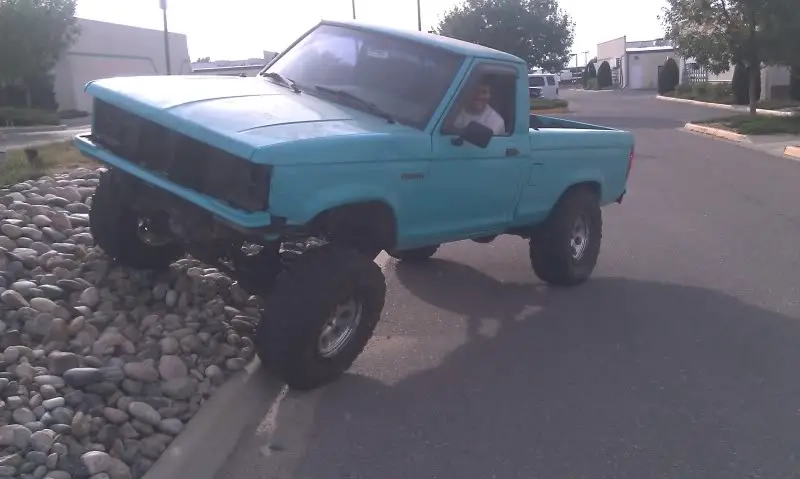

4.88s in today and everything hooked up minus shocks and sway bar. Austin(owner) was having fun driving around the parking lot until he blew a fuel line and lost all fuel pressure. But great day we got a ton done. Just little more work and she will be road worthy.
