Pulled a stupid....... power mirror connector

hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
ok i pulled a stupid :( i cut the power mirror switch outta my 93 parts truck to replace the one the previous owner of my 91 "lost" he also "lost" the connector, what i need is a pic of the connector still wired in a 91, can anyone help? ive checked all the pics i could find here and on the internet, alot show the panel and the window switch but i cant find a close up of the mirror swicth, thanx in advance




Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
no one got a pic of this part? common pull off a panel and click! lol







fixxxer

Explorer Addict
Joined
September 28, 2006
Messages
1,457
Reaction score
5
City, State
Aurora, Co.
Year, Model & Trim Level
93 XLT 4X4

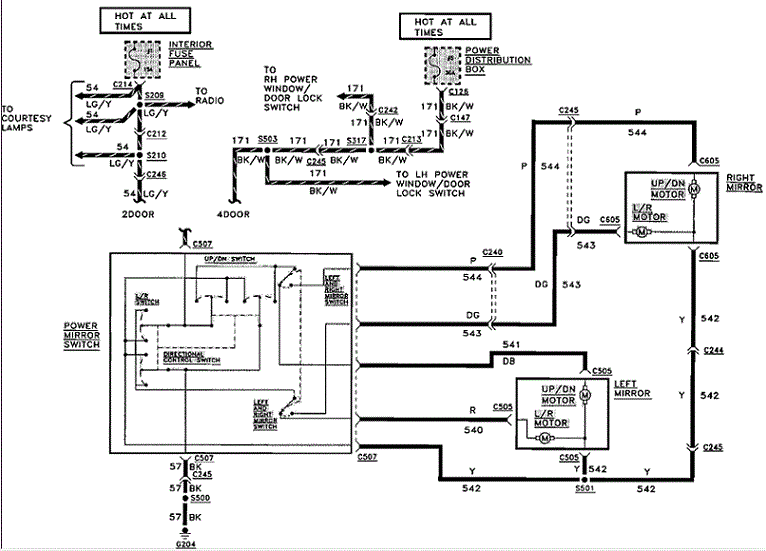

will a schematic work for you?


Attachments

  • 91 pwr mirror.GIF
    91 pwr mirror.GIF
    40.6 KB · Views: 316






burgundy1994xlt

Well-Known Member
Joined
March 6, 2008
Messages
130
Reaction score
0
City, State
Schmuck from dirtland
Year, Model & Trim Level
1994 XLT 4X4
Is the 94 the same? I can get you a pic right now if it is.







hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
ill keep the diagram, but i really need a pic to see where the pins go in the plug, yah i think a 94 is the same. thanx in advance!







burgundy1994xlt

Well-Known Member
Joined
March 6, 2008
Messages
130
Reaction score
0
City, State
Schmuck from dirtland
Year, Model & Trim Level
1994 XLT 4X4






hoss_hanna

Well-Known Member
Joined
July 31, 2009
Messages
238
Reaction score
1
City, State
ft. smith, ar
Year, Model & Trim Level
91 4x4, 93 XL, 01 mountie
u are my hero thanx! those show exactly what i needed. nice !!







burgundy1994xlt

Well-Known Member
Joined
March 6, 2008
Messages
130
Reaction score
0
City, State
Schmuck from dirtland
Year, Model & Trim Level
1994 XLT 4X4
Yer most welcome. Glad to help a fellow Explorer owner. I know this forum has helped me many a time so just passing some info right back.
