Replacing A/C Receiver/Drier 4.0L SOHC *Fixed Pics*

***Seem to be having some issues with the photo hosting site. One minute the pics are there and y'all are seeing them, the next minute they're gone. Any recommendations for a better hosting site???***

Here's the procedure for replacing the receiver/drier and orifice tube in a '97 4.0L SOHC:



1. Have the system professionally drained. It is actually a federal crime to allow refrigerant to escape into the atmosphere. Plus it's just a lot safer when you know you can crack open your system and nothing's gonna' come blowing out at you.

2. You WILL need this tool (I paid $7.98 at Advance Auto for this one):

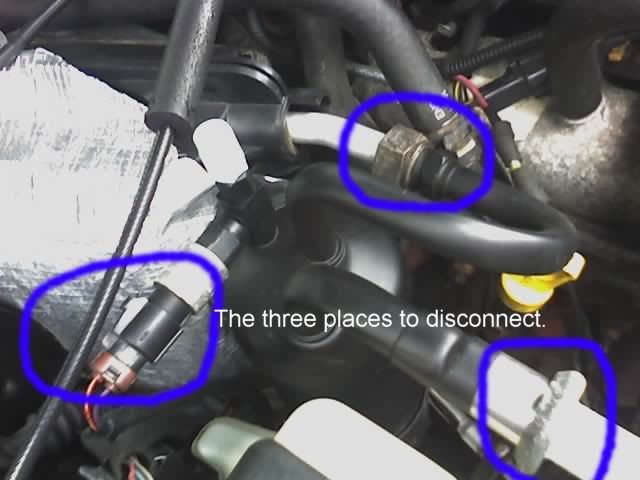

3. Disconnect the receiver drier at three points as shown:



4. This is the fitting that requires the special tool:



If you've never dealt with this type of fitting before, here's how it works: The line end is shaped like a doughnut. Inside this doughnut is a circular spring. The receiver tube is flanged at the end and snaps inside this doughnut so that the spring ends up contracting around the tube and holding it snugly in place. The special tool has four different sizes and is designed to be clamped around the receiver end of the fitting and pressed into the opening of the fitting so that the spring is expanded and pushed out of the way. This allows the flanged end of the receiver tube to slip out of the doughnut. I hope that all makes sense; you'll just have to see it when you're doing it.

5. Pull the receiver/drier from it's mount. It simply slips out of the bracket - no bolts or screws.

6. Remove retainer clip and separate the evaporator tube from the lower A/C line as shown here (again, use the special tool):



7. Remove the accumulator valve/orifice tube from this line with a pair of needle-nose pliers.

Installation:

1. Install new orifice tube into lower line:



2. Reconnect fitting and install retaining clip.

3. Fill new receiver/drier with about 3-4 ounces of PAG 100 oil.

4. Install new receiver/drier into mounting bracket and reconnect at the three points (quick-connect, nut and switch).

5. Double check your work. If satisfied, close the hood; you're done.

6. Bring vehicle to a professional A/C service facility and inform them of the work you've done. Also let them know that you have pre-charged both the compressor and the receiver/drier with 3-4ozs of PAG 100 oil. Ask them to evacuate, leak-test and recharge the system. They will do the rest.

Good luck to you!

Jeremy
'97 Eddie Bauer 4.0L SOHC
