Radius arm make over

I've decided to try and see if I can get some kind of flex out of my set up so the plan is to sleeve my current radius arms with 1 3/8" ODx 7/8" ID .250 wall DOM and put 3/4 heims on the ends.
I've fabbed up some brackets from 3/8" plate steel and I ended up changing my design so I had to use the material I had already bought for the project. It would have been a lot easier to use the main plate coming off the frame with some 2 1/2" square tubing with a tab coming off of the bottom but oh well.
The radius arm brackets will mount just behind the tranny X-member with 4 bolts on the side and 2 on the underside of the frame. I'll eventually make a removable crossmember to tie the radius arms together.
I got all the heims, heim hardware and DOM tubing fron spidertrax.com. They have these heim dust boots i'm gonna try out too...couldn't hurt.

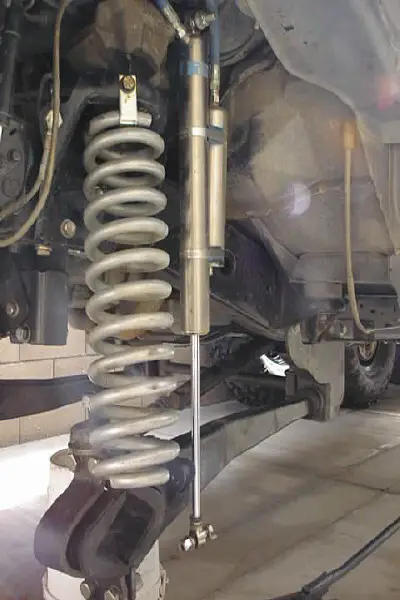

So here's some pics...first one you'll see what i have to work with on my truck. That radius arm is hanging there on it's own and if I put some weight on it, it doesn't go down much further if at all so you can imagine what that's doing for flex or lack therof.

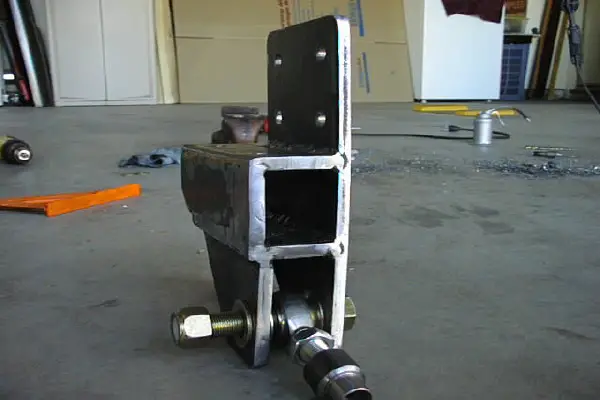

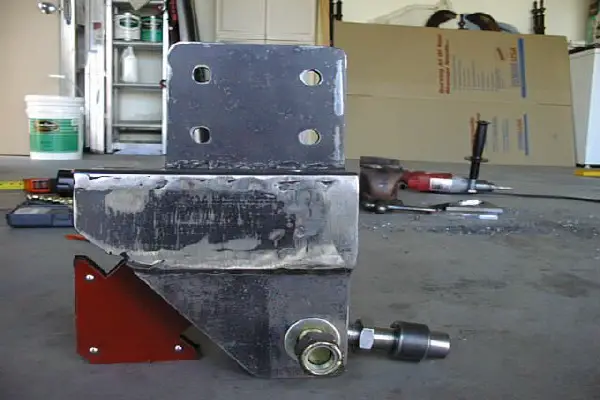

Next pic is a template of the main plate i'm working from and the rest of the pics are the finished brackets ready for paint.


Attachments

  • AGF00017.JPG
    65.7 KB · Views: 645
  • AGF00002.JPG
    46.2 KB · Views: 634
  • AGF00003a.JPG
    65.7 KB · Views: 628



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt

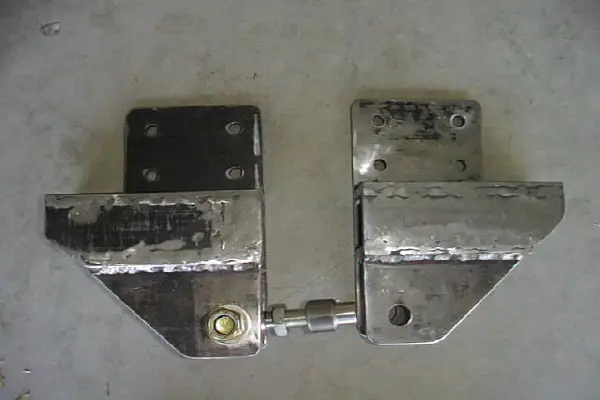

more pics

I'm gonna work on getting these mounted today and i'll try and pics of that.


Attachments

  • AGF00004.JPG
    56.7 KB · Views: 615
  • AGF00005a.JPG
    66.9 KB · Views: 614
  • AGF00006.JPG
    53.9 KB · Views: 639






Trckmagik

Ole Bag
Moderator Emeritus
Joined
August 22, 1999
Messages
4,731
Reaction score
6
City, State
Celina, Texas
Year, Model & Trim Level
1996
Very nice work sir... You wanna make me some? :)







410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
28,695
Reaction score
5,040
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
What about your lift height and springs? too stiff for your Ranger?

Those brackets look sick, nice job!







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Thanks guys!
Trckmagik,
I can send you the dimensions of the template if you want. If you have access to a plasma cutter that would make the job a whole lot easier, I went through 10 cut off wheels on my 4" grinder :eek: If I were to do it differently i'd use 2 1/2" square tubing like I mentioned before then cut a tab
that matches the the profile of the bottom half of the main plate. So in other words you'd only have to cut 2 pieces instead of the 5 like I did :confused:

410,
For now I'm gonna keep the ride height as is, I really like having the space that i have now between the diff and the engine crossmember. As for springs, I'm looking into Fox's new 2.5" air shocks...they are supposed to have twice the weight capacity as the 2" but I need get more info on them.
I figure if i can get some decent flex out of it after all that, it will make up for the tippyness it had.

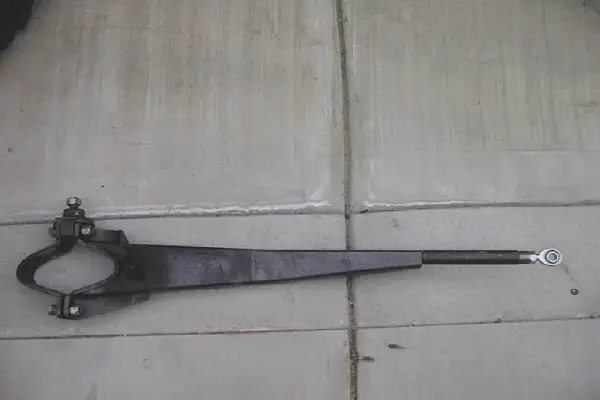

Here's a pic of the radius arm mocked up and ready for welding.


Attachments

  • radarm.JPG
    80.6 KB · Views: 587






RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,416
Reaction score
642
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Dave, what's the before and after length on those arms?

Brackets look pretty F'n beefy! :thumbsup:







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
The original stud on the arm ends roughly about halfway through the tubing so they're about 6 or 7 inches longer than what I started with.







Diff Whack Daddy

And the Roll Over Posse! Under the Hood Moderator
Elite Explorer
Moderator Emeritus
Joined
February 19, 1999
Messages
3,781
Reaction score
11
City, State
Mount Vernon, WA
Year, Model & Trim Level
1st Gen XLT 4dr
Callsign
KG7VTT
Where are those radius arm from. They look like a hybrid Superlift arm for a stock TTB with solid dana 44 c bushings on the end.







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Those arms are from the infamous Fabritech kit...you can't see it too well in the picture but I moved the shock mounts from above the arm to the side so I could fit a longer shock (as well as longer shock mounts on the frame).







Felix

Well-Known Member
Joined
October 6, 2002
Messages
804
Reaction score
4
City, State
Agony, GA.. I mean Albany, GA
Year, Model & Trim Level
1998 F-150 Lariat 4x4
good looking work Dave. I think we have talked about doing something like that for how many months now :). Anyway, hurry up so I can use your welder :D LOL.







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
I got the holes drilled for the brackets and welded up the extentions on the radius arms. Tomorrow everything will be installed and i'll get some pics up.







DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,766
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Hope everybody had a great X-mas :D

I finally got my rig back together and i can actually use 4wd now! I took the truck out for a test drive in a dirt lot by my house and broke in the new gears in a little. i went to flip the hubs and I must have left the pass side locked when I installed them because when I flipped it into 4hi, I could feel that nothing was happening in the front so i got back out to check the hubs again and sure enough the pass side was unlocked...doh! :confused:
As for flex, it's not a whole lot better than before but that's because of the stiff TTB coils and I knew that going into the build. The arms have freedom of movement though so the potential is there. I'm happy with the way it turned out though and i'm glad I did it.

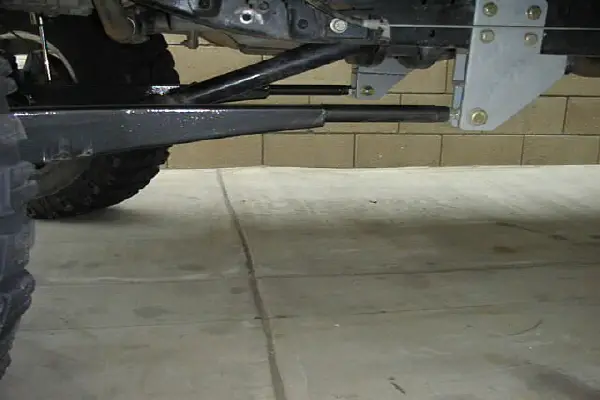

Here's a pic with the arms installed:
