Ranger rear bumper in progress

DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
I've put off finishing my bobbed bed, I have to weld in the inner piece of sheet metal but its gonna be a real pain in the :mattmoon:
So I've decided to do something a little easier and make a rear bumper. I started with 2"x4"x.120 wall tubing and 45'd the ends, similar to a TJ bumper.
I then capped the ends with the same thickness material as the tubing.
For the brackets, i'm going to use 2x4 tubing again welded to the bumper itself then drill 4 holes on each side, the bolts will run throught the frame, to the welded brackets and finally to a plate that will slip inside the brackets with welded nuts on it. I will also weld on a 2x2 crossmember to give it more support. I need to make a run down to Schorr metals in Anaheim to get more material and they also have weld on tow rings...kinda like D-rings but these are non removabale.

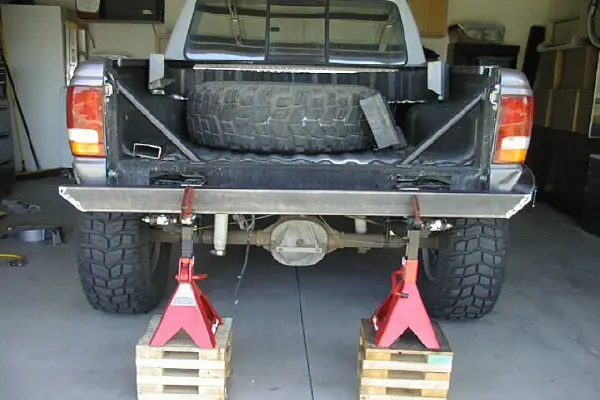

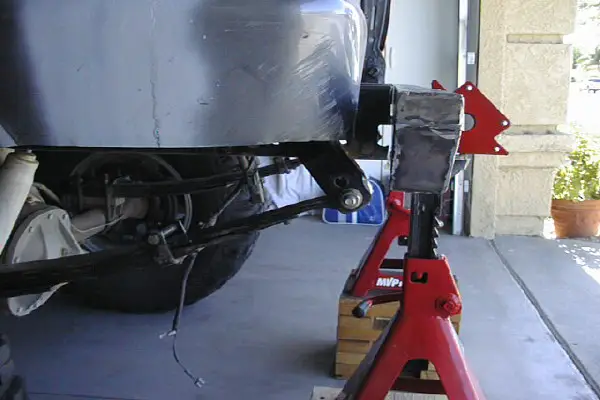

Here's a couple pics of the bumper mocked up:


Attachments

  • AGF00001a.JPG
    78.6 KB · Views: 842
  • AGF00002a.JPG
    68.5 KB · Views: 752


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




DMan446

Active Member
Joined
May 5, 2004
Messages
347
Reaction score
0
City, State
Wichita Falls, Tx
Year, Model & Trim Level
2001 Explorer Sport
Looks good, wish I had welding skills :)





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Thanks...still working on my skills but everything seems to be holding up :p





bmxking5

Well-Known Member
Joined
May 2, 2004
Messages
4,791
Reaction score
3
City, State
Monroe, GA
Year, Model & Trim Level
'93 Sport & '96 XLT
Nice job so far, looks good





rino351

Well-Known Member
Joined
July 31, 2003
Messages
1,355
Reaction score
1
City, State
Golden, CO
Year, Model & Trim Level
'94 XLT
Looks good so far -will look very good when you are done

p.s.- off the subject but why are your rear tires have opposite tread pattern on them??





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Thanks guys :chug:

rino351, my tire is like that because that was my spare tire and it just happened to be the wrong side that got a flat. I was wheelin one weekend and my tire slipped off a rock into a bush where a branch punctured the sidewall. It was a pretty big gash and no tire store wanted to touch it but one guy suggested I try a couple of plugs and it seems to have worked after a couple yrs now but I keep that tire as my spare.
On another note, people say that its not good to run a directional tire in the opposite direction. I believe that to be a myth from my experience with these tires. I have driven it that way 2 yrs with no problems now, at freeway speeds and all. It wears no more than the tires in their intended direction.





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Well, I made a steel run this morning and got what I needed to finish my bumper...also got some tubing to make some sliders :bounce:
I've decided I'm not gonna do the weld on tow rings because I dont trust them on such thin wall (.120) material. I'll just mount some tow hooks to the underside of the frame.
It's kind of hard to get motivated to work on it this weekend since the temps will be pushing 110.
Pics to come when I finish it up.





rino351

Well-Known Member
Joined
July 31, 2003
Messages
1,355
Reaction score
1
City, State
Golden, CO
Year, Model & Trim Level
'94 XLT
Yeah I could see how that would slow you down.
It's only been in the high 60's to low 70's here, with thundershowers





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Those temps sound refreshing...we only see low 70's after midnight lol.

So, I cut the brackets down to the size I needed and drilled all the holes, 12 total...4 in each bracket and 4 on the frame. I'm going to use the rear holes of the shackle hanger since I dont have that much room left on the frame after I shortened it. I welded nuts on the inside of the 2x4 brackets so it will just bolt right on to the frame. All thats left now is to weld the brackets on and paint it, hopefully I can finish it up today.





DB_1

Elite Ranger
Elite Explorer
Joined
October 23, 2001
Messages
3,798
Reaction score
42
City, State
La Quinta, Ca.
Year, Model & Trim Level
97 SC Ranger xlt
Done!

Finally finished the bumper and all thats left is to paint it and bolt it on.
It slides in beautifuly (it pays to measure) between the frame rails and will bolt right up with the nuts that are welded on the inside of the brackets. I capped the ends of the brackets soon after I snapped these shots.

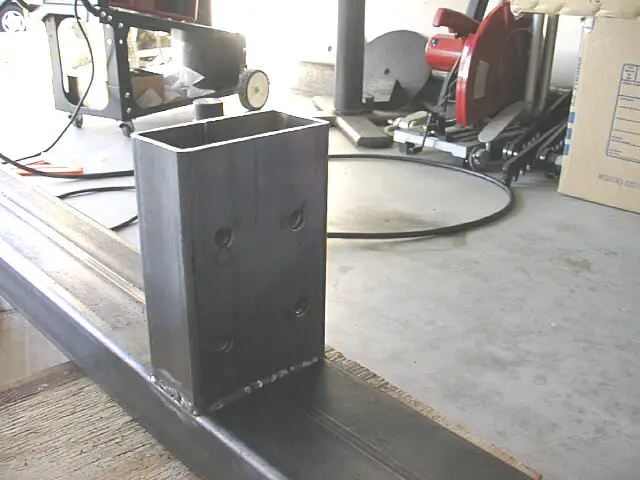

Here's a couple of pics:
