Rebuilding a 2nd gen Explorer with a 1st gen rear clip

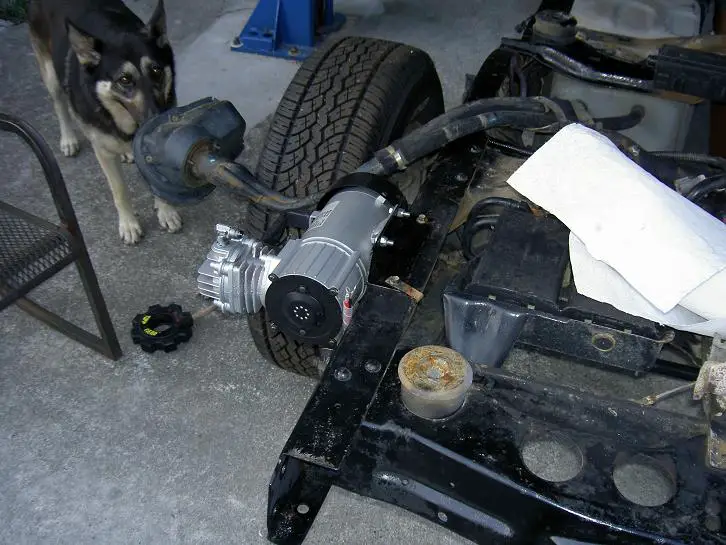

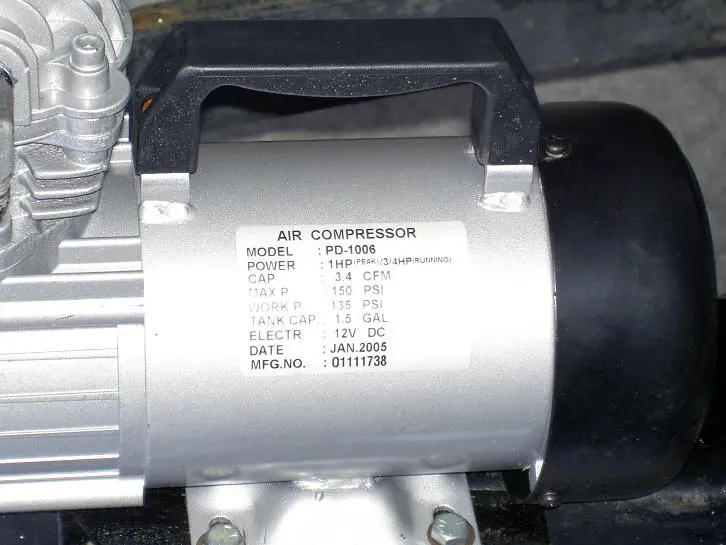

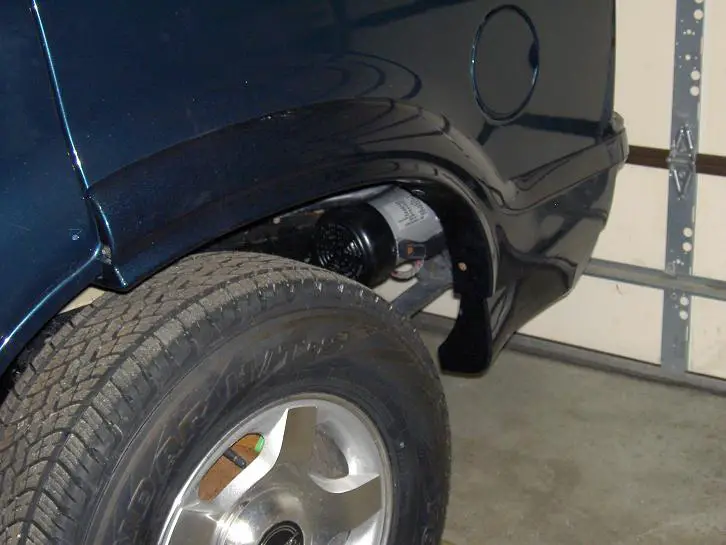

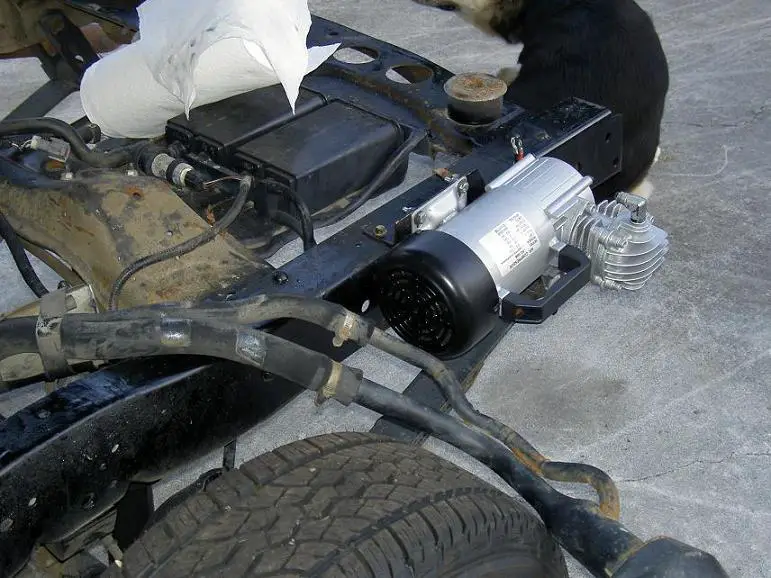

I've got most done now, I haven't spent the time to reduce the size of the pictures. I'll start with those of my second air system, compressor(Puma).


Attachments

  • Projectthread050.JPG
    89.2 KB · Views: 1,220
  • Projectthread051.JPG
    79.4 KB · Views: 1,211
  • Projectthread052.JPG
    60.3 KB · Views: 1,213
  • Projectthread059.JPG
    56.1 KB · Views: 1,215



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

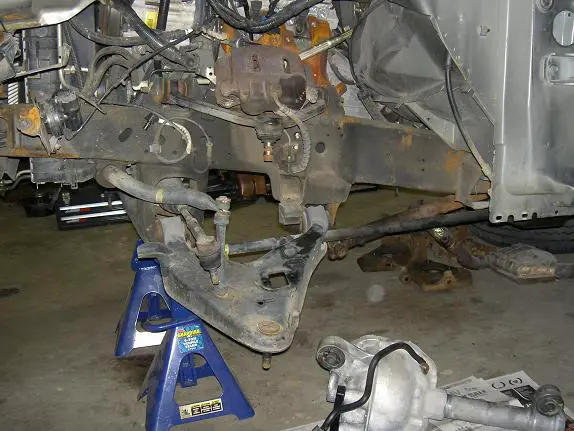

I took the front suspension apart last year, replacing axles, and the differential seals.


Attachments

  • Projectthread054.JPG
    56.8 KB · Views: 1,217
  • Projectthread055.JPG
    45.3 KB · Views: 1,204

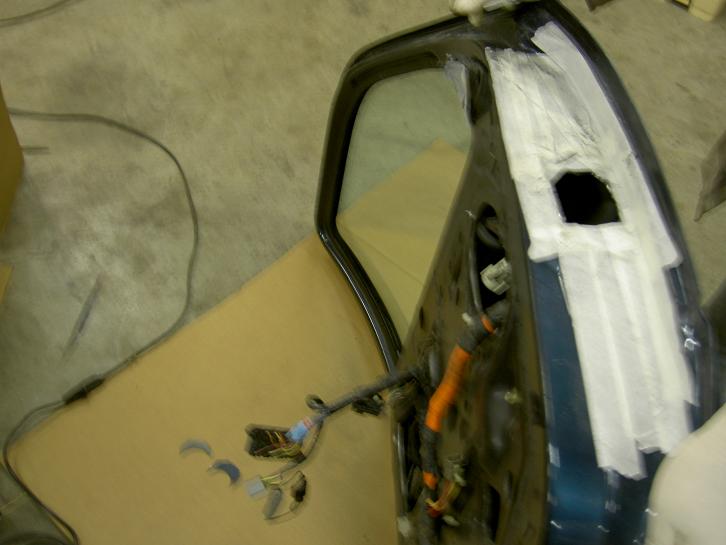

The 95-01 LF door connector holes are much different. I cut my 91-94 LF door to match the 99 harness connector.


Attachments

  • Projectthread053.JPG
    42.7 KB · Views: 1,209






The dog is a friend's, named Dido, obsessed with chasing toys/sticks.

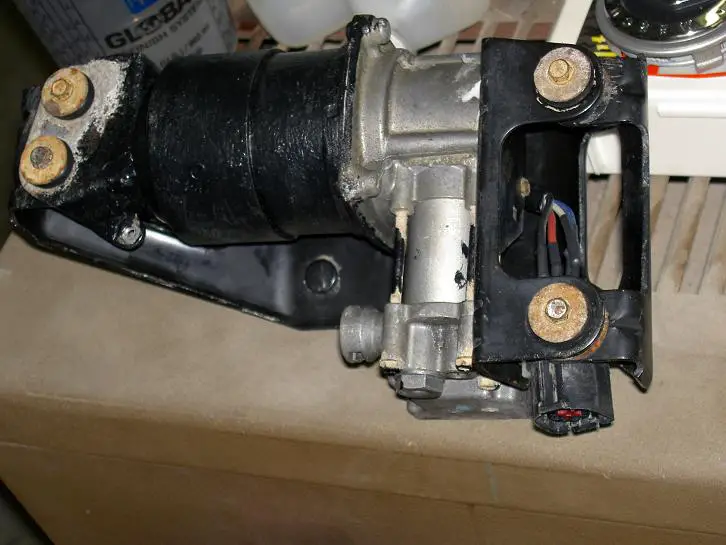

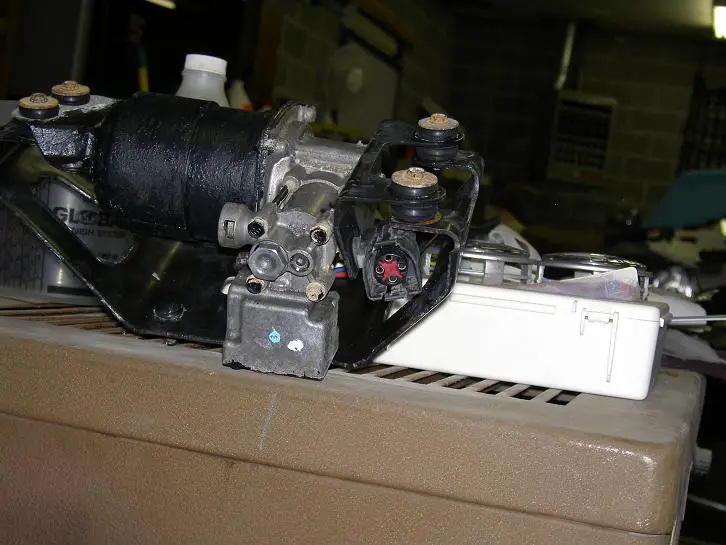

This is the OEM ARC air pump cleaned up before mounting. Happily the system works to start with.


Attachments

  • Projectthread061.JPG
    63.1 KB · Views: 1,201
  • Projectthread060.JPG
    62.8 KB · Views: 1,213

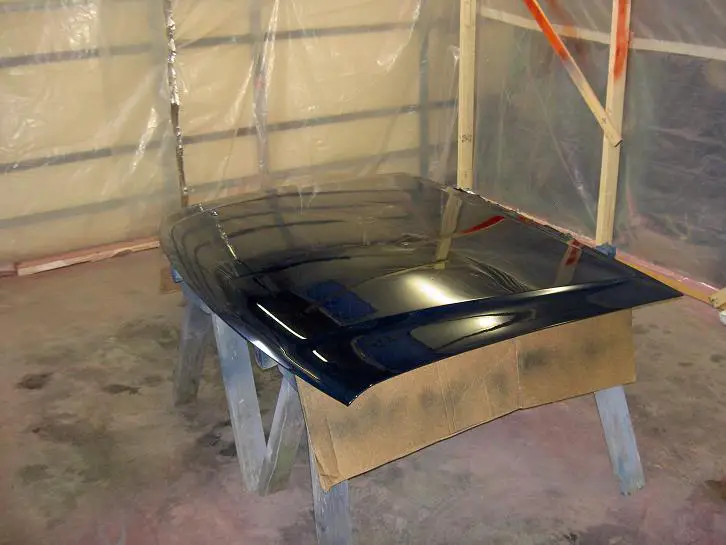

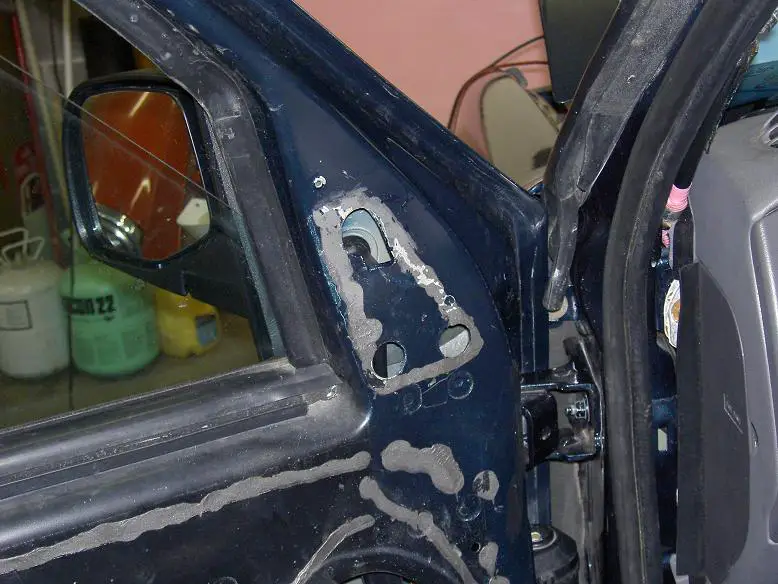

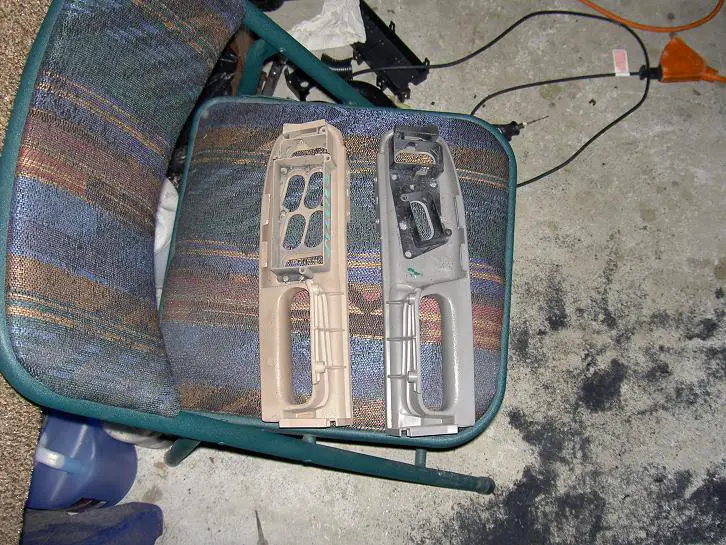

The hood after repainting(mosquitos), and the LF door after cutting to fit the 95-01 door panels. Notice the mirror mount holes, the top hole is shaped oddly for the 95-01 panels.


Attachments

  • Projectthread057.JPG
    54.4 KB · Views: 1,203
  • Projectthread092.JPG
    81.4 KB · Views: 1,197

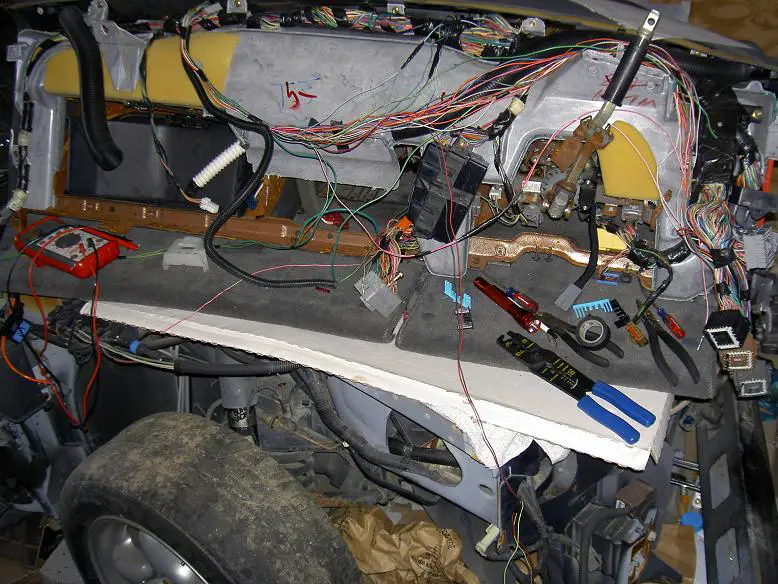

The wiring was the biggest task. The original body harness was cut before I bought the truck, so I used a different harness, not from a Limited. I cut wiring from the four main harnesses of a 98 Limited for the ARC system, added special wiring for windows, turn signals, mirrors, stereo(in case), etc. So far just minor issues have turned up.


Attachments

  • Projectthread062.JPG
    112.9 KB · Views: 1,191
  • Projectthread064.JPG
    114.9 KB · Views: 1,193
  • Projectthread065.JPG
    74.9 KB · Views: 1,207
  • Projectthread066.JPG
    116.9 KB · Views: 1,209

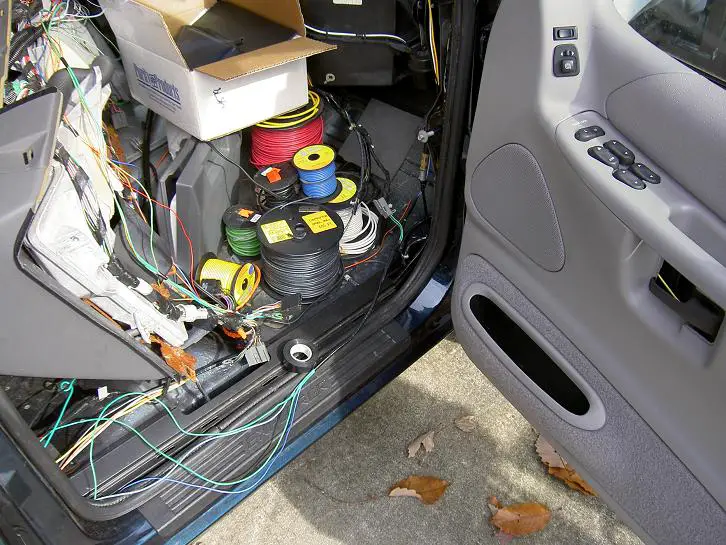

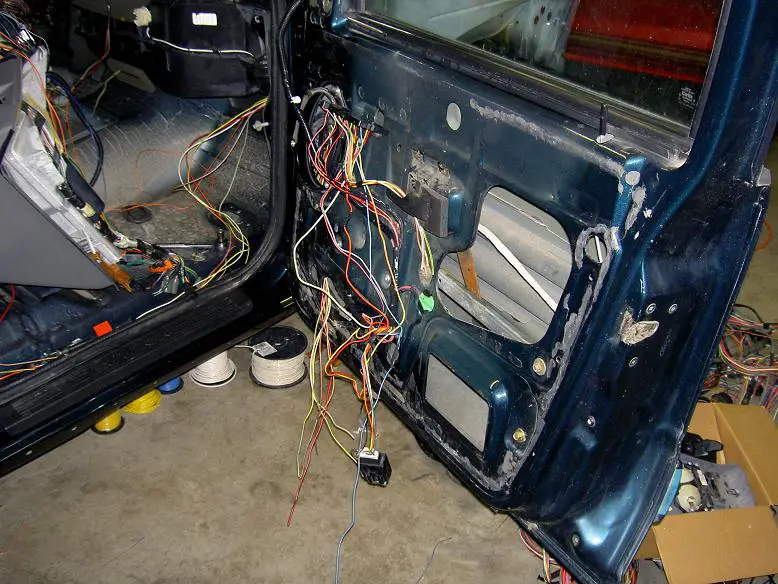

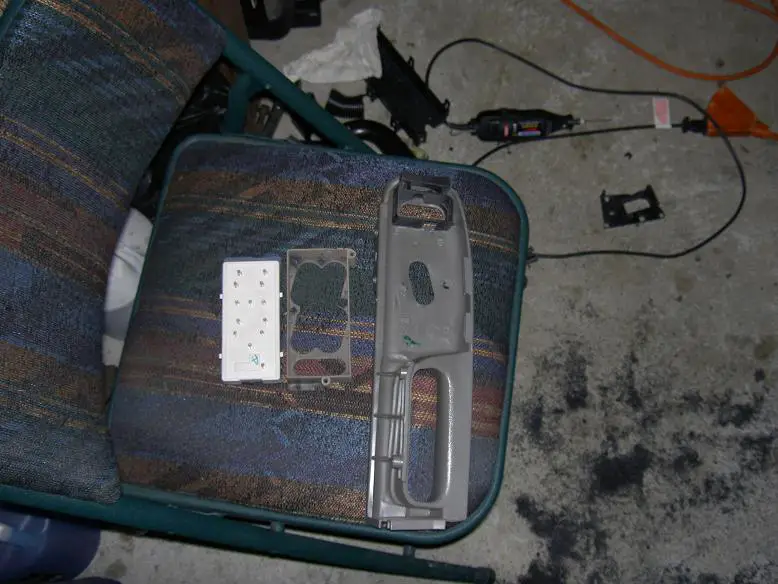

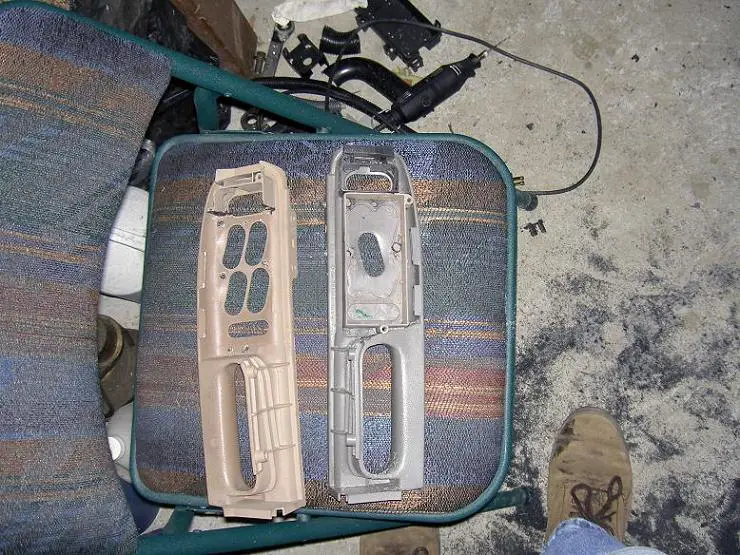

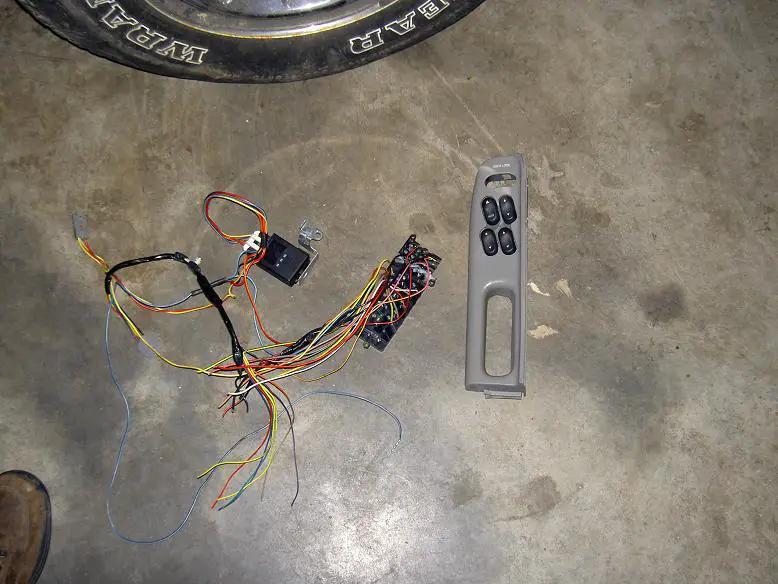

The right front door switch was slow and not so fun to make.


Attachments

  • Projectthread073.JPG
    98 KB · Views: 1,201
  • Projectthread070.JPG
    107.1 KB · Views: 1,205
  • Projectthread069.JPG
    82.9 KB · Views: 1,203






its geting there....







Props to your wiring!! I would have given up with frustration long ago!













It's still left hand drive, I just have mounted switches on the right for turn signals, windows, mirrors, and strobes. I will finish an onboard air compressor last, and have more work space when finished.

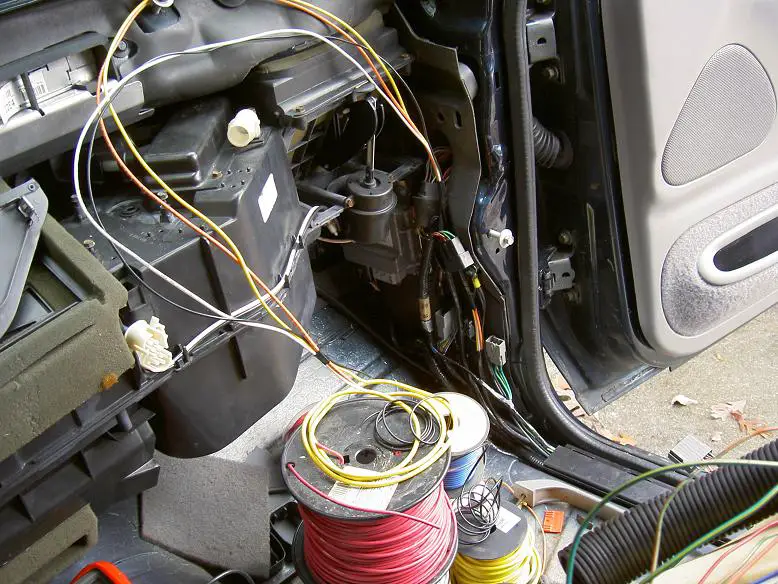

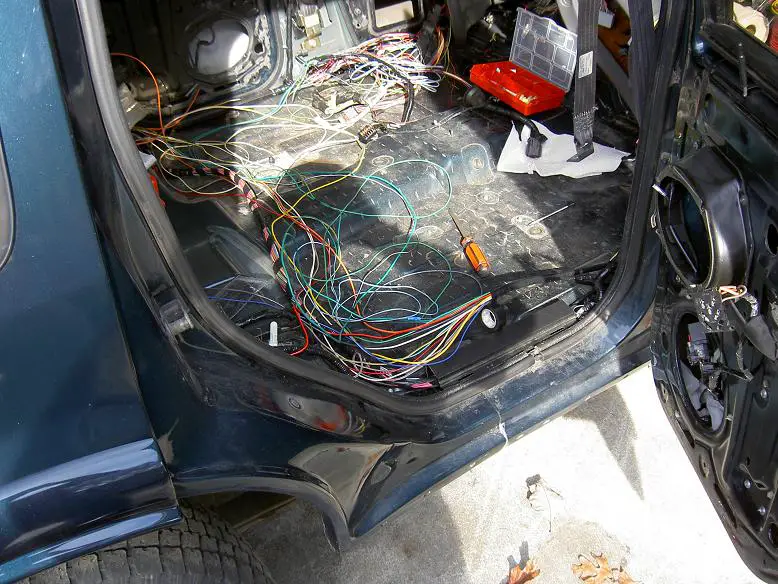

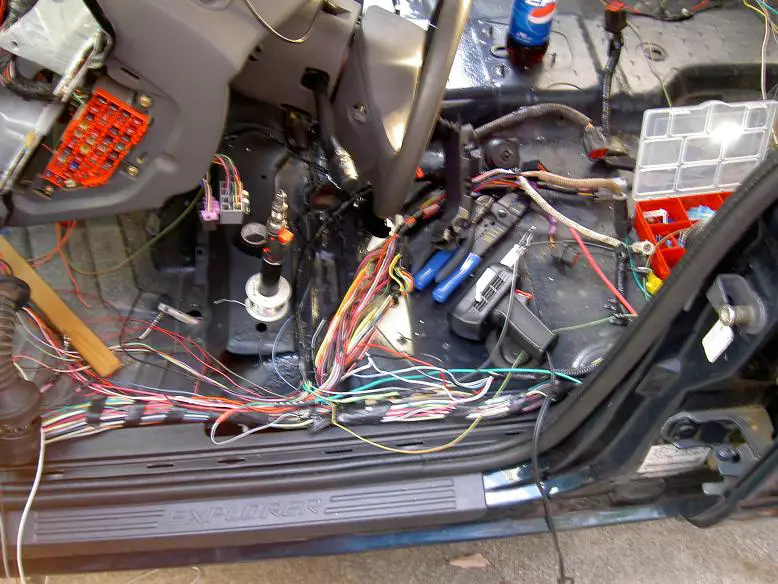

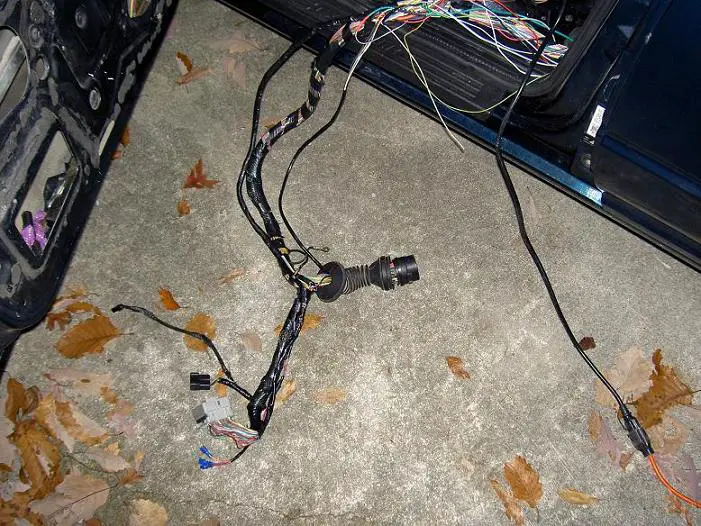

Here are a few wiring pictures from last Fall.


Attachments

  • Projectthread075.JPG
    100.7 KB · Views: 1,082
  • Projectthread076.JPG
    112.1 KB · Views: 1,082
  • Projectthread077.JPG
    109.6 KB · Views: 1,071
  • Projectthread078.JPG
    105.8 KB · Views: 1,085

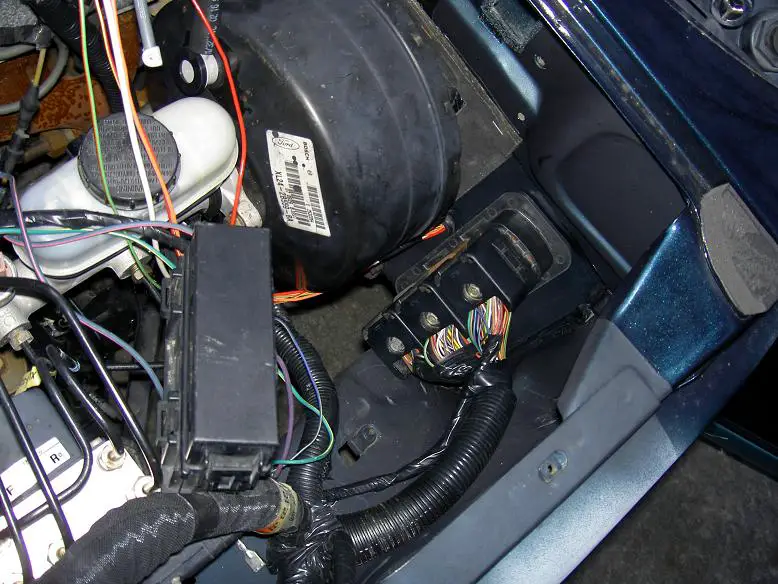

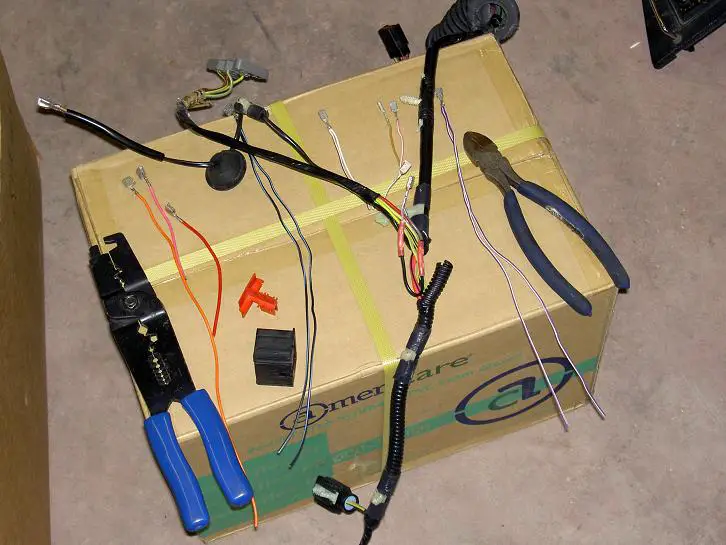

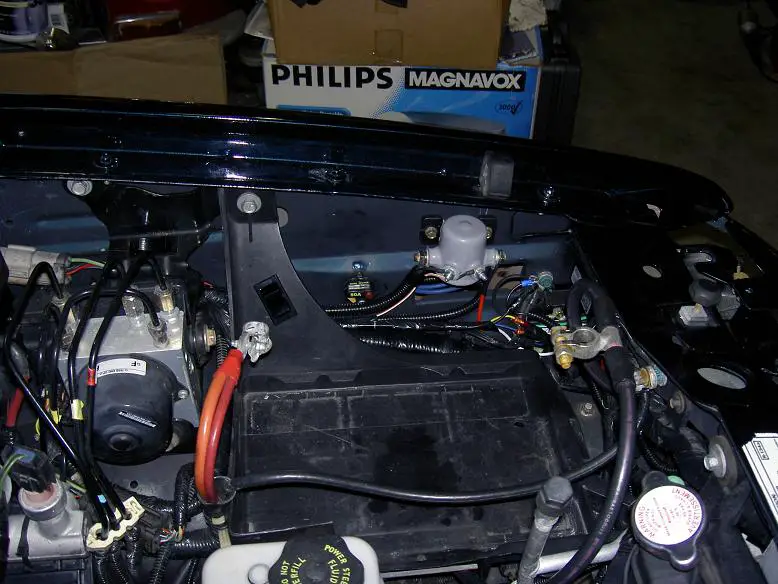

More wiring, both for the OEM ARC shocks, and auxilliary circuits.


Attachments

  • Projectthread081.JPG
    84.2 KB · Views: 1,092
  • Projectthread080.JPG
    96.9 KB · Views: 1,080
  • Projectthread071.JPG
    87.3 KB · Views: 1,079
  • Projectthread079.JPG
    72.3 KB · Views: 1,069

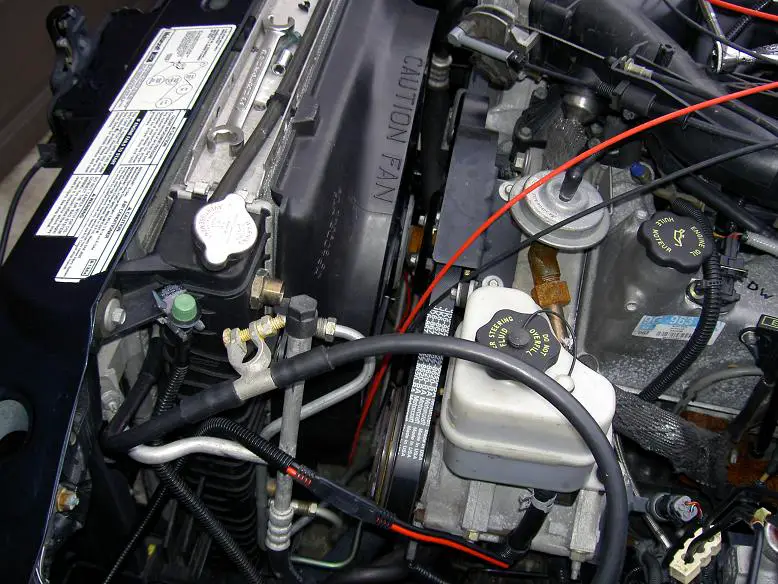

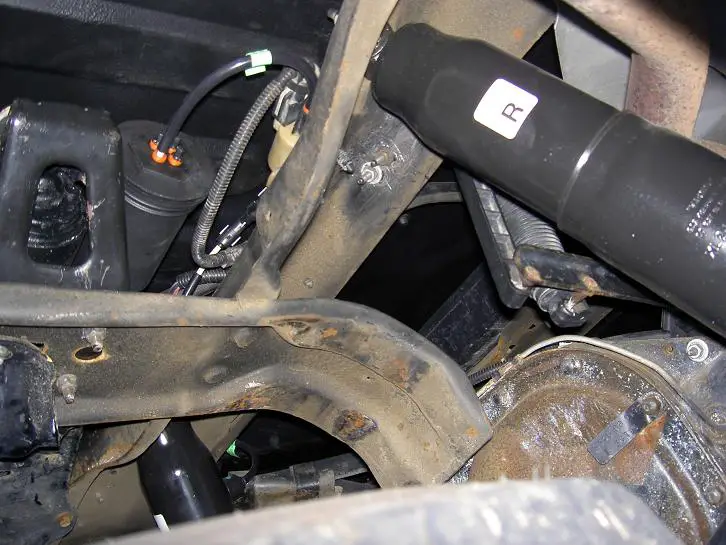

This is from final wiring the electric fan, and the ARC shock height sensor. I elongated the frame holes to adjust the rear ride height. With 1" blocks in back, one torsion bolt out and the other set for level, I have it lower than stock, but not exactly what I had in mind.


Attachments

  • Projectthread090.JPG
    102.5 KB · Views: 1,066
  • Projectthread100.JPG
    77.8 KB · Views: 1,071






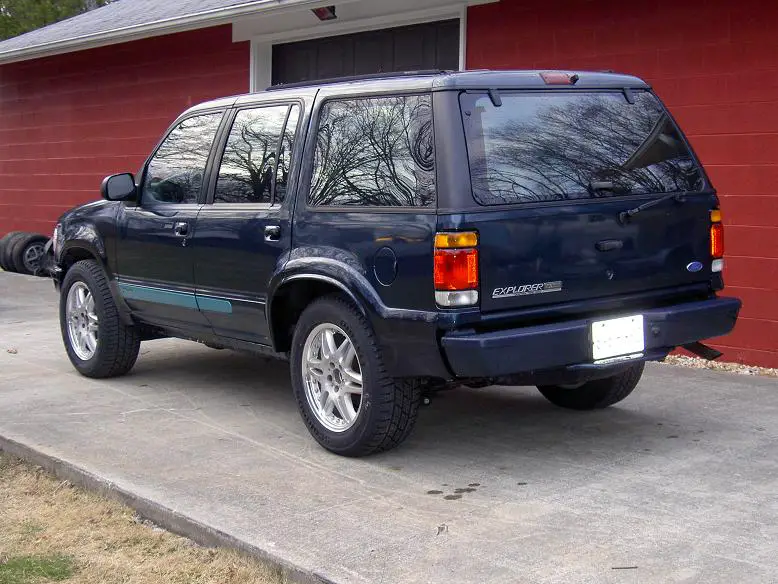

I have been busy, but I have been driving this truck. The odometer worked fine for ten miles, then it began quiting every once in a while. I counted miles, I know generally how far every trip I make is, pulled it back out and looked it over, adding the needed miles. After that made no difference, I changed the whole speedometer as a unit. It is good now, and the speedometer is really close also. I'll put the back interior back into it today.












I have to drill new holes for the front fender flares, there are 95-98 flares and 98-01 flares which take different fender holes. The air tanks, lines, and running boards will be last to do, but it is a nice driving truck as it is. I'll drive it until the 16" tires are worn out, then decide about the height again. If it has any bottoming out now when loaded, then the back would be high enough. Hopefully the ARC shocks will let me drop it another 1/2" or so in back, the front could go down another inch easily. Regards,







That front clip looks like it's darker... or is it just me?
The whole thing looks a bit strange now... combo - first and second gen. kind of cool. Get the best of both worlds, right?

BTW. I converted rear end of my 94 Limited to accept 97 tails... cutting the rear quarters.

I admire your wiring work... that was most likely pretty painful to put together...
:thumbsup:




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Man oh man how does it drive? Its been ALOT of work! Congrats!! That is one sharp and customized ride for sure
