This post describes my installation of a remote push button starter motor crank control.
WARNING: My installation of this device defeats the safety features associated with the Transmission Range Selector and the Clutch Pedal Position Switch. Activating the starter motor when the clutch is engaged or the transmission is in gear will result in vehicle movement and possible injury. Duplication of this device installation is at your own risk.
CAUTION: My installation of this device allows starter motor activation with the ignition switch in any position including Off and the engine running or not. If the starter motor is activated while the engine is running damage may result.
I purchased a Lisle Remote Starter Switch (part number 20750) shown in the photo below left.
It is a push button momentary contact switch that comes with attached leads and alligator clips shown in the photo above right. Since my installation is to be permanent I cut the wires at the alligator clip connections and removed the boots.
I disconnected the ground cable from the battery negative terminal.
Then I released the Battery Junction Box mounting clips identified by the red arrows in the photo below.
This allowed access to the wires protruding from the bottom of the box as shown in the photo above.
I tied the box in a vertical position (as shown below left) to facilitate identifying the desired wires and attaching the push button leads.
Using a trailer type clamp on connector I attached one lead to the tan/red wire coming from the +12 volt side of the Starter Motor Relay energizing solenoid as shown above right.
Note: There are multiple yellow wires at the bottom of the Battery Junction Box. There is a location drawing inside the Battery Junction Box cover that can be used to determine the position of Fuse 5.
Using a trailer type clamp on connector I attached the other lead to the yellow wire coming from Fuse 5 (50 amps) that is hot at all times as shown in the photo below left.
I reinstalled the Battery Junction Box in its mounting clips.
I reconnected the ground cable to the battery negative terminal.
I cut a length of foam pipe insulation to keep the remote control in position when not being used as shown in the photo above right.
WARNING: My installation of this device defeats the safety features associated with the Transmission Range Selector and the Clutch Pedal Position Switch. Activating the starter motor when the clutch is engaged or the transmission is in gear will result in vehicle movement and possible injury. Duplication of this device installation is at your own risk.
CAUTION: My installation of this device allows starter motor activation with the ignition switch in any position including Off and the engine running or not. If the starter motor is activated while the engine is running damage may result.

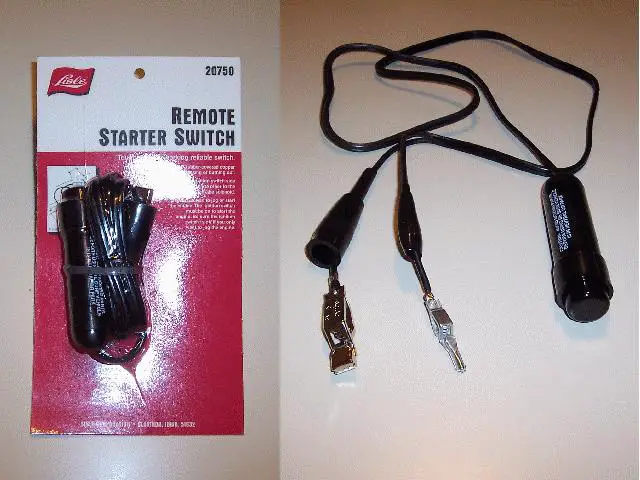

I purchased a Lisle Remote Starter Switch (part number 20750) shown in the photo below left.
It is a push button momentary contact switch that comes with attached leads and alligator clips shown in the photo above right. Since my installation is to be permanent I cut the wires at the alligator clip connections and removed the boots.
I disconnected the ground cable from the battery negative terminal.
Then I released the Battery Junction Box mounting clips identified by the red arrows in the photo below.
This allowed access to the wires protruding from the bottom of the box as shown in the photo above.
I tied the box in a vertical position (as shown below left) to facilitate identifying the desired wires and attaching the push button leads.

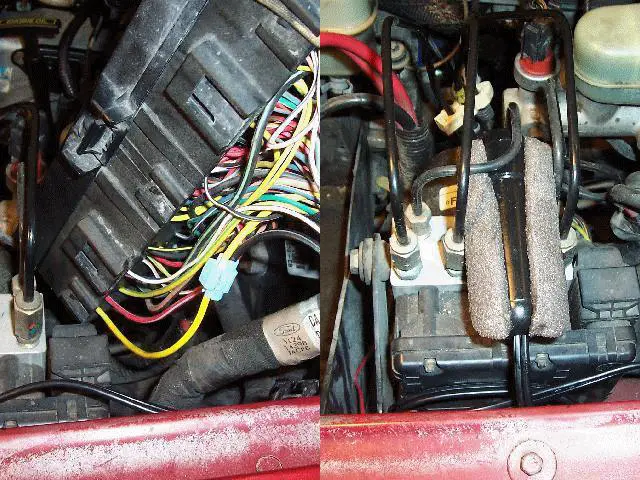

Using a trailer type clamp on connector I attached one lead to the tan/red wire coming from the +12 volt side of the Starter Motor Relay energizing solenoid as shown above right.
Note: There are multiple yellow wires at the bottom of the Battery Junction Box. There is a location drawing inside the Battery Junction Box cover that can be used to determine the position of Fuse 5.
Using a trailer type clamp on connector I attached the other lead to the yellow wire coming from Fuse 5 (50 amps) that is hot at all times as shown in the photo below left.
I reinstalled the Battery Junction Box in its mounting clips.
I reconnected the ground cable to the battery negative terminal.
I cut a length of foam pipe insulation to keep the remote control in position when not being used as shown in the photo above right.
