Remote Start Installation HELP

huskyfan23

Rah no Hans Bwix
Joined
November 21, 2002
Messages
6,707
Reaction score
7
City, State
WA
Year, Model & Trim Level
1994 XLT 4x4

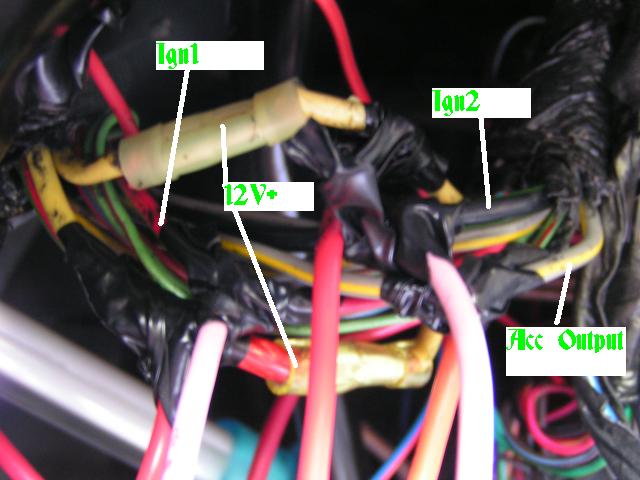

I'm finishing up my RSX 3.5 install and can't get the remote start to work right. I've got a couple pictures of what I did below. When I try to start with the remote it does nothing, doesn't even try to crank. The first picture is of what I think the starter output and input is. I have a few wiring diagrams, they say the starter wire is red or pink (+). I'm not sure what the starter input wire is, I have the purple wire connected to what I believe it is. Purple is supposed to be at start input, green at starter output. My old alarm had an immobilizer relay, and that relay was connected to these 2 wires. I also cut each and was unable to start with the key. The next picture is the rest of the wires. I've got the 2 red wires connected to 2 yellow (12v input for high current outputs), orange to accessory (diagram says gray/yellow [there are 2 gray/yellow]), pink goes to ignition output, other pink to ignition 2. I also have a wire going to what I think is the tach wire. My diagram says it's at the ECM, gray/orange wire. Anybody know what's connected wrong? I'm sure someone's done a remote start themselves on a first gen. Thanks!

PS: It says all the ignition wires are in the ignition harness, which I believe has those 2 yellow 12v wires.


Attachments

  • starter.jpg
    42.3 KB · Views: 301
  • starter1.JPG
    42.3 KB · Views: 284






Pm me all the what wires you need info on and i'll try to get it tommorrow.







Got it to start! (once). There's a toggle switch that's supposed to be connected to a wire when the vehicle is parked. I grounded that wire and it started, but now I can't get it to start again.







All fixed! Wasn't pressing the button enough times. :p
