Removing right hand (passenger side) Valve Cover on 4.6L SOHC

[jayton]

Hello guys,

Background story:
Truck has 175,000 miles, I've owned it for 4 years, and it had 110,000 miles when I got it. The truck has been very reliable, and I have not had to turn a single bolt on the engine (up until now) other than oil changes. Two weeks ago I began getting misfires on cylinders 5 & 6, as well as Random/multiple cylinder misfires. There is a lot of crud around the plug boots, which suggests that the valve cover gaskets are leaking. There is a very small amount of oil in the spark plug wells, and the springs inside the spark plug boots are saturated in oil.

What I need help with now:
So I am following the shop manual (off of the Ford Technical Service Publications CD) for removing the right hand side valve cover, and I am running into a problem. I have everything removed that the manual says to remove, and all the valve cover bolts are removed. I cannot slide the back of the valve cover over the back of the camshaft to pull it out. The A/C lines are in my way. I have tried turning the valve cover by rolling it to the right or left.

Anyone know any tricks to getting this thing out of there? I am not planning on removing any A/C lines, and the manual doesn't say I need to.

Anyone out there have the Haynes manual? What does it say to do?

Thanks.



[BigRondo]

Hello guys,

Background story:
Truck has 175,000 miles, I've owned it for 4 years, and it had 110,000 miles when I got it. The truck has been very reliable, and I have not had to turn a single bolt on the engine (up until now) other than oil changes. Two weeks ago I began getting misfires on cylinders 5 & 6, as well as Random/multiple cylinder misfires. There is a lot of crud around the plug boots, which suggests that the valve cover gaskets are leaking. There is a very small amount of oil in the spark plug wells, and the springs inside the spark plug boots are saturated in oil.

What I need help with now:
So I am following the shop manual (off of the Ford Technical Service Publications CD) for removing the right hand side valve cover, and I am running into a problem. I have everything removed that the manual says to remove, and all the valve cover bolts are removed. I cannot slide the back of the valve cover over the back of the camshaft to pull it out. The A/C lines are in my way. I have tried turning the valve cover by rolling it to the right or left.

Anyone know any tricks to getting this thing out of there? I am not planning on removing any A/C lines, and the manual doesn't say I need to.

Anyone out there have the Haynes manual? What does it say to do?

Thanks.

Jayton, scanning the procedure from the Haynes Manual now......stand by..........



[waskly]

isnt in the back of the valve cover a harness plugged into?

with a push in type pin, that holds it in place?

its a tight fit but it should come out.

on a side note, cyl 5 and 6 are both on the drivers side.



[BigRondo]

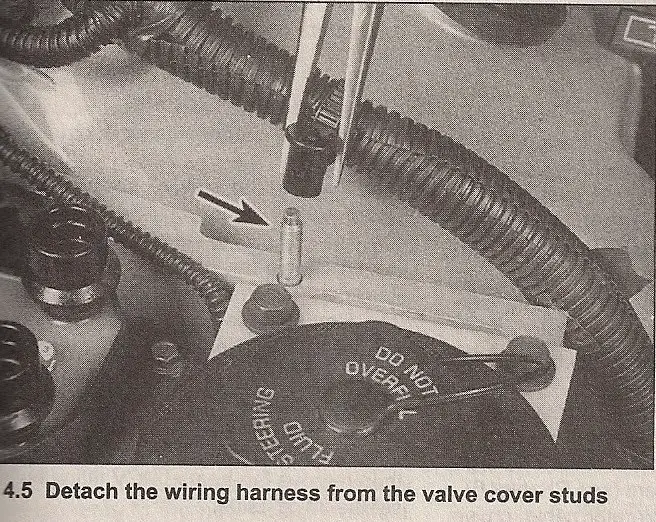

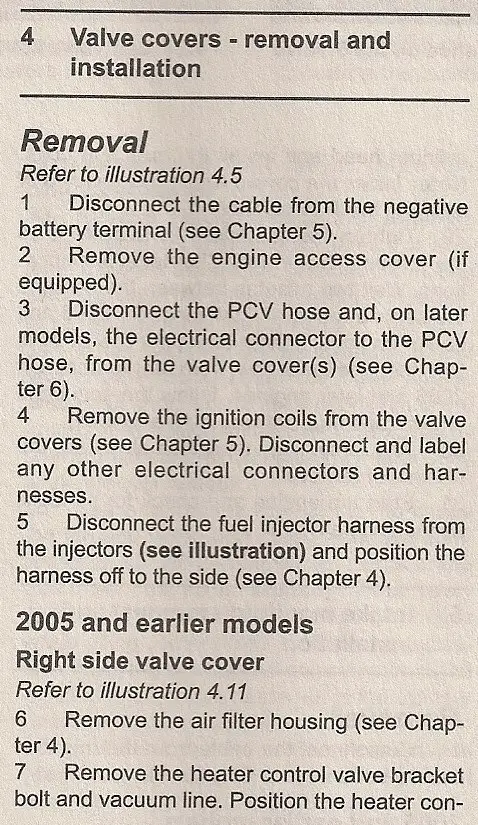

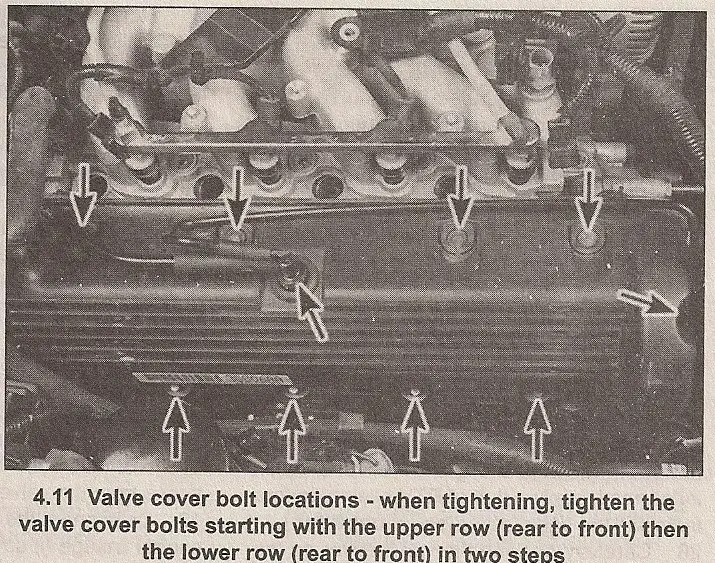

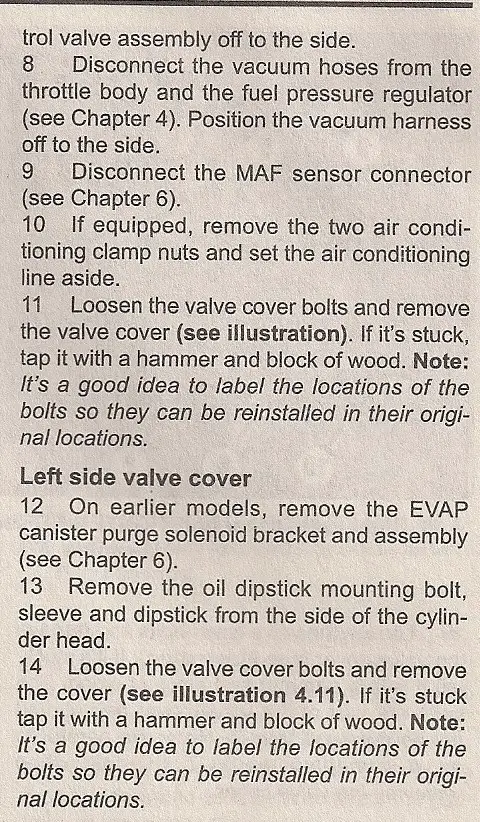

Jayton, here is the procedure from the Haynes Manual. Sorry about the size of the pics but I wanted you to be able to read them:

Hope this helps out! :biggthump



[jayton]

Jayton, scanning the procedure from the Haynes Manual now......stand by..........

THANK-YOU!

isnt in the back of the valve cover a harness plugged into?

with a push in type pin, that holds it in place?

its a tight fit but it should come out.

There is the wiring harness which has a retainer that clips onto the valve cover stud, but that was removed before I pulled all the valve cover bolts off. I am unable to see or feel any kind of harness beyond that. I can lift the valve cover up and feel all away around the lip in the back and there isn't anything else keeping me from lifting it out other than the A/C lines.

on a side note, cyl 5 and 6 are both on the drivers side.

Yes, I know, thanks. The drivers side actually looks a lot worse than the crud you see in this picture of the passengers side. I just decided to start on the passengers side first because it looked like it was the most difficult one to remove, and I wanted to get it out of the way first.



[jayton]

Jayton, here is the procedure from the Haynes Manual. Sorry about the size of the pics but I wanted you to be able to read them:

Hope this helps out! :biggthump

Yes this does help, BigRondo!

Step number 10 is not listed in the Ford Technical Service Publication. I think that is what I am looking for. I'm going to try to find those two A/C clamp nuts so I can move that line out of the way.

Thank-you so much for your quick scans and your willingness to go the extra mile to help me out!



[BigRondo]

Yes this does help, BigRondo!

Step number 10 is not listed in the Ford Technical Service Publication. I think that is what I am looking for. I'm going to try to find those two A/C clamp nuts so I can move that line out of the way.

Good luck and keep us posted!!



[h.e.a.t.]

Jayton, here is the procedure from the Haynes Manual. Sorry about the size of the pics but I wanted you to be able to read them:

Hope this helps out! :biggthump

thank you sir



[LONO100]

this thread is a perfect example of why i think this is hands down THE best forum on the internet.



[jayton]

Good luck and keep us posted!!

That was the problem, the A/C lines had to be moved, but not disconnected. Looking way back on that now, it seems pretty obvious and that I should have figured it out.

this thread is a perfect example of why i think this is hands down THE best forum on the internet.

When doing a task for the first time, I always like to learn about it before I tackle it. It is always good to have more than one source for information. Combination of factory service manual, haynes, mitchell's, and maybe a little help from explorerforum.com, you can get anything done on this truck!



[BigRondo]

Thanks for the update and nice job on the fix!! :biggthump



[Fordfan03]

Does anyone know if you have to remove the whole valve cover to remove the grommet behind the valve cover bolt/metal washer? Does it just come out with a flat screw driver? I have just one that is leaking a little.



[Jhawk91]

NICE! I know very old but just saved tons of time.
Yes step #10 is the key here.
More Detail: There are 2 separate AC line connections that need to be loosened. Size is 11mm. The 1 AC line connection on the firewall is difficult but doable. The other AC line connection is by the radiator overfill reservoir. This is easy to get to.
