How to: Replace 3rd Gen Ambient Air Temperature Sensor


BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,882
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
This topic comes up quite a bit, especially in the winter months. I took some pictures today to show someone in another thread where it was located and how to replace it. That led to this write up. I hope this will make short work out of changing the sensor. I got my sensor from the dealer for around $40.00

Be sure to check out my other write ups:

How To: Replace Blend Door Actuator in 3rd Gen Ex

How To: Remove/Replace 3rd Gen Door Panel

How To: Install Signal Mirrors On 3rd Gen Ex

How To: Restore Faded, Yellowing Headlights

How To: Replace Multifunction Switch in 3rd Gen Ex

How To: Paint Rear Pillar Trim

How To: Test a Relay

How To: Remove/Replace 3rd Gen Center Console



Tools/Parts Required

Slotted Screwdriver
Phillips Screwdriver



New Ambient Air Temperature Sensor


NOTE: Some have mentioned that the sensor is on the driver's side. My sensor is on the passenger's side. The replacement should be the same for either side.

1. Remove Grille

1.a. Remove plastic screws.



1.b. Use Phillips screwdriver to remove screws. BE CAREFUL NOT TO BREAK THE SCREWS!

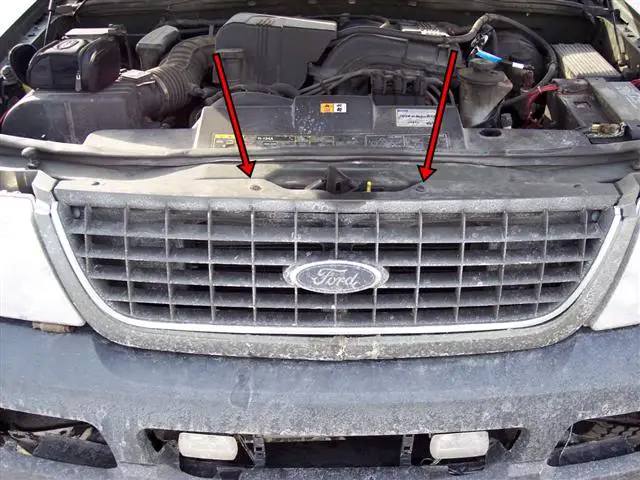

1.c. Remove plastic pins.

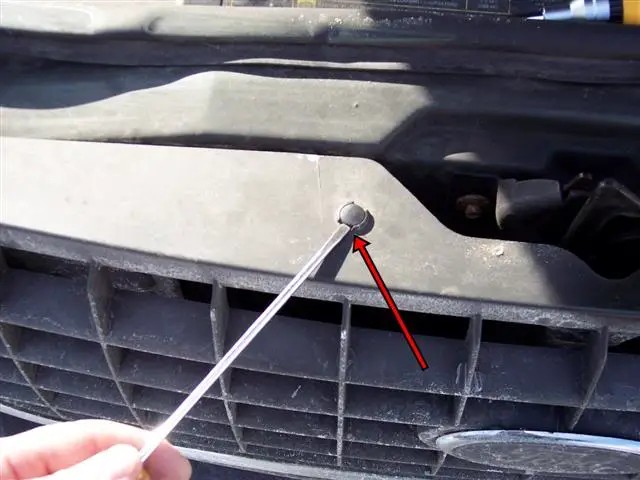

1.d. Use slotted screwdriver to remove pins.

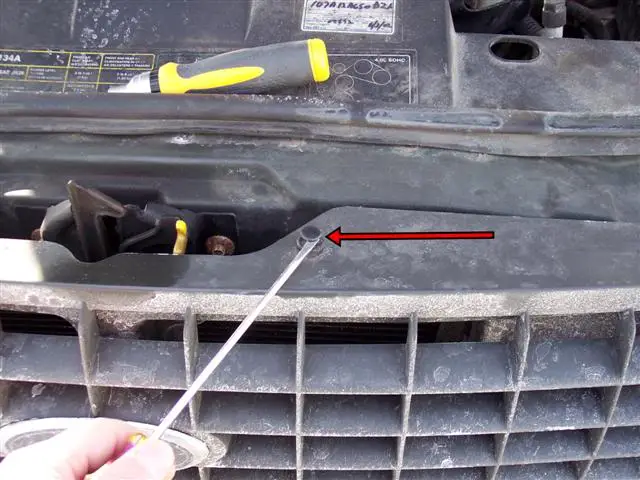

1.e. Lift pin up with screwdriver. BE CAREFUL NOT TO BREAK THE PINS!

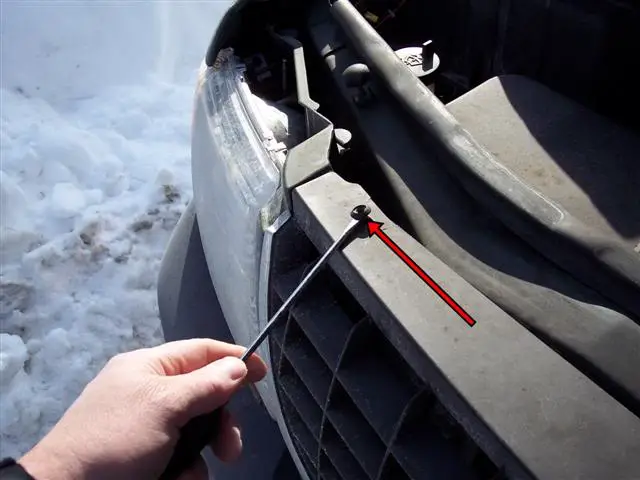

1.f. Remove screw holders and pin holders. Use slotted screwdriver to pry both screw holders and pin holders up and out.

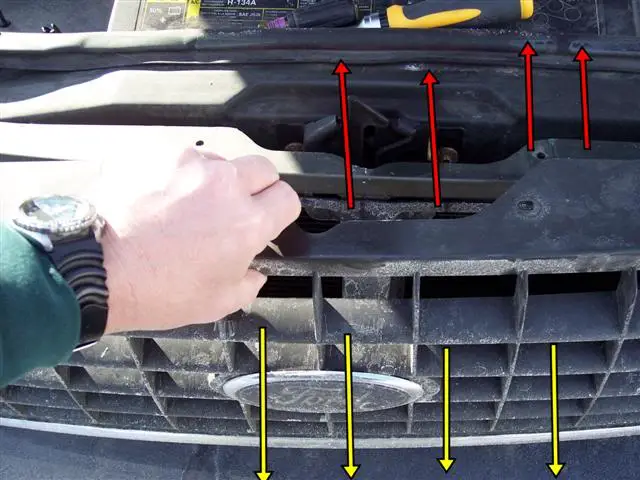

1.g. Lift grille up and out.



2. Disconnect/Replace Sensor

2.a. View of sensor with grille removed.



2.b. This panel can be removed for better access. I did not need to remove this panel! The red arrows indicate the pins to remove in order to remove this panel.

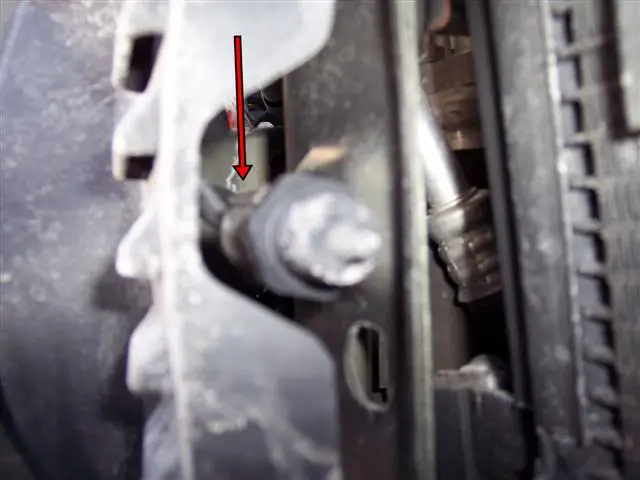

2.c. Side view of connector tab. The sensor is blurry in this picture but the arrow indicates the connector tab.

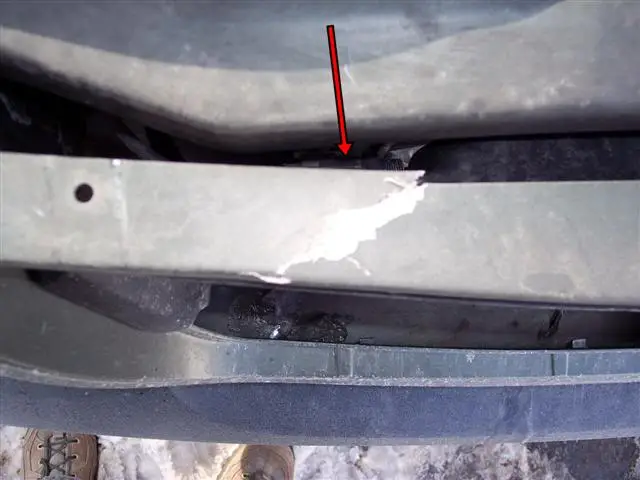

2.d. Top view of connector tab. The sensor is hard to see in this picture. If you look down from the top you will see the connector tab.

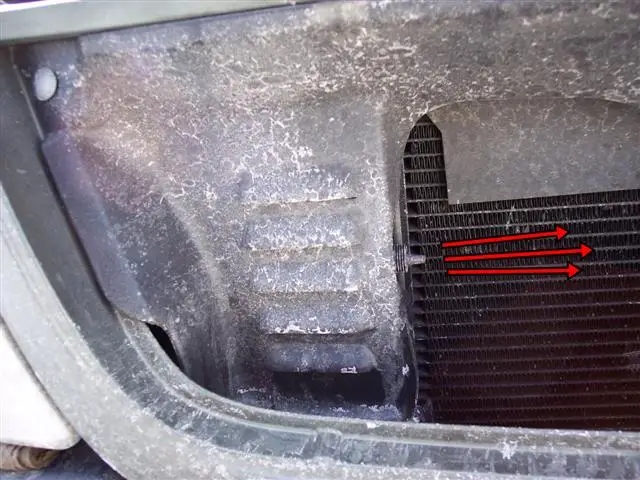

2.e. Lift the connector tab up and pull sensor in direction of arrows to remove sensor.



2.f. Push new sensor into place. Line up new sensor with the connector and gently push into place. You should hear the connector tab click. Make sure the sensor is fully seated.



3. Replace Grille

3.a. Place bottom of grille in first. Make sure the tabs indicated by the red arrows are lined up properly.



3.b. Push top of grille toward vehicle. Make sure the holes are lined up.

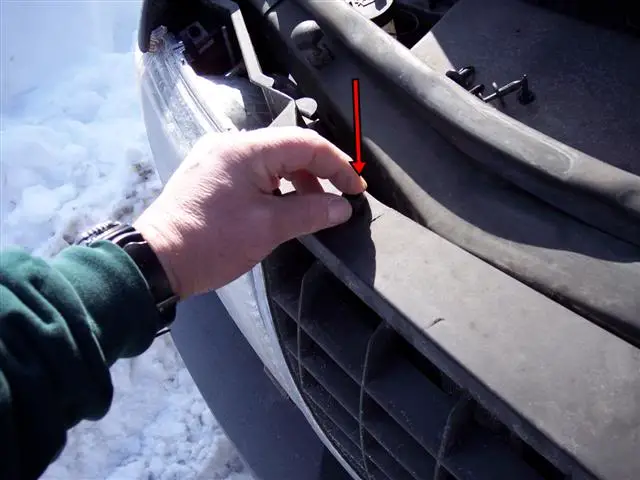

3.c. Insert screw holders and pin holders. Push holders into place.

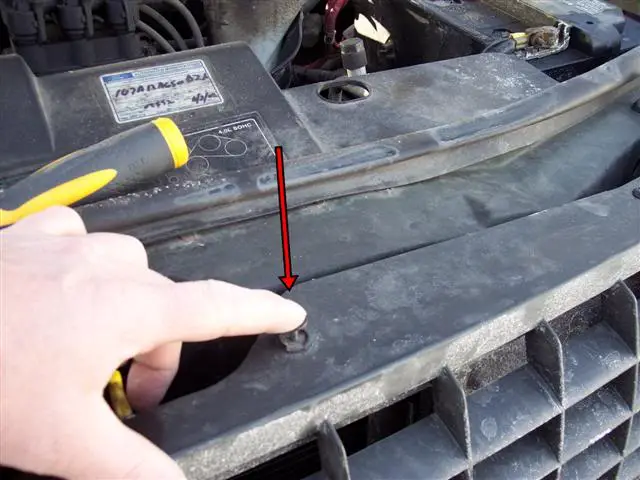

3.d. Push plastic pins into place. Make sure they are fully seated.



3.e. Use Phillips screwdriver to replace screws. DO NOT OVERTIGHTEN OR THE PLASTIC SCREWS WILL BREAK!



4. You Are Finished!

4.a. Enjoy a Cold Beverage of Your Choosing!!!



Thanks for looking in! :biggthump



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




forcemac

New Member
Joined
December 18, 2010
Messages
27
Reaction score
0
Did mine today along with one wheel bearing....i did the temp sensor this morning in the parking lot waiting for the hobby shop to open...it really only takes about 10 min.....although I cussed a bit because the temp was stuck at 50 prior to the replacement...what are chances it would be exactly 50 when I changed it .....it was...didn't know it was fixed until I drove home after the bearing change....





BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,882
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
Good deal. Yeah it's a pretty quick fix. In and out! :thumbsup:





kdoggy

Member
Joined
February 16, 2011
Messages
87
Reaction score
0
City, State
Grand Rapids, MI
Year, Model & Trim Level
2002 Explorer XLT 4x4
Dumb question! :)

What exactly is this sensor for? Is this the one that tells me how cold it is outside? I was noticing by my tach it says something like ---F, like the sensor is not working.

Can I assume this is the sensor for this?





BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,882
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
Dumb question! :)

What exactly is this sensor for? Is this the one that tells me how cold it is outside? I was noticing by my tach it says something like ---F, like the sensor is not working.

Can I assume this is the sensor for this?

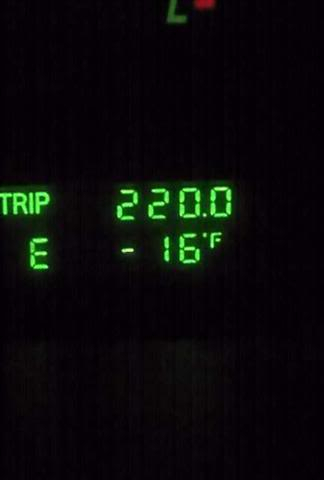

Yes, that display is for the outside temp. Mine was reading in the 50's when it was in the 20's so I swapped it out and it works perfectly now. It was very cold when I snapped this photo and the readout was spot on:
