rocker arms not lining up with valves (4.0 ohv)


red.EDDIE.4x4

Active Member
Joined
May 26, 2009
Messages
705
Reaction score
9
City, State
Tulsa, Oklahoma
Year, Model & Trim Level
'93 Eddie Bauer 4x4

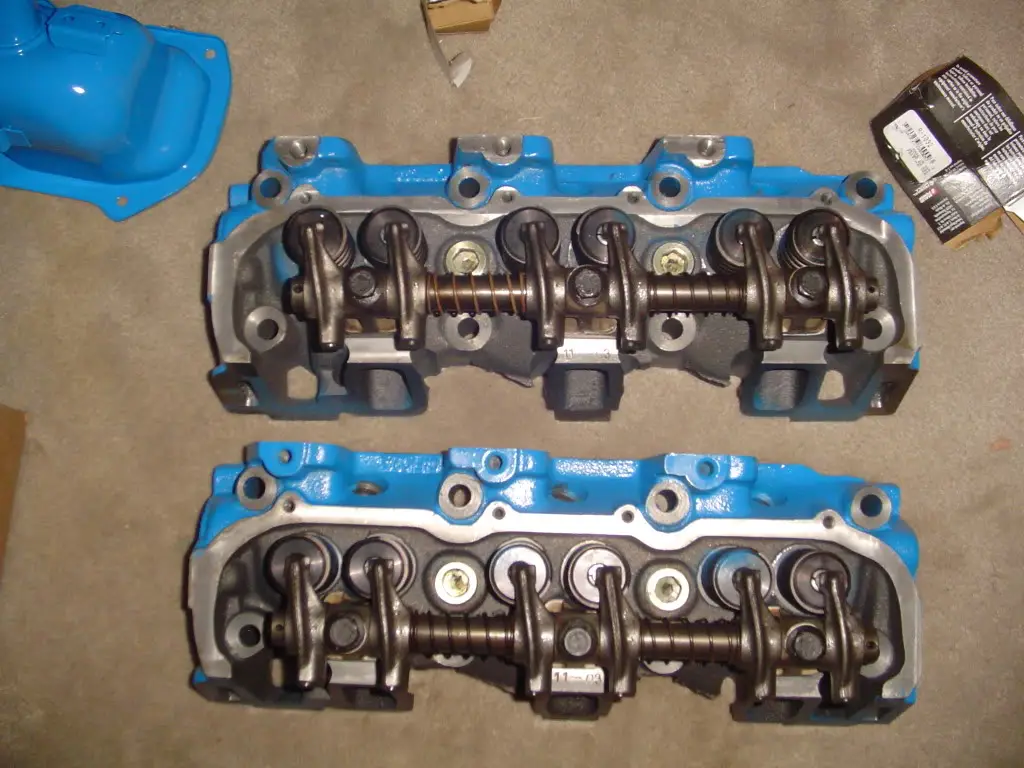

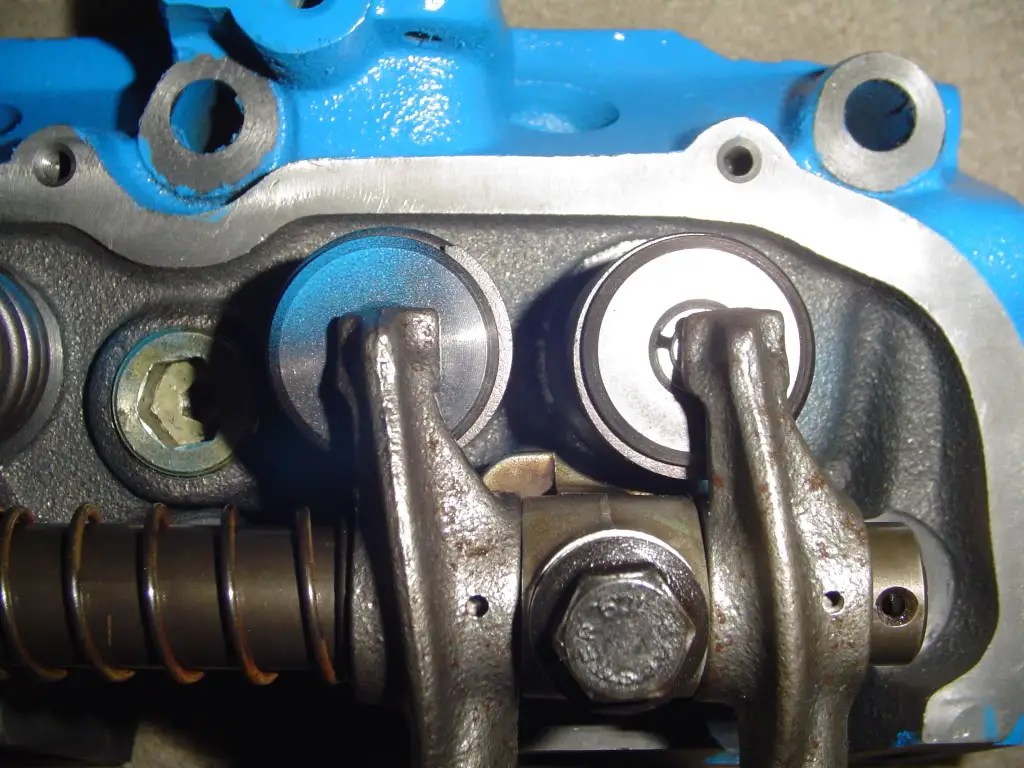

i have done some searching and found nothing. hopefully somebody has some input here. this is my problem. the rocker arms are not lining up with my valves. they are sealed power rocker arms. the guides/springs and junk are all factory.



one solution i had was maybe machining out some of the material on the side of the rocker arm or on the side of the aluminum things that the guide rod slides thru. maybe? any ideas? thanks!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,270
Reaction score
539
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
Thats normal. Mine are the same way. Not the answer you wanted, I know.





Maniak

Moderator-Stock 91-94
Staff member
Moderator
Elite Explorer
Joined
February 9, 1999
Messages
12,117
Reaction score
94
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
side subject. Assuming that paint on the springs. The oil will eat it up and that paint will flow in the oil. You don't have "much" but I've seen paint plug an oil pickup screen before (they painted the entire valley on the block).

As for the orig question. My rockers didn't quite line up either but I don't remember them being that far off. Machining is the only thing I can think of, but the way the rockers are held onto shaft, I don't know if that will work. (pins/springs)

~Mark





red.EDDIE.4x4

Active Member
Joined
May 26, 2009
Messages
705
Reaction score
9
City, State
Tulsa, Oklahoma
Year, Model & Trim Level
'93 Eddie Bauer 4x4
@Dono- glad to know somebody else has the same type of issue.

@Maniak- yes thats paint on the springs and i was planning to get it off. eventually...but i will now that i know its got the chance to mess with the motor.
i may try to machine one or two first to see if its possible. ill just wait for a few more opinions and see what becomes of it.





Dazzlin' Dave

New Member
Joined
June 30, 2014
Messages
15
Reaction score
0
Year, Model & Trim Level
94 Ranger Splash
Is there a chance that 1/2 the rockers are different and some are in the wrong locations? Weird...
I'm looking into some ratio rockers...
http://www.summitracing.com/search/.../engine-family/ford-v6?keyword=roller rockers
It says Pedestal mount and a 4.0 has a rail system... WTH? How is that gonna work?
As for paint inside the motor, I read an article in either Hot Rod or Car Craft (decades ago) that you can paint your valley with Glyptal ($40+/pint) and the oil won't sit in the valley, Seals up the porosity of the cast iron and gives it a smooth surface for the oil to run off so it sits in your oil pan and not on top of the block/heads. I used to use a lot of it sealing substation transformer gaskets and it is highly oil resistant. The mineral oil in a transformer is somewhere between baby oil and diesel fuel... nasty stuff! One day I had to go spelunking in a x-frmer chest deep in the oil! Talk about a bad day!





Dazzlin' Dave

New Member
Joined
June 30, 2014
Messages
15
Reaction score
0
Year, Model & Trim Level
94 Ranger Splash
Looking again, the rocker misalignment can't be normal!! There is DEFINITELY something wrong there!! I wouldn't run it like that if it was mine! Do some more investigation, contact Sealed Power, send a pic and ask them WTF?

Another point on ratio roller rockers is spring bind! I didn't know if I was gonna go with 1.73:1 or 1.8:1, leaning toward the smaller just in case of valve clearance, but I didn't think about spring bind!





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,472
Reaction score
1,013
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
It almost looks like the intake and exhaust rockers are reversed from where they should be on every cylinder. Looking closely you can see they are different.









vq5speed

Active Member
Joined
June 17, 2008
Messages
674
Reaction score
6
City, State
1991 XLT Manual Locks
Year, Model & Trim Level
Stockton,Ca
Its just an illusion. The rockers are all identical. When I replaced my rocker arms I notice when re-assembly those pillars that the bolt goes through that holds the shaft assembly onto the head. The hole that the bolt goes through in the pillar is bigger in diameter then the bolt quite a bit. So the pillar can be shifted on the shaft more left or right centering the rockers more even. I think this person or someone who had the assembly apart assembled the pillars to far to one side slightly.
