rusted out quarter panel fuel filler area- repair under way

Pete Deering

Well-Known Member
Joined
November 13, 2019
Messages
539
Reaction score
223
City, State
New England
Year, Model & Trim Level
1995 xlt 4 door 4x4

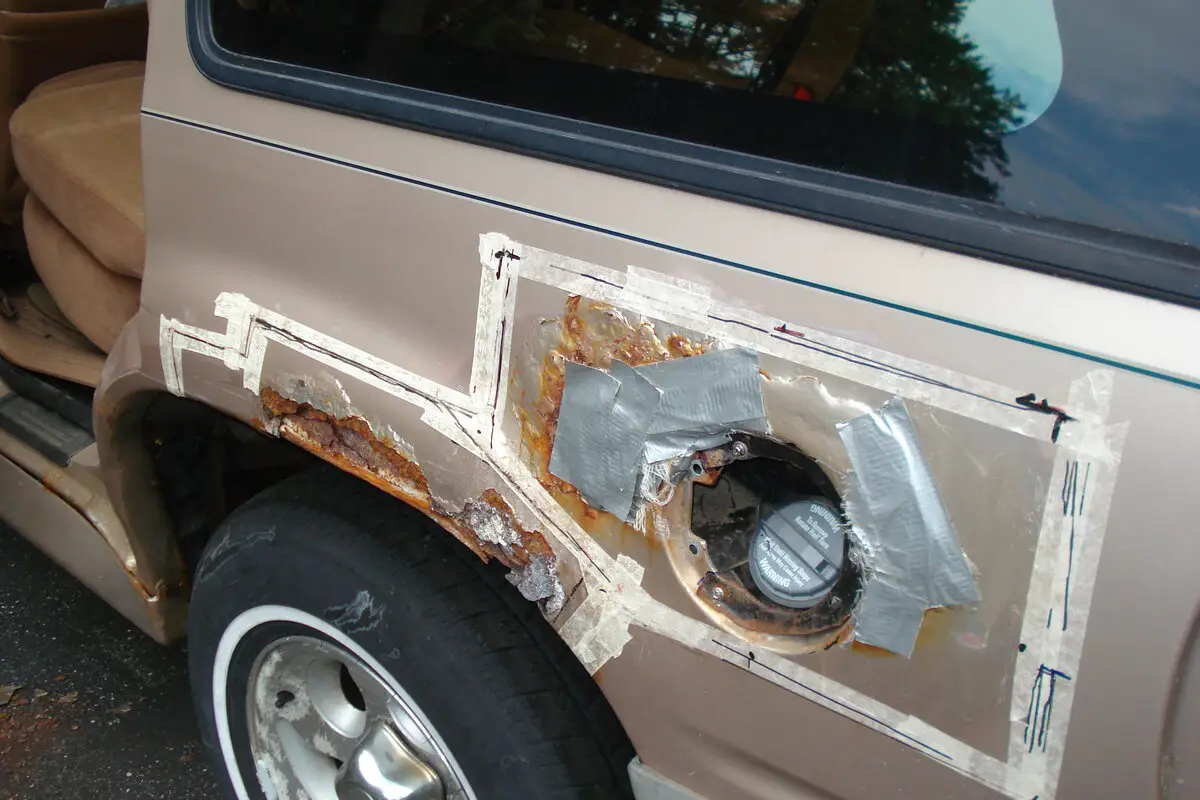

Is there a cover below the driver rear quarter panel fuel filler area? my 95 ex is rusted out. What i found was the filler neck is in a plastic dugout, which is inside a half dome. The half dome is rusted thru. the area by the filler neck rusted thru and the wheel well. If there was a cover or shield below , there would not be a problem. The repair is almost complete.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Fix4Dirt

Get a Load O' This Guy!
Elite Explorer
Joined
December 22, 2021
Messages
4,903
Reaction score
3,515
City, State
Los Angeles, CA
Year, Model & Trim Level
1998 XLT 4x4

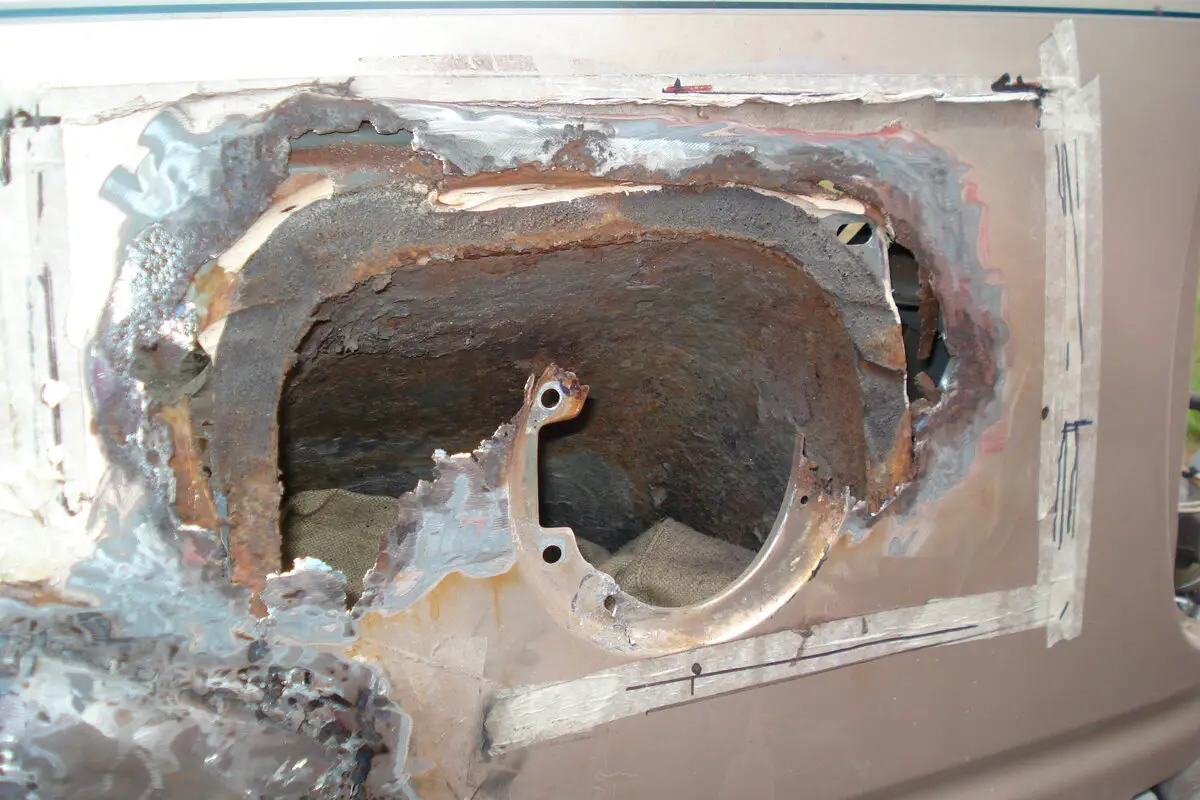

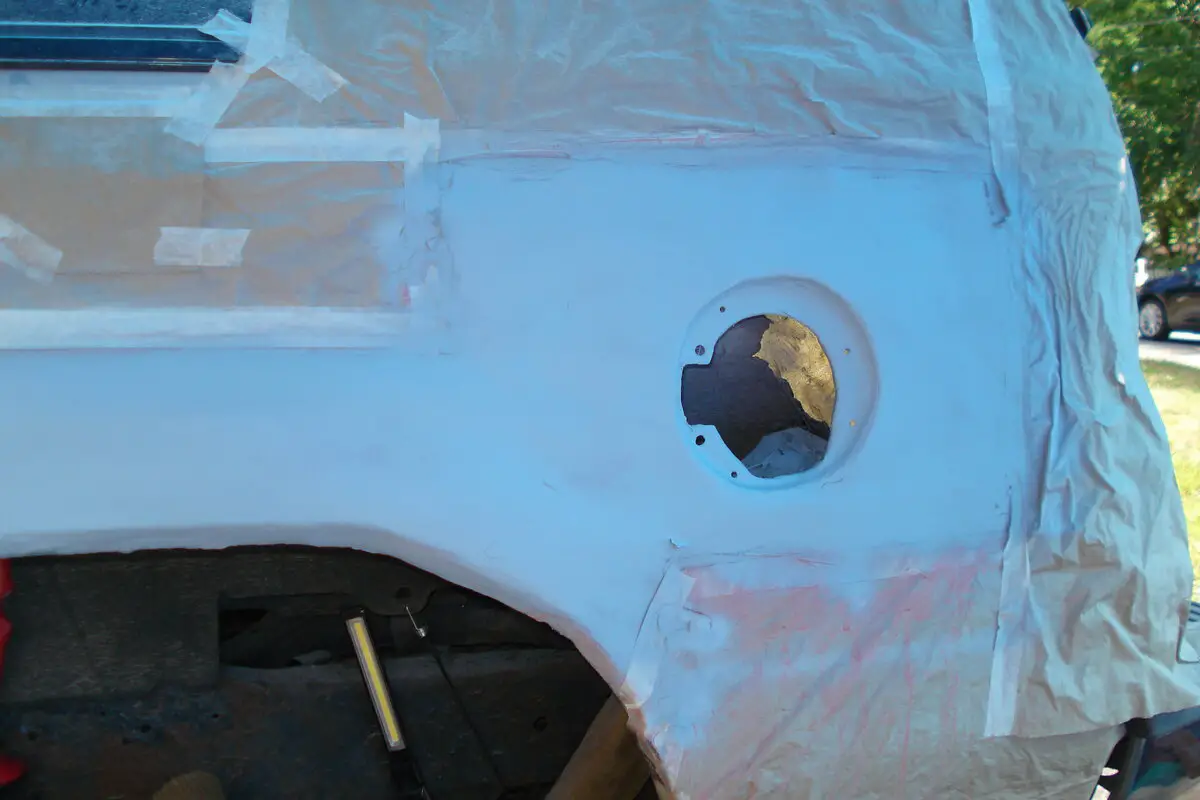

Is there a cover below the driver rear quarter panel fuel filler area? my 95 ex is rusted out. What i found was the filler neck is in a plastic dugout, which is inside a half dome. The half dome is rusted thru. the area by the filler neck rusted thru and the wheel well. If there was a cover or shield below , there would not be a problem. The repair is almost complete.View attachment 434418View attachment 434419View attachment 434420
1. sheesh thats alot of rust!!!!

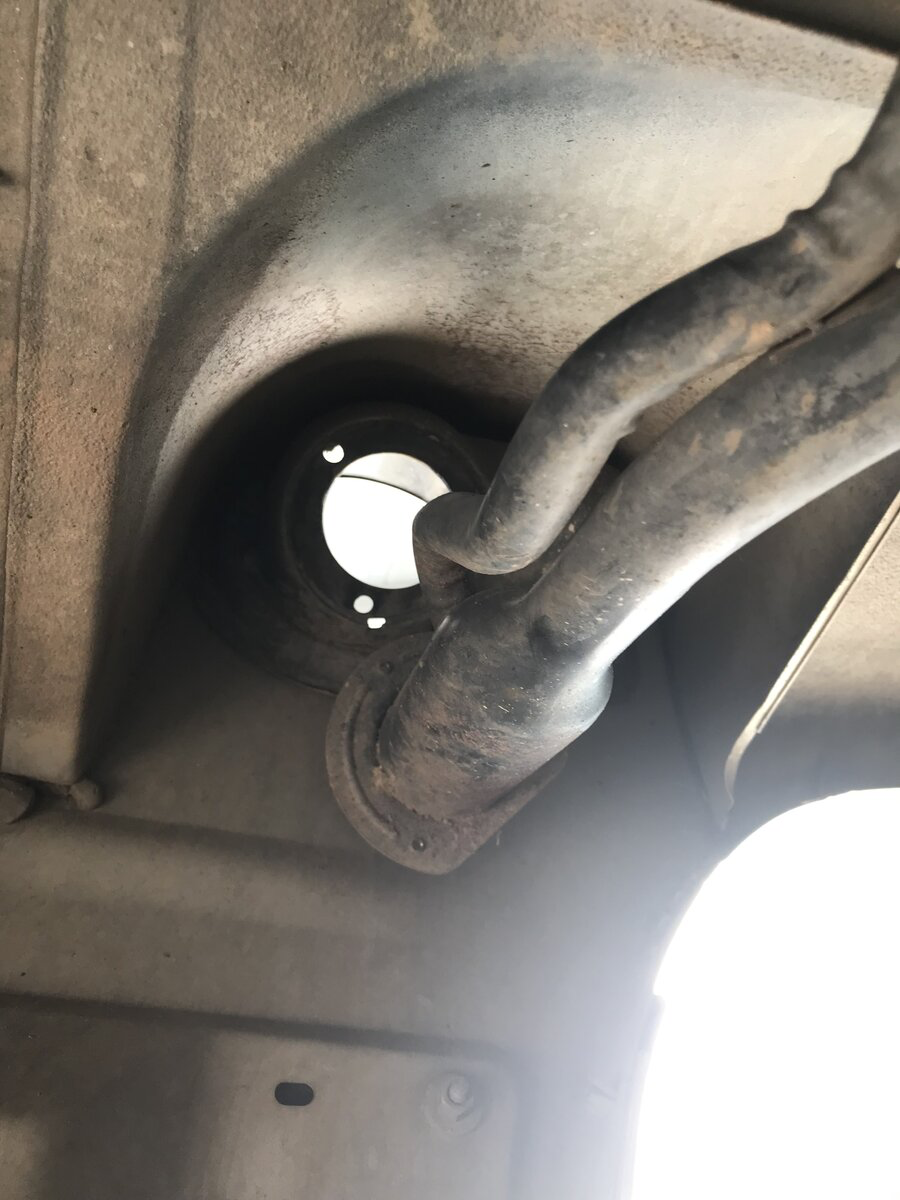

2. no cover according to this photo from my write up a while ago









Lee's Automotive

Git-R-Done
Elite Explorer
Joined
September 23, 2020
Messages
1,027
Reaction score
1,476
City, State
Alabama
Year, Model & Trim Level
99 Explorer XLT 4.0 SOHC
Is there a cover below the driver rear quarter panel fuel filler area? my 95 ex is rusted out. What i found was the filler neck is in a plastic dugout, which is inside a half dome. The half dome is rusted thru. the area by the filler neck rusted thru and the wheel well. If there was a cover or shield below , there would not be a problem. The repair is almost complete.View attachment 434418View attachment 434419View attachment 434420
Bro that rust is insane







Fix4Dirt

Get a Load O' This Guy!
Elite Explorer
Joined
December 22, 2021
Messages
4,903
Reaction score
3,515
City, State
Los Angeles, CA
Year, Model & Trim Level
1998 XLT 4x4






Lee's Automotive

Git-R-Done
Elite Explorer
Joined
September 23, 2020
Messages
1,027
Reaction score
1,476
City, State
Alabama
Year, Model & Trim Level
99 Explorer XLT 4.0 SOHC












J_C

Explorer Addict
Joined
July 30, 2009
Messages
5,033
Reaction score
1,602
City, State
Florence, KY
Year, Model & Trim Level
1998 XLT 4WD 4.0L SOHC
If you haven't gotten around to the final color coat of paint yet, you could maybe make a shield to at least divert away what comes off the tire, rivet that to the new metal wheel well arch (assuming what we see by your blue picture, that is welded on metal from a donor vehicle, not just screen and bondo?) where you put indentations and body filler over those indentations after riveted?

I might be making up nonsense, am not much into bodywork and can't tell from this topic's pics, how much clearance there would be for suspension travel if it isn't an elaborately shaped shield. I was thinking just take a piece of sheet metal, put right angle bends along the long sides, one side for fender mounting and the other side for rigidity, then arc the length of it to fit the area. Since it isn't being welded on, plastic sheeting and a heat gun to shape it, might work too. You'd ideally want some kind of goop between the wheel well metal and this shield so water isn't trapped there. Maybe just plain old caulking would work or body adhesive or...







Pete Deering

Well-Known Member
Joined
November 13, 2019
Messages
539
Reaction score
223
City, State
New England
Year, Model & Trim Level
1995 xlt 4 door 4x4
If you haven't gotten around to the final color coat of paint yet, you could maybe make a shield to at least divert away what comes off the tire, rivet that to the new metal wheel well arch (assuming what we see by your blue picture, that is welded on metal from a donor vehicle, not just screen and bondo?) where you put indentations and body filler over those indentations after riveted?

I might be making up nonsense, am not much into bodywork and can't tell from this topic's pics, how much clearance there would be for suspension travel if it isn't an elaborately shaped shield. I was thinking just take a piece of sheet metal, put right angle bends along the long sides, one side for fender mounting and the other side for rigidity, then arc the length of it to fit the area. Since it isn't being welded on, plastic sheeting and a heat gun to shape it, might work too. You'd ideally want some kind of goop between the wheel well metal and this shield so water isn't trapped there. Maybe just plain old caulking would work or body adhesive or...
I am thinking about a rubber shield. A stair thread or a rubber mat cut to fit, (even out of figerglass) that run from the rear wheel well to rear bumper. I am thinking of attaching it to the rear wheel well lip or marking a mount between the frame and the rear wheel well lip.
