Thought this build would be helpful for people looking to put the DBR 4x4 kit on their Ranger or Explorer.

Specs:
-00' Ford Ranger 4x4 V6 SOHC Extracab
-DBR LT kit
-DBR clevis steering kit
-Fox 2.5x8 c/o w/ raised lower spring collars
-Fox 2.0x3 bumps
-Eibach 18"L 650# coils
-Deaver F31 pack
-Fox 2.5x16
-Fox 2.0x4 bumps
-Fiberwerx 6" bulge front glass
-Seabeck 4x4 bedcage
-Seabeck 4x4 front bumper
-Seabeck 4x4 rear bumper

Before with 3" body lift:

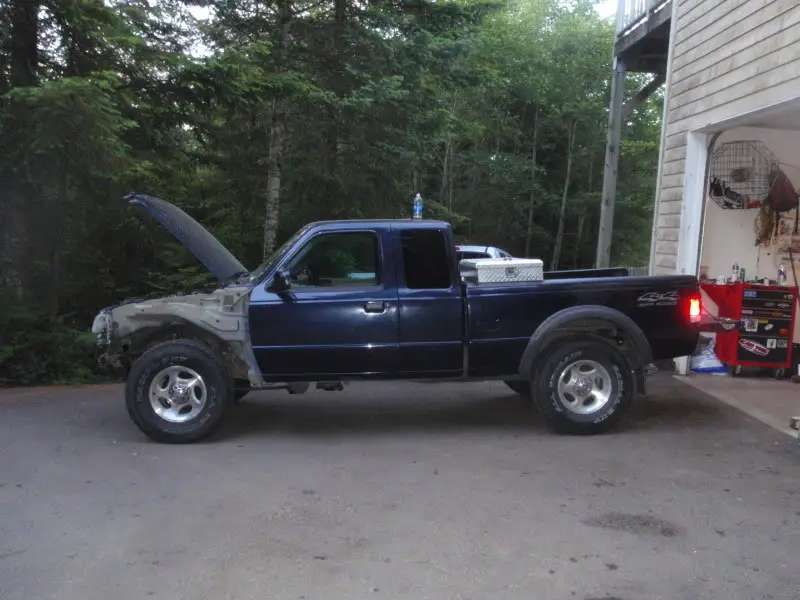

Fenders/bumper off, bodylift removed from cab. (thank God)


Stay tuned for updates, just waiting on parts.

Last edited:


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.












Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,510
Reaction score
61
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...Subscribing also...:D

...Did you have the Ranger for a while or did you just recently acquire it???





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,804
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Someone is throwing a lot of ca$h at that thing! When's it due?? :)





Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4

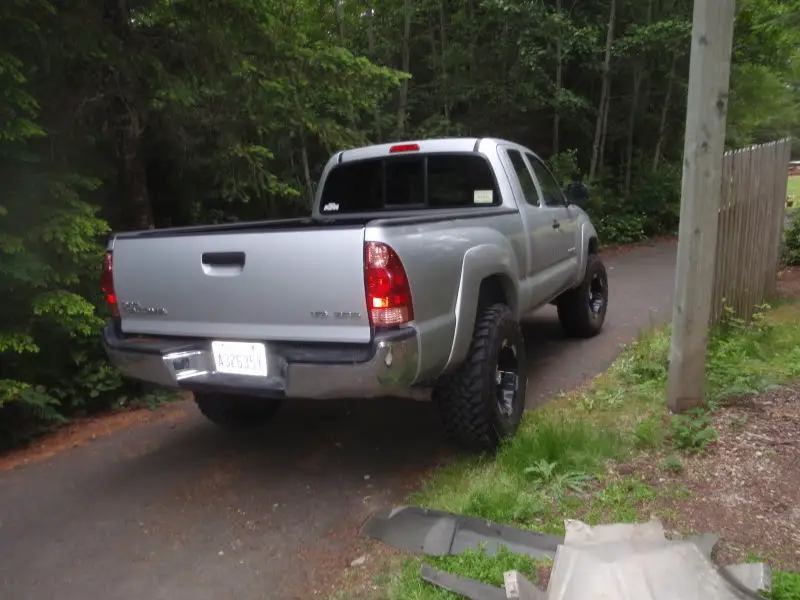

Tbars- Have not owned a ranger yet...but someday maybe! I'm building this for a customer. My DD is a tacoma now.


Johhny I'm hoping to have it complete by July 4th. Speaking of July 4th I can't wait to blow off my stash of mortars that are legal in WA:D

Most of the parts should arrive towards the end of next week then its on:p:

Got the rest of the body lift off today...PITA:frustrate Ended up having to sawzall off a few of the rusted bolts as the bodylift pucks were seized to them. Damn Colorado rusty trucks! (bed is not bolted down yet, hence the lean)

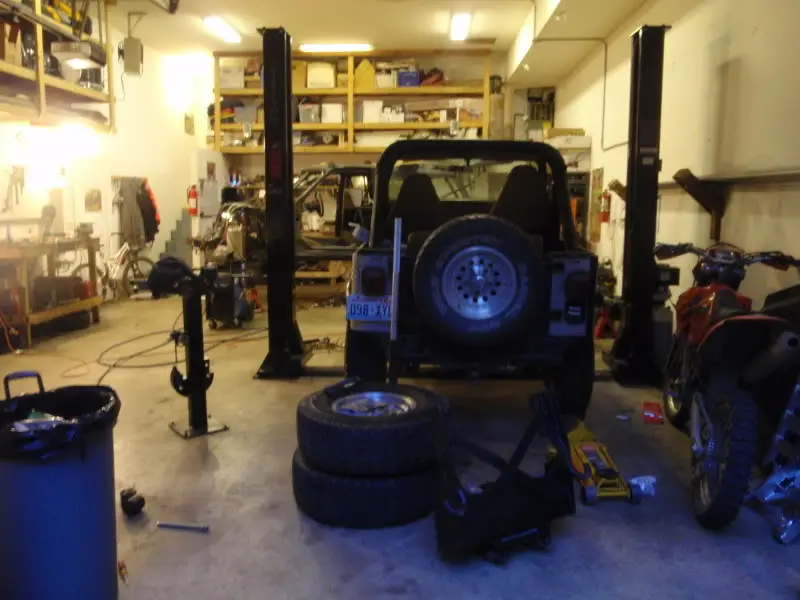

As soon as this damn Jeep gets out of the way the ranger will go to the chopping block.


If I run out of stuff to do before the parts get here I'm going to start on the rear prerunner bumper with integrated receiver hitch, and of course plenty of dimple dies:cool:









Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Yes it goes very well with some :chug:

Picked up the new shorter length M12x1.75 bolts for the bed to replace the huge long body lift ones this morning. May end up starting on the rear bumper today to give me something to do:rangertan:





dkchrist

Well-Known Member
Joined
August 13, 2006
Messages
1,341
Reaction score
0
City, State
Fayetteville, AR
Year, Model & Trim Level
93 XLT 4DR
the anticipation is killing me.....





Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Haha sorry buddy. Here are some more updates.

Pounded out the huge dent in the bedside as best I could before trimming...

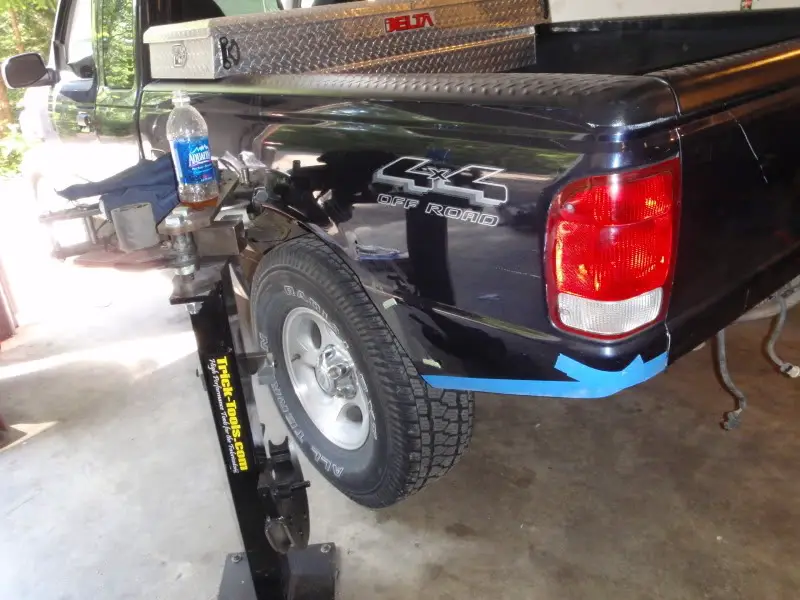

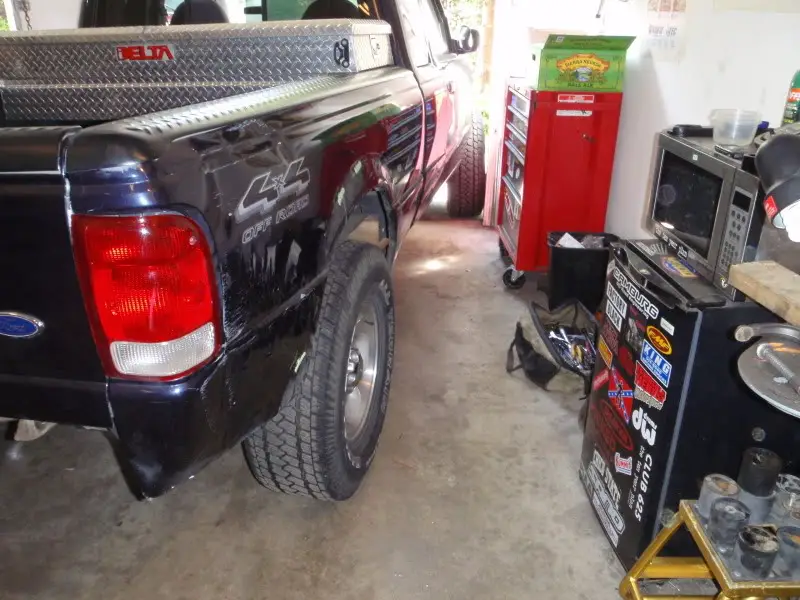

Trimmed fenders for now, may do fiberglass bedsides later but I wanted the bumper to look good with the body lines...

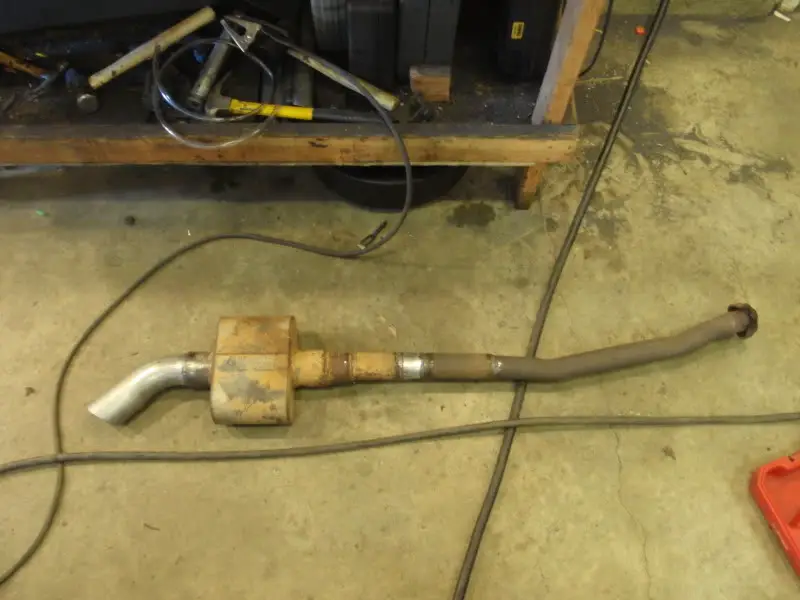

Got the budget exhaust welded up with a single chamber flowmaster and 3" turndown. Sounds great!

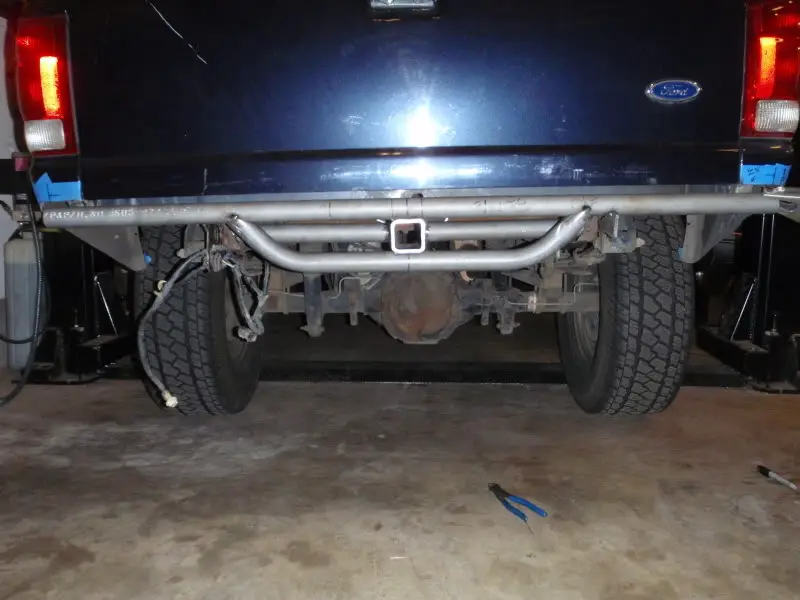

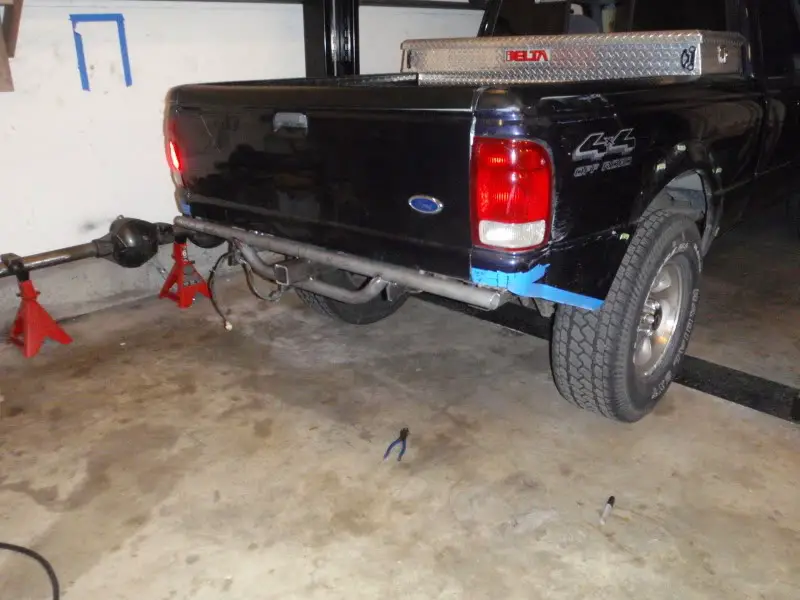

Got started on the rear bumper...



More updates on the rear bumper coming soon. The parts are taking a super long time because no one wants to ship them:mad:





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,804
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
WHat notcher are you using? That looks hawt.





Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Mittler Bros. deluxe aluminum notcher. It works alright, I used to use it on my drill press but it was such a PITA getting the shaft and everything to line up that I just clamp it to a sawhorse and use a hand drill now haha. Only came close to breaking my wrist once so far. (works best with a buddy to oil and put a hand on the sawhorse)

Pretty much any notch over about 40* bottoms out a standard depth hole saw and you have to finish up the notch with the plasma/grinder(lame). I need to find some deeper hole saws!

http://www.mittlerbros.com/tube_notcher_holesaw_style.htm





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,804
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
I just ordered the Pro Tools earlier this week. I found out last weekend that I am no where near Phil's skills of eyeballin' the notches by hand!

























section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,804
Reaction score
25
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
Open open



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,510
Reaction score
61
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4

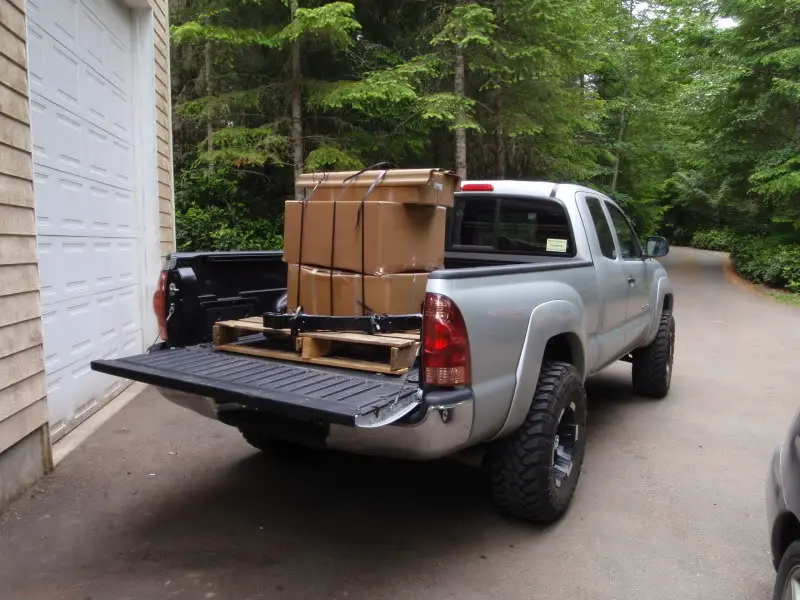

...:bounce:..Rip them boxes open and show us what you got....

...You can read the paperwork later...:D
