Section525 - Explorer V8 D44 SAS

For my 10,000th post I guess I will start my SAS registry now that the truck is done. :thumbsup:

Section525's SAS Build thread


Specifications
Front
'83 Wagoneer LP D44
JCW 5-leaf Springs (Stockers)
Detroit EZ Locker
Spicer 4.88 gears
Warn Premium Hubs
Rock Equipment Super Boy Howdy Fabricated Knuckles
Sky Manufacturing High-steer arms
Pro Comp MX6 Shocks

Rear
Stock 8.8 SOA
Sierra 4.88 gears
Detroit EZ
Spidertrax 5x4.5 to 5x5.5 adapters
Stock shocks


The Build

The LP D44 came out of a 1983 Jeep Wagoneer. I was there when the guy pulled it out from under the Jeep. It was nice to see the condition of the donor before buying the axle.


I began the tear-down of the axle and everything looked good inside. :cool:


I used TT Fab Works SOA perches for the D44


Here is the bare housing ready for hot tanking.


After the hot tank bath, it went into the blast cabinet to get even cleaner :eek:


This is what it looks like when it's cleaner than it was when the factory got it!


I built the front spring hangers out of 3.5" square tubing (.250 wall). That make the inside width 3". Good for any spring you would every want to run.


Make sure you cut the side off with the seam. Drill some holes. Round the edges and you have a nice spring hanger.


Looks like something you would buy off the shelf but for a 1/4 the price. I think these ended up with a cost of about $2 a piece.


For the front crossmember I used 4"x6" .250 wall tubing. I angled and capped the ends for bling factor.


Also to completely seal the crossmember so no water or mud would end up inside. :p:


I added some speed-holes to keep my top speed in the 140s.


Here it is mounted in place. There's pretty much only one place it can go between the body mounts and frame horns.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,777
Reaction score
26
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
I used some huge ass bushings from Mad4WD


Home-brewed shackles. I'm going to beef these up here shortly.


This is my shackle hanger for the front axle. The crossmember section is where the new skid plate will bolt to. It will also bolt to the new tranny crossmember shown below.

Tranny crossmember. About 8" back from the stock crossmember.


I used JCW 5 leaf springs. They're pictured next to YJ springs I was thinking about using. But were not beef enough.


Bling-ass Rock Equipment Super Boy-Howdy knuckles.


Brand new Ford 5-lug outer junk.


Sky Manufacturing High Steer arms (medium-high-steer).


4.88's in the rear. Still have to throw my Detroit EZ in it.


4.88s in front. Detroit EZ already installed. :cool:


Spidertrax 5x4.5 to 5x5.5 adapters for the rear.


Custom square tube driveshaft. 12" of slip. Able to be ran in rear as a backup.



More on the way. :)





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,777
Reaction score
26
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
I used an FJ-60 steering box which was a great choice because A) the stock power steering lines bolt right in, and B) you can use an Aerostar steering shaft to go between the wheel and the steering box.


Since I went to a three-ujoint shaft, I used a bearing in the firewall to hold the first shaft in place. Here is more information on the bearing.

This is what I did for shock hoops. It was a little tricky finding something that would work with the steering box being right in the middle of the frame.


[Photos of everything together will show up here tomorrow. :) ]





FROADER

Staff member
Moderator
Elite Explorer
Joined
January 28, 2000
Messages
19,966
Reaction score
193
City, State
Huntington Beach, CA
Year, Model & Trim Level
1991 Eddie
Awesome job dood!





'97 V8

Explorer Addict
Joined
April 2, 2005
Messages
3,616
Reaction score
1
City, State
ft. knox ky
Year, Model & Trim Level
'97 mounty 5.0 4x4 baby!!
Does that tranny crossemamember(intentionally misspelled) meet the requirements of bling?

Have you seen the new c-clip eliminator kit from superior? Dana 60 sized bearings and all. Your choice of 5 on 4.5 or 5.5. 4340 chromoly. Adds about an inch on each side. Its bieng sold for 560 bucks. The bearings and seals are already pressed in.





section525

sextion525
Elite Explorer
Moderator Emeritus
Joined
February 11, 2001
Messages
14,777
Reaction score
26
City, State
Red Bluff, Ca
Year, Model & Trim Level
1975 Ford Bronco 4x4
[QUOTE='97 V8]Does that tranny crossemamember(intentionally misspelled) meet the requirements of bling?

Have you seen the new c-clip eliminator kit from superior? Dana 60 sized bearings and all. Your choice of 5 on 4.5 or 5.5. 4340 chromoly. Adds about an inch on each side. Its bieng sold for 560 bucks. The bearings and seals are already pressed in.[/QUOTE]

Yeah. B2Dude and I were both thinking about the Superior kit. We'll see... :cool:

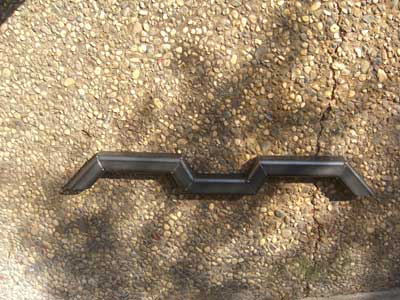

...as far as the tranny crossmember. It is bling because it's art.. imitating life. Imitating B2Dude, actually.


Attachments

  • 01.jpg
    29.2 KB · Views: 10,260
  • 02.jpg
    22.5 KB · Views: 10,166




stuntman

Active Member
Joined
October 23, 2006
Messages
74
Reaction score
0
City, State
Ridgecrest, CA
Year, Model & Trim Level
1994 XLT
This truck looks incredible! Nice fabbing with those cross members. :D





B2Dude

Member
Joined
February 6, 2006
Messages
40
Reaction score
0
City, State
Chico State
Year, Model & Trim Level
84 XLT
...as far as the tranny crossmember. It is bling because it's art.. imitating life. Imitating B2Dude, actually.


o god dude, you need to put the camera down. No more crotch shots of me, you said those were jsut for your personal use. ;)

And, just FYI, you said your front crossmember is 4x6, it is actually 2x6.





hatched91

Well-Known Member
Joined
October 2, 2005
Messages
401
Reaction score
0
City, State
godfrey, Illinois
Year, Model & Trim Level
1997 sport ohv 5spd
great job! whoever fabricated all of those mounts did a great job! clean welds. i need some measurements because i will be doing the same swap. pm sent.





snocross1985

Explorer-less
Joined
March 25, 2003
Messages
2,672
Reaction score
0
City, State
Stratham, NH
Year, Model & Trim Level
2018 Explorer XLT
o god dude, you need to put the camera down. No more crotch shots of me, you said those were jsut for your personal use. ;)

And, just FYI, you said your front crossmember is 4x6, it is actually 2x6.

So thats you then doing the shocker? lol :D





churd69

Explorer Addict
Joined
October 12, 2005
Messages
1,252
Reaction score
0
City, State
Michigan
Year, Model & Trim Level
07 Silverado Z71
Nice work, how much do you figure you have in the build?

-Rich





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
9,012
Reaction score
19
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Hey lookin very good. i would like to know what type of spindle/brake combo you used.

Thanks
Jonathan Burns





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,723
Reaction score
31
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
i would like to know what type of spindle/brake combo you used.
Section is out of town for the time being -- but theres a picture up top where the spindle is 6-lugged, which I guess means they are the Jeep/Chevy type.





Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
9,012
Reaction score
19
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
Section is out of town for the time being -- but theres a picture up top where the spindle is 6-lugged, which I guess means they are the Jeep/Chevy type.

Ahhh jeeps/chevy parts are everywhere. lol :confused:





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,723
Reaction score
31
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Yes they ARE everywhere .. and soon they'll be on your Explorer :D









Hyde

Member
Joined
January 20, 2006
Messages
40
Reaction score
0
City, State
Couer d 'Alene, Idaho
Year, Model & Trim Level
'91 EB
Ford?





Hyde

Member
Joined
January 20, 2006
Messages
40
Reaction score
0
City, State
Couer d 'Alene, Idaho
Year, Model & Trim Level
'91 EB
Brand new Ford 5-lug outer junk.





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,723
Reaction score
31
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
6-holes


I was talking about the spindle lugs/studs/bolts -- not the hub.

EDIT: yeah you're right Hyde, it is Ford.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Burns

Elite Explorer
Moderator Emeritus
Joined
October 20, 2004
Messages
9,012
Reaction score
19
City, State
Pulaski, TN
Year, Model & Trim Level
1991 Explorer/2002 F-250
so he is running a chevy spindle with the rest being ford parts??
