Shackle fabrication

jrme

Active Member
Joined
January 6, 2012
Messages
55
Reaction score
1
City, State
London Ontario
Year, Model & Trim Level
1999 Explorer 2wd sport
This article is a how to on building lift shackles, the first thing to keep in mind is size not so much the overall size but bolt to bolt centre to centre, this is what is going to determine your height of your lift, so the theory is every 2” between the bolts gets you 1” of lift.
MATERIALS:
(4)3/8 “X2” flat stock steel (cut to desired length) for 2 shackles
(2) 1.5” square tube cut to 3” for two shackles

TOOLS:
Drill or drill press (preferred)
Welder
14mm (35/64) drill bit
Centre punch

Step 1:
Measure the distance at which you want the holes for your shackle, the measurements will differ from height and size of plates you choose to use, my stock shackle holes are 5.5” centre to centre I want my new holes to be at 7.5” 2” over stock giving me 1” lift, my plates are 9.5”x2” so I measured 1” in on either side giving me 7.5” between each hole centre to centre which will leave me with .75” overhang on each side after the holes are drilled at 14mm, this is also a good time to measure out for your cross brace (I centered mine) my tube is 1.5”x1.5”,measure the length of the plate and mark the centre (mine was 4.75) then I measured out half of my tube size(mine was .75” )and mark it on either side, this gave me my 1.5” centered.


Step 2:
Centre punch and drill holes at desired distance. I clamped them together and drilled them all at once (step drilling will help speed the drilling up and keep from overheating your bits.)

Step3:
Centre tube on plate and weld making sure it doesn’t move (I tack mine in place first measuring it along the way before final welding.)

Step4:
Centre the 2nd plate to tube (make sure it aligns with other plate) and weld making sure it doesn’t move (again I tack mine in place and measure before final welding.)

Repeat 3 and 4 building 2nd shackle.

Any questions or corrections are welcome and encouraged.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





corkey

Moderator Emeritus
Moderator Emeritus
Joined
January 3, 2008
Messages
6,005
Reaction score
49
Location
Sioux Narrows Canada
City, State
Elite Canuck,multiple ifs offender,, and musky maniac,, i wheel and i fish,,
Year, Model & Trim Level
99 xls,96 xl,91,08 Ranger
,,


Attachments

  • warrior dimension.jpg
    warrior dimension.jpg
    45.4 KB · Views: 1,552






MidnightRebel07

Elite Explorer
Joined
March 6, 2010
Messages
5,037
Reaction score
12
City, State
Pittsburgh, Pa.
Year, Model & Trim Level
2003 Explorer Sport Trac
Great work and write-up...

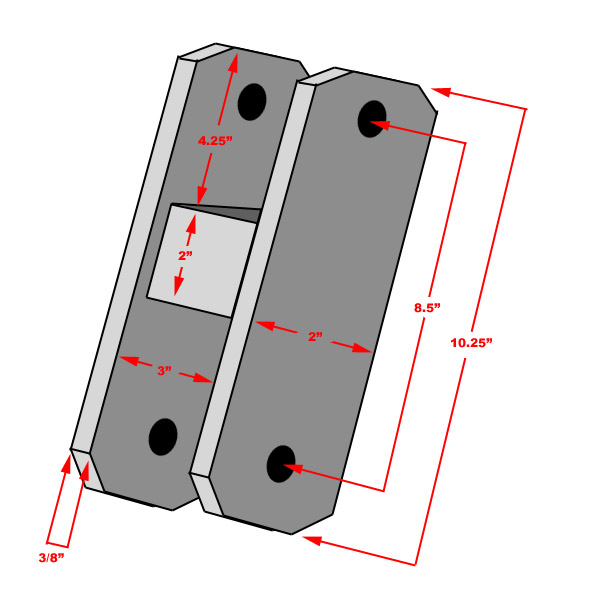

For future reference these are the dimensions for the Warrior Products lift shackles. You can also go with bigger bolts by going up to 9/16" thick.

picture.php







Blue91Ex

Well-Known Member
Joined
February 12, 2013
Messages
750
Reaction score
26
City, State
Maine
Year, Model & Trim Level
91 XLT
Jrme i finished my shackles, very similar to yours as you already knew, u okay with me posting the pics in here since they are similar and it wont clutter up the forum any extra?







Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
30,229
Reaction score
1,853
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty

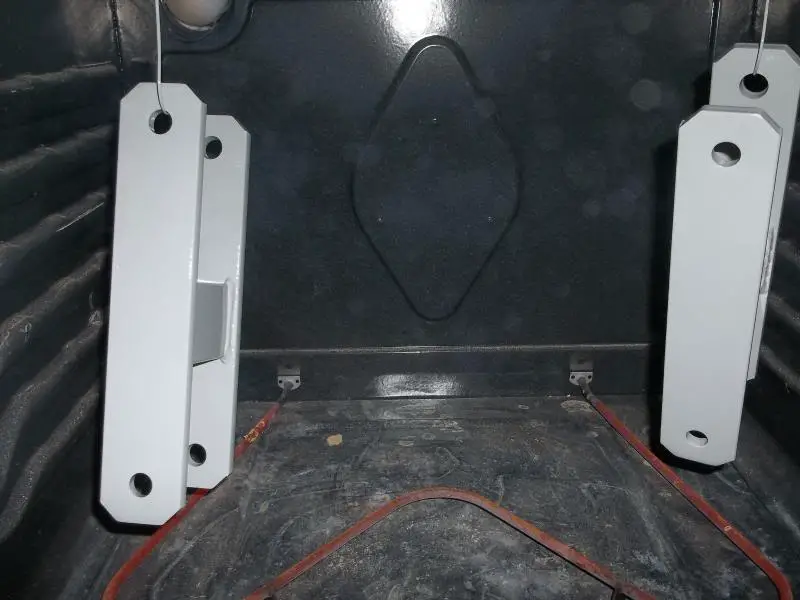

Keep in mind the center tube has to clear the frame when the shackle swings back, which is why Warrior shackles have the center bar mounted about 1/2" off center.

In other words, they can be installed upside down.



You might be able to see it better in this picture








coco944x4s

Well-Known Member
Joined
October 25, 2009
Messages
158
Reaction score
2
City, State
Staley, NC
Year, Model & Trim Level
94 Explorer 78 F150
My shackles were less work than this. Took a length of 3 inch C-channel, cut four pieces, drilled 8 holes, mitered the corners, bolted them on.







Blue91Ex

Well-Known Member
Joined
February 12, 2013
Messages
750
Reaction score
26
City, State
Maine
Year, Model & Trim Level
91 XLT

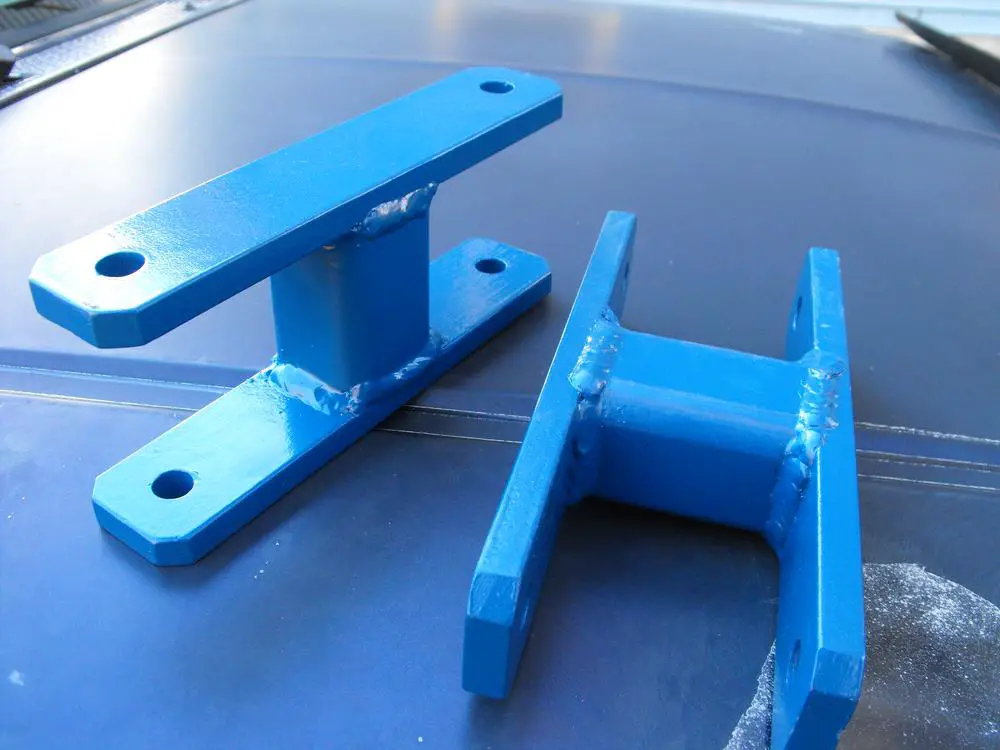

hmm turdle's came out prettier than mine..


one tip i can add, with teh thicker metal, before welding use a grinder to cut around the edges to be welded, this creates some more empty space for the weld to go in to get better penetration/strength, you can see what i mean in this picture. i really needed it since my outer edges of the tube was flush with the 3/8" plate, no corner there to weld in.


still havent found suitable bolts for them though. long 14mm is hard to come by around here.







Blue91Ex

Well-Known Member
Joined
February 12, 2013
Messages
750
Reaction score
26
City, State
Maine
Year, Model & Trim Level
91 XLT
so to add an update and put jrmes thread back up a bit, i installed my shackles, it may be worth noting that for fabricating the shackles if you use a 220v mig, put a large bolt (large but short) with a nut on it between the plates when you weld the inside edges, adding tension pushing them away from eachother, this is to counter the corner welds from "pulling" the ends of the plates together.

anyways, i originally drilled my shackles to a 9/16" bolt. This worked out well, the metal bushings in the leaf springs had worn, making the inner bore exactly 9/16 so the 9/16 bolts slid right in. it seems to be working very well.


they got buggered up while hammering them into place (weld pulling made them a bit tight) but they are in and added about 3/4" of lift.







Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,351
Reaction score
516
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
Turdle is correct, the center tube needs to be offset to clear the frame. Also use a 9/16" grade 8 bolt. Metric is both expensive and hard to find when the 9/16" works perfect.

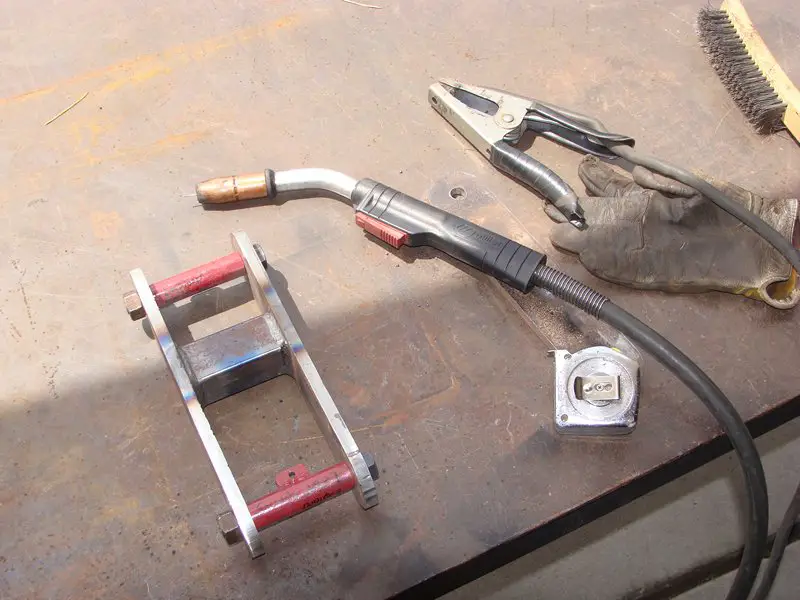

I build a lot of shackles and here is how I do it. I have 2 special pieces of tube I install on the bolt that is about .090" longer than the width of the bushing they fit over. This both aligns the bolt holes perfectly between each side and it keeps the shackles from closing up and when the spacers are removed after welding. The shackles will slightly close up when the spacers are removed and be the correct width to fit over the bushings without any hassle. Similar to what Blue91 described above but easier when you build several sets and all you have to do is put a sleeve over the bolt.

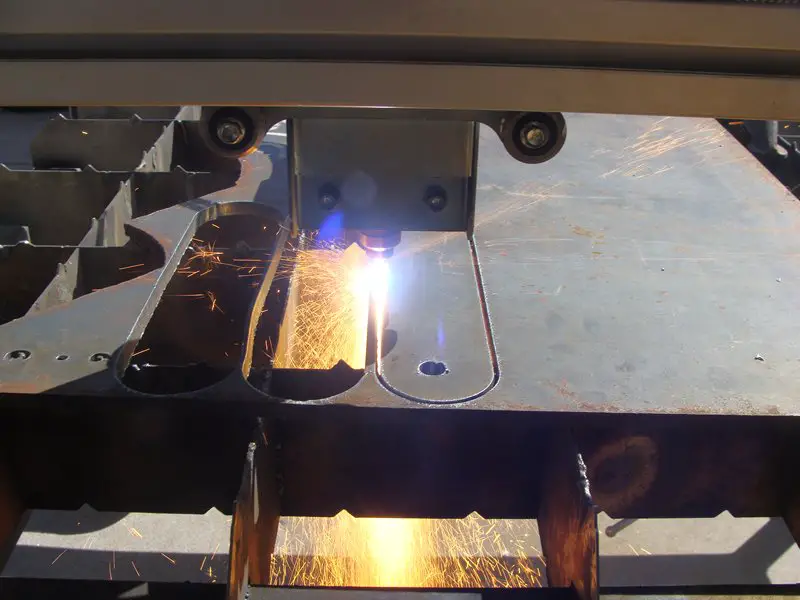

I also cheat and use a CNC Plasma Table to cut out my shackles :D the holes are then drilled to size for a precise fit.


Attachments

  • m_DSC09741.jpg
    97.6 KB · Views: 857
  • m_DSC01002.jpg
    74.8 KB · Views: 885






Blue91Ex

Well-Known Member
Joined
February 12, 2013
Messages
750
Reaction score
26
City, State
Maine
Year, Model & Trim Level
91 XLT
my shackles are shorter than the warriors and the tube in the center is exactly centered on the plates and i havent had any issues with hitting the frame or my receiver hitch. I have not flexed the truck out to its limits yet but it seems like i have plenty of room..

i have noticed a clunk in the rear end on large potholes recently, but these arent big enough to flex the leaf springs that much, i believe it is the original 23 y/o rear shocks that are rusted and may be binding or hitting themselves, i will try to check for scuff marks and chipped paint on the shackles tomorow.







kmack

Well-Known Member
Joined
December 28, 2000
Messages
189
Reaction score
111
City, State
San Antonio, TX
Year, Model & Trim Level
1993 Ford Explorer
I've looked at building up a set of shackles to help raise the back end of my '93. Just a quick question. With the added length on the shackles causing a rotation of the drive axle, has anyone noticed any problems with a change in the pinion angle? Any issues with shock mount angles?

Or am I just over thinking this?







jrme

Active Member
Joined
January 6, 2012
Messages
55
Reaction score
1
City, State
London Ontario
Year, Model & Trim Level
1999 Explorer 2wd sport
Overthinking it, I have not noticed any pinion angle only drive shaft angle. and that is minimal (depending on ho long you make your shackles lol ).







Flash Gordan

Member
Joined
March 28, 2014
Messages
20
Reaction score
2
City, State
Southern New Jersey
Year, Model & Trim Level
01 Explorer Sport Trac
Awesome write up but I have one question, I have a nice sized chunk of 1/4" plate. I'm curious if this would work? I know 1/4" isn't as thick as 3/8" but it's all I have at the present moment.







ProjectAviator

Elite Explorer
Joined
February 19, 2006
Messages
964
Reaction score
27
Location
Laramie,WY
City, State
SE, WY
Year, Model & Trim Level
2020 Ranger Lariat FX4
Great write up I will have to get some steel and build some for mine.
