That's what I was thinking too, I made sure the traction side was tight.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,599
Reaction score
273
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
The spring in the tensioner is too weak to overcome the slack on the traction side of the chain resulting from valve springs. When there is oil pressure in the tensioner the slack is overcome and the chain on the traction side is taught. Timing the camshaft without using the tensioner tool or an equivalent procedure resulting in a taught chain on the traction side will result in the timing being a few degrees off. It probably would not be detectable for normal driving but could affect peak performance. Many Mustang owners time the camshaft to advance the timing about 5 degrees to improve max rev performance at the expense of idle smoothness and low rpm performance.

<



CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,246
Reaction score
2,620
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Ditto, the process of setting the timing is based on the intended chain conditions, the length of the chain given known tensioner length. The stock tensioners change length given chain tension, the tool(dummy tensioner) does not change length, thus maintains chain tension expected to set the timing.

Thanks Dale for the Mustang reference. I'm planning to set mine soon after locking TDC by a proper TDC piston stop tool. I hadn't yet searched to see if there is a best timing to use, such as 5 BTDC. I don't want any loss of bottom or mid range power, I don't need 5500rpm power.

<



allmyEXes

Explorer Addict
Joined
February 6, 2016
Messages
1,182
Reaction score
360
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
1997 Blue Ex 4.0 SOHC
Callsign
KAGG 3611 (CB)
So what is the length of the dummy tensioner? From the point that it contacts the head to the end of the plunger?

<



ICoull

Member
Joined
January 15, 2016
Messages
21
Reaction score
2
City, State
Castlegar, BC
Year, Model & Trim Level
2003 Explorer & Aviator
So what is the length of the dummy tensioner? From the point that it contacts the head to the end of the plunger?
It is 2 5/8” from point of contact to the end of the tool. Remember there is no (spring loaded) plunger involved, it is solid for its entire length.
Corrected below... there is a heavier spring (relative to the real tensioner’s) inside this install tool, that preloads the traction side of the chain when setting timing. Thnx for the correcting info. Ian

<



allmyEXes

Explorer Addict
Joined
February 6, 2016
Messages
1,182
Reaction score
360
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
1997 Blue Ex 4.0 SOHC
Callsign
KAGG 3611 (CB)
Thanks ! that translates to 66.675 mm. I have been wondering what it was for a few days now. I installed an adjustable tensioner meant for a RZR a few months back in the right head and it has been working well.

<



2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,599
Reaction score
273
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8

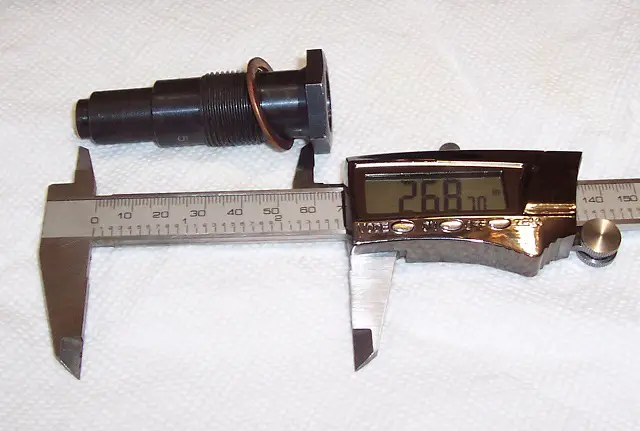

The compression ring is 0.060 inches thick so the distance is 2.687 - 0.060 = 2.627 inches. Before I purchased my OTC 6488 timing tool kit I made my own "precision" tensioner using an old spring/hydraulic tensioner.

I cleaned the oil off and then applied epoxy to the area between the arrows.

<



donalds

Elite Explorer
Joined
July 12, 2015
Messages
4,606
Reaction score
2,112
Location
Stem
City, State
Nc
Year, Model & Trim Level
1999 ford explorer sohc

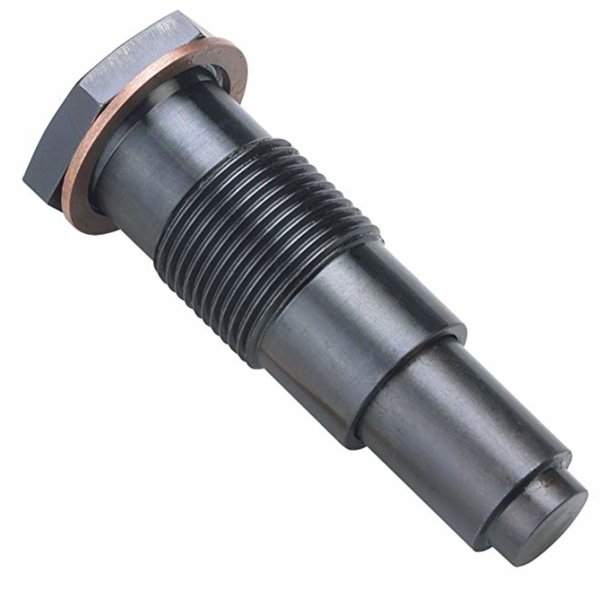

The dummy tensioner has a heavy spring in it

71cD3wx6GmL._SX679_ (2).jpg


Install it at full length you will break your guide

<



2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,599
Reaction score
273
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
<
