*Solved*. (Defective, faulty) fuel pumps.

Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,021
Reaction score
583
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
It has been hard to keep aftermarket fuel pumps working in my truck. In fact, so difficult that I cut an access panel in the floorboard, which has saved me in snowstorms, remote locations, and areas where I do not have the ability to lower the fuel tank to replace a failed fuel pump. I also keep an extra fuel pump and a fuel line tool under the access panel cover.

The aftermarket fuel pumps fail so frequently that I began tracking fuel pump life.

First option: Bosch. After reading recommendations on this Forum for Bosch fuel pumps, I installed a Bosch pump. It lasted 80,000 miles. This did not seem very impressive, and seemed sort of mediocre.

Option two: CarQuest. Figuring they were all made by a cheap Chinese factory, I thought I would try CarQuest. This one lasted 14,000 miles. Rotten junk, but I deserved this for buying a lesser fuel pump.

Option three: Delphi. So I replaced the CarQuest fuel pump with a Delphi, top of the line from Advance Auto. This one was the most confounding. Although the pump seemed to make some quiet whirling noise in the fuel tank, there was zero pressure at the rail. The Delphi fuel pump had only been in the tank for 2,000 miles. Already failed? Impossible.

Checked and cleaned relay connections, checked fuses, tested inertia switch, cleaned electric connections. Nothing. Then I discovered that the Delphi pump delivered great pressure for a few seconds, then back to zero pressure. Where was the fuel going? No leaks anywhere, and this was a rapid loss of pressure. Fuel must be going back into the tank. Removed the pump (again) and checked and re the fuel line. No problem, but after reinstalling the pump, it still did the exact same thing.… lots of pressure for a few seconds, then zero pressure. I blew air backward through the pump, which flowed freely. This was where the fuel was going! Back into the fuel tank, through the pump.

installed my back-up pump, and the truck fired right up.

Lesson one: even a pump that cycles on and off with a key, could be faulty. Lesson Two: I guess an 80,000 mile fuel pump is now looking very good. So, back to Bosch it is. Hmmmm….

Good luck with your fuel pumps!!!

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




J_C

Explorer Addict
Joined
July 30, 2009
Messages
3,857
Reaction score
714
City, State
Florence, KY
Year, Model & Trim Level
1998 XLT 4WD 4.0L SOHC
Rock Auto shows the Bosch have a lifetime warranty, so at 80K mi per, I would have just replaced under warranty. And still would if you need a new one again unless you already threw away the Bosch. If I needed a new fuel pump right away I might buy another one to get it done ASAP but still get a new pump from Bosch from the warranty and have it as a spare.

<



toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,303
Reaction score
505
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™
Cross my fingers that my Delphi from NAPA lasts.

I had a Bosch one, but it ended up being the wrong choice of the two choices of styles. All the posts on here show replacing a cylinder shaped fuel pump, but not the plastic housed one I have. I’ll sell the wrong one with filter sock on here someday.


<



<



fast_dave

Explorer Addict
Joined
June 6, 2005
Messages
1,225
Reaction score
531
City, State
East Bay - Nor Cal / PRK
Year, Model & Trim Level
'98 Spt 4.0 OHV 5 spd 4x4
Just dropping my .02 :)

In 2018, after 20 years and 201,190 miles, I broke forum "protocall".

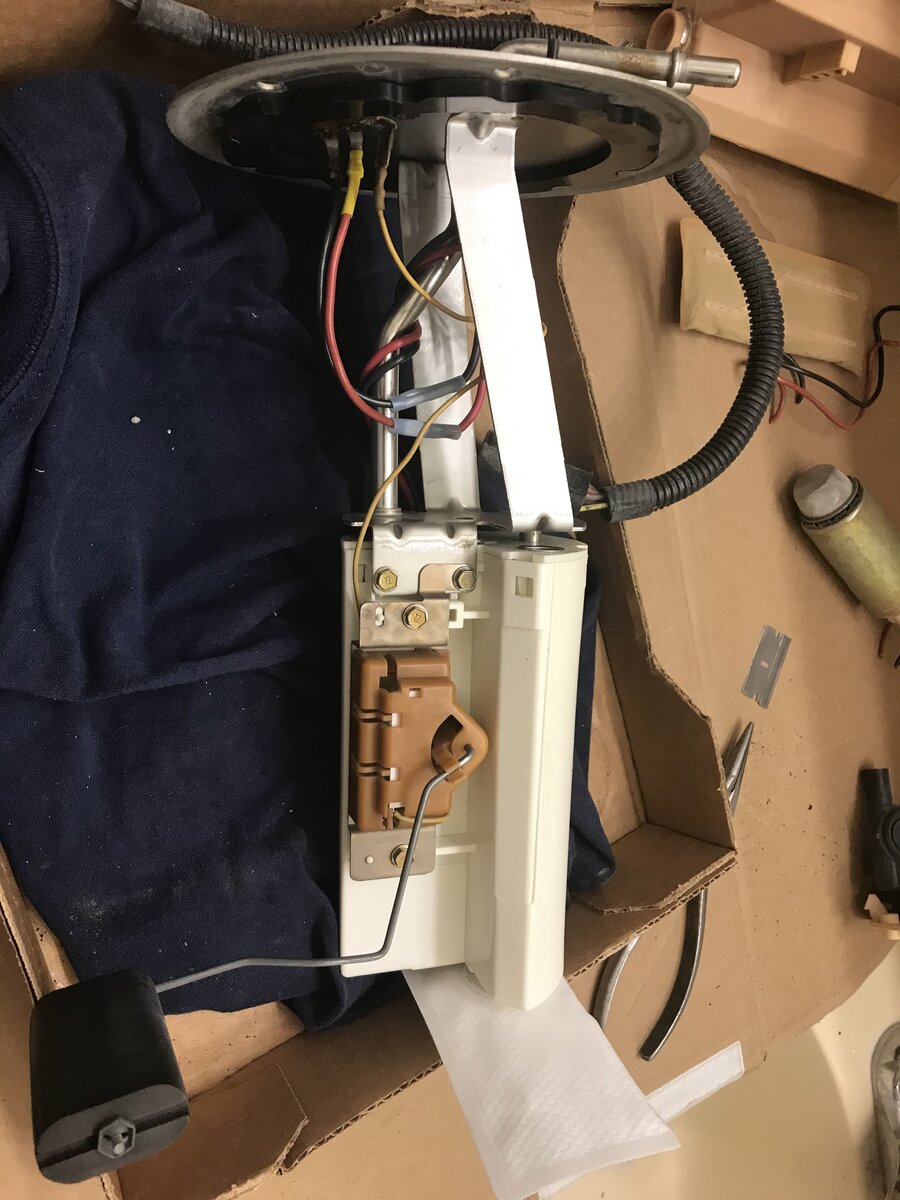

I threw caution to the wind and purchased a TYC Brand replacement off of Rock Auto (PUMP ONLY - NOT a complete assembly) for $15, and inserted it into the Factory Original Bosch Pump Assembly (20 minutes labor - simple swap out).

Result: The TYC worked like a charm, AND the benefit of offering more PSI than the original factory Bosch ever put out during the multiple times I checked it over the 20 years it was running.

Additionally, as a safety measure, I didn't use the small fuel strainer it came with, and bought an Extra Large Fuel Strainer "aka Sock" from Rock Auto; Denso Model 952-0033 for $7 that replicated the factory original fuel strainer.

From my 2018 records, in the end:

$15 TYC Fuel Pump, $7 Denso Strainer, $5 Shipping 5% R-A Discount Code= $26.35 TOTAL + My Labor (I'm a "tank dropper")

I'll also add that from the beginning I always tried to keep my fuel tank 3/4 to Full which helps keep the fuel pump cool.

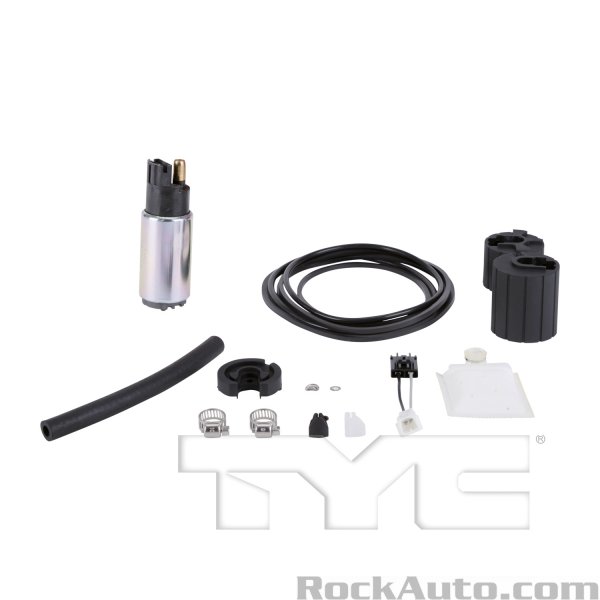

TYC 152017A

152017-A_1WM__ra_p (1).jpg

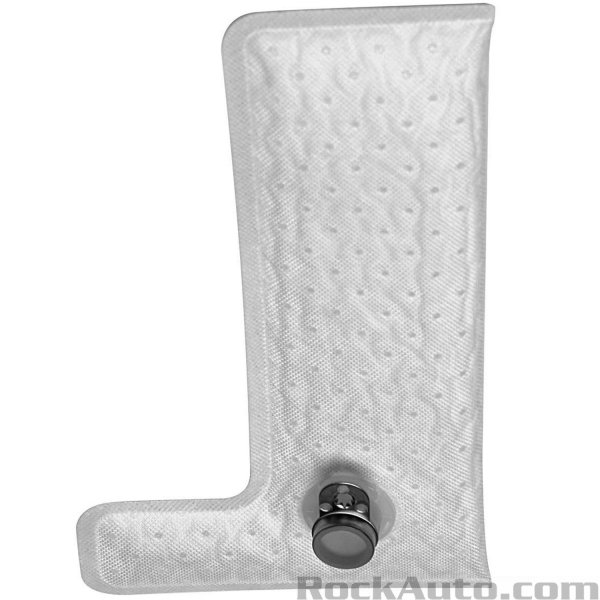

Denso 952-0033


<



Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,021
Reaction score
583
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
My walbro fuel pump has been great so far 🙏
Is that Walbro pump match stock specs? Or is this Walbro pump a high flow/high pressure unit that would not work with a stock 4.0 SOHC?

Happy Thanksgiving!

<



Mr. Alligator

Elite Explorer
Joined
November 30, 2014
Messages
1,021
Reaction score
583
City, State
Tampa, Florida
Year, Model & Trim Level
1997 XLT Explorer
(I'm a "tank dropper")

I totally understand that not everyone would want to cut an access panel in their truck, for a number of reasons. But these pumps seem to fail regularly, and if you need to drop your tank….

(1). Do you get towed home to drop the tank?

(2j. Where would you drop the tank if you are out of town? Can/do you really perform this repair on the road?

(3). What tools do you need for this? Do you carry all of this with you?

(4). What do you do with a full tank of fuel? This is when the fuel pumps seem to fail….

(5). Do you need a lift? Or just use jacks and jack stands?

Thank you for your wise thoughts and help.

<



donalds

Elite Explorer
Joined
July 12, 2015
Messages
4,626
Reaction score
2,124
Location
Stem
City, State
Nc
Year, Model & Trim Level
1999 ford explorer sohc
Is that Walbro pump match stock specs? Or is this Walbro pump a high flow/high pressure unit that would not work with a stock 4.0 SOHC?

Happy Thanksgiving!
The pump is oe for lots of cars like Toyota Subaru...
The pump is high performance high pressure
It is a drop in replacement

Very high quality pump I wouldn't think twice about it
