Spdrcer34 is going V8!....

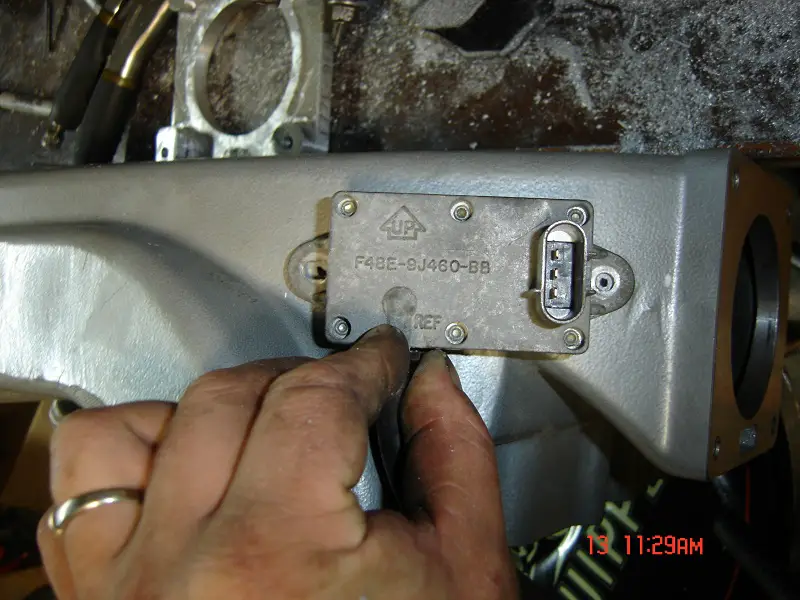

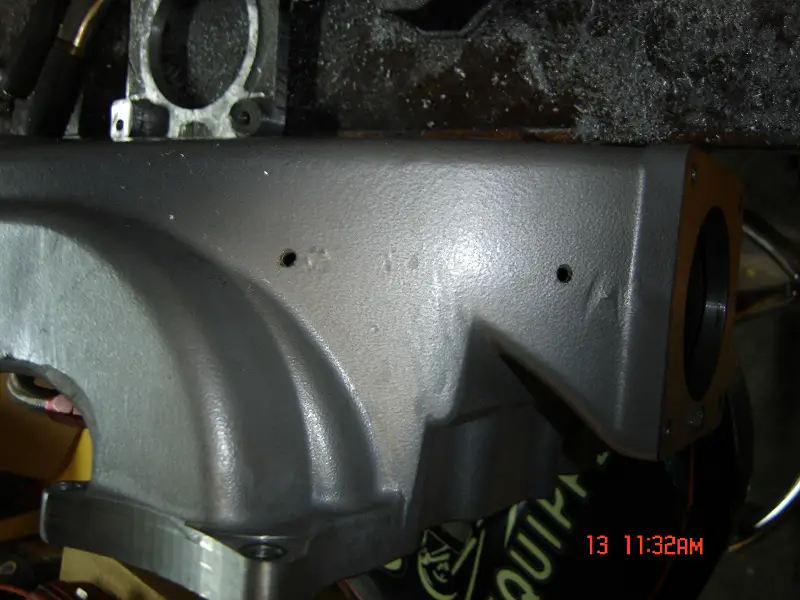

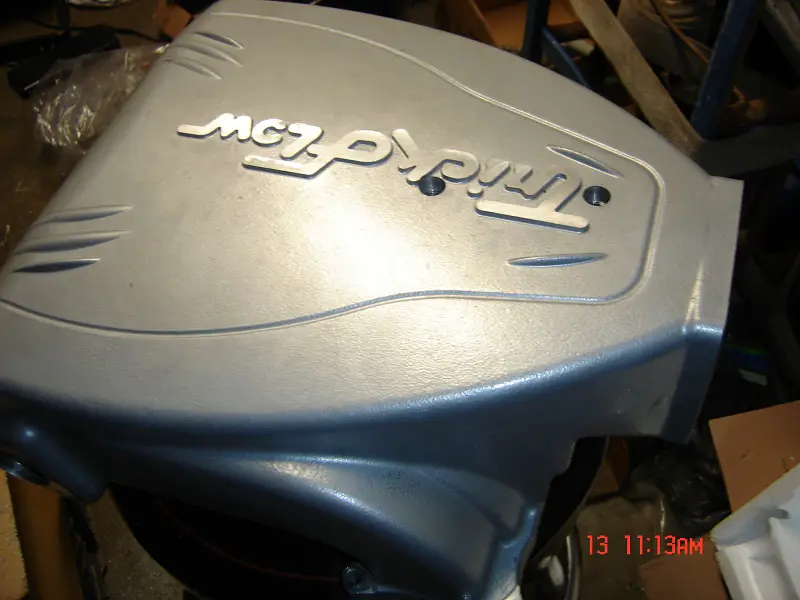

On the stock GT40 upper, the EGR Pressure Sensor is mounted right on the intake, behind the inlet. I didn't want to move the sensor, so I mounted the sensor on the TrickFlow Upper


Attachments

  • TrickFlowUpper1.jpg
    132.8 KB · Views: 557
  • TrickFlowUpper2.jpg
    166.3 KB · Views: 579
  • TrickFlowUpper3.jpg
    140.3 KB · Views: 557
  • TrickFlowUpper4.jpg
    150 KB · Views: 594



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

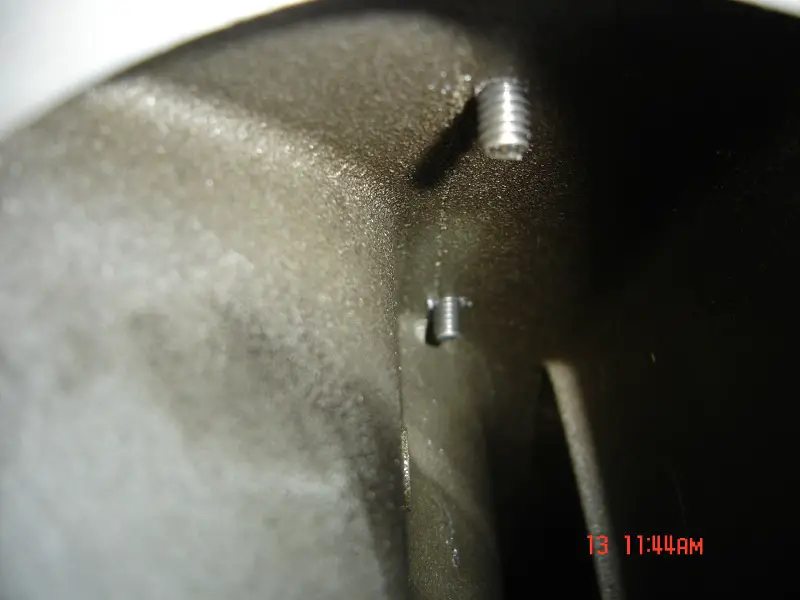

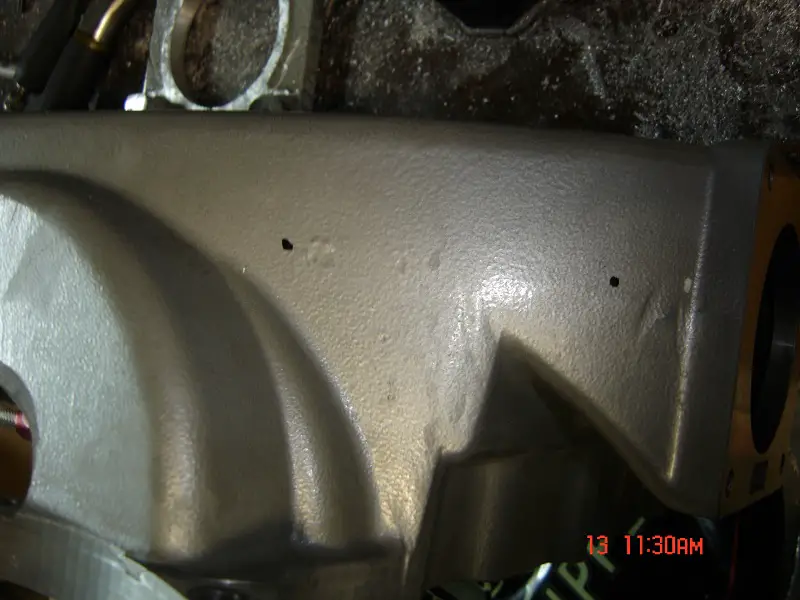

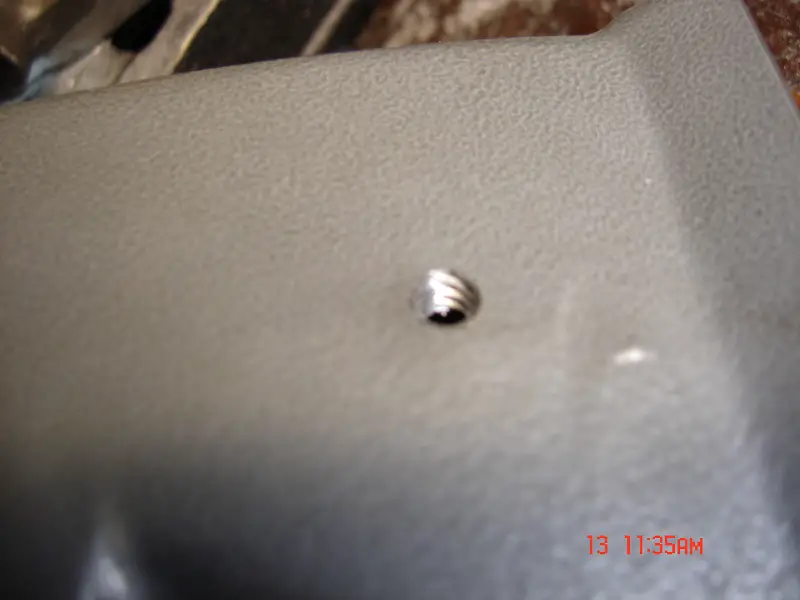

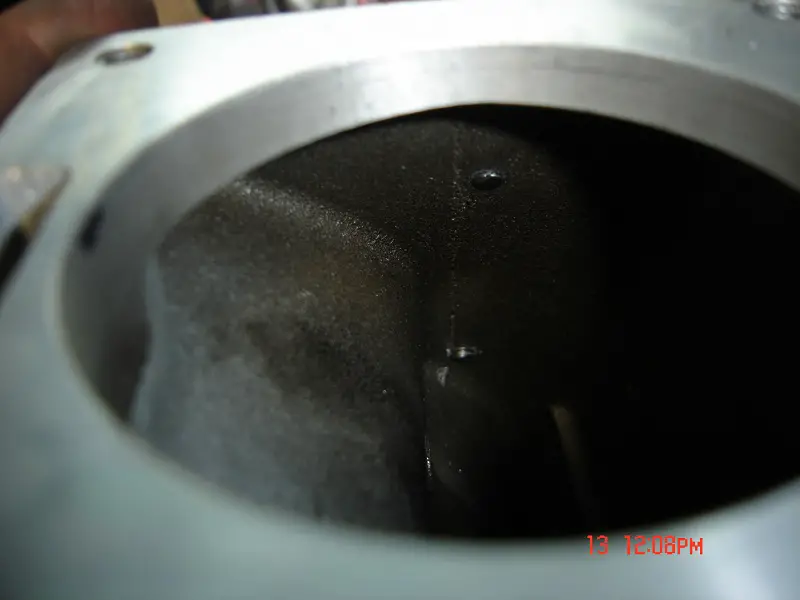

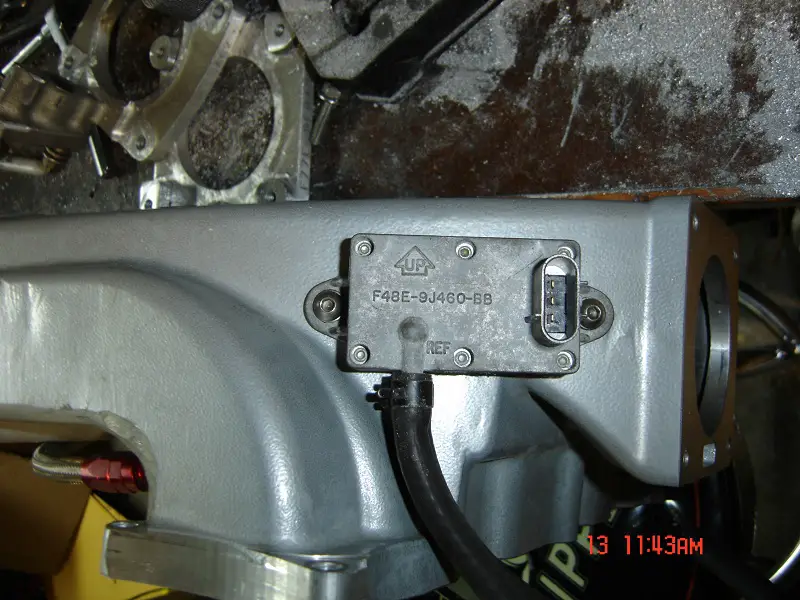

I drilled, tapped, and screwed the sensor in place...then I measured, and cut (ground) the screws down, and sealed the threads to prevent air leaks. I still may throw a thin layer of JBweld on the interior of the screw holes..I dunno. What do you guys think?

Ryan


Attachments

  • TrickFlowUpper8.jpg
    83.8 KB · Views: 541
  • TrickFlowUpper7.jpg
    103.7 KB · Views: 554
  • TrickFlowUpper6.jpg
    183.1 KB · Views: 550
  • TrickFlowUpper5.jpg
    92.4 KB · Views: 556






I'd use red loctite to keep them in place, and maybe a dab of Ultra Black on the inside to insure it stays sealed.







There is loctite red on there, and I was already debating on UltraBlack, or JBWeld.

I just may go with UltraBlack...if it get's sucked into a cylinder, it won't destroy a cylinder....

Ryan













The Red Loctite works as a thread sealer too. I have some PTFE thread Sealer for all my NPT fittings. But in a non tapered thread, it would be no different than the Red Loctite.

Ryan







There is loctite red on there, and I was already debating on UltraBlack, or JBWeld.

I just may go with UltraBlack...if it get's sucked into a cylinder, it won't destroy a cylinder....

Ryan

Yes, that was my thought for the RTV, it should do no harm if any of it lets go.

I thought of the thread sealant, but the point was to use the loctite to hold the bolt, and you don't want to put anything else on the threads if it might interfere with the loctite. It'd be great to have thread sealant or RTV on the inner threads, but how to get it there without mixing with the loctite.

The green loctite was a third choice I had in mind, but few people really ever use that. It's the one designed to wick into threads after they are already assembled and tight. I think it was Permatex 290 IIRC, I had a small tube long ago. It worked, but it's so rare you can't use other normal things instead.







More progress today...

I upgraded my Fuel System today...

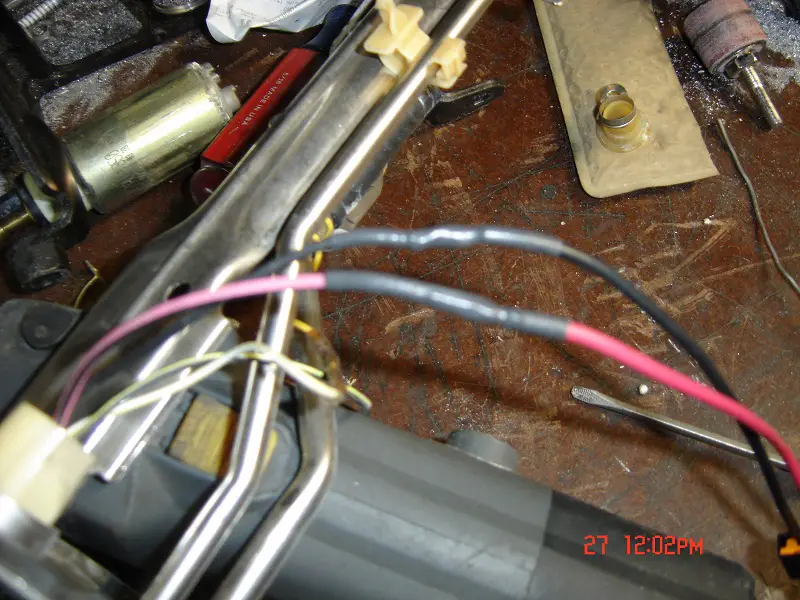

Walbro 255lph pump
-6 an lines from Pump to Regulator, and back...

Ryan


Attachments

  • RussellAdapters.jpg
    160.7 KB · Views: 548
  • PumpWiresSealed.jpg
    197.8 KB · Views: 552
  • ModifiedHanger.jpg
    119.4 KB · Views: 528

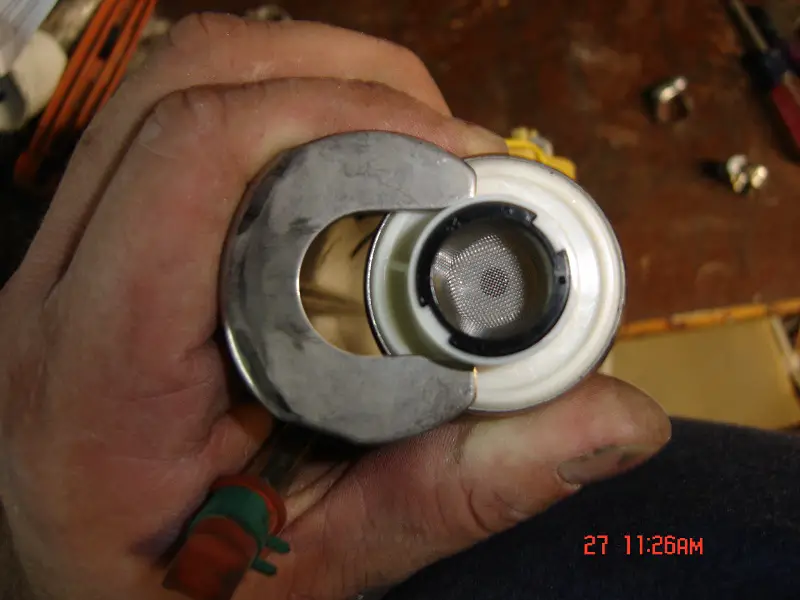

  • UnmodifiedHanger.jpg
    124 KB · Views: 523

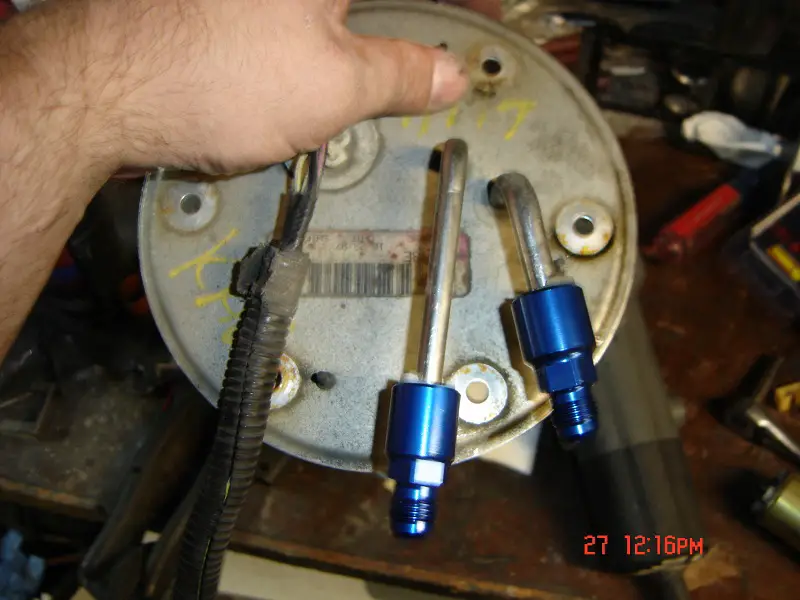

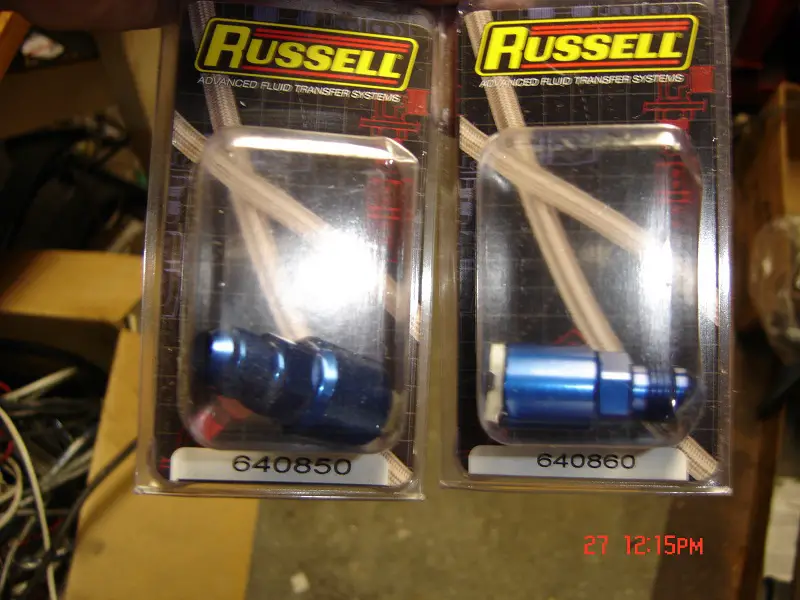

Here are the Russell adapters installed, one is 3/8" which is the Feed/OUT line, and the other is 5/16", which is the Return/IN line.

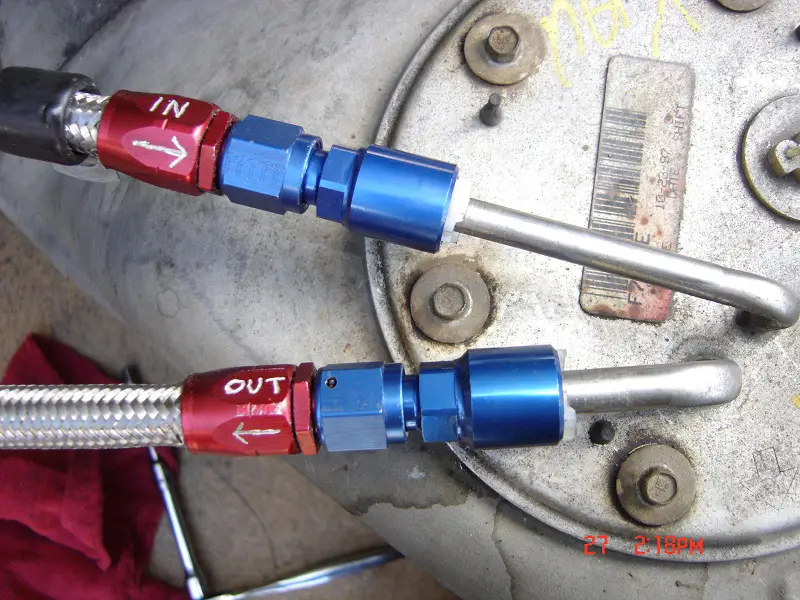

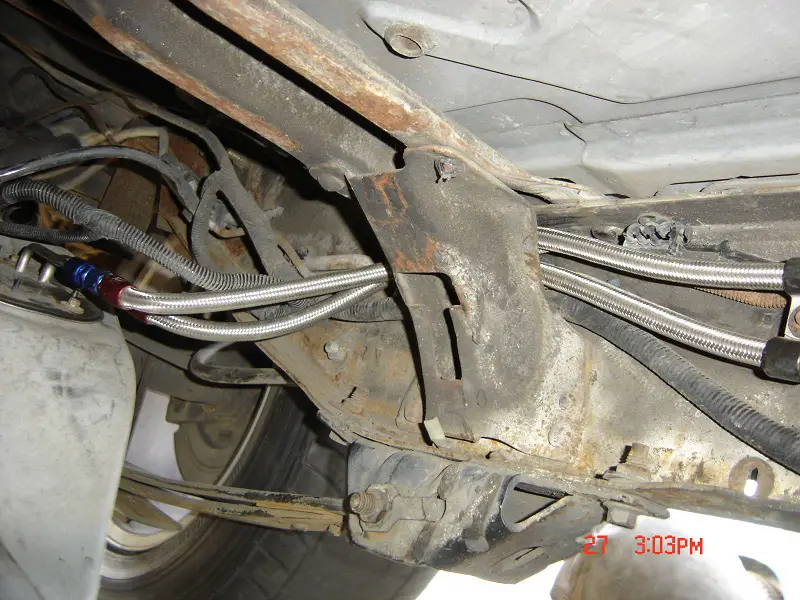

I have used Aeroquip AQP Hose, and Hose Ends exclusively on all my High Performance Builds for years...and this one is no different. Aeroquip doesn't make every adapter out there, so sometimes I gotta buy a differen brand. But my hoses, and hose ends are ALWAYS AQP.


Attachments

  • AQPLineClamps.jpg
    190.5 KB · Views: 530
  • AQPlinesTankDown.jpg
    209.3 KB · Views: 532
  • AQPlinesInstalled.jpg
    211.5 KB · Views: 560
  • RussellAdaptersInstalled.jpg
    141.9 KB · Views: 535






Very nice, and it covers the brake lines too.

I'll have to do the lines sometime soon myself, my main outlet line is very fragile(somebody twisted it).

Did you find adapters to match the front end connectors also? That would reduce the changes needed on each side of the connections.

Good work, and great pictures.

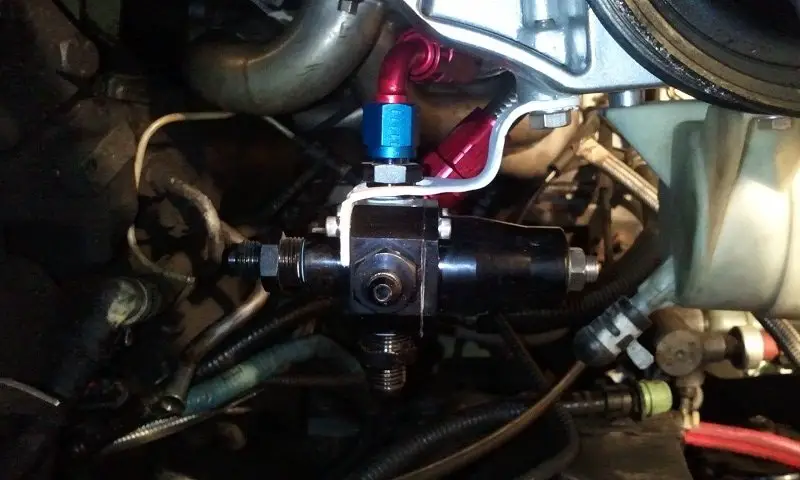

I did find adapters for the factory fuel rail but I am not going to be using them. I bought a set of billet fuel rails for cheap on corral.net. I have the TrickFlow 4-port adjustable fuel pressure regulator all plumbed and finished. I just need to relocate my fuel filter and run new lines into the engine compartment.
Ryan







nice writeup!

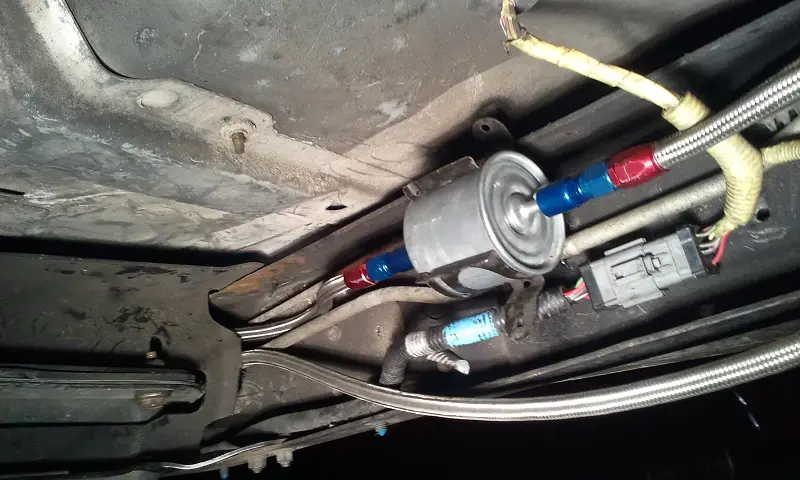

I relocated my fuel filter back about 18". I am going to be running a small bullet catalytic convertor right next to where the filter WAS located. I didn't like that much heat next to the filter, and it would have been a little difficult to get the filter in and out of there...

Ryan


Attachments

  • FilterRelocated.jpg
    153.3 KB · Views: 525
  • FuelPressureRegulatorPlumbed.jpg
    71.7 KB · Views: 486
  • EnginePlumbing1.jpg
    181.2 KB · Views: 493

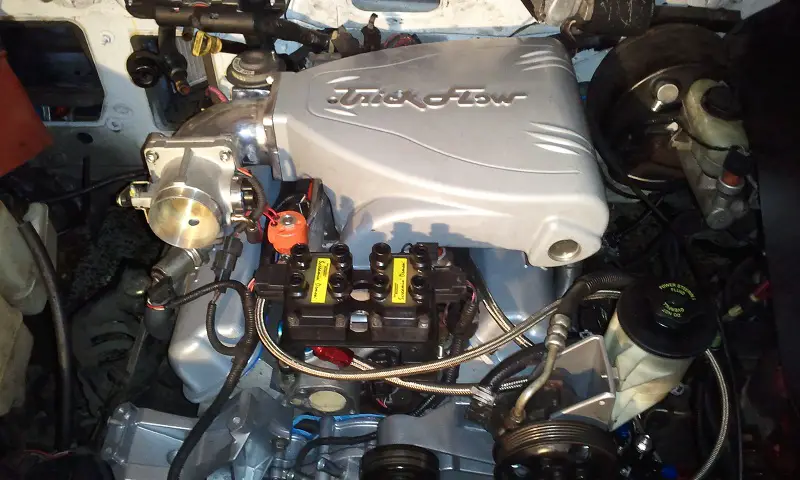

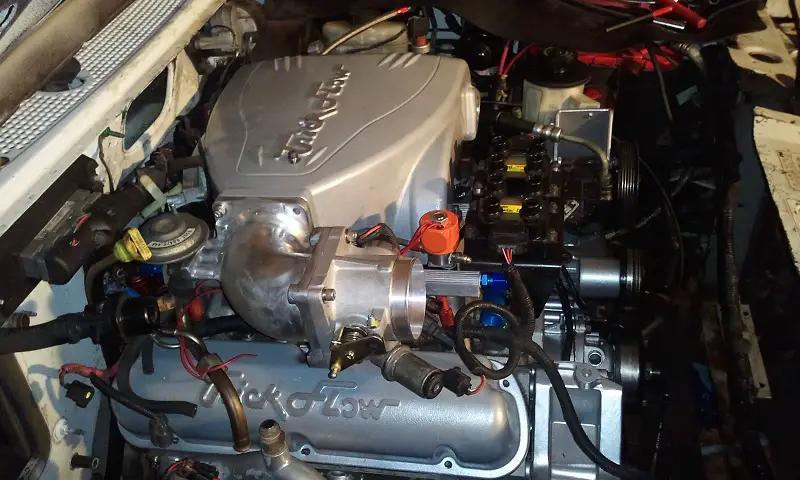

Here is the latest updated picture of my engine...

I just need a 'few' more fittings to get it all plumbed...I'm working on the Vacuum/Emissions lines, and the Cooling lines...and I can fire it up!

Oh yeah....notice anything out of the ordinary here?...and I'm not talking about missing or loose nuts & bolts.

Ryan


Attachments

  • EngineTop.jpg
    153.6 KB · Views: 514
  • EnginePassengerSide.jpg
    162.5 KB · Views: 494












Umm....No...but close...

Ryan













i'm going to say the little NOS solenoid behind the coil pack (or thats what it looks like)







i'm going to say the little NOS solenoid behind the coil pack (or thats what it looks like)


That and what intake elbow is that? Is that a ground down factory piece?

Everything looks great!




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Nitrous.....you got it..

That is actually the fuel solenoid. I am looking for a place to mount the nitrous solenoids (spray & purge). I haven't settled on a good location yet.

As for the elbow, it is a HIGHLY modified elbow, using the factory flanges welded to a cast aluminum 3.5" elbow. There is a thread in the 95-01 Modified section titled "The Elbow Dilema".

Ryan
