splodo got sassy

splodo got sassy!!!,Updated with pics

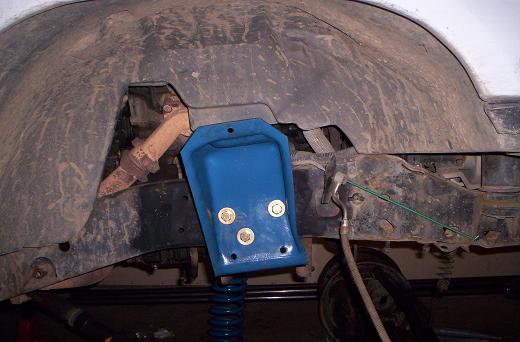

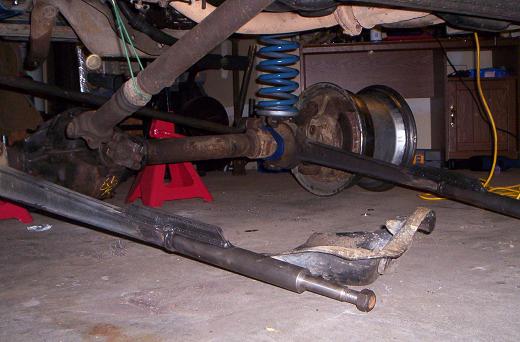

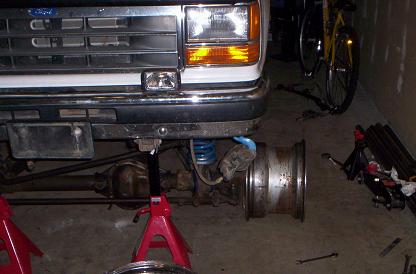

Well i finally started my swap. And to tell you its been simple yet a little confusing.So far i have the coil buckets mounted the coils attached and the axle under minus the radius arms mounted. Specs so far.
79 dana 44. with 55k on it.
Wild horses coils.
Stock Bronco buckets. moved exactly 2 inches forward. And tilted the top slight back.
early bronco radius arms extended with bent and twisted extension.
gonna try to use stock trac bar.

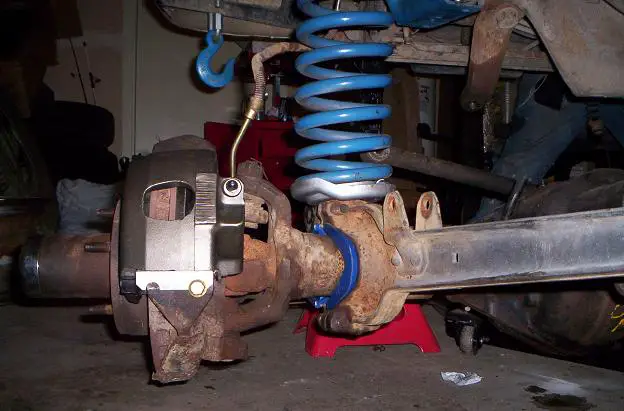

New calipers with jrgaylors brake line mod
and i need new steering.
gonna space out the rear with 2 inch adapters. Yeah im keeping the 8.8.
Now realize im just gettin the axle under the truck right now cuz i am moving in a month and going to japan for 6 months after that so all the welding will be done after i get back so all the bolting is just to get that axle set and towed home.(I might weld if i get time too) Got questions feel free to ask. Got comments feel free to post but i dont care if your gonna say "you should also weld" Cuz you should allready know.


Attachments

  • snorkeldone 007.jpg
    snorkeldone 007.jpg
    56.2 KB · Views: 1,802

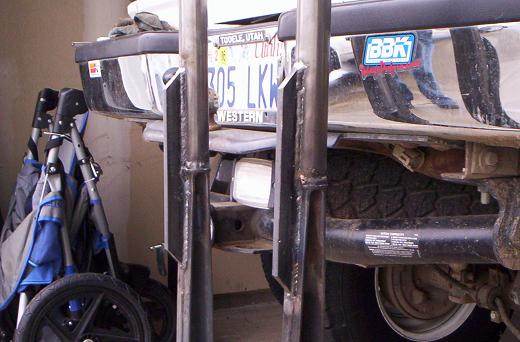

  • solid axle swap 006.jpg
    solid axle swap 006.jpg
    45.8 KB · Views: 1,801

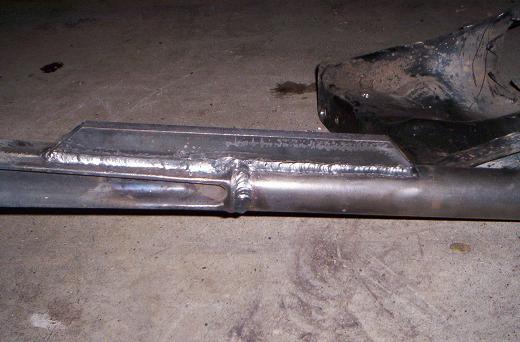

  • solid axle swap 005.jpg
    solid axle swap 005.jpg
    38.3 KB · Views: 1,785


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
more

pics


Attachments

  • solid axle swap 007.jpg
    solid axle swap 007.jpg
    39.8 KB · Views: 1,801

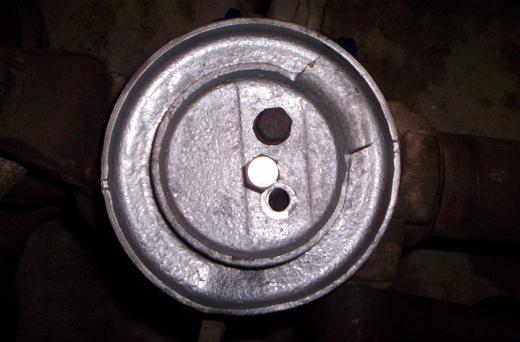

  • solid axle swap 009.jpg
    solid axle swap 009.jpg
    34.2 KB · Views: 1,784

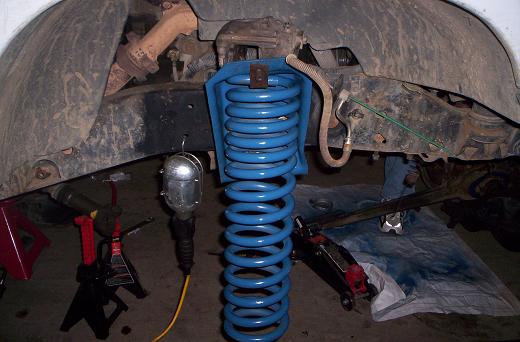

  • solid axle swap 010.jpg
    solid axle swap 010.jpg
    42.2 KB · Views: 1,749




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
and more

pics


Attachments

  • solid axle swap 003.jpg
    solid axle swap 003.jpg
    29.8 KB · Views: 1,755

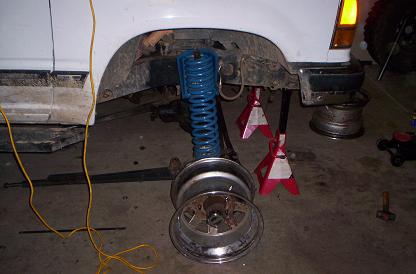

  • solid axle swap 001.jpg
    solid axle swap 001.jpg
    27.5 KB · Views: 1,747
  • solid axle swap 004.jpg
    solid axle swap 004.jpg
    42.1 KB · Views: 1,762




DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,670
Reaction score
35
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
Your truck is coming along nicely :thumbsup:









splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
Thanks im gonna try to get the arms mounted today and the front tires on the rims. so i can get it rolled out of the garage.(wife is so pissed at me for doing this) Supercharger i wish. Its the throttle body.





BeauJ

Moderator Emeritus
Joined
January 23, 2002
Messages
4,596
Reaction score
4
Ahhh, it looks like is says BBK SuperCharged on the sticker, but you can't really make it out from that pic.





bmxking5

Explorer Addict
Joined
May 2, 2004
Messages
4,791
Reaction score
3
City, State
Monroe, GA
Year, Model & Trim Level
'93 Sport & '96 XLT
You really should weld the coil buckets to the frame. :p It's coming along nicely. What gears and what size tires will you be running? Also, how much did those r/a extensions cost you?

EDIT: Nevermind on that last question. I just found em: http://www.bentandtwisted.com/catalog/product_info.php?products_id=881
I think I'll stick with extending them with DOM so that I can add heims instead of having threaded ends.





splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
HaHa bmx i figured youd be the first. I plan on running 4.88s when i get back home but for now its front 3.50s or 3.55s and rear 3.73s. So the drive shaft is gonna stay disconned. My tires are 35s. I couldnt go any bigger than 36s for sure so anyone doing a swap i mounted my buckets more than jrgaylor and less than sanvde and it looks like this is my running tire. Today i mounted the calipers and did jrgaylors mod. (thanks) and mounted the radius arms and the tires. The rear is still un spaced but i think the front looks great. I also tack welded the stinger to the front bumper :confused: . It actually turned out ok. I might start on the new tube front bumper tommorrow. But i also need to spend a day with the fam. Ive been in the garage for 2 days drinking and fabbing. O yeah i seriously think that the stock track bar is a no go for me it is like 3 inches past the frame and i just dont see it happening. Also i still need to do steering. I was quoted around 200 for a setup and i still gotta fab it to work with my pitman arm . O yeah looks like my pitman arm is too low and might need to find a stock one to work with the lift. For you allready sas pros your comments will help as iam a sas pro in training. :D Thanks.


Attachments

  • solid axle swap 012.jpg
    solid axle swap 012.jpg
    48.8 KB · Views: 1,698

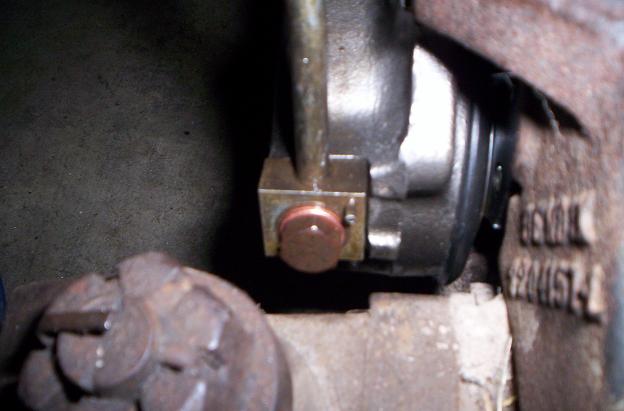

  • solid axle swap 013.jpg
    solid axle swap 013.jpg
    38.2 KB · Views: 1,699
  • solid axle swap 014.jpg
    solid axle swap 014.jpg
    52 KB · Views: 1,696




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins

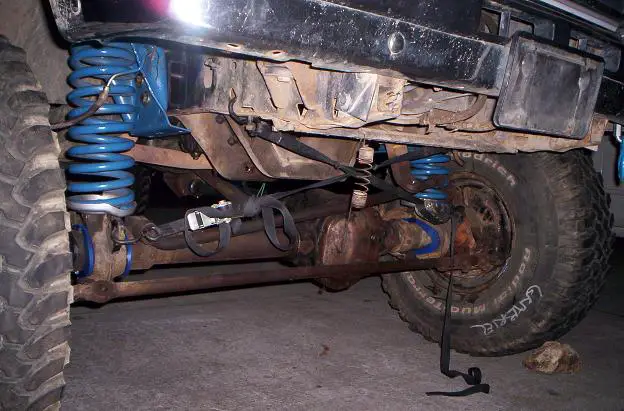

A few more


Attachments

  • solid axle swap 015.jpg
    solid axle swap 015.jpg
    52.4 KB · Views: 1,714

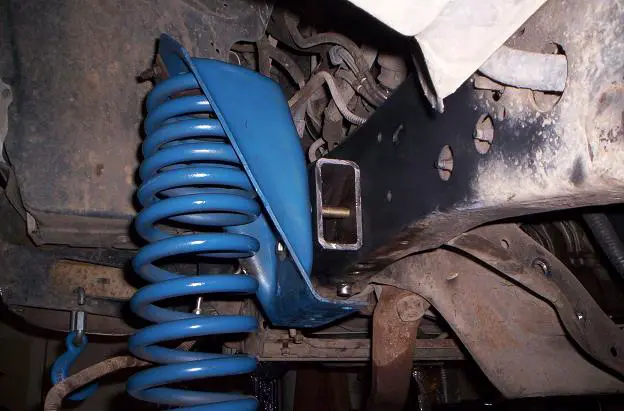

  • solid axle swap 016.jpg
    solid axle swap 016.jpg
    54.9 KB · Views: 1,701
  • solid axle swap 019.jpg
    solid axle swap 019.jpg
    65 KB · Views: 1,718




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
And some more


Attachments

  • solid axle swap 020.jpg
    solid axle swap 020.jpg
    58.6 KB · Views: 1,671
  • solid axle swap 018.jpg
    solid axle swap 018.jpg
    37.5 KB · Views: 1,680

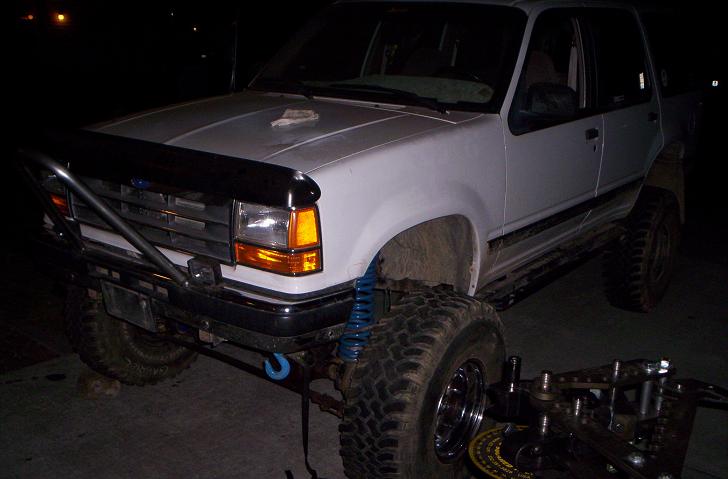

  • solid axle swap 017.jpg
    solid axle swap 017.jpg
    46.3 KB · Views: 1,670




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins

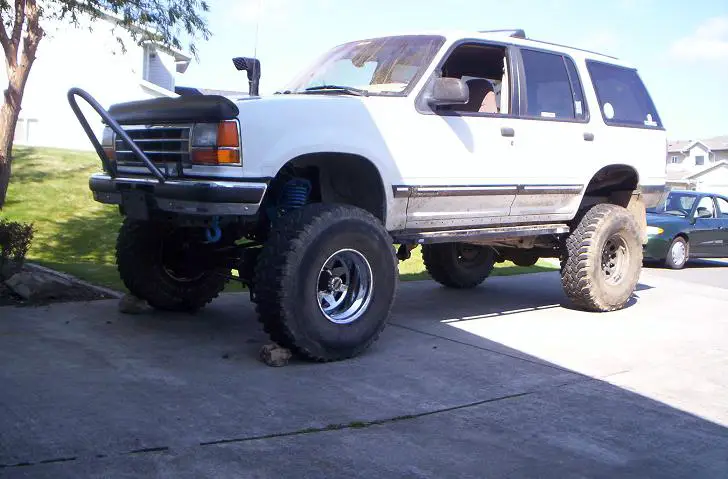

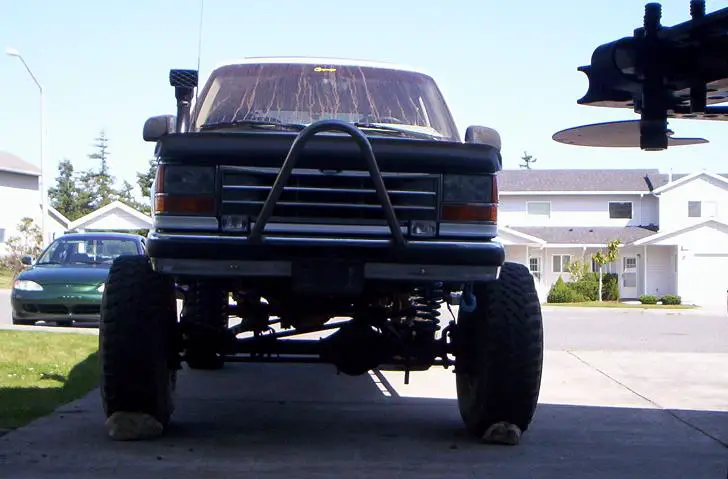

Heres a few day shots. Im not gonna start the tube bumper today. I measured the front from rim to rim its 81"s wide. Also i centered the truck under the axle and it looks like i need to shorten the stock track bar 1-2 inches. And i need a stock piman arm. Cuz its really close to hitting the trac bar.


Attachments

  • solid axle swap 022.jpg
    solid axle swap 022.jpg
    57.2 KB · Views: 1,656
  • solid axle swap 024.jpg
    solid axle swap 024.jpg
    65.5 KB · Views: 1,667
  • solid axle swap 025.jpg
    solid axle swap 025.jpg
    63.6 KB · Views: 1,655




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins

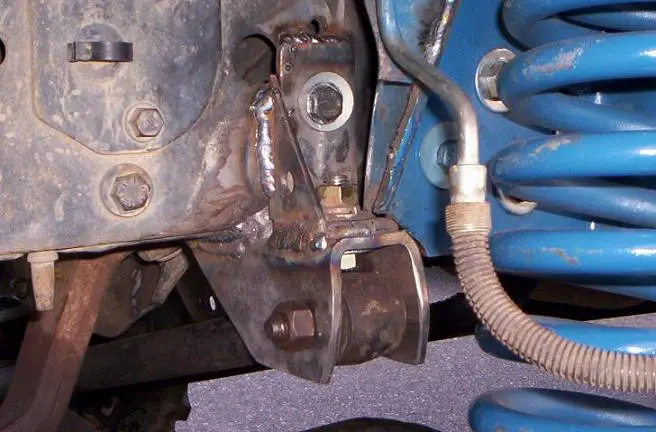

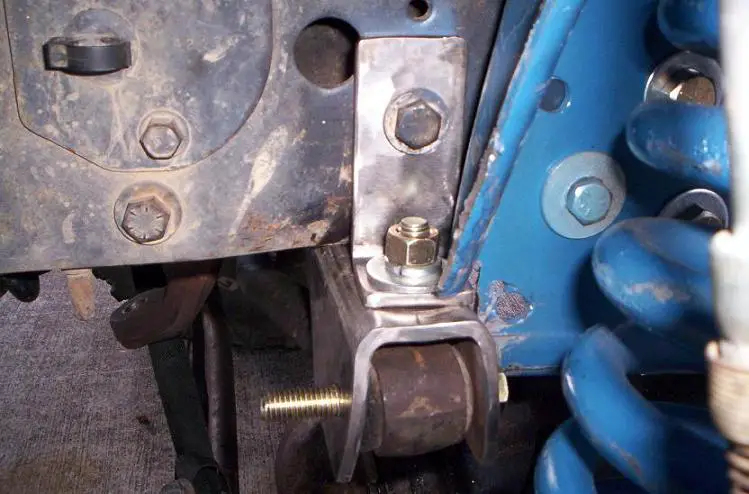

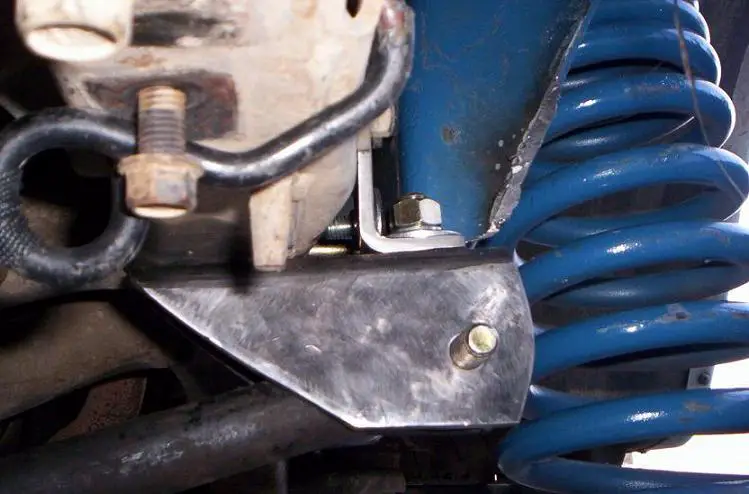

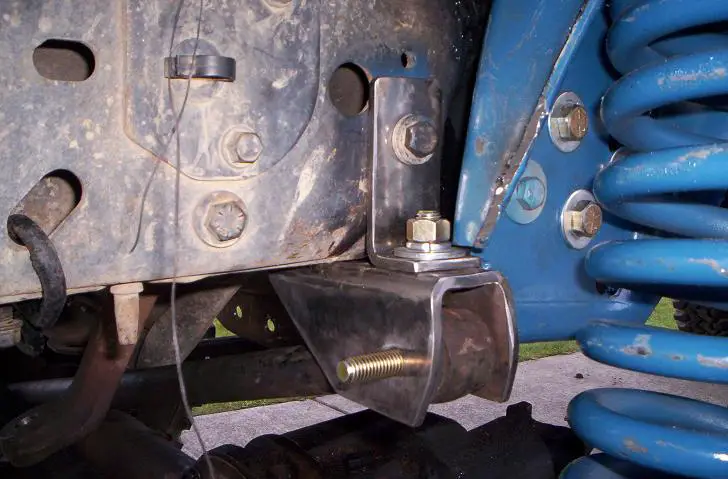

Well i fabbed up the trac bar mount. Its not welded on yet cause im gonna wait till i get all the steering setup then weld just to make sure i have no problems. Also im gonna put on a stock piman arm to make clearance better at full turn and flex.I am also gonna run a piece of flat stock from the back side of the bracket over to the engine cross member.


Attachments

  • solid axle swap 030.jpg
    solid axle swap 030.jpg
    68.5 KB · Views: 1,627
  • solid axle swap 031.jpg
    solid axle swap 031.jpg
    67.9 KB · Views: 1,642
  • solid axle swap 032.jpg
    solid axle swap 032.jpg
    62.5 KB · Views: 1,602




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
Shes done!!!!!!!

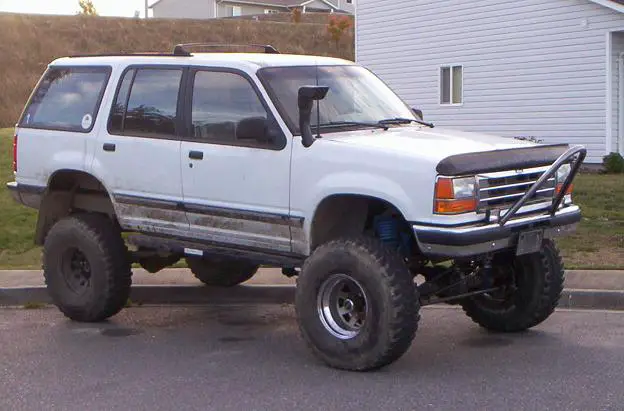

Well i finished the front besides shocks but its driveable. These springs are really soft!!! I was checking the steering and the trac bar mount was just bolted up (wanted to make sure everything worked before i started welding)and i watched the whole body move and not the tires.. I was like f#$k all that work gone so i shut the truck down and took a look,and the bracket that bolted the mount to the frame was bent and so was the bolt so after this i decided to do a few more beads too make the mount more secure. :D


Attachments

  • sascomplete 004.jpg
    sascomplete 004.jpg
    52.1 KB · Views: 1,586
  • sascomplete 003.jpg
    sascomplete 003.jpg
    61.9 KB · Views: 1,571
  • sascomplete 001.jpg
    sascomplete 001.jpg
    57.7 KB · Views: 1,549




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
Update With flex shots.

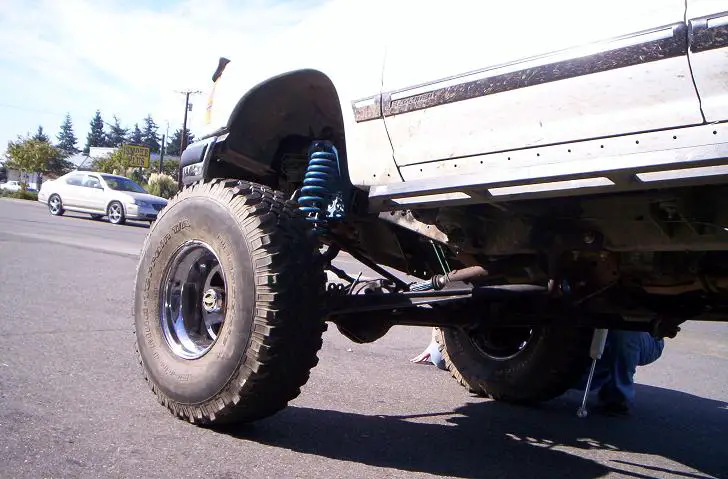

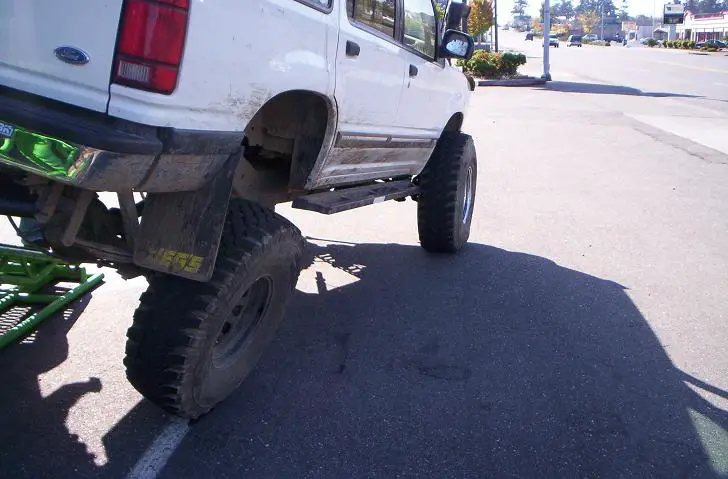

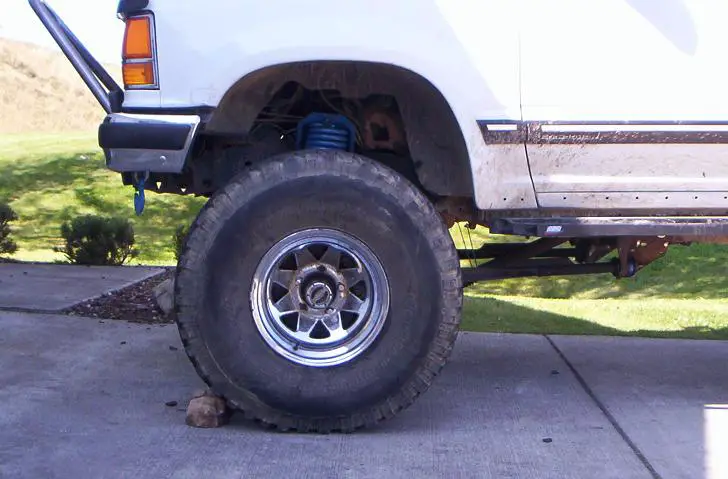

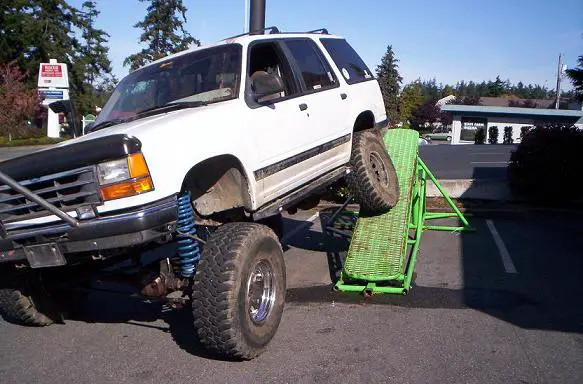

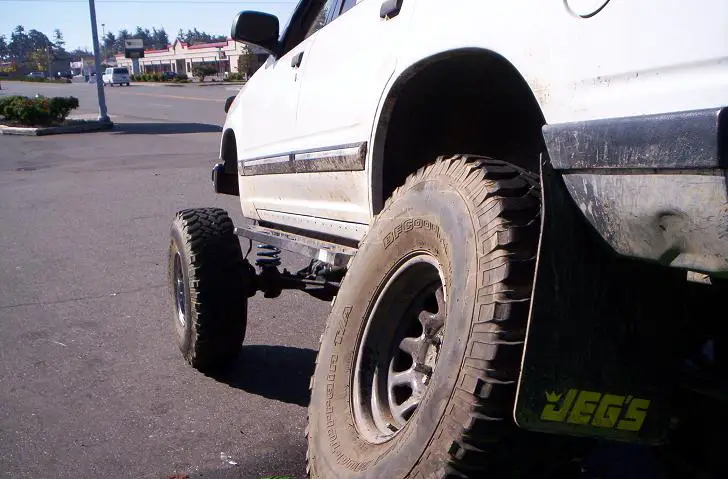

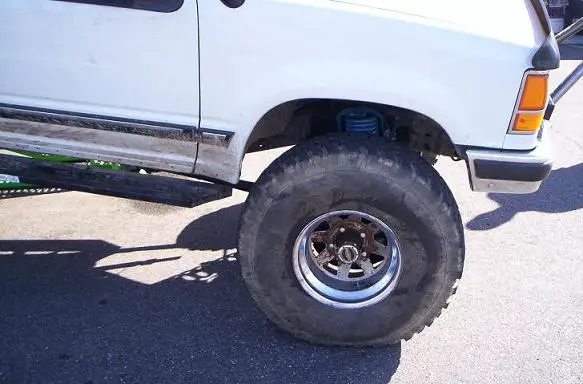

Well heres some flex shots. Its only in 2 wheel drive but it gave me a good location and travel on the shocks.These coils compress really well. Tell me what yall think.


Attachments

  • sas flex 003.jpg
    sas flex 003.jpg
    59.5 KB · Views: 1,542
  • sas flex 004.jpg
    sas flex 004.jpg
    67.3 KB · Views: 1,532
  • sas flex 006.jpg
    sas flex 006.jpg
    47.5 KB · Views: 1,544




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
A Few More

Flex


Attachments

  • sas flex 005.jpg
    sas flex 005.jpg
    70.4 KB · Views: 1,521
  • sas flex 008.jpg
    sas flex 008.jpg
    65.3 KB · Views: 1,526
  • sas flex 009.jpg
    sas flex 009.jpg
    73.6 KB · Views: 1,530




splodo49

Ejection seat man..
Joined
June 17, 2003
Messages
714
Reaction score
1
City, State
Tooele,Utah
Year, Model & Trim Level
94 XLT,75 FJ, 05 Cummins
Before and after

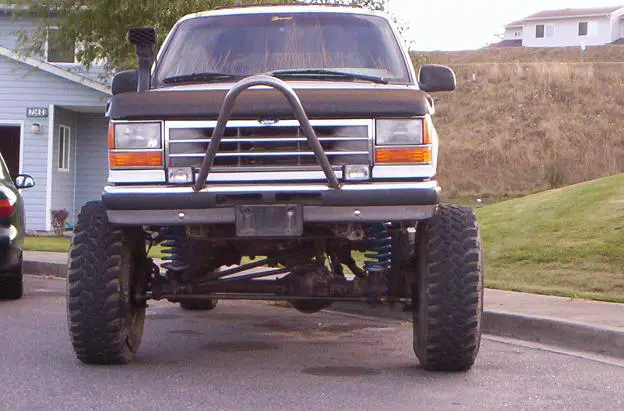

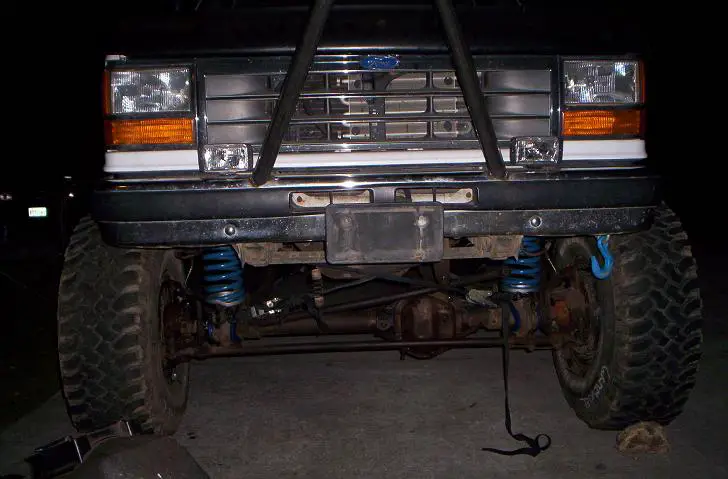

Heres a before and after I think looks so good with the wider axle. :D
