hi everyone, my name is tim . i live in selkirk, manitoba, canada and as if this date that i am posting this, i am 36 years old.

i bought my sport in jan 05 from a local ford dealer. it had 111,000KM's on it. this is the second sport i have owned. it was sitting on the lot for about 8 months before i came along. i am the third owner (i was able to track down the person that traded it in, and they got it from a friend, who bought it new in 98).

i started to do a few things to it after i first got it, then i found this site, and all hell broke lose! i've never been satisfied with something the everyone else has, so i started to tinker with it even more.
































mods include

interior

installed factory tilt, cruise, overhead console, auto dimming mirror, full length console, with a message center (it didn't have these from factory).

white face with blue flames indigo gauge covers (they light up blue)
blue l.e.d. everything
white l.e.d. interior lights
Kenwood DDX392 Touch Screen Head Unit
alpine 4 channel amp (all four speakers)
boston acoustic front and rear speakers
alpine mono amp (for sub)
2 12 inch jl audio subs
rockford fosgate cap
passenger side one touch window down mod.
custom transfer case shifter
tripple a pillar gauge pod, housing autometer boost, Innovate LC-1 wideband, and oil pressure gauge
12v power inverter with 120v plug in a 2 usb plugs built into the center console

exterior

BMW E46 projectors, mounted into stock housings using clear lens
6000K HID head lights
angel eye "driving" lights, with 8000k h.i.d.'s
clear parking/corner lights
billet grill (powder coated by Turdle)
blacked out ford emblems
custom front steel 95-98 bumper, with 4 inch round tubes welded in for driving lights
shaved radio antenna
shaved roof rack
black euro tall lights
l.e.d. license plate lights
smoked out 3rd break light
lund rear tailgate spoiler/wing (formally from the truck "blackjack" owned by EF member Spas)
hand made roll pan (made from 3 1/2 rear bumpers, with 1/4 inch diamond plate on the top, and it is removable)
aluminum T/A differential griddle/cover (powder coated by Turdle)
Motegi Mr107 20' rims
goodyear wrangler hp p245/50 r20
1 1/4 wheel spacer in the rear, 3/8 in front
and most noticeable, black with blue pearl paint, and blue true fire (ground effects are black with blue pearl as well)

Suspension

2 inch lowering blocks in the rear, reverse TT in the front (2 inch as well)
Explorer Express rear sway bar
4 door leaf springs
rancho rs9000 adjustable rear shocks
03-05 sport trac spindles with drilled and slotted rotors

performance

5L swap
347 stroker
TFS twisted wedge alum heads
comp gold 1.6 rockers
comp cams CCA-35-556-8 nitro cam
heavily modified edelbrock victor jr air gap intake (which serves as a valley pan now)
eaton m122 supercharger (metco 2.70 pulley, and ASP 8 rib 7 1/4 crank pulley) with custom made mount with bell intercooler core
8 rib serpentine belt conversion using pulleys from a 7.3 powerstroke
custom made 3 1/2 inch throttle body elbow
accufab 75mm throttle body
4 inch intake pipe
PMASS MH90 90mm Universal 3000 KG/HR MAF
amsoil cone filter
F.A.S.T. 60lb injectors
edelbrock fuel rails, trick flow specialties fuel pressure regulator with summit racing fuel pressure gauge
walbro 255lph fuel pump
1/2 inch steel braided fuel pressure line from tank to rail using 8AN fittings
torque monster headers
2 1/2 duel pipes with flowpro duel in and out 2 1/2 single muffler
accel extreme 9000 ceramic 45 degree plug wires with boot protectors
4R70W w/2600 stall with J mod
tuff stuff 200a alternator
tuning made possible with sct pro-racer package, and tuned with major help from member [MENTION=102869]Dono[/MENTION] and [MENTION=81804]4pointslow[/MENTION]
flex a lite duel 12 inch electric fans
big 3 upgrade (4 gauge wires)
meziere innercooler water pump
2 froozenboost innercooler rads

Transfer case

4406 manual shift from a 97 F150
modified stock trans cross member to accept 93 mustang 5L polyurethane tans mount
double cardan rear drive shaft

because of all the "fun" i had doing the bodywork, and some other things to my truck, i have nick named it "evil dora" or if you like, just plane "evil"!
and now the thank yous

my buddy gord leiss, who let this thing sit in his garage for 3 months while i did the body work to it. he also gave me a hand with some of the prep work, and painted it for me

kevin willson for doing the true fire http://affordableairbrushing.ca/

Joe Bukoski for letting me do the 5L/4406 swap in his garage

now people from this site, weather they knew it or not, they helped

BIG THANKS to tara a.k.a. explorersport77 for pictures of her truck. wouldn't been able to build the roll pan with out them!

ExplorerSport77's X "Hotness"

jon a.k.a. Turdle for selling me some real swanky rear shackles, as well as powder coating the diff cover and sending them up to canada. as well as much needed info on v8, and 4406 swaps as well as doing the grill and showing me how its done.

don aka dono for the help with the tuning, and wideband, as well as the supercharger

andy aka ahodges for some parts, and any help i needed for all the go faster goodies

5.0 swap - w/ 4406

jad2411 for finding me a link for my hidden antenna

ryan a.k.a. MustangP51 for doing his write up on making l.e.d.'s for interior lights, and how to make projectors

P51's HID Headlight (Projector) and Fog Conversion (PICS)

and N3ELZ cardomain page for L.E.D. switch and cruise pod mods

http://www.cardomain.com/ride/296394/2002-ford-ranger-regular-cab/page-6
http://www.cardomain.com/ride/296394/2002-ford-ranger-regular-cab/page-12
http://www.cardomain.com/ride/296394/2002-ford-ranger-regular-cab/page-23

bob a.k.a. rwenzing for showing me speedhut's sit for the gauges

Gauges, Custom Gauges, Tachometers, Speedometers, Shift Light, Pod

Buzz4x4 for his write up on blacking out ford emblems

How to Make Your Own Custom Ford Emblems

the late aldive for his write up on one touch down passengers window mod

http://www.explorerforum.com/forums/showthread.php?t=141027&highlight=touch+passengers+window+mod

BIG COUNTRY, for his write up on how to install a auto dimming mirror

http://www.explorerforum.com/forums/showthread.php?s=&threadid=84968

BIG COUNTRY, 98formulaLS1, and Ryon40 for there write ups on how to install a message center

http://www.explorerforum.com/forums/showthread.php?t=225017&highlight=BIG+COUNTRY
http://www.explorerforum.com/forums/showthread.php?t=80670&highlight=message+center
http://www.explorerforum.com/forums/showthread.php?t=245085&highlight=Ryon40

MountaineerGreen for his 4406 swap write up and "Custom" Driveshaft for a 4406 and 4" Superlift on the Cheap " (even tho its lowered

http://www.explorerforum.com/forums/showthread.php?t=166726&highlight=awd+4x4+swap
http://www.explorerforum.com/forums/showthread.php?t=185232

Simon, aka blueka for his "pickle" thread, and help anytime i picked the phone up the phone on the 5L swap

http://www.explorerforum.com/forums/showthread.php?t=271813

Jon, aka 4pointslow for any MAJOR technical advice i have needed

http://www.explorerforum.com/forums/showthread.php?t=219092

i wish i could find who did the write up on the overhead console install, but here is the link

http://www.explorer4x4.com/overhead.htm

Russ aka NICE59FORDF100 for his help on the wiring, and what to watch out for electronically.

hopefully one day, i will be able to help people on here just as much as the people that i have mentioned above!

picture.php

plus you know you have done something right when.....

your truck (as well as corkey) wins truck of the month

http://www.explorerforum.com/forums//showthread.php?t=296023

is the feature truck on the fun hump day radio show (starts roughly around the 30 min mark)

http://explorerforum.podbean.com/2011/03/23/19-vroom-zoomboom/

and you drive 26 hours ONE WAY to the carlisle all ford nationals in june 2010 and 2011, and grab second place in the s.u.v. all category!



then in 2014 you go back to the same show you have been to 5 years in a row (nothing by most, but its one hell of a long drive) and take first!





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





yep, they give you lots of wire in a unterminated kit! it stretches up to the chair, i would say 15 feet . zoe the dachshund not included.

that is harness 558-105





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Did you get it installed yet??







Did you get it installed yet??
Not exactly……

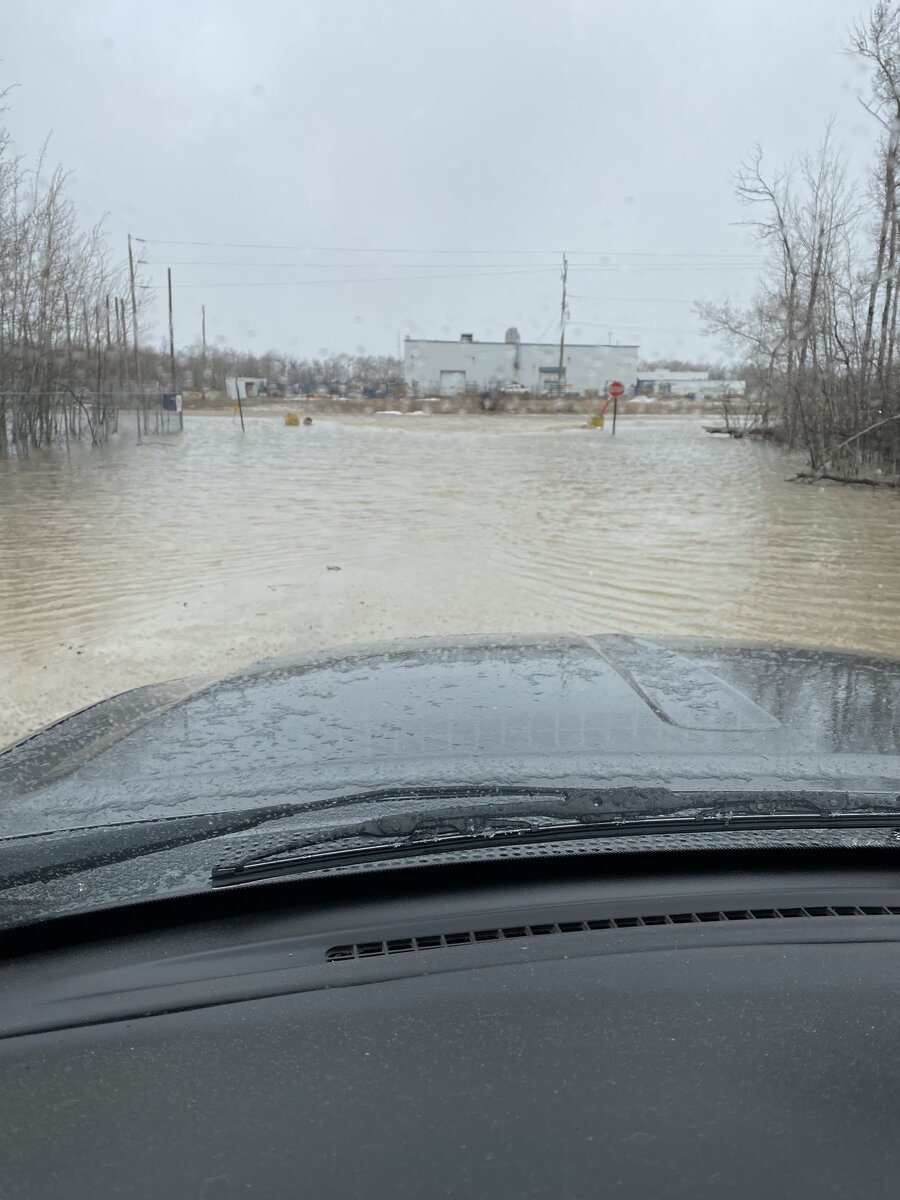

We have had a little water here this year…..well I should say a lot of water! Because we were hit with snow like crazy this winter and also 2 freak snow storms in the beginning of April everything is flooding near me. This is the road I have to use to get to work, in my 16 years of being there I have never seen it flood. Ever.
Most of the snow is now melted but the ground isn’t soaking it in, and this weekend (starting sometime today) we are supposed to get a lot of rain. I also had to deal with my crawl space under my house being flooded, oh and my hot water tank giving out (they make a real bright flash in a pitch black room at 3am, ask me how I know!)
So all of that, as well as my mother falling and breaking her ankle in 3 places. It’s been a hell of a week lol.
Oh, I also bought a ranger that I have to change the motor in as well, so just like last year, evils getting put on the back burner.
Once again sorry for the long winded post.







water has went down. hell, the snow even melted! fixed and put the truck i bought to flip up for sale, and as long as the rain holds back, i finally get to work on evil!!!!!

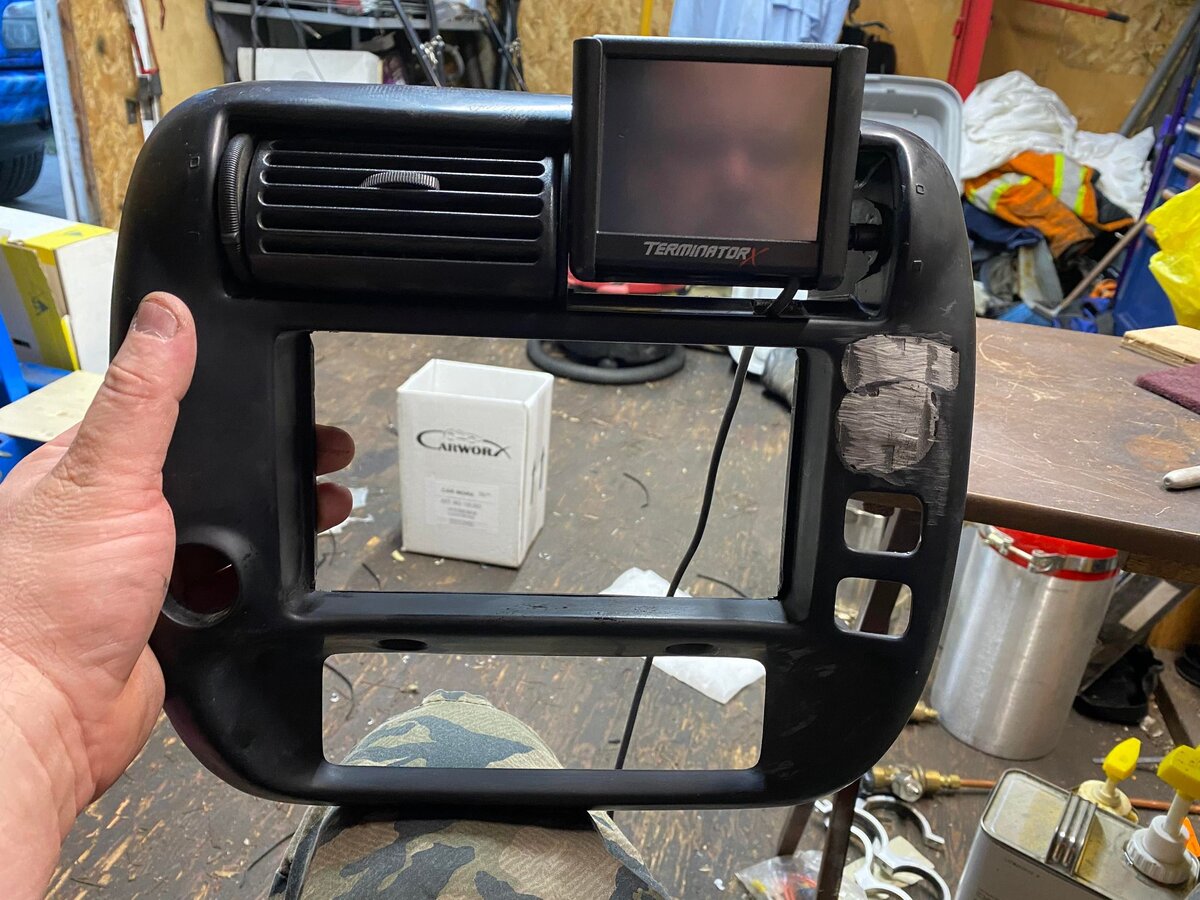

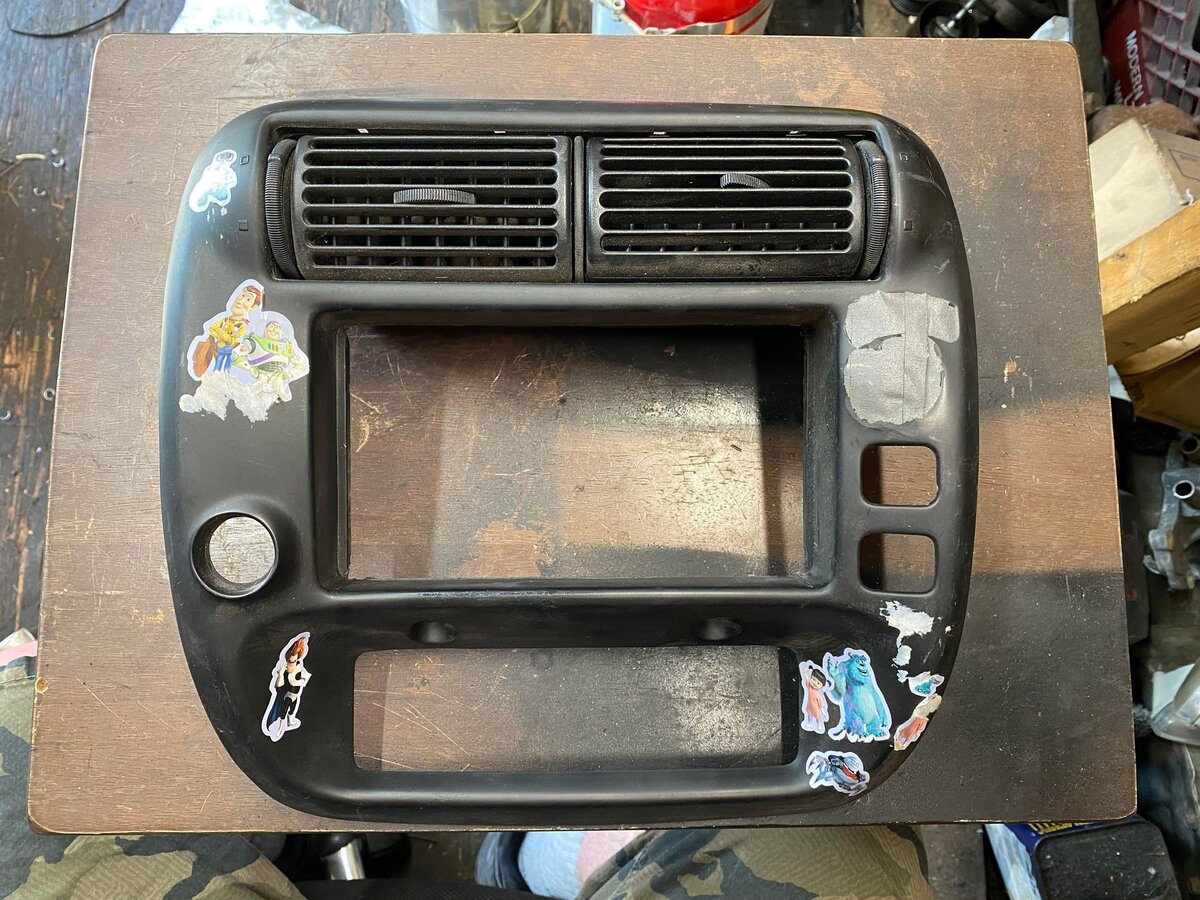

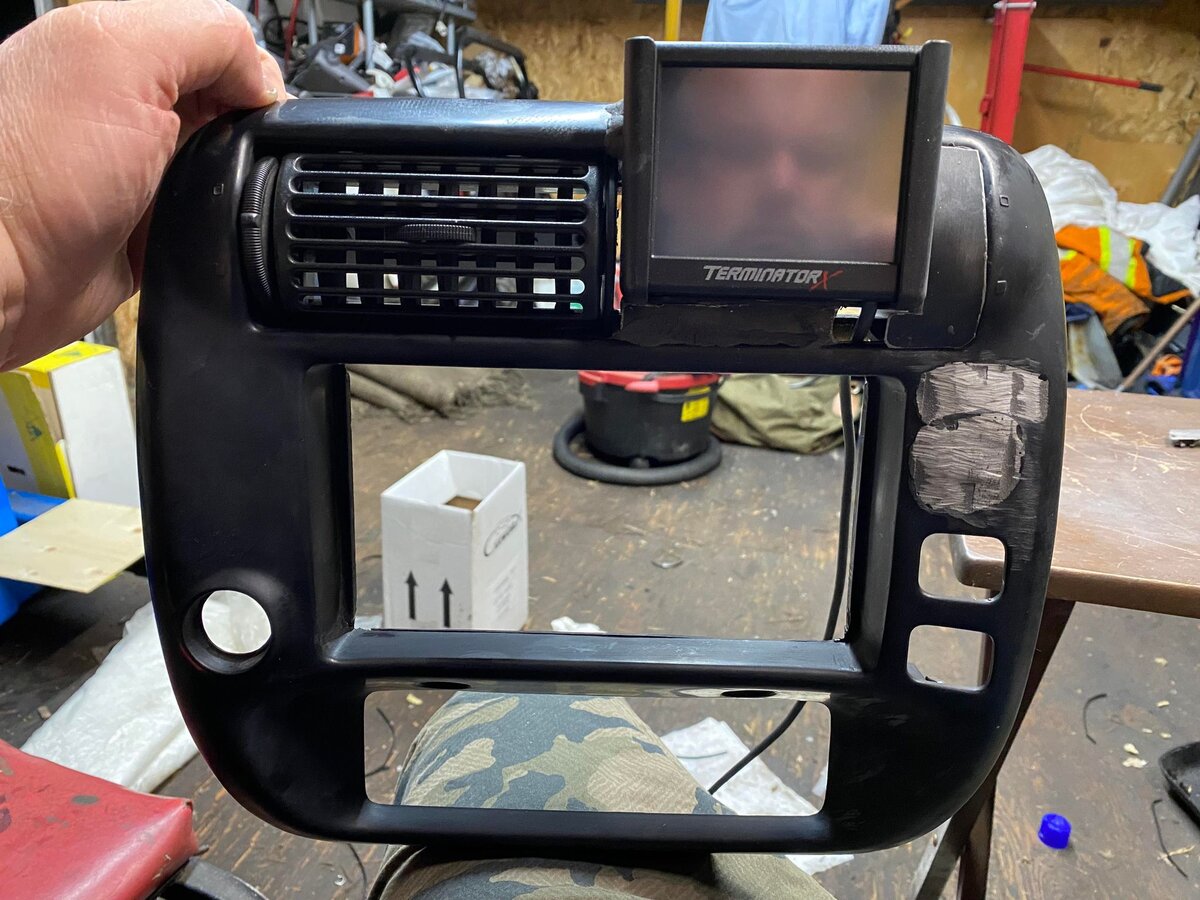

but being a chicken ****, instead of ripping the wiring out, i decided to place the screen in the place i want it











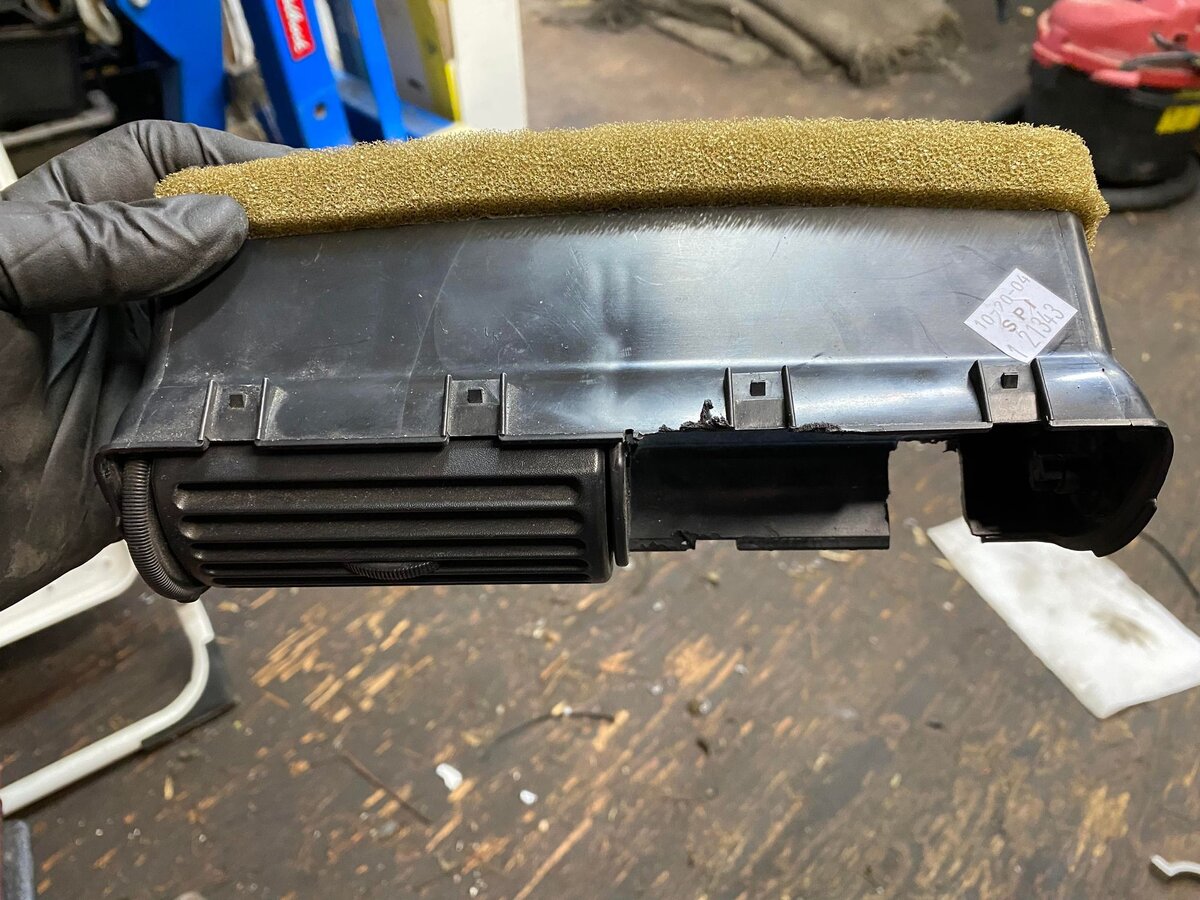

i wanted to fiberglass it in, but started to think it wouldnt stick to plastic too well (or the sheets at least) so its jb welded into place. ill finish the bodywork in it with either body filler, or plastic bumper repair if i can get some, prime it, then paint it black. wanted to use this one because i removed the rear window wiper from it years ago, then never finished it.







Good spot!

Flooding here too snow is just now melting it’s almost June…my flooding is
Normal though just a little later then usual!

Loving these cooler temps and all this moisture, way better than being on fire!

Can’t wait to see the install.
I will be working on blue truck every day in June till she’s driving

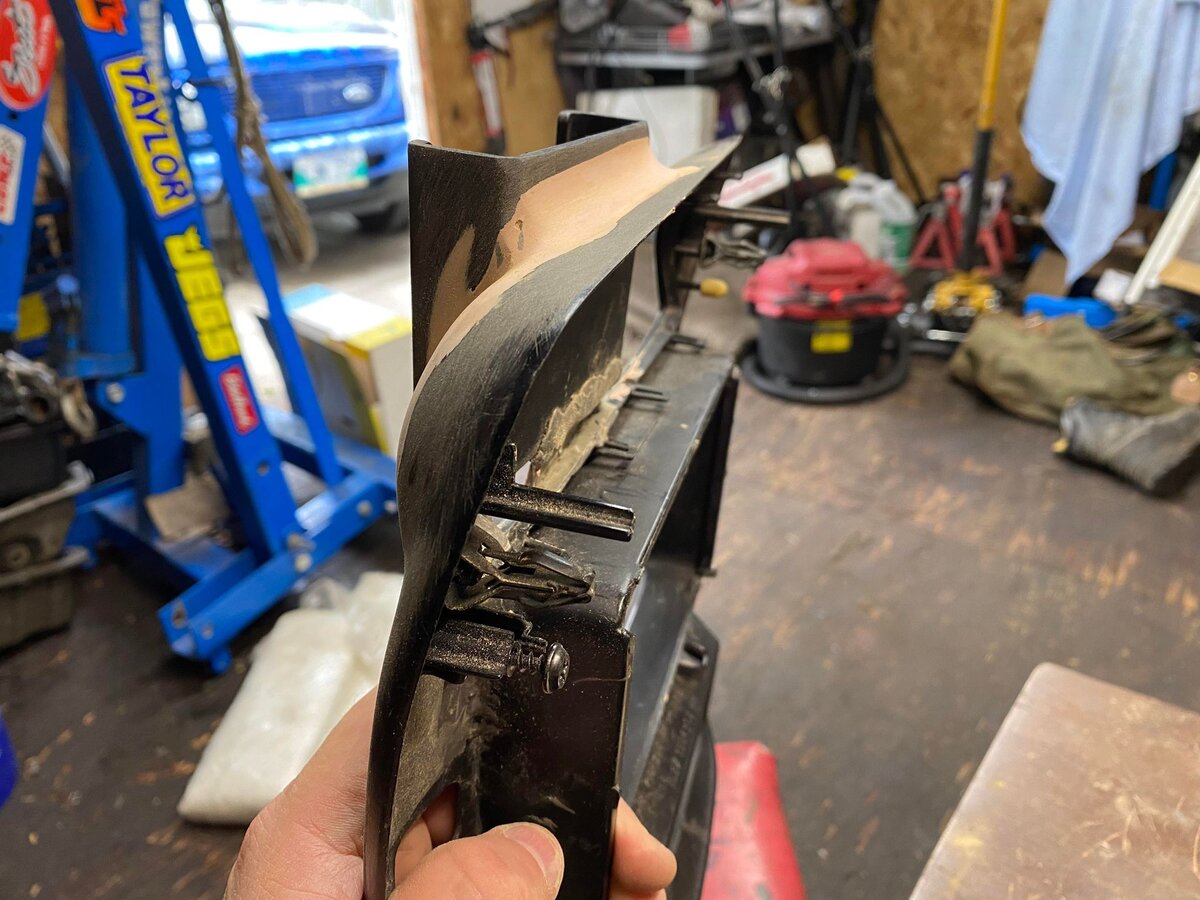

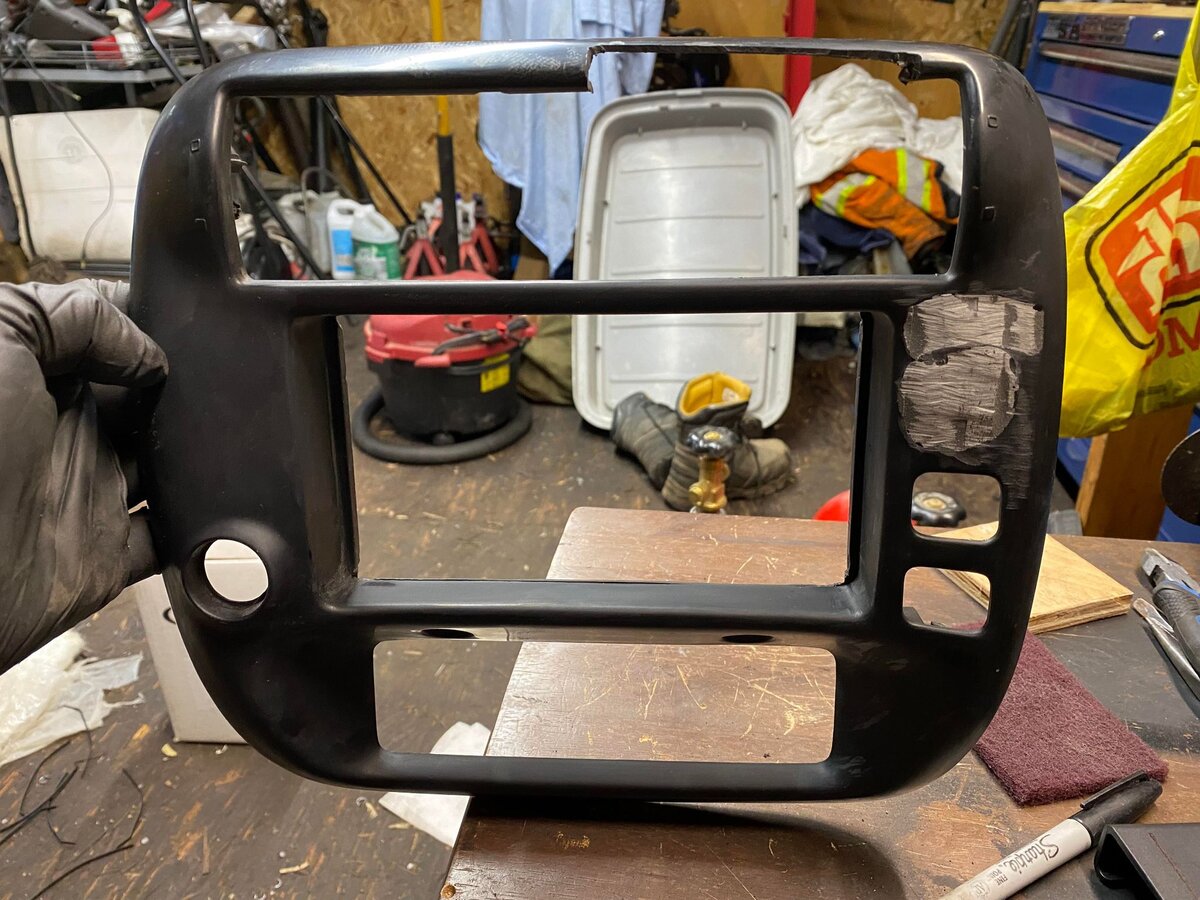

bodywork done. used plastic bumper repair on it. less likely to separate, or hopefully its less likely. its also a ***** to sand.




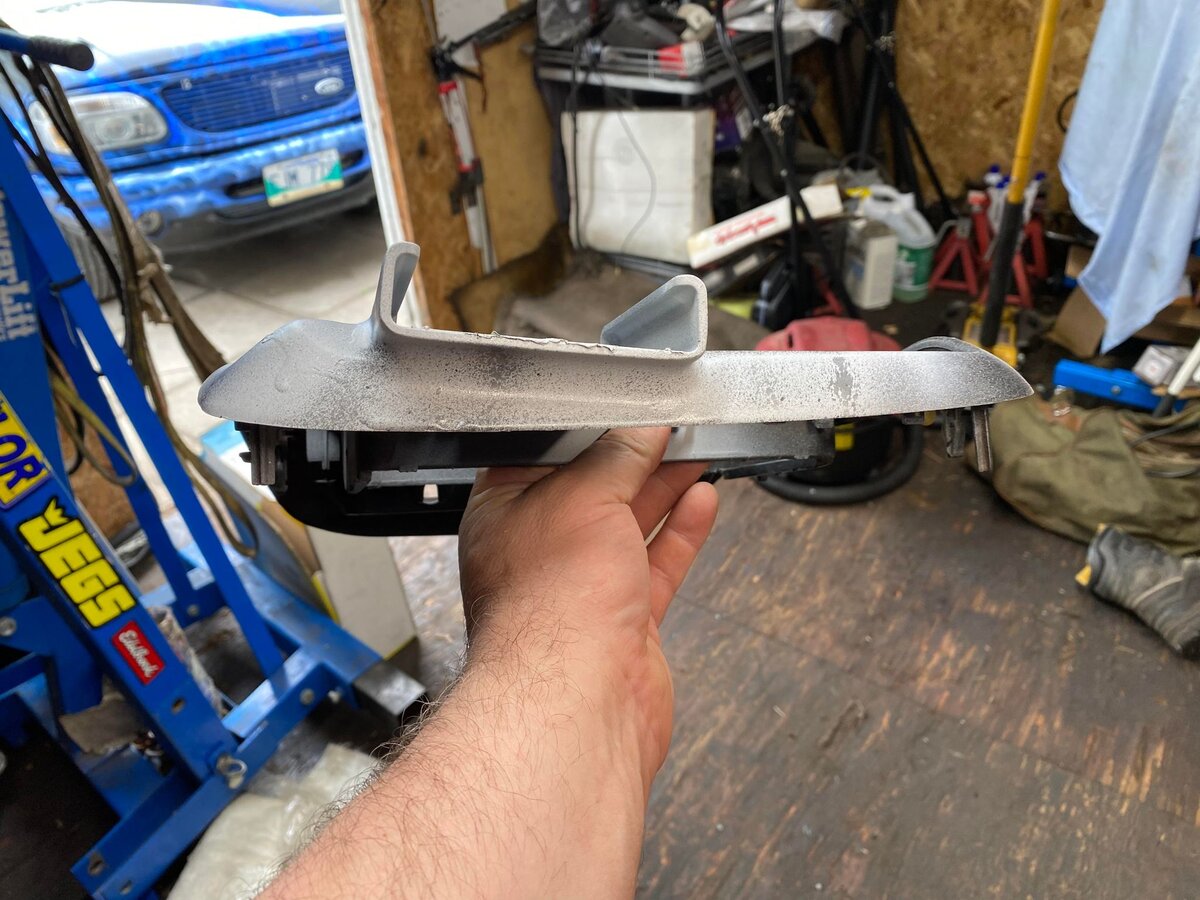

primed. kinda screwed it up. ran in a few spots.

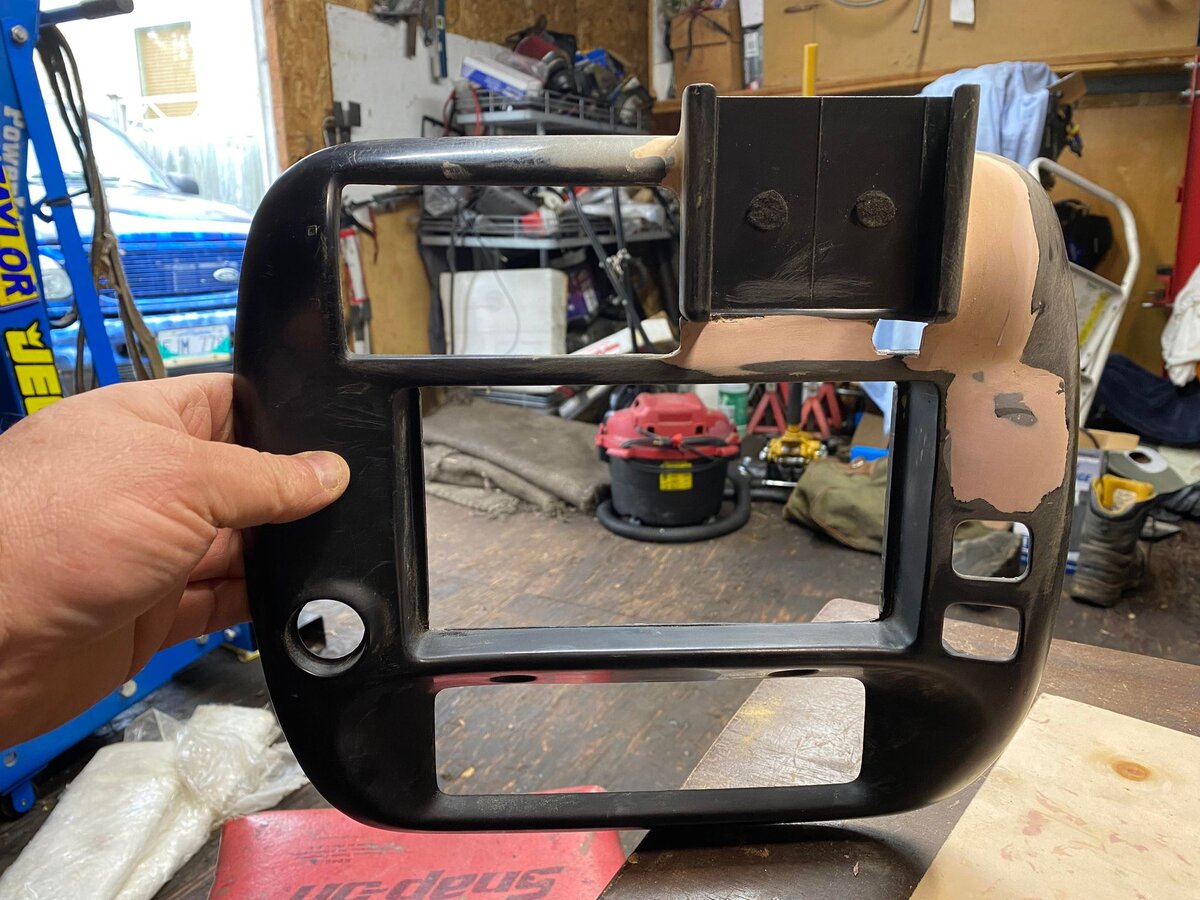

painted, and disappointed in it. as mentioned plasitc bumper repair is no fun sanding (ask my finger tips right now). there are also spots i missed when i primed it, and you can see the pock marks. im going to leave it for now, but i am sure it will drive me nuts and at one point i will pull it out of the truck and redo it, but for now it stays. who knows, when i put it in the truck i might not even like it.











Actually looks pretty good! Maybe a little more filler? Plastidip?

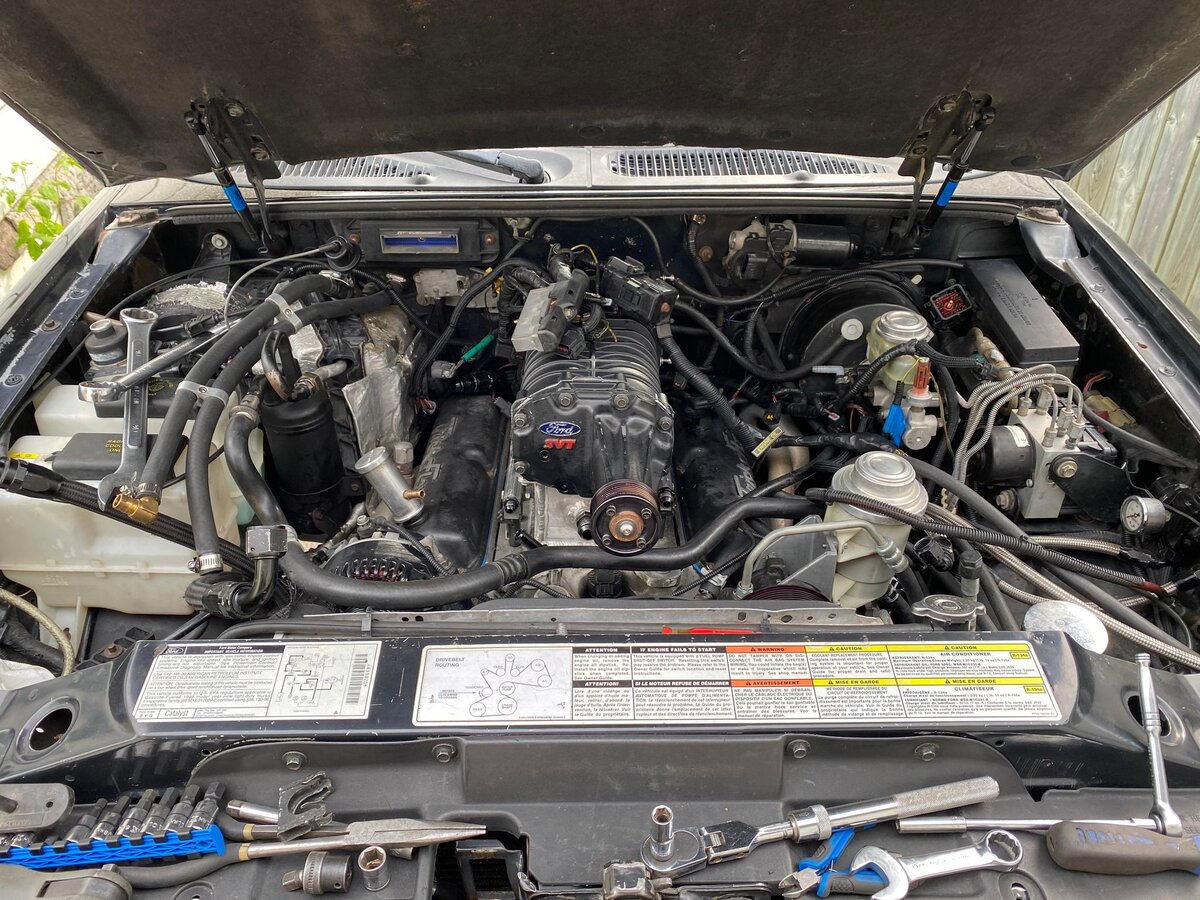

well this morning i took evil for its last ride with the factory ford system in it, and started to rip it apart.







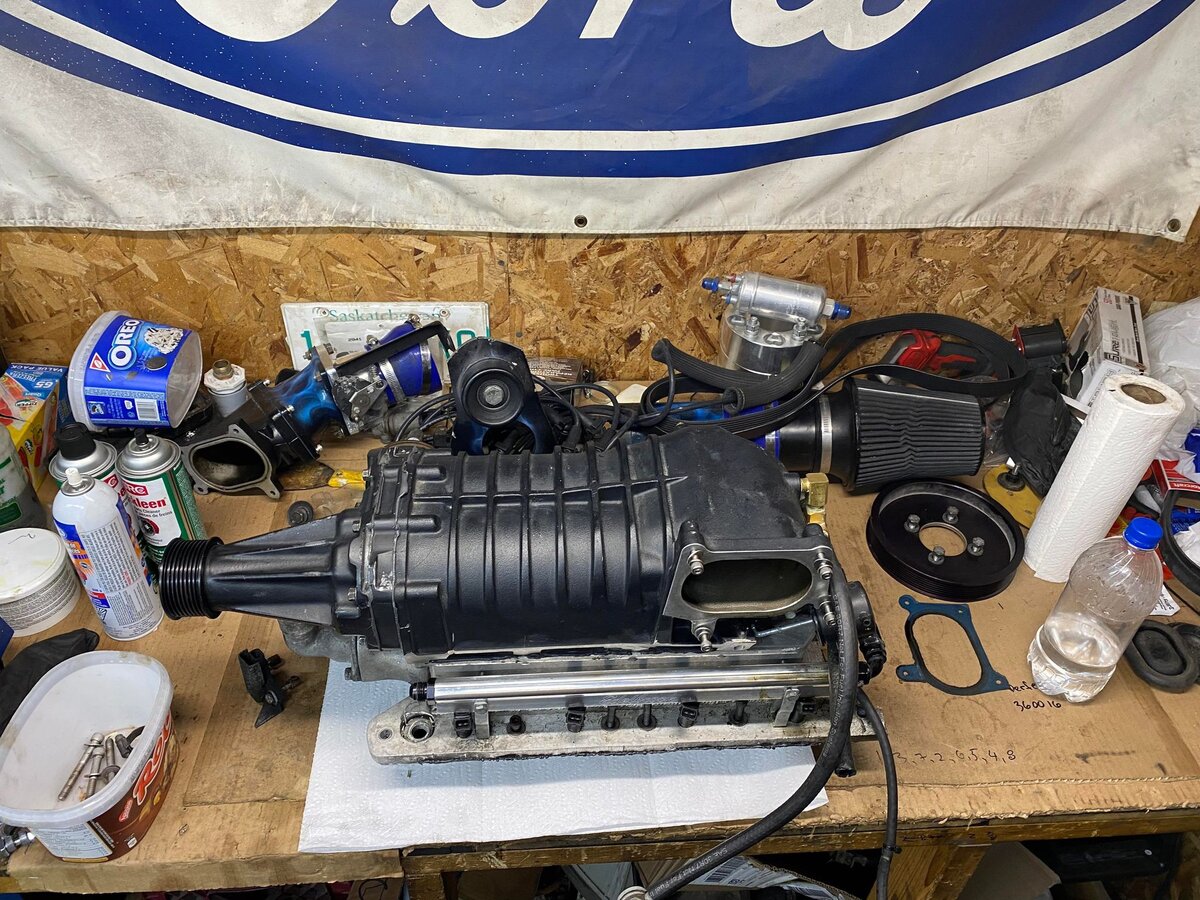

i had to take it down this far because i need to add map sensor to the intake below the blower. thankfully there is enough room to do it. also replace the intake air sensor which is also at the back and under the blower. i want to move it because i know it gets heat soaked, but i also dont want to move it because after a second or 2 i reads like it should.

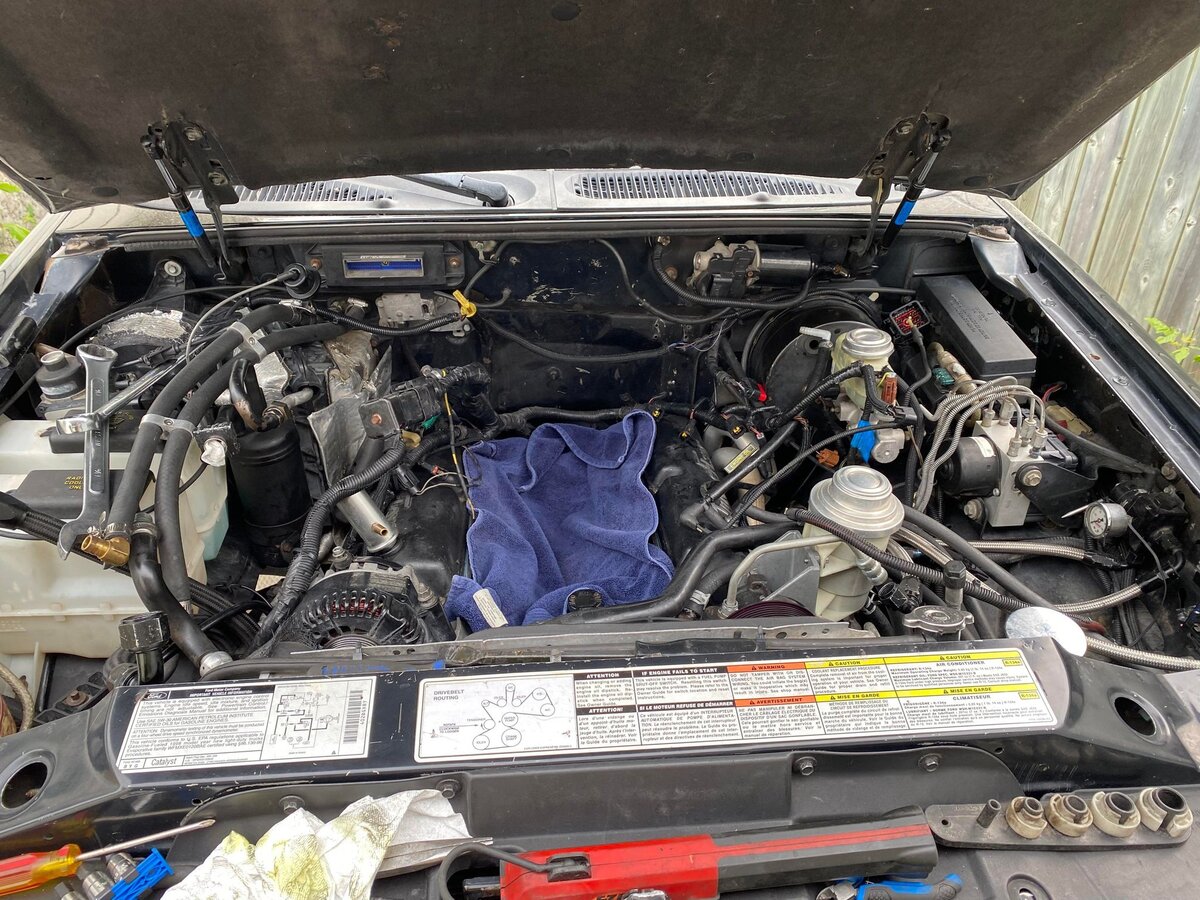

have all the wiring out with the exception of the O2 harness on the trans (will have to take the exhaust pipes off). i sure didnt think of having to do stuff like this when i put that blower on. what pita to remove lol.
i also found a surprise i didnt want to see...

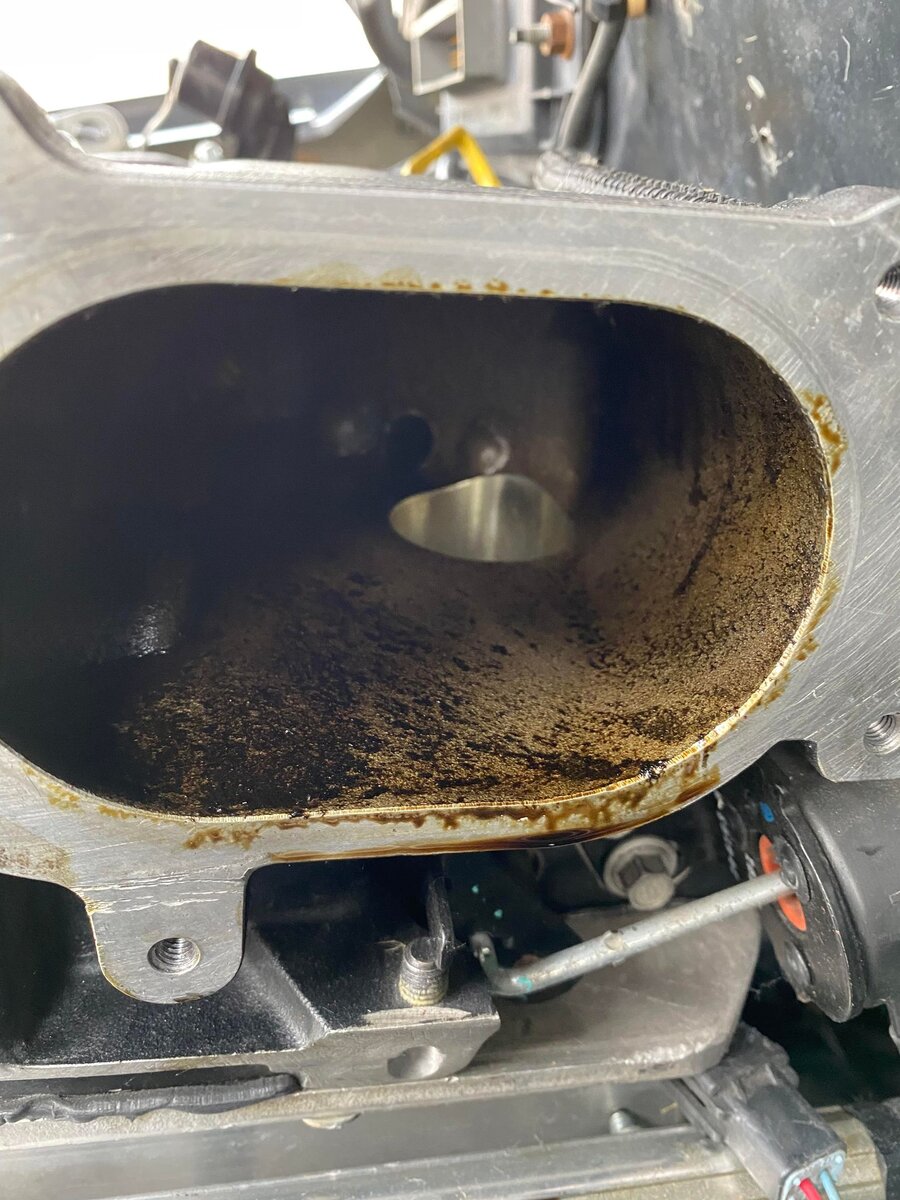

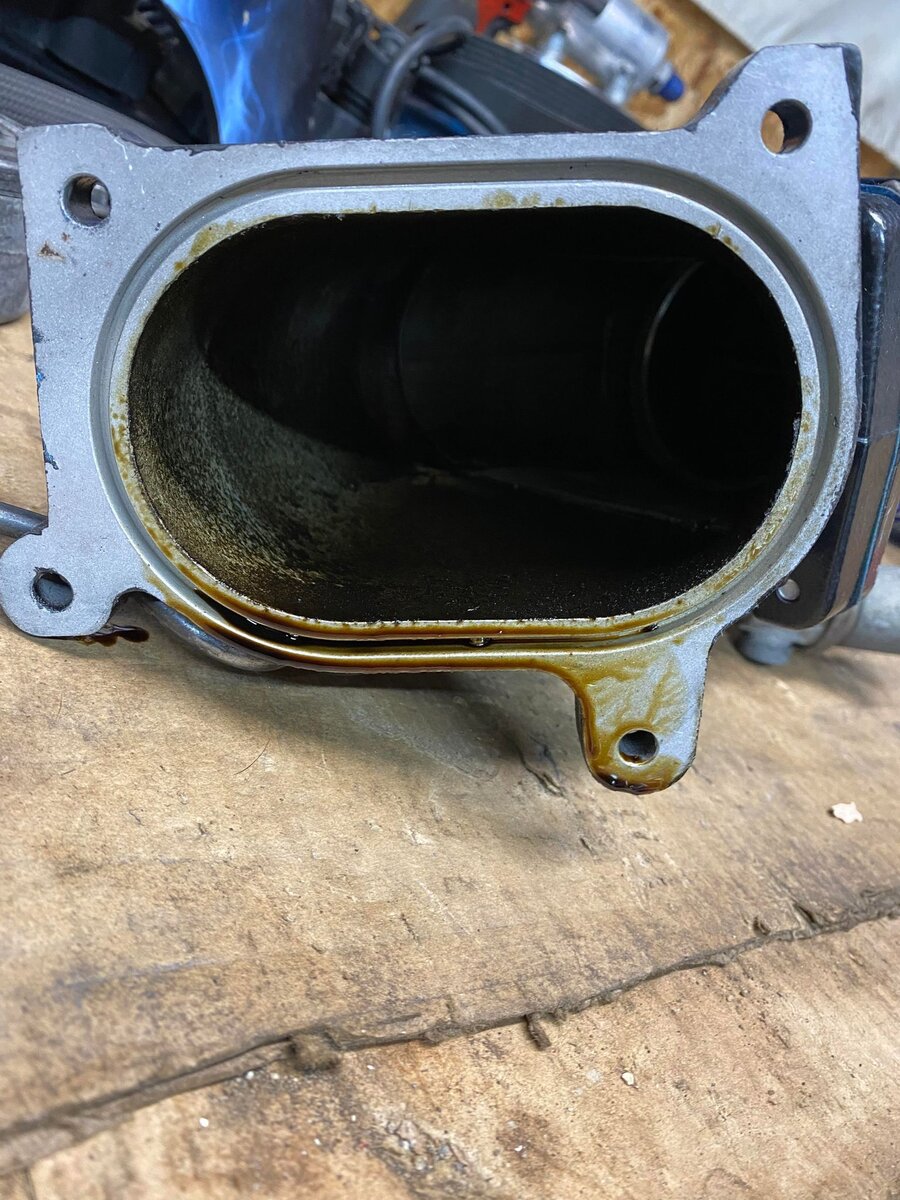

i have no idea how or why oil is getting in there. i have no pcv system now so i dont know where ist coming from. more then likely i screwed up my vacuum lines and will have to re do them again. i still have to pull the console out, and punch a hole in the floor for the harnesses to go into. hopefully that will be tomorrow then i can start running some wires......and hopefully not fry anything or start the truck on fire!







is your oil filler tube still vented to the intake tube? could be some oil getting through that way







is your oil filler tube still vented to the intake tube? could be some oil getting through that way
i have the one from the oil filler tube, plus i have a gutted pcv in the other valve cover, both going to a puke tank with a air filter on top.

today got a little further. i pulled the seats, console and carpet out so i was able to get to the access panel in the floor. i cut 2 hole in it, then added a couple of body grommets into it for the wires to pass threw.
then the first hang up happen. i figured the trans harness would go in first because it was the easiest one. well, then went south in a hurry. the plug going to the neutral safety switch was different then the holley plug. lucky for me, i had the first 4r70 sitting under my bench which had the correct switch.



i then put the trans harness in its place. i also figured i would run the power and ground harness as well because its 2 wires. then i ran out of light and called it a day. will have to see what tomorrow brings because it might rain.








very slick!!
I cannot believe you have the wrong DTRS/NSS wiring??? sheesh
I love the floor plugs that is a great way to do it!!







very slick!!
I cannot believe you have the wrong DTRS/NSS wiring??? sheesh
I love the floor plugs that is a great way to do it!!
right? when i was running them to see how long everything was, i must have had it just hanging on the plug at first. then when i went to plug it in, i was messing with it for a few mins until i finally came to my senses and grabbed the ford harness to compare them to. at first it didnt compute, then i was like "oh, oh. i have a problem now". even called brent to see if i had the right one, and what would happen if i swapped the switches. he was also saying there were 2 of the oval plugs. one analog the other digital depending on the engineering number on the switch.
i also thought i would have plenty of room with the floor plugs, but the holley harness connectors are pretty big so pushing the engine side of things into the other plug will be fun.
its raining here today, so it looks like progress will be nill.......







Rain is the new normal

The 96-97.5 dtrs is analog
The 98+ is digital, it is easy to tell because the switch happened the same time as returnless fuel and pats







Rain is the new normal

The 96-97.5 dtrs is analog
The 98+ is digital, it is easy to tell because the switch happened the same time as returnless fuel and pats

The returnless fuel system began in 1999. Weren't all of the 97 DTRS(range sensors) analog, along with the external EGR?







Early 97 is still gt40 and analog
The switch to gt40p was 97.5+ Still analog

Then 98 went returnless, p heads external egr, pats, no more vss, and hard wired 4r70w solenoids this is when the dtrs and the rest of the systems went digital

So you are saying the 98-99 trucks had pats and all the other stuff but did not have the returnless rail until 99? That could be true I’m not sure I paid that close of attention to build dates
My bii was built with what I call the 97.5 pcm, gt40p no pats, soft solenoid wiring, analog dtrs and a vss
We could call it the 97.5-98 pcm inguess







Early 97 is still gt40 and analog
The switch to gt40p was 97.5+ Still analog

Then 98 went returnless, p heads external egr, pats, no more vss, and hard wired 4r70w solenoids this is when the dtrs and the rest of the systems went digital

So you are saying the 98-99 trucks had pats and all the other stuff but did not have the returnless rail until 99? That could be true I’m not sure I paid that close of attention to build dates
My bii was built with what I call the 97.5 pcm, gt40p no pats, soft solenoid wiring, analog dtrs and a vss
We could call it the 97.5-98 pcm i guess I always have

In my mind there are 3 pcm
96
97.5
And 98-01

I should actually call it 99-01!! Lol you are right but I think some 98 build date trucks had returnless













so before this gets derailed

not much got done yesterday. i did a verification on my wire labels. glad i did, 2 were mislabeled and that was only in one plug. didnt get to the second one, eyes started to go buggy.
i also did a little wire separation. im not sure how they ship the fox body kits, but on the universal unterminated kits, then wrap both j1a and j1b harnesses together which makes labeling and identifying them a tad tuff.

btw, this was the harness from one plug



and it now



what also sucked was they tell you what wires go where, but in one plug they have 3 purple wires, 2 of them are side by side in the connector, and all of them go to difference places. one goes to the cam sensor, and one to the crank. ya dont want to screw those up, plus both are shielded, the only way i could figure it out easy was a volt meter. there are also 2 wires that are white with a black stipe.
ill check the other plug to make sure i labeled everything correctly sometime this week, or on the weekend, and start laying it out in the truck, then start on the coil and injector harnesses that 410Fortune made up and was kind enough to post in the ranger thread he is working on.
