Swaying on the highway!


MistahYebba

Active Member
Joined
June 29, 2015
Messages
251
Reaction score
2
City, State
Clearwater, Florida
Year, Model & Trim Level
2005 Ford Explorer XLT
Recently replaced my PS Gearbox because there was play in the gearbox and also it was leaking from the gearbox and I was tired of refilling my PS fluid. 2 questions resulted from this...

1. After replacing, the steering wheel is slightly cocked to the left now. How is this possible? There is only like... 1 way to put the gear 'stem' that comes out of the Gearbox into the steering shaft because there is a flat top???

And there are only 4 possible ways to put the pitman arm onto the PS Gearbox and only 1 way is correct... because of knotches... so why is it crooked?

2. I replaced it hoping it would help with a sway when driving... and since the steering is a little more firm now, it does help... but today it was kind of windy here in Florida... and a firm gust of wind made me literally go from driving in the middle lane to halfway in the left lane in a split second! My heart dropped and I re-centered myself very quickly.

What could cause a sway like this from just some simple wind??? Very scary and dangerous.

I just want to point out that when I did the gearbox I noticed that on the driver's side, you know how there are sort of 2 sides to sway bar bushings? One whole side of the rubber of the sway bar bushings was hanging on by a thread so I just tore it off.

Are sway bar bushings important? What's the point of a sway bar?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,884
Reaction score
272
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
So you're swaying on the highway, your swaybar is missing parts, and you don't know why you're swaying or what the swaybar is for?? That might have something to do with it! ;)
Also, are you lifted with bigger tires, or stock height? How's your alignment?

Last edited:
  • Like
Reactions: ~X~




MistahYebba

Active Member
Joined
June 29, 2015
Messages
251
Reaction score
2
City, State
Clearwater, Florida
Year, Model & Trim Level
2005 Ford Explorer XLT
So you're swaying on the highway, your swaybar is missing parts, and you don't know why you're swaying or what the swaybar is for?? That might have something to do with it! ;)
Also, are you lifted with bigger tires, or stock height? How's your alignment?
Yeah, should probably research swaybar, huh? Any insight on that?

Stock height and tires. New tires as of a few months, in good shape.

The wind seems to just really affect the truck, so much as to swoop it over to another lane.

Alignment is good, got one just 2 months ago. It was already spot on before the alignment.

However, it got aligned BEFORE I replaced my bad gearbox. Might that change anything?

Also, might adjusting my new/rebuilt gearbox to tighten it up reduce the amount of "wind sensitivity"?





BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,104
Reaction score
929
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
Uh, yeah..anti-sway bars have a lot to do with sway. Replace the anti-sway bar bushings and see if it gets better. Might also have worn out ball joints, steering tie rod ends, shocks, coil springs, etc..

Every steering gear box I have replaced required adjusting the steering wheel. You do that by moving the adjusters in the tie rod in if the wheel is tilted towards the left, and out if its towards the right.





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
64
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
It's your swaybar... entirely. The point of a swaybar is to encourage both left and right suspension to move at the same rate. Without it, each side is even more independant. Stiffening up the swaybar makes for a vehicle that corners better, it mitigates body roll.

Look under your vehicle and think about what's going on. When the driver's side suspension goes up, it puts pressure on the bar which twists and encourages the passenger side to go up. When the passenger side doesn't want to go up, it pushes down on the driver side. You can think of it like a shock/spring but it doesn't really work that way. It's a just a way for the shocks & springs to be balanced on both sides.

The only time you don't want a swaybar is when you offroad a lot and need unhindered suspension travel. Driving without a swaybar on the highway is borderline dangerous.





RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,884
Reaction score
272
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
So did you have the sway problem before you changed out the gearbox? Or did it start when you had the new box in?
Take a good long look at the other bushings on your swaybar. If one is deteriorating, odds are the others are too. There's six, two at the frame mounts, and two each on the two dog bone links.





kristinandq

Member
Joined
March 11, 2015
Messages
88
Reaction score
20
City, State
West Valley City Utah
Year, Model & Trim Level
1991 explorer
Mine was scary without the sway bar. After i spend 400 on shocks a lot of my friends said that would fix it. Stupid me believed them. Put my spare sway bar on and also proper air pressure. 90 percent of the sway went away. The rest i am just going to say in my case is my lift.





FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
101
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
Drink less before heading out on the highway! Okay I'm gonna get banned for this comment. So let me apologize right now.

This is a disclaimer for making a joke that might not be received well. ;)





hlg99

Elite Explorer
Joined
May 14, 2010
Messages
181
Reaction score
10
City, State
Boston
Year, Model & Trim Level
08 Mounty Premier
Might want to consider looking at the bushings on the radius arms too when you work on the sway bar bushings.





toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,201
Reaction score
438
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™
When I was missing a front swaybar endlink, it was like driving a ship. Back and forth. Hitting a dip in the road was up, down, back and forth. Even switching lanes was scary.





MistahYebba

Active Member
Joined
June 29, 2015
Messages
251
Reaction score
2
City, State
Clearwater, Florida
Year, Model & Trim Level
2005 Ford Explorer XLT
Hi everyone!

So I got the new swaybar and end link bushings..

I took off one of my endlinks (dogbone style) but could definitely NOT remove the old bushings.

I was trying to using a flathead screwdriver and a hammer to do it.... very very hard

Sort of a waste of time

I put the endlink back on (now the bushing is in even worse shape!!) and now I am here!


How the heck should I go about this?


Also, I got some white grease... is that okay? I hear I should cover the bushings in grease liberally but the people at the auto parts store said that's weird.













FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
101
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
You can also soak them with brake fluid. It will make the rubber turn to mush.





MistahYebba

Active Member
Joined
June 29, 2015
Messages
251
Reaction score
2
City, State
Clearwater, Florida
Year, Model & Trim Level
2005 Ford Explorer XLT
You can also soak them with brake fluid. It will make the rubber turn to mush.
How long would I have to soak to make it turn to mush?

Also, wouldn't that strip all the black off the end links?





toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,201
Reaction score
438
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™

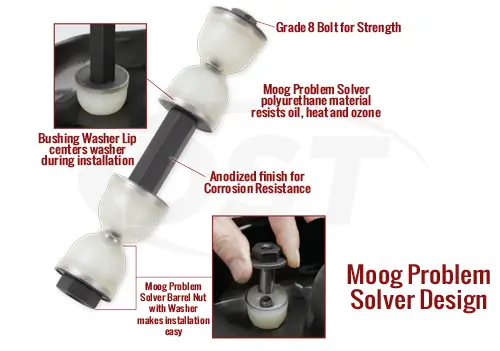

Did you buy endlinks like these for example? Just remove the old ones and put these on. They are the ones I used.






FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
101
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
How long would I have to soak to make it turn to mush?

Also, wouldn't that strip all the black off the end links?
Yes it will strip the paint. 24 hour soak will do for old rubber.
