Well now that Im Elite i figured Id start a thread to document my SAS build...
























Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport

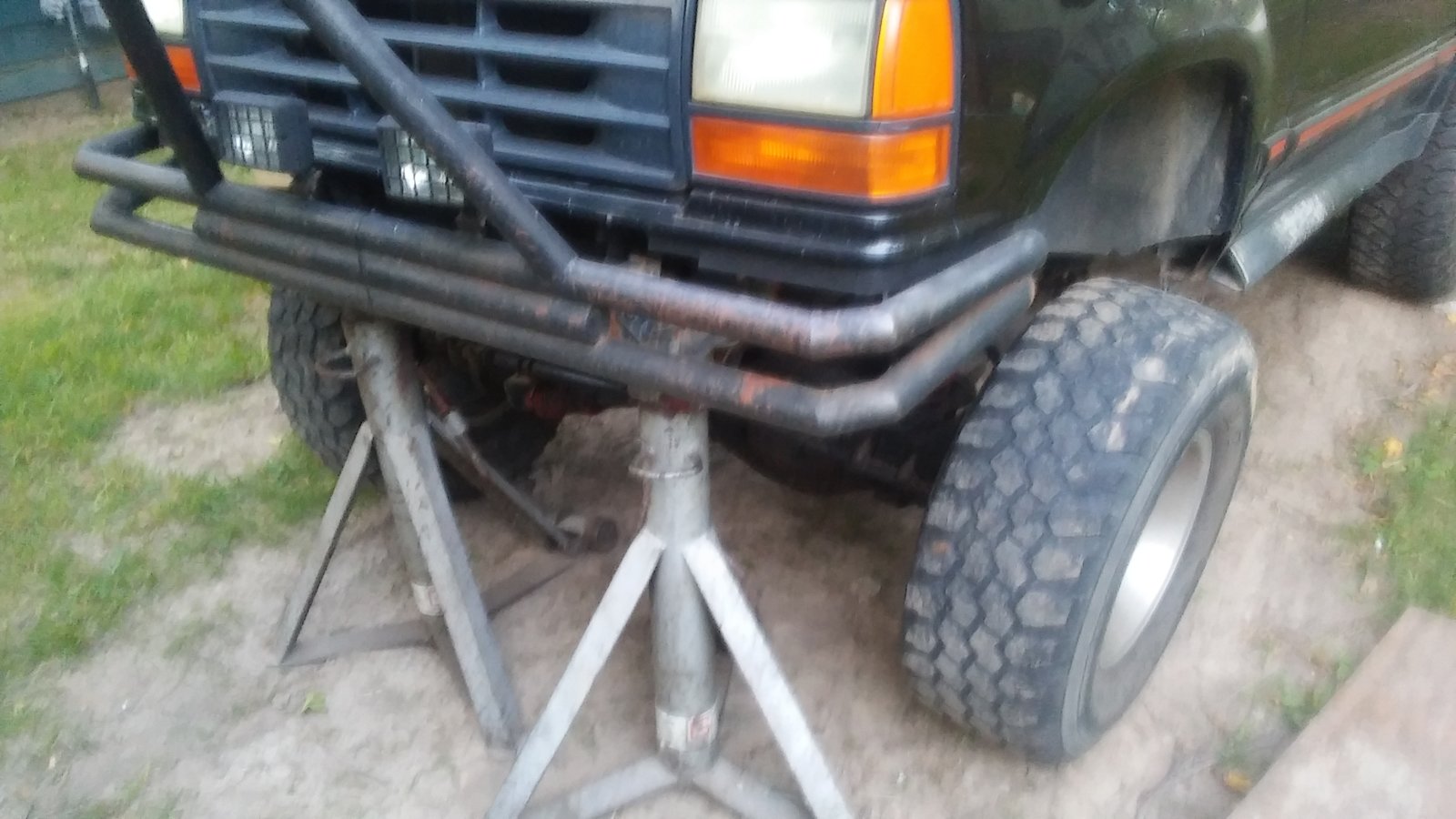

The Plan:
Full Width D44 up front
Full Width Ford 9" in the rear
35x12.50x17s

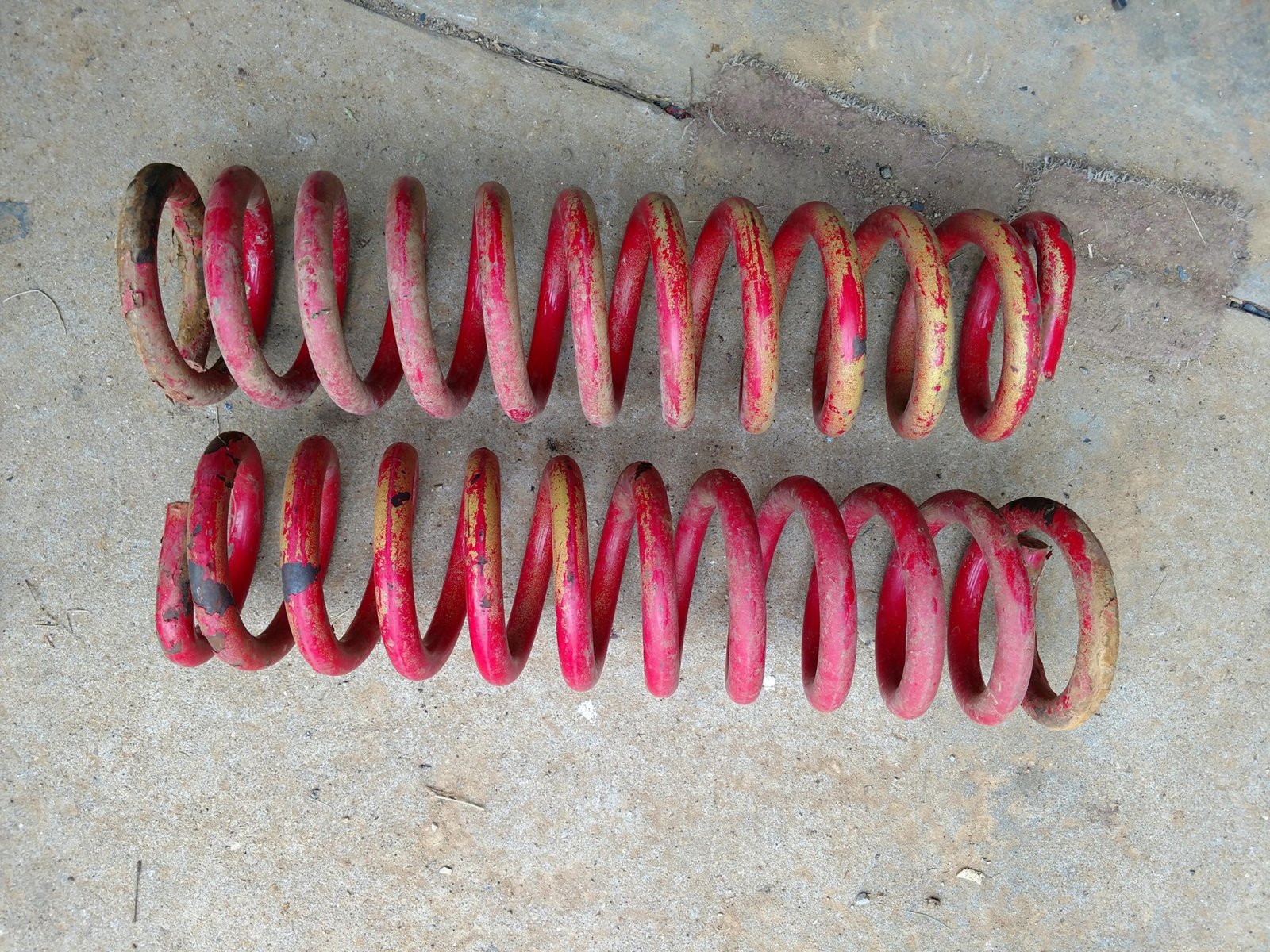

FSB 6 inch coils
Ballistic Fab adjustable coil buckets
Ballistic Fab 9 inch pinion gaurd
1995 f150 302/5.0L

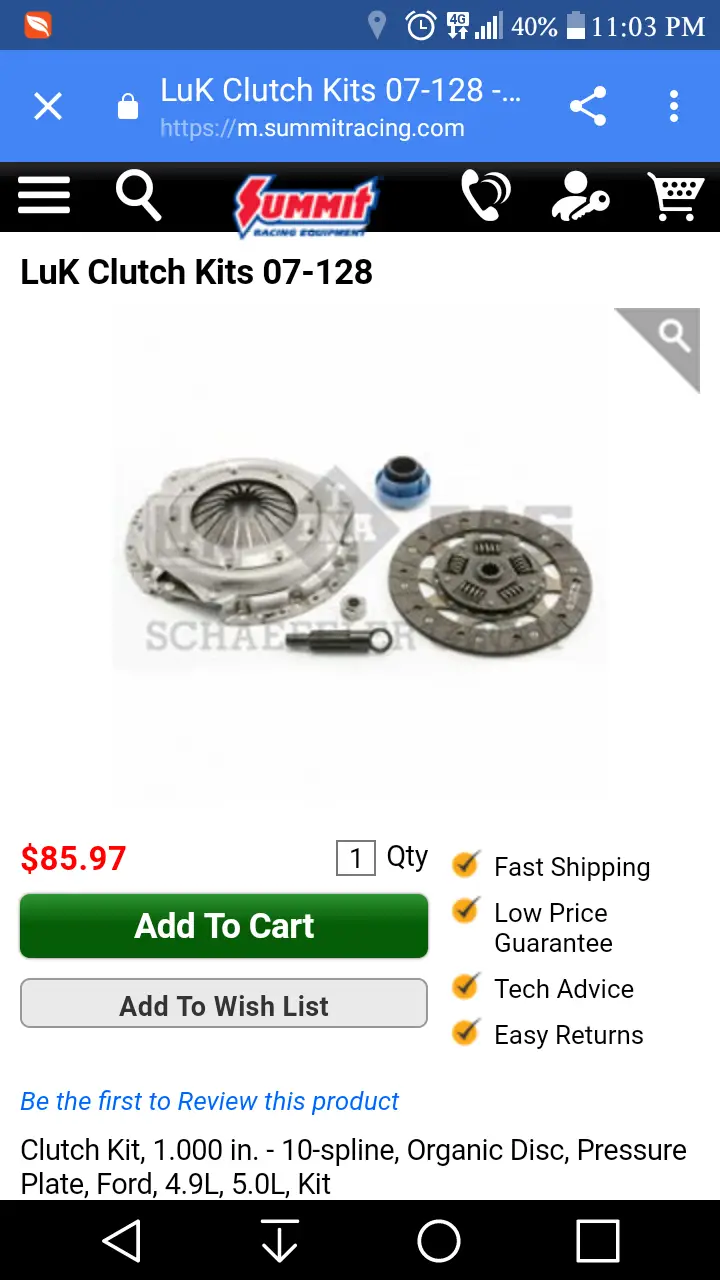

NP435 Transmission
Dana 20 Xcase (EB Bronco)
I will continue to update as i remember/buy more parts





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport

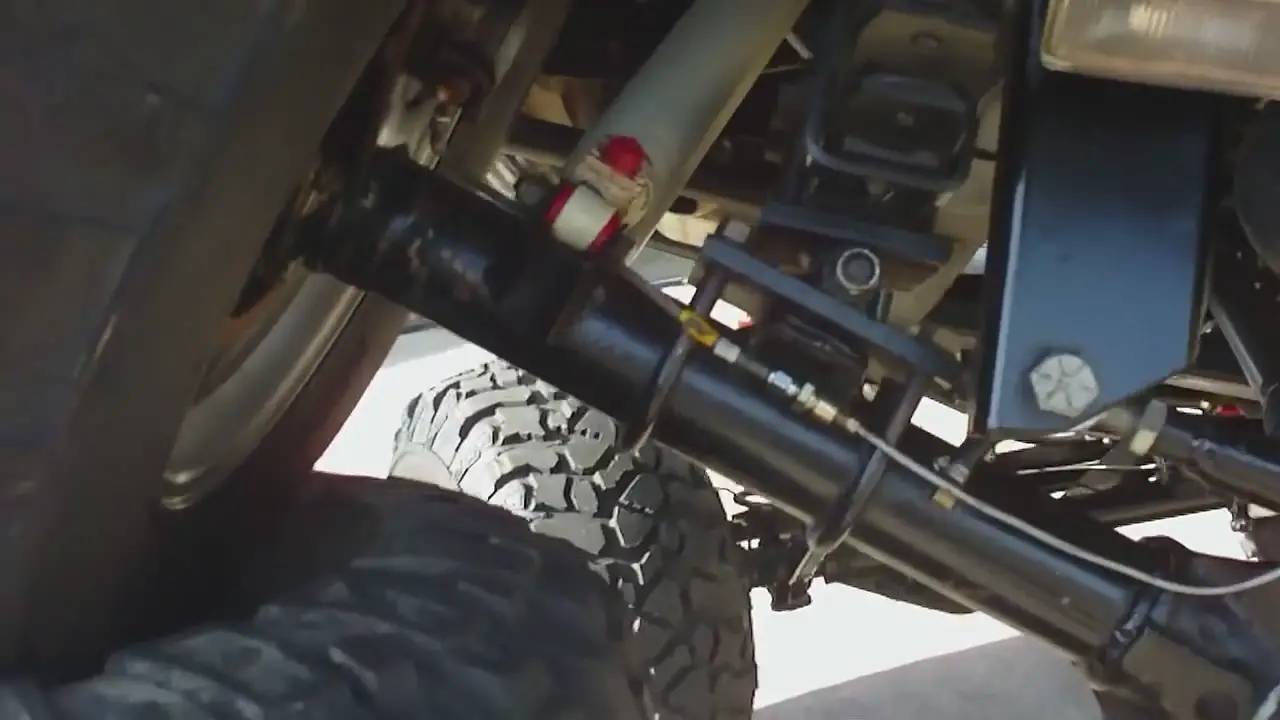

I saw this on a YouTube video of a 69 bronco with full width axles, has anyone seen this before with the pivot point between the rear axle spring perch and the lead pack?






KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport

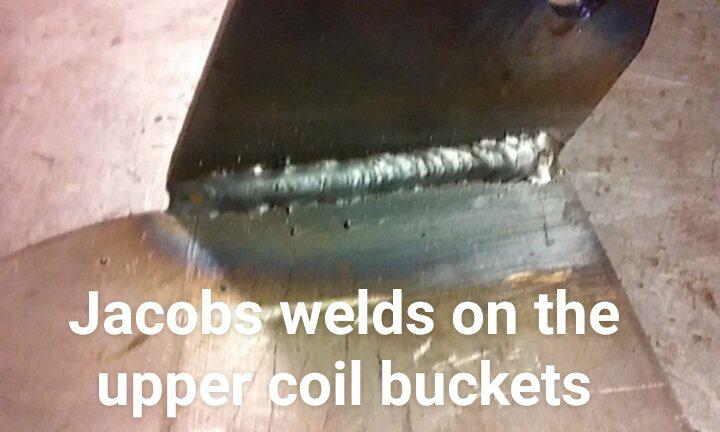

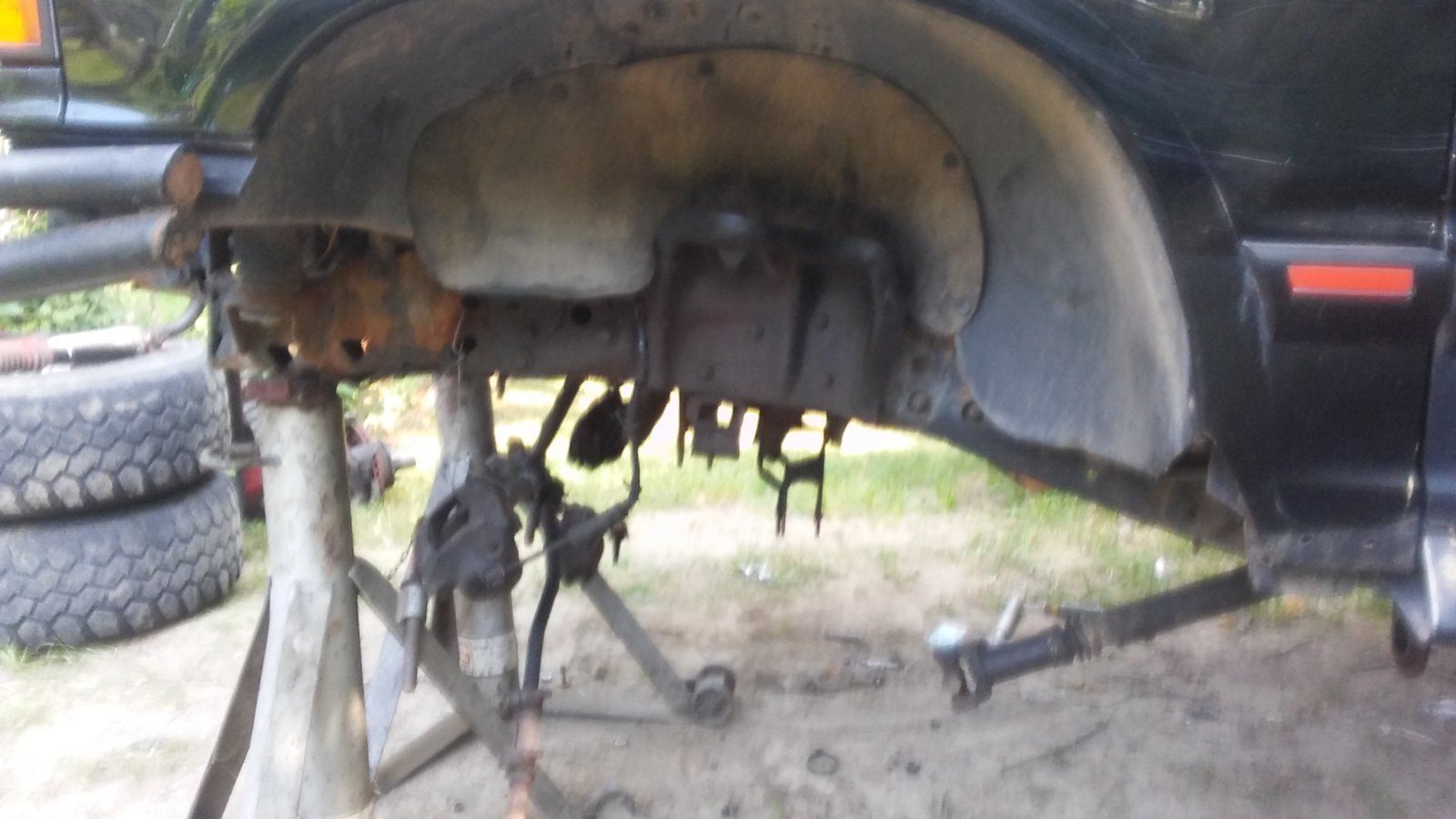

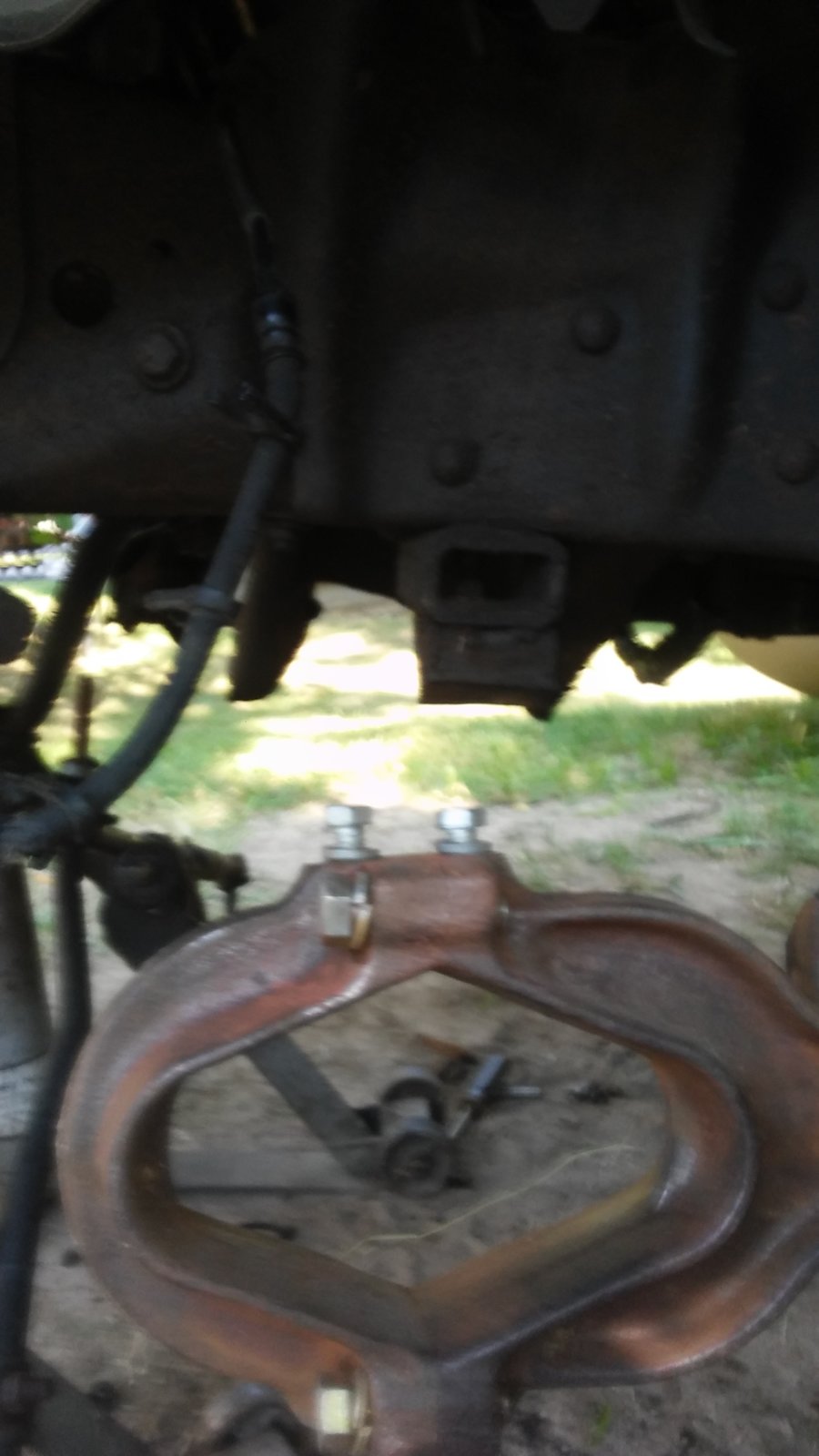

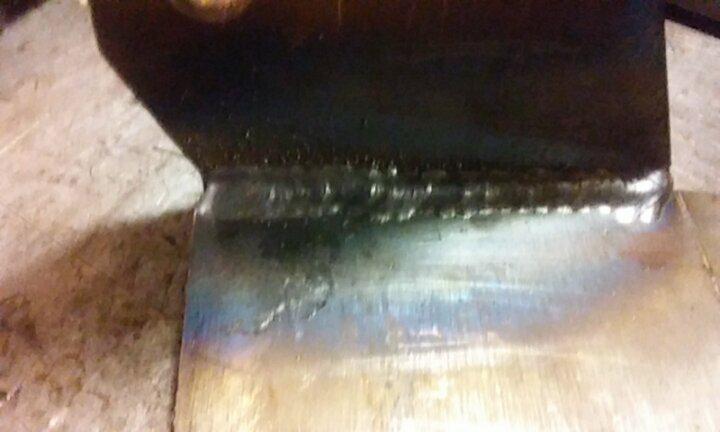

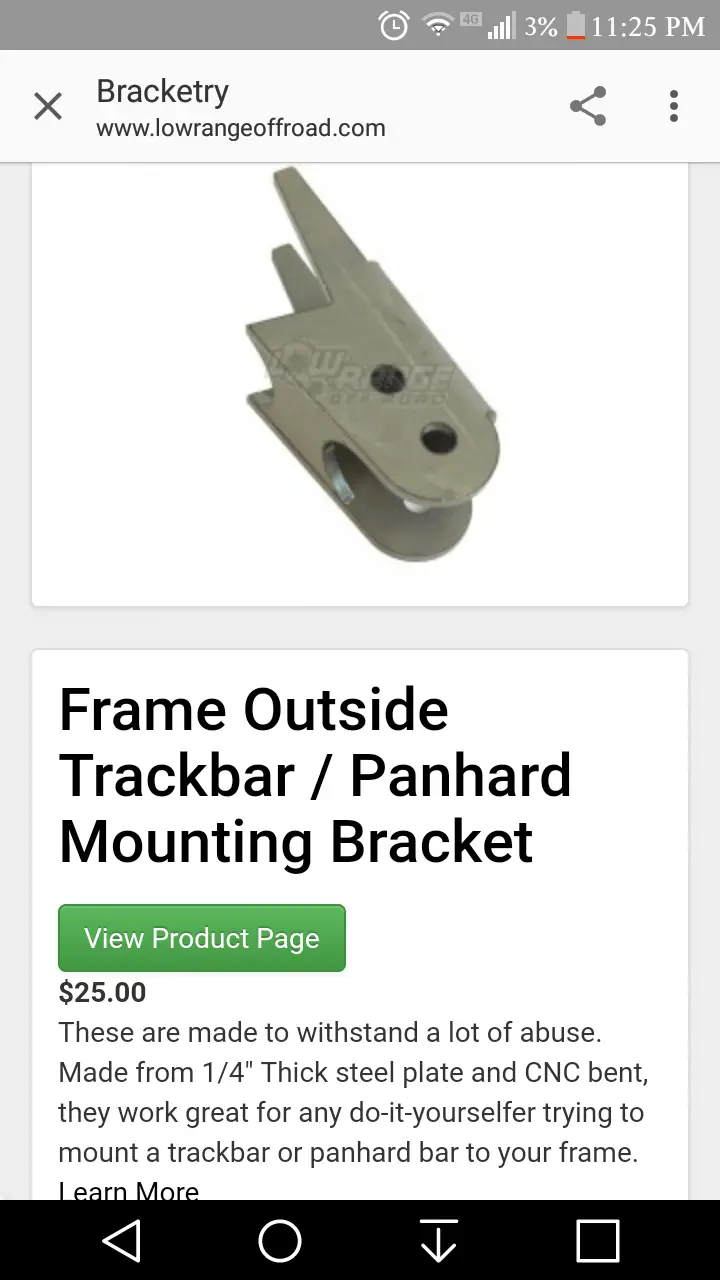

Didn't get much done this weekend, mostly planning, But we got the ballistic upper coil buckets welded.
Now I can start Really checking all the measurements as far as cool placement goes.








BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,702
Reaction score
1,240
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
I saw this on a YouTube video of a 69 bronco with full width axles, has anyone seen this before with the pivot point between the rear axle spring perch and the lead pack?

View attachment 151709

DB1 had something like those on his Ranger for a time. Said they made his rig very unstable.





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
DB1 had something like those on his Ranger for a time. Said they made his rig very unstable.

Yeah I figured it would. I hadn't seen them before, seems ok for a trail only rig but mine will be on the street from time to time.





jprentice94

Active Member
Joined
August 11, 2013
Messages
426
Reaction score
4
Location
Butte county
City, State
oroville ca
Year, Model & Trim Level
91 sas explorer
I saw this on a YouTube video of a 69 bronco with full width axles, has anyone seen this before with the pivot point between the rear axle spring perch and the lead pack?

View attachment 151709
Looks interesting idk about strong.. You could use a set of ballistic weldable joints and make a set of rear hangars for the shackle and it'll be strong









KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport




jprentice94

Active Member
Joined
August 11, 2013
Messages
426
Reaction score
4
Location
Butte county
City, State
oroville ca
Year, Model & Trim Level
91 sas explorer
where did you mount those? Rear springs?

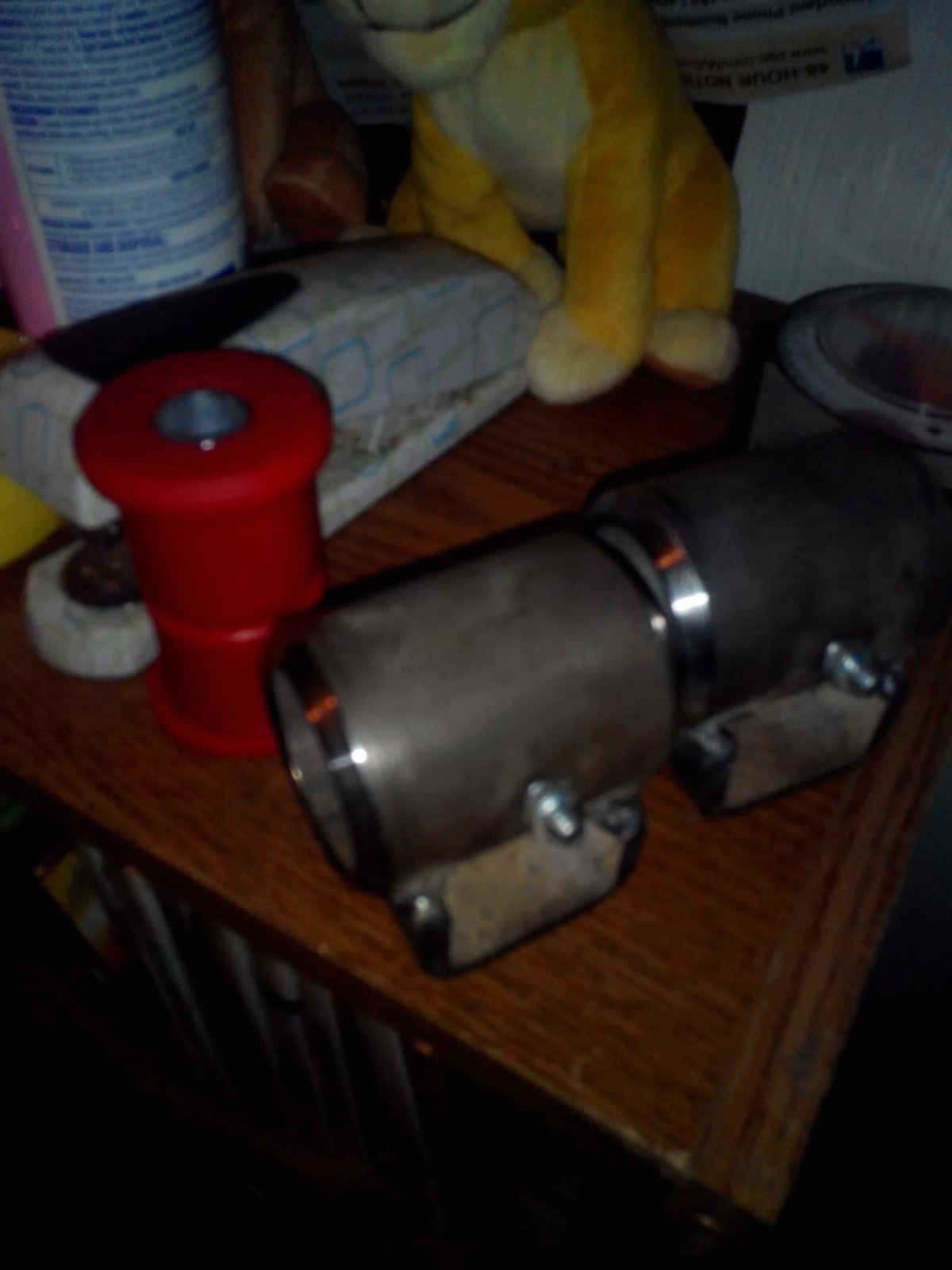

Ya for your upper shackle mount. Explorers are rubber bushings inside the frame the frame needs boxed a weak point. Didn't get to try them out they were for a Toyota designed around a flat leaf spring with more shackle angle allowing the shackle full droop. I wanted to use the ballistic joints as I they are rebuild able and offer more missalighnment.





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
Ya for your upper shackle mount. Explorers are rubber bushings inside the frame the frame needs boxed a weak point. Didn't get to try them out they were for a Toyota designed around a flat leaf spring with more shackle angle allowing the shackle full droop. I wanted to use the ballistic joints as I they are rebuild able and offer more missalighnment.

interesting. sometime this week ill be cutting the upper coil buckets for the frame side, i think im going to run about 3.5 inches forward, right at the rear-most bolt for the steering box.





jprentice94

Active Member
Joined
August 11, 2013
Messages
426
Reaction score
4
Location
Butte county
City, State
oroville ca
Year, Model & Trim Level
91 sas explorer
Toyota frames are already boxed so I used axle perches 1/4 steel got them from tractor supply for 15 bushings where 18 ea






jprentice94

Active Member
Joined
August 11, 2013
Messages
426
Reaction score
4
Location
Butte county
City, State
oroville ca
Year, Model & Trim Level
91 sas explorer
interesting. sometime this week ill be cutting the upper coil buckets for the frame side, i think im going to run about 3.5 inches forward, right at the rear-most bolt for the steering box.
How are you gonna manage the hump in the frame ..I'm still lost at it





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
i am using the ballistic fab upper coil buckets that are in the early posts on the thread...

on the frame side of the brackets, i made a template from cardboard and am cutting a new piece of steel to match the hump in the frame.

. ive got a big a$$ piece of 3/8 and some 1/4 ( the Bf are 1/4)

How are you gonna manage the hump in the frame ..I'm still lost at it





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
the brackets that came with the kit from ballistic i may use to make adjustable shock mounts... or get f150 oem mounts... or get the ballistic fab adjustable shock kit, im not sure yet. the shocks are the least of my worries right now, as long as ive got enough room to weld them to the frame behind the coil buckets.





KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport

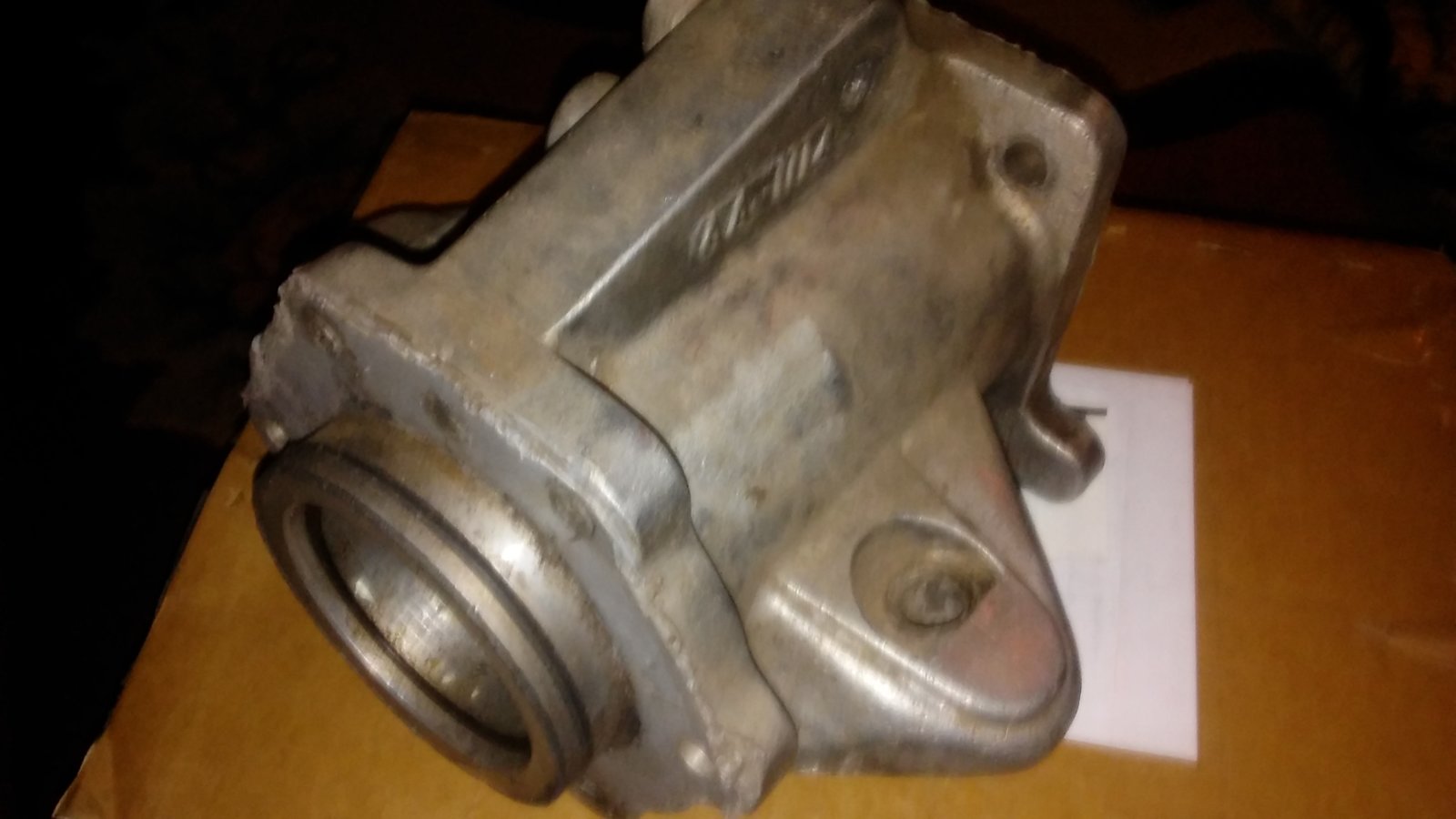

I got the Advanced Adapters np435 to ford dana 20 adapter in today.

Regularly $400+shipping through AA. Scored one on ebay for $125.








KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
Well i figured I'd give this thread a bump. I haven't been working on the X much the past two week as it has been rifle season for whitetail here. My and my son got it done opening weekend. I tagged out with a small buck and a doe. My son got a mature doe and should be going out a few more times before the end of the season.








KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport
Ok back at it after deer season.

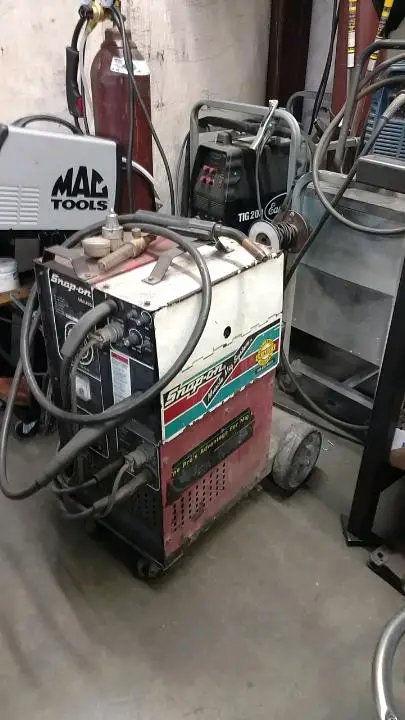

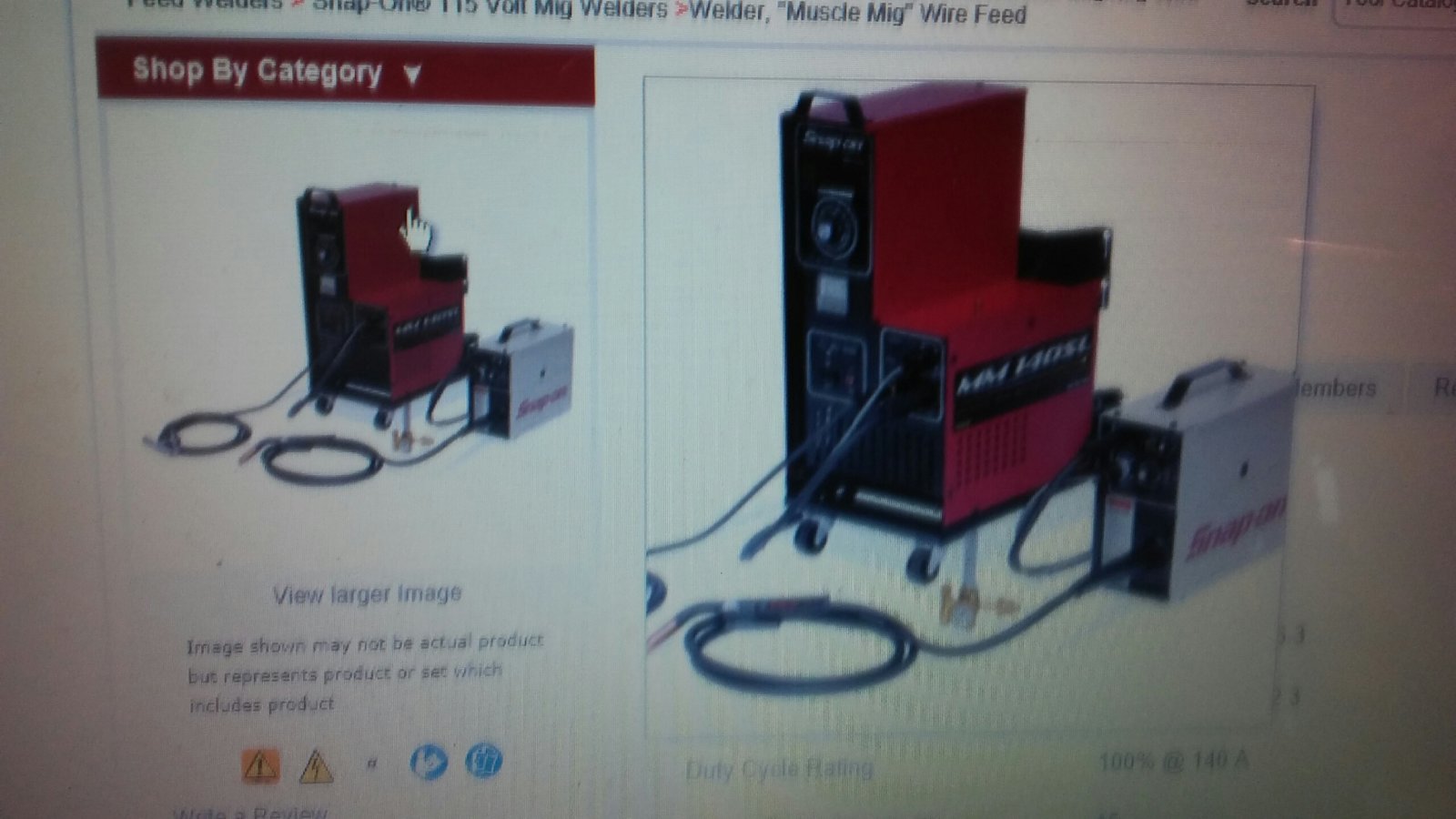

Picked this guy up with a 125# bottle this week. Snap on mm140sl. 100% duty cycle at 140amps. Its an older unit but snap on still makes the same welder and all the parts are the same. Its tig and spool gun capable (tig kit is only $567 on the truck)

My son (the welder) checked it out before hand and said it runs like a top. It has a gas leak somewhere inside the unit but that shouldn't be too hard to find. I usually turn off my bottles at the valve anyways so I'm not terribly worried about it right now.

According to the spec sheet it will do 1/4 inch steel in one pass. Bullshitting with the previous owner, he said it will do more then that (it was at a classic car restoration/restomod shop and they used it for everything.








KurtECV

Surrender The Booty
Elite Explorer
Joined
November 1, 2017
Messages
707
Reaction score
315
City, State
Lebanon MO
Year, Model & Trim Level
93 Sport

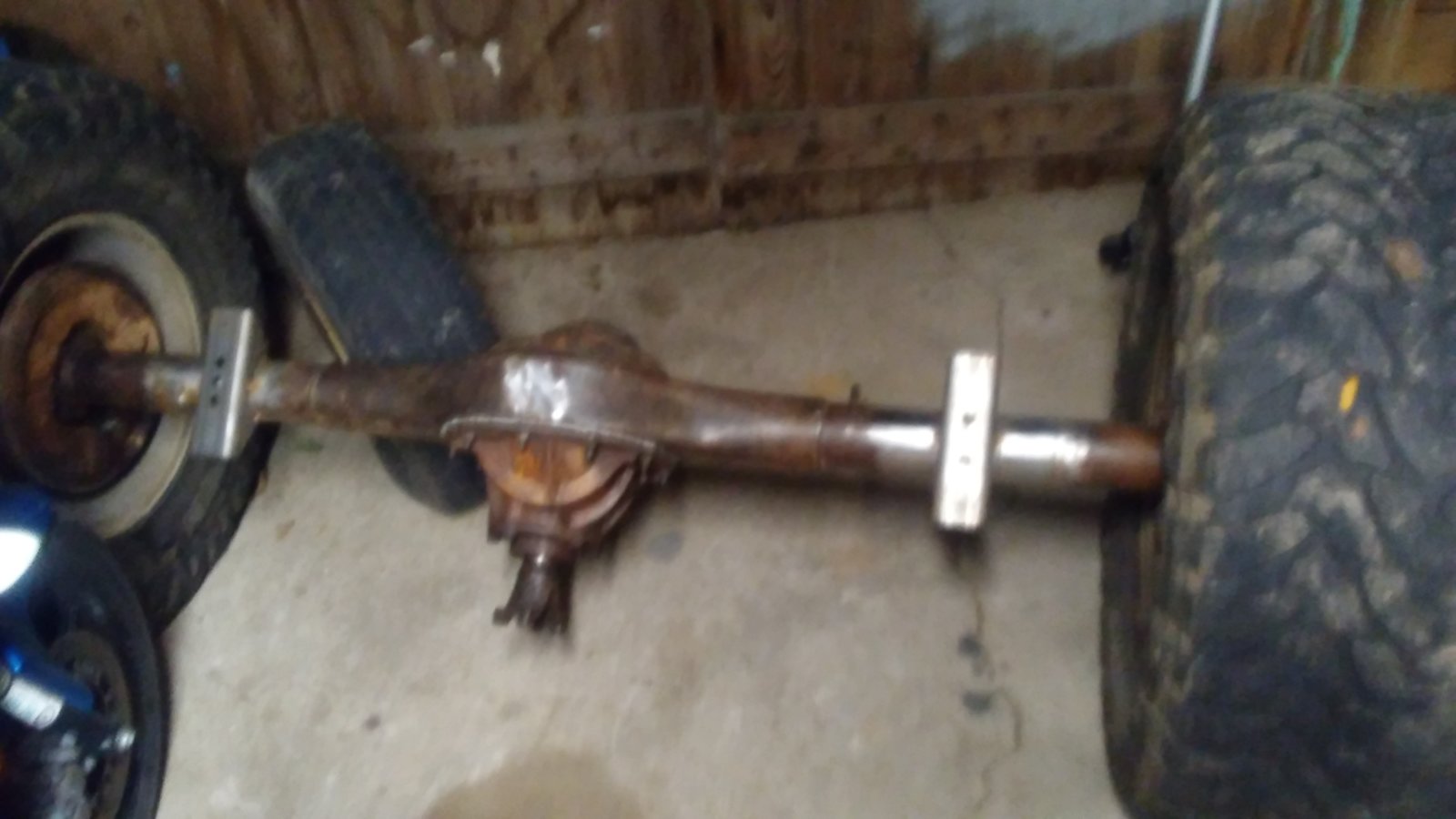

Back on track. We are about ready to get the 9 inch under the truck. The spring perches are tacked in place just need to pull the 8.8 and roll the 9 under it and make sure the angles are correct and pull it back out and burn the perches on place.
