The Unappreciated X SAS


jlatourn94xp

New Member
Joined
February 6, 2010
Messages
5
Reaction score
0
City, State
Gwinn MI
Year, Model & Trim Level
94 xlt
Ok this is like my first time posting i have used this website for awhile now and there are alot of great tips on here so thanks a bunch everyone

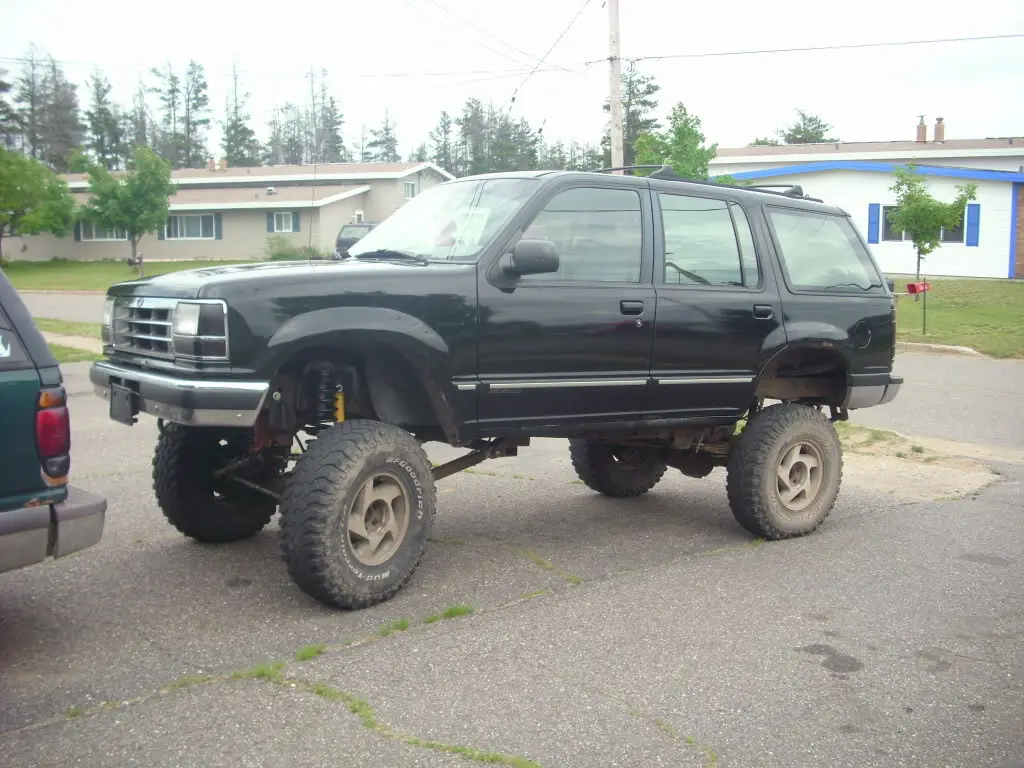

Here is my SAS X

Dana 30 HP

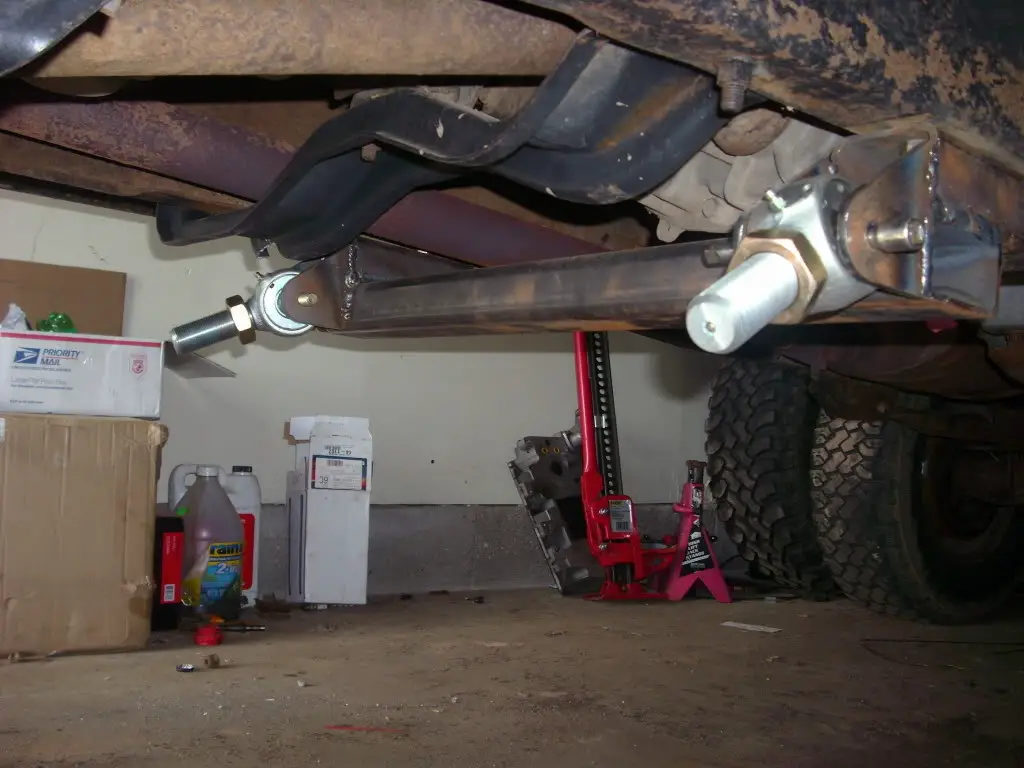

Custom long arm built from a jeep setup
Custom crossmember
Custom explorer coil buckets for jeep springs
Stock jeep track bar
Stock jeep steering (tie rod end swapped for pitman)
6" Drop pitman arm

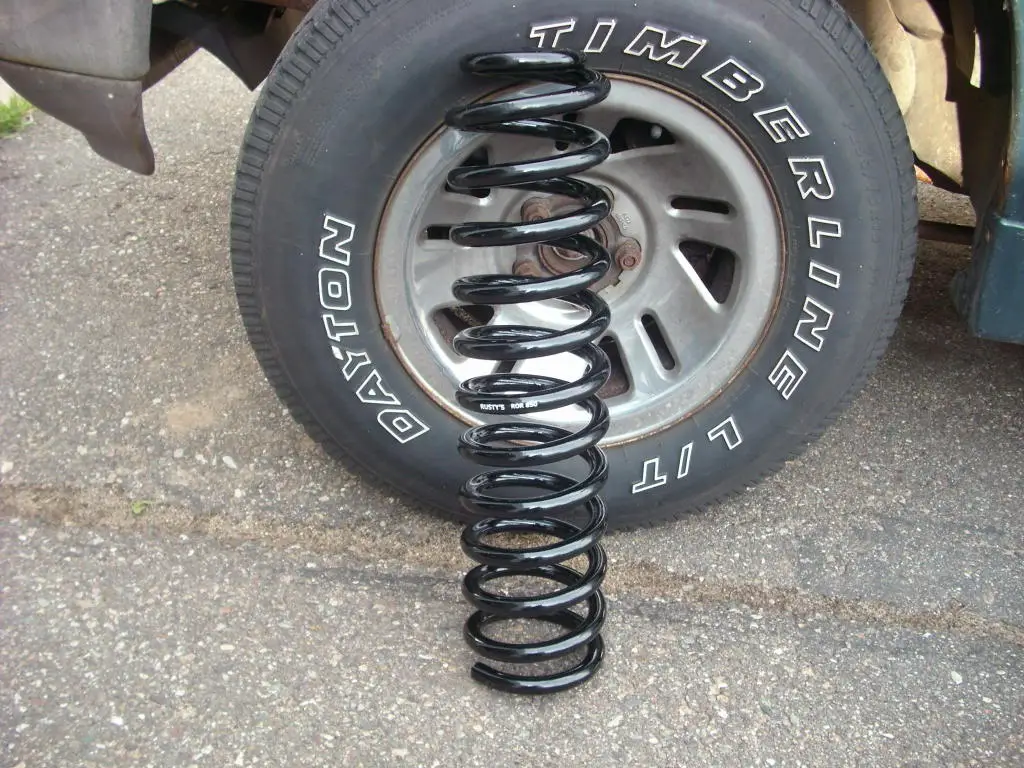

8.5" jeep lift springs
SOA w/2wd s10 springs total of 10" lift (no block:D)
33" BFG M/Ts soon to be 33" BajaClaws







Thanks for looking


Join the Elite Explorers for $20. Gets rid of the ads!

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.



rstangboi

New Member
Joined
February 15, 2009
Messages
20
Reaction score
0
City, State
Davis, California
Year, Model & Trim Level
2001 Ranger SAS'ed
did u actually use tractor heims?
and why just 33's?

just curious. not hating.



jlatourn94xp

New Member
Joined
February 6, 2010
Messages
5
Reaction score
0
City, State
Gwinn MI
Year, Model & Trim Level
94 xlt
yes i used tractor heims but they are soon to be changed out with adjustable upper links for a jeep i built them to the specs of them this was just a temp i needed to drive this cause the second gen in the pic the fuel pump died and couldnt get to work and as for the 33"s that is for daily i have 37" iroks on another set of rims for play but with the 33s i have on there i already got pulled over twice for height in one week



IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,772
Reaction score
15
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Stop reposting the same thing already. Other threads were deleted.



jlatourn94xp

New Member
Joined
February 6, 2010
Messages
5
Reaction score
0
City, State
Gwinn MI
Year, Model & Trim Level
94 xlt
Sorry i was trying to move it so more people would see it i apologize!!!



explorerguy89

Active Member
Joined
November 12, 2009
Messages
974
Reaction score
3
City, State
West Berlin, NJ
Year, Model & Trim Level
1994 sas sport
looks nice but hows it ride?



mounty71

It's green, not gray.
Elite Explorer
Joined
February 3, 2007
Messages
3,596
Reaction score
178
City, State
Oakland, CA
Year, Model & Trim Level
'00 Mountaineer
37s on a dana 30?? Be careful with your right foot.



jlatourn94xp

New Member
Joined
February 6, 2010
Messages
5
Reaction score
0
City, State
Gwinn MI
Year, Model & Trim Level
94 xlt
it actualy rides better with this setup than with the 6" skyjacker lift with the TTB and as for the 37 i don't go all out mudding with it cause it is my DD right now but i cruise in the woods and make some of my own trails just have some fun



backfrmcolorado

Active Member
Joined
February 21, 2010
Messages
555
Reaction score
0
City, State
Commerce Twp, MI
Year, Model & Trim Level
'94 Eddie B explodwhore
Hell yeah man. Looks good. Im in the process of gettin a jacked up X that for a second thought was yours but this one is only 8 inch in lift. . .



94Gexplorer

Active Member
Joined
December 25, 2008
Messages
205
Reaction score
0
City, State
port angeles, wa
Year, Model & Trim Level
94 ex
so is it y links up front? if not wheres the upper link go
nevermind i didnt look at the pics right its y linked but is it both sides?



jlatourn94xp

New Member
Joined
February 6, 2010
Messages
5
Reaction score
0
City, State
Gwinn MI
Year, Model & Trim Level
94 xlt
yes it is both sides i tried to see how much flex i could the other day and it did a lot worse than i thought it would do i think i am going to try unbolting one and try again to see how it does



bozone802

New Member
Joined
June 20, 2009
Messages
21
Reaction score
0
City, State
MT
Year, Model & Trim Level
1999 Ranger XLT
you got pulled over for 33s on that thing, THATS INSANE!! man MI cops suck. and i like your radius are crossmember!
