Torque Monster Headers Install Write-up and Review

Note: Lots of pics give it time to load

I initially was looking for more MPG from my Mountaineer. That search led me to this web site, which I cannot seem to tear myself away from. I found v8boatbuilder’s write up on TMH headers. The install work intrigued me, I like a good challenge. I talked to Bob via email first then I called to pay over the phone. He really knows his stuff, I was impressed with how much he knew about explorers.

I began preparing for the install work by soaking all the bolts that I could reach with everything intact. I used liquid wrench and a clear plastic tube to run the penetrating oil on the bolts.



I started the install the day before my headers arrived. I tracked my package with UPS tracking, so I knew when they would arrive.

Day 1

I started by jacking up my Mountaineer and supporting it on jack stands. I put wheel chocks behind the rear wheels since the AWD parks through the front axle.

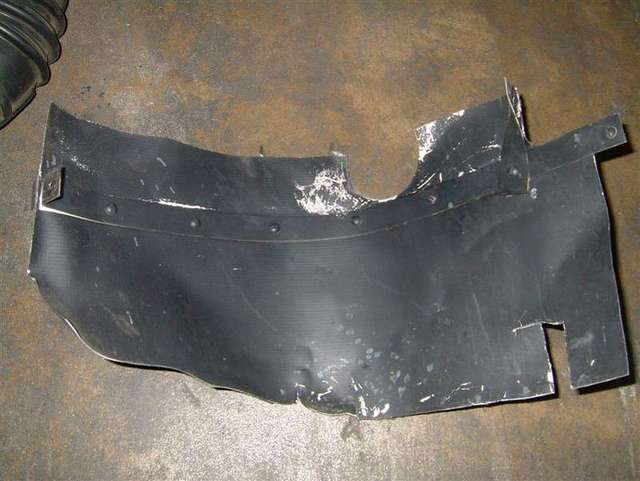

I removed the inner fender well on the driver’s side. I took out the spark plugs and moved the wires out of the way. There are some wires that attach to the fender well that have to be removed.

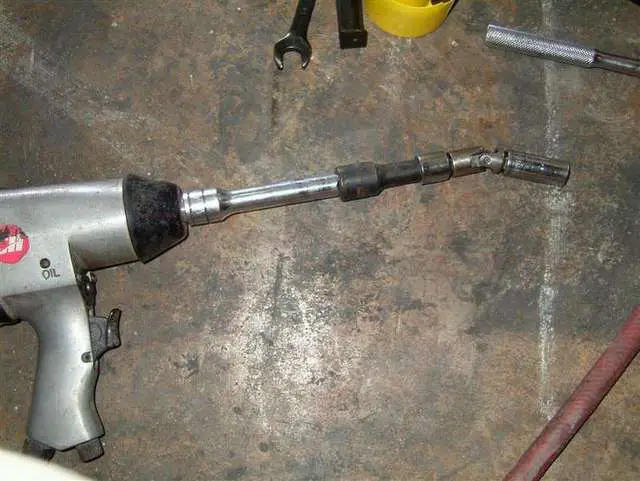

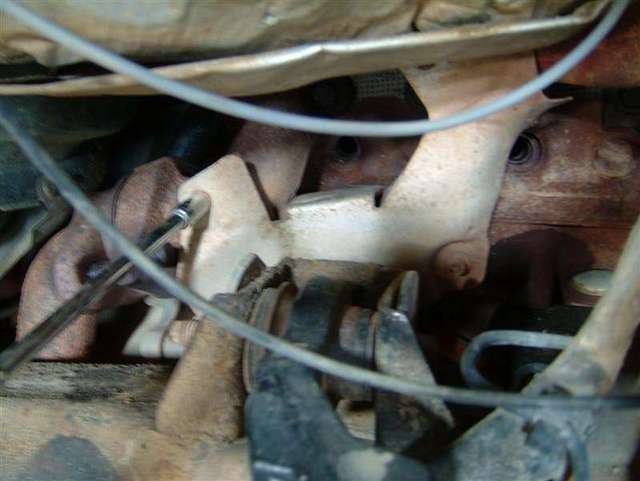

The bolts look wet because of the penetrating oil. I used an impact wrench (cheap one)........



and all of the bolts came right out. I had to remove a heat shield from the back of an accessory on the front of the motor.



The bolts came out very easily, my truck was in Florida before I got it, so it has been in the south. Not having been in the north seems to help a lot.

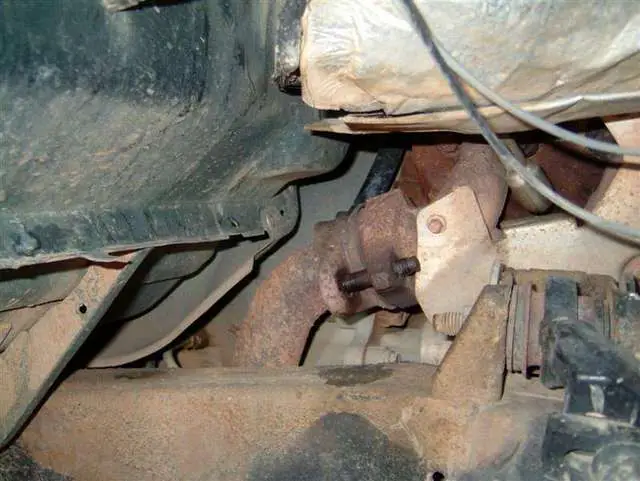

In order to remove the collector bolts, I decided to drop the drive shaft from the front axle. This allowed me to get a straight shot on the bolts.

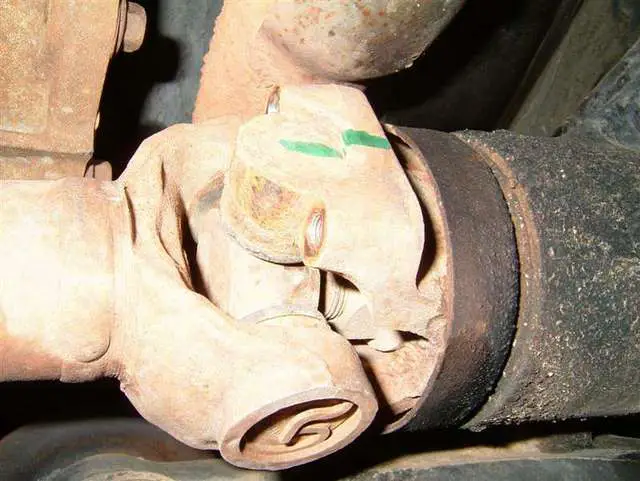

I marked the u joint to help keep the shaft lined up. The bolts came out easily.

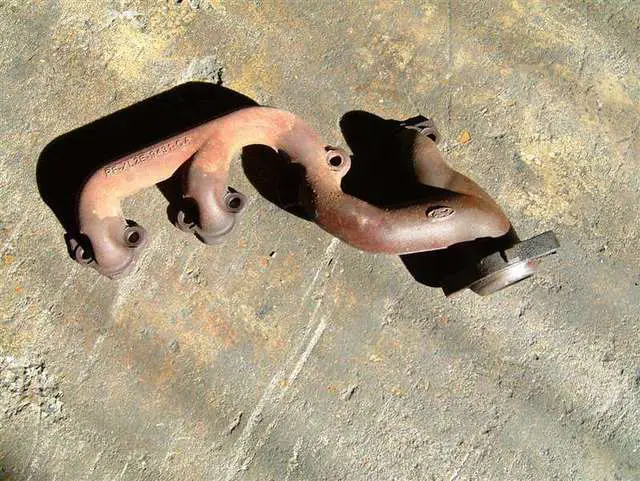

I removed the dip stick and the manifold came out.

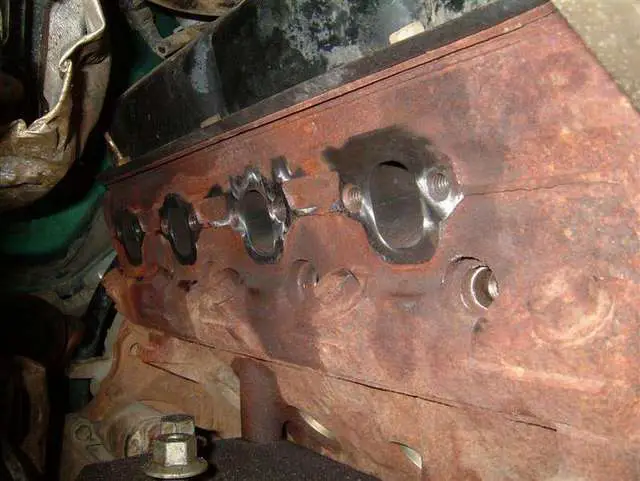

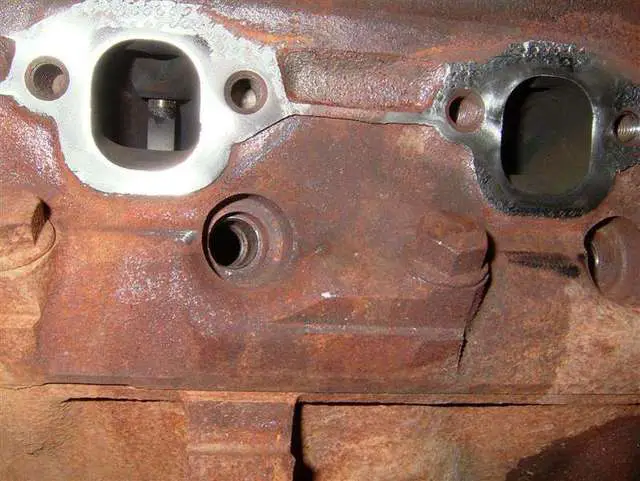

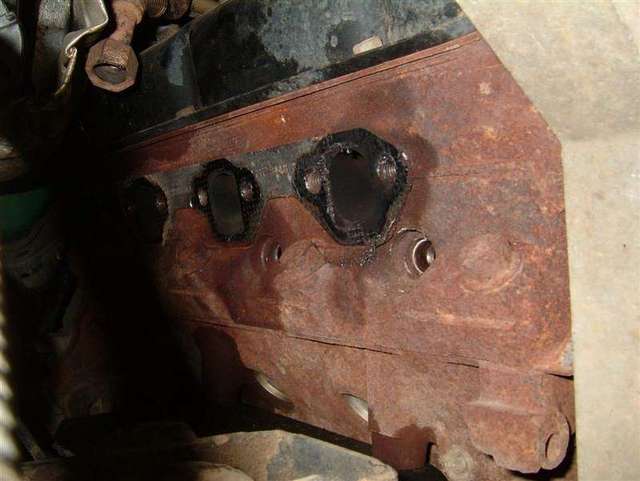

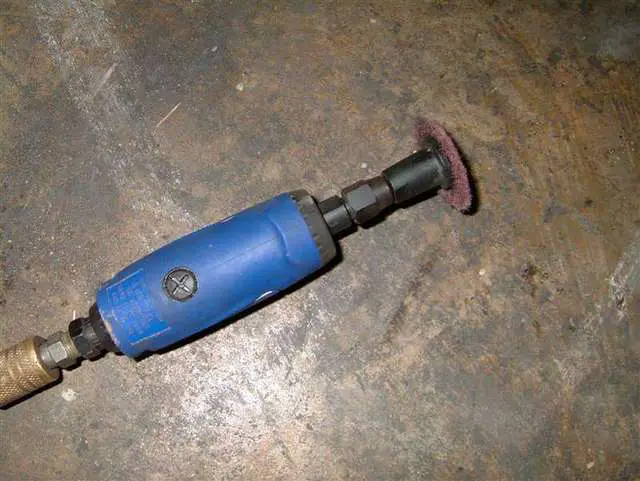

I removed the gasket with a flat screwdriver and polished the block with an air die and buffer pad.


That was it for the driver side. That took less than an hour to do that.

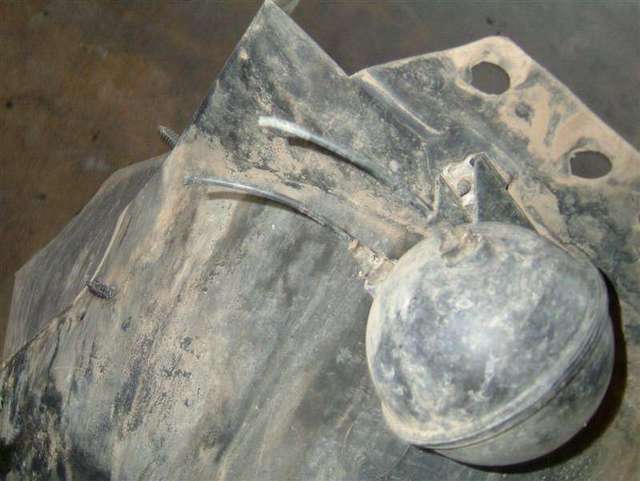

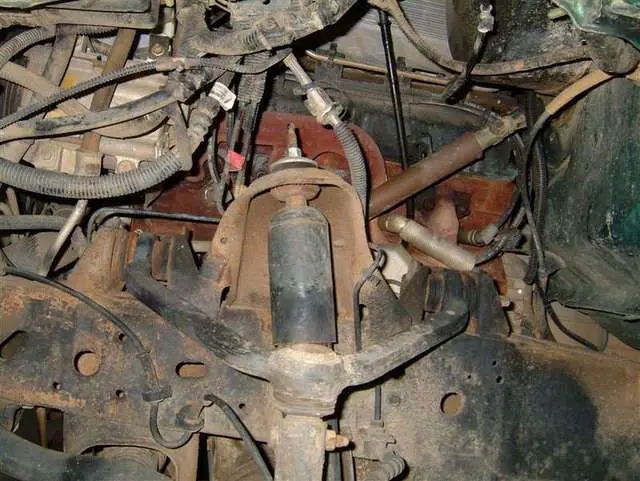

The passenger side fender well came out easily, but my vacuum canister for the HVAC, the lines were brittle and broke right away.

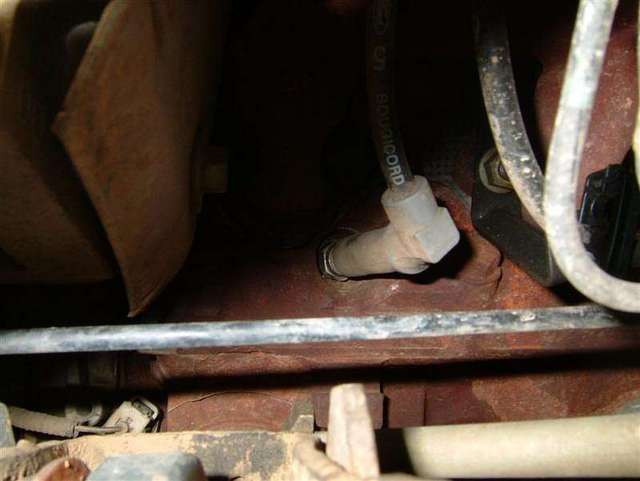

I removed the spark plugs and moved the wires out of the way. Once again, the liquid wrench worked wonders.

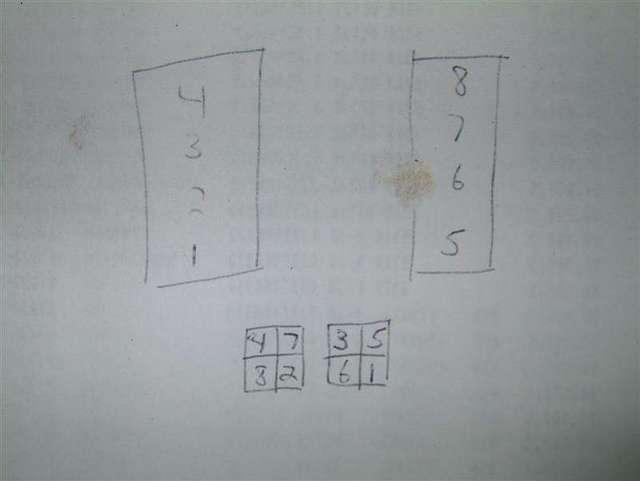

I diagramed the spark plug wiring.



I removed the cold air intake and heat shield, both home made.



I took off the heat shield on the manifold.


The manifolds bolts came right out.

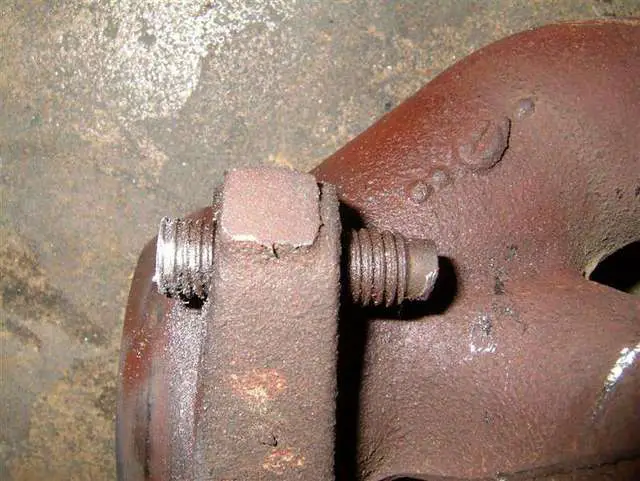

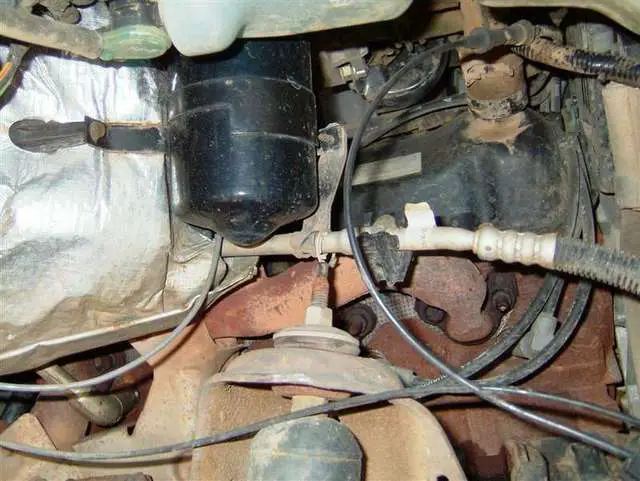

Then the fun began. The collector bolts are right at the back of the block. The outside one is easily accessible. The inboard bolt is not quite so easy. At this point everything has taken less than two hours. After I tried for an hour to get a socket on the bolt securely and failing, I had rounded the shoulders off of the head of the bolt. I had to take a small hacksaw and cut the bolt in two.



I got to the bolt by spinning the manifold around with a pipe wrench. Then the manifold came out. If I had of taken some more time I may could have gotten it out without cutting it. Lesson learned- don’t get in a hurry and try not to get frustrated. I broke the polishing pad on my air die so I couldn’t clean up the block.

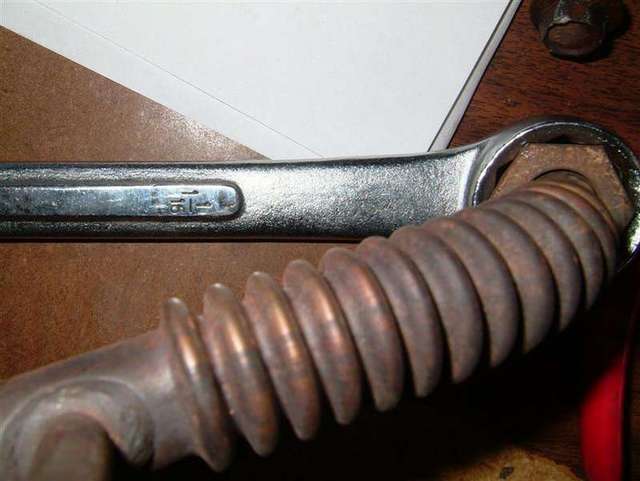

I next removed the EGR tube. It uses an 1 1/16 wrench for the nuts. The most difficult part is the nut that goes into the EGR. I took off the oil filler neck and that gave me room to swing the wrench to take the nut out. The adapter that goes into the manifold uses a 1” wrench.



Day 2

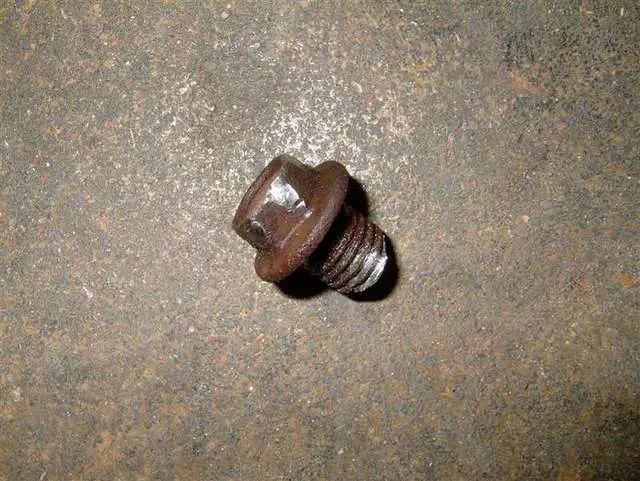

Day two began with a trip to the parts store to get an easy out to make my air die work again. I got it fixed and polished the block.

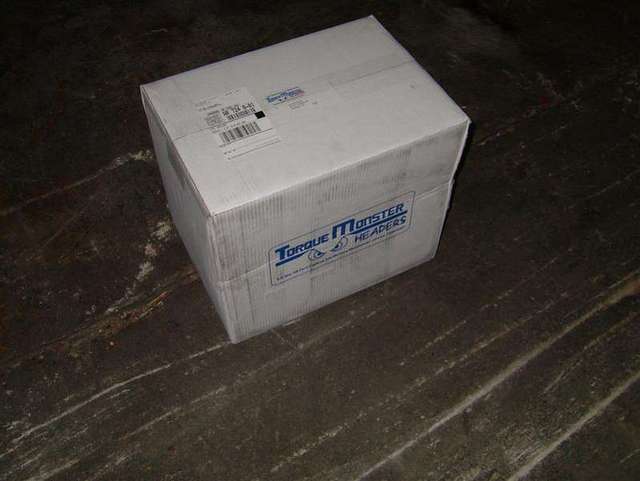

The box arrived UPS.

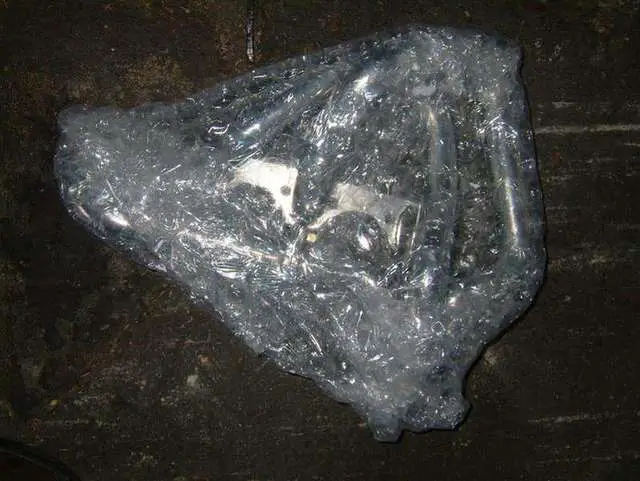

It was well packaged

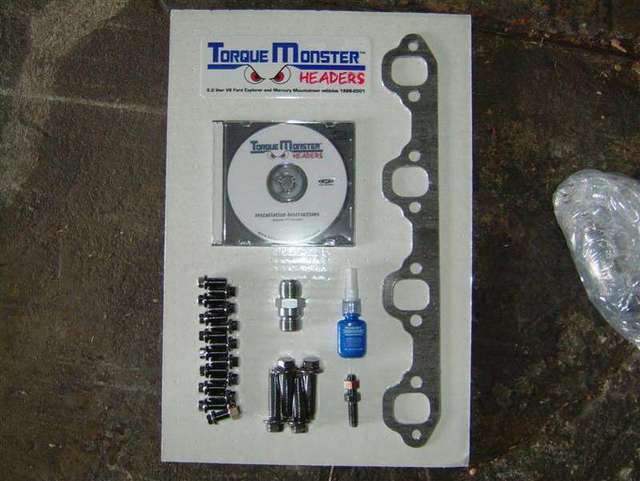

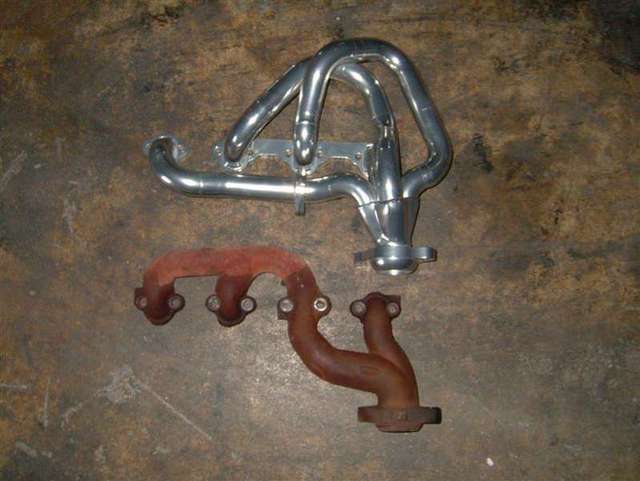

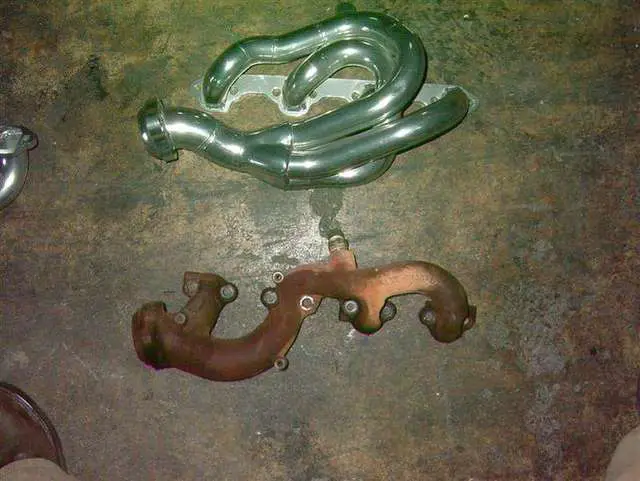

The quality is top notch. Of course here is the comparison pics-

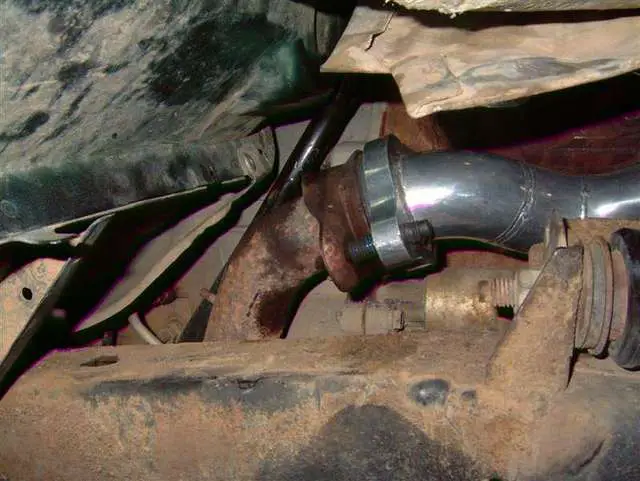

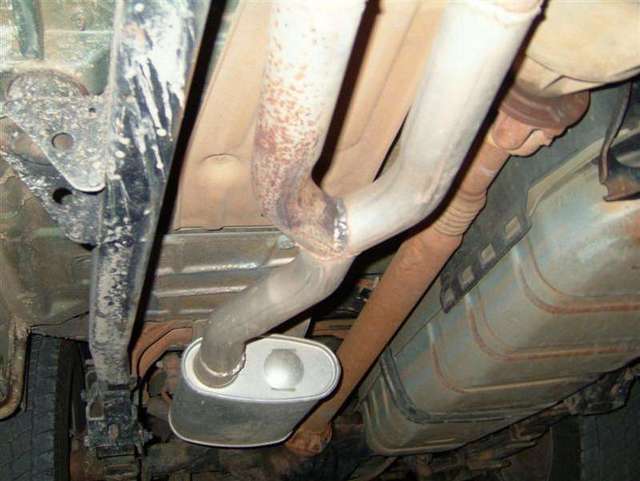

I started with the driver’s side. It went in easily, but the exhaust was in the way. I tied the jack to the pipe to pull it down out of the way.

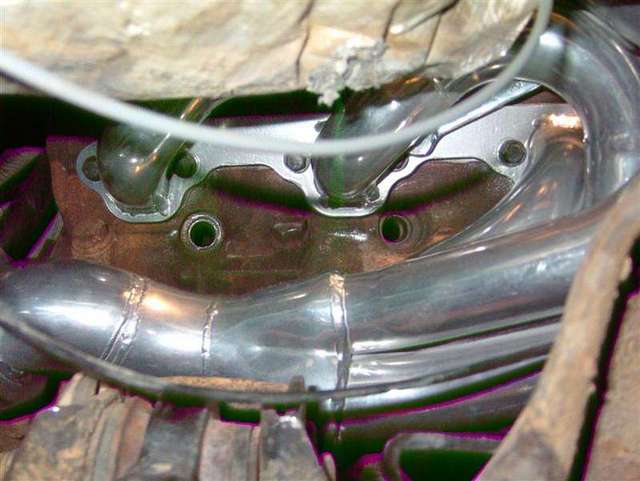

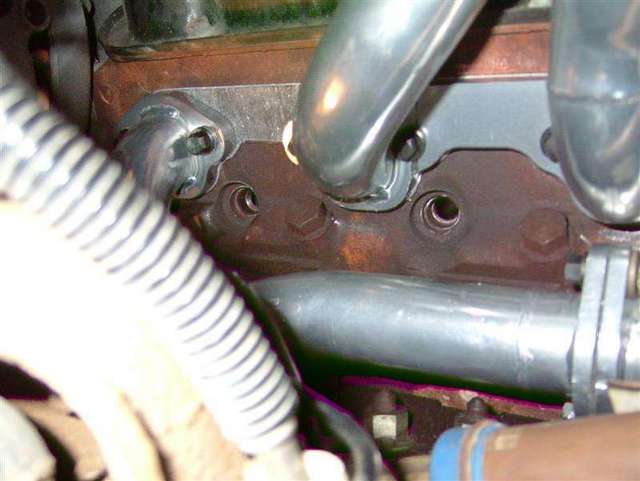

The header bolted right in. I used a 1/4” drive ratchet with ext. and a universal and 3/8” socket. Locktite was applied to all bolts.

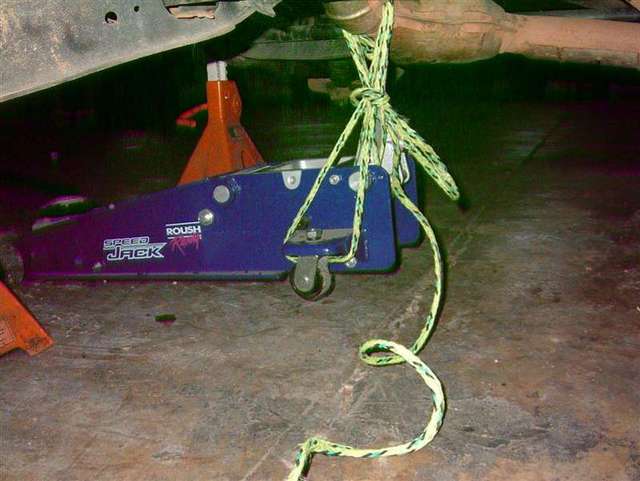

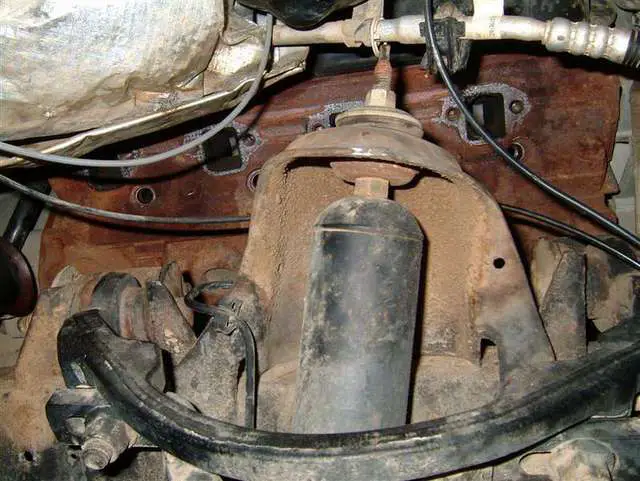

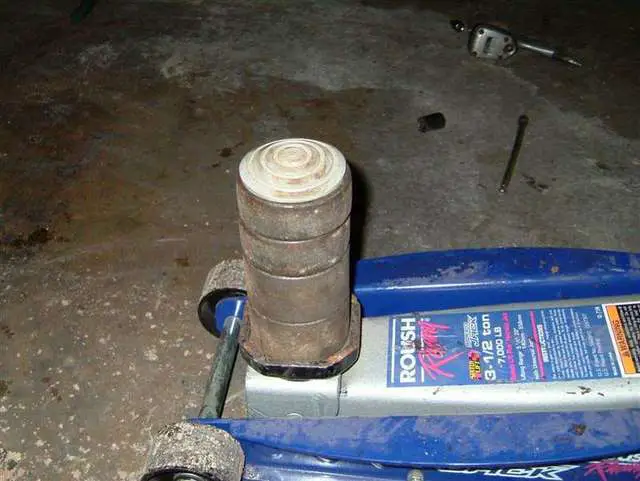

I then went to the passenger side, loosened the motor mount bolts, jacked up the motor. I used some old jack wheels to lift the motor.

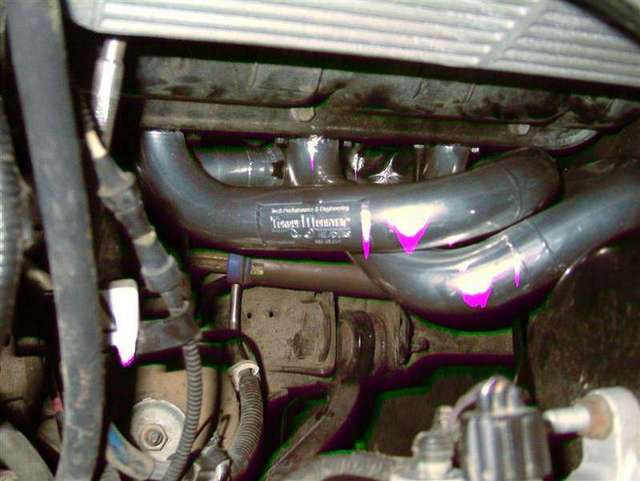

The header took some wiggling to slide in place, but when it went, it went right in. I used a pipe to push the exhaust back and bolted the header in. I removed a layer of insulation from the heater core box to give me some room. It is held on by one screw and two keepers. I made a major error and forgot to tighten the motor mount bolts. I was able to tighten the outer one but not the inner. The bolts on this side were a little more difficult to tighten with a socket. I used a small wrench to tighten each bolt.



I put in the outside collector bolt easily enough.



The inside bolt was a huge PITA again. I ended up running it through from the wrong side, taking it out, then putting it through the right side. That seemed to help the bolt thread through easier. I talked to Bob later and he told me that the bolts taper and so as they get tighter as they go in. It still took lots of time and patience to get that bolt tight. I then put in the drivers side collector bolts, which were also very tight. They are both accessible from the bottom of the truck.

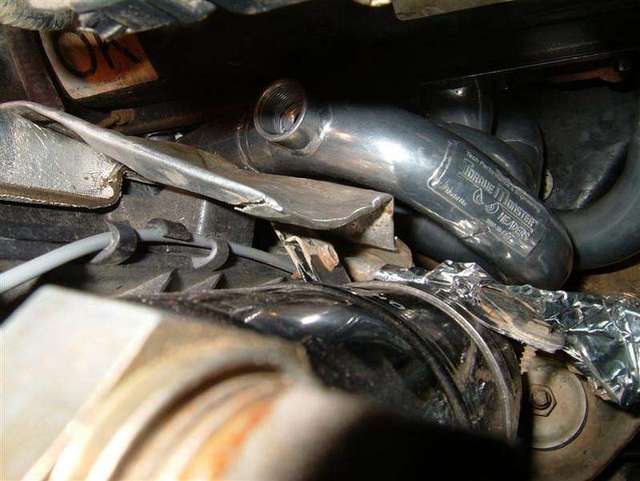

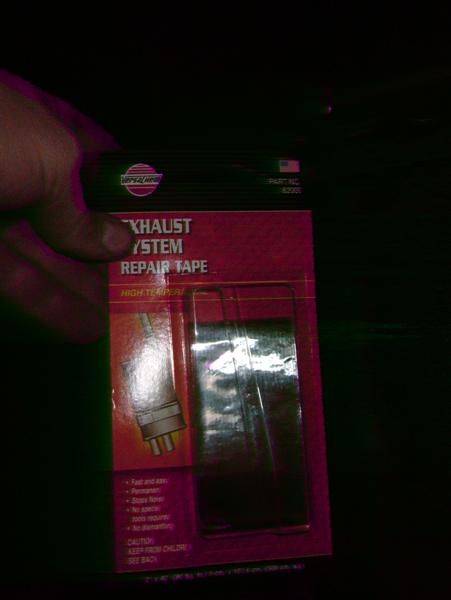

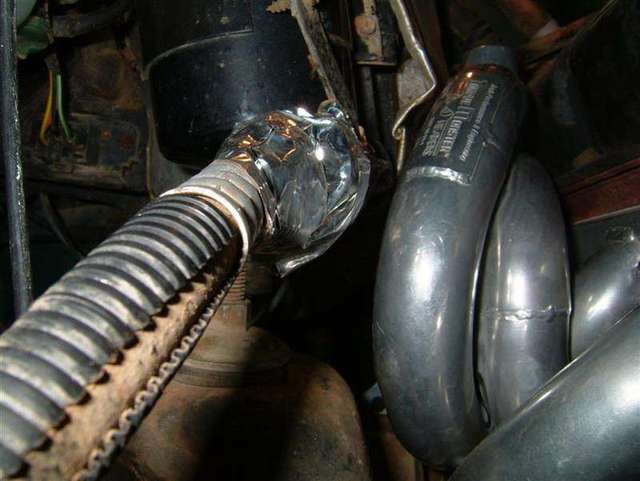

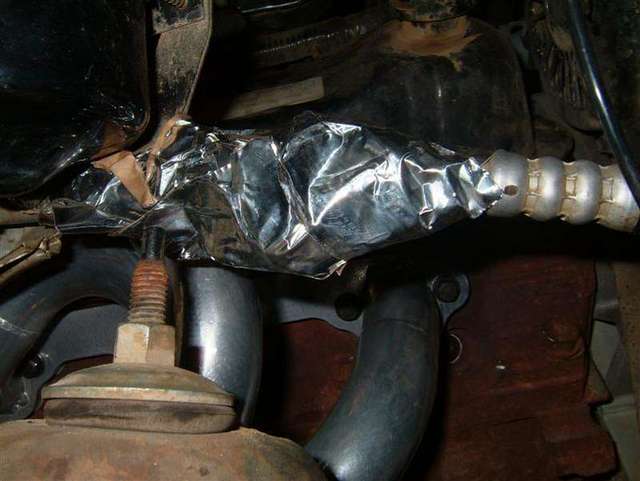

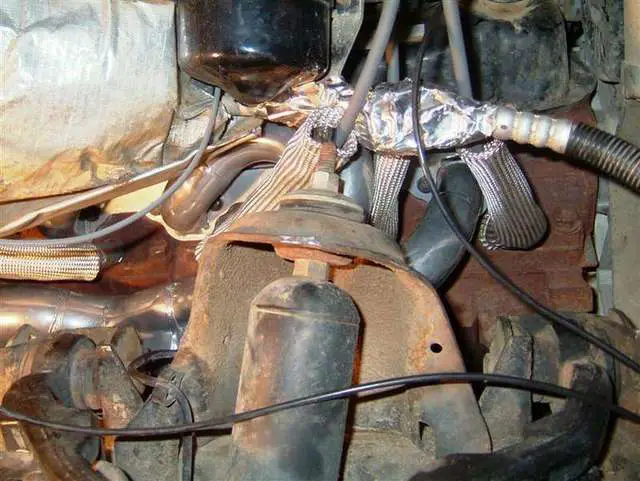

I bought some exhaust system repair tape to protect my A/C line. Due to the close proximity of the header, I didn't want any heat soak. It was only a couple of bucks, so it was cheap insurance.



It is basically glorified aluminum foil. I left the adhesive cover on the back so it didn’t stick to the tube in case I ever needed to work on it.



I collapsed it down some more after I took the picture to make it fit nicely.

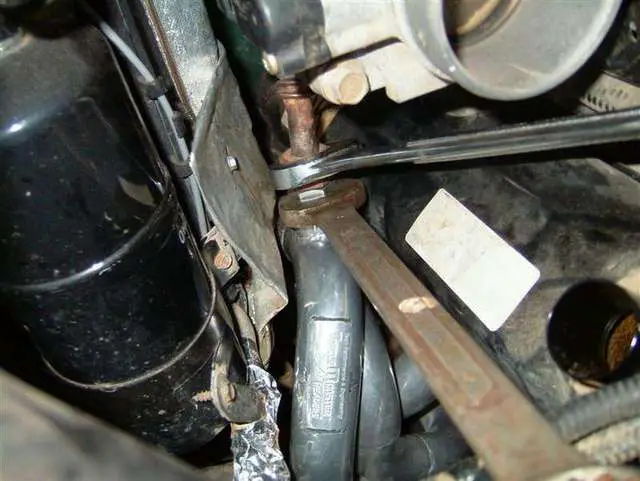

Now its time to bend the EGR tube.



I had a hard time getting the correct bend. I ended up starting the tube in the EGR valve, then the adaptor fitting in the tube. I used a wrench to force the tube in place. It did not work all that well, I nearly collapsed the tube at the bend under the valve. But, it works. I then tightened the adaptor into the header with the nut on the tube still loose. Once the adaptor was tight, I tightened the tube on the adaptor.



Notice the oil fill tube is removed to aid in access.

I then went to installing the new plug wires and spark plugs. I bought “socks” to protect my wires from the heat.

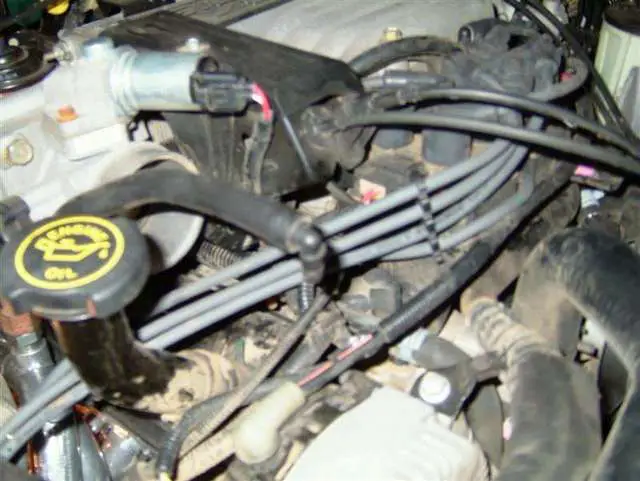

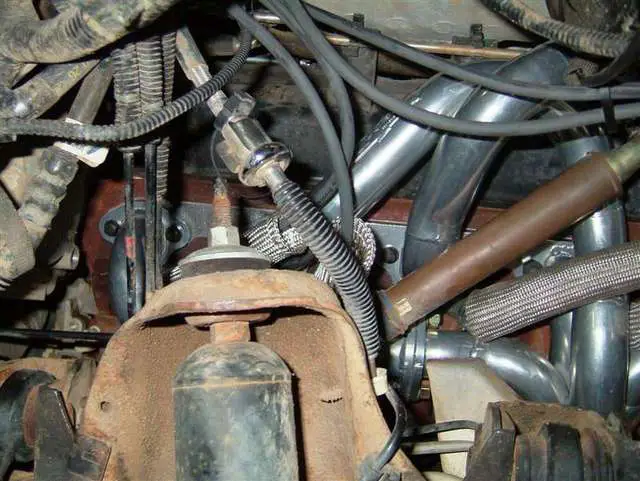

I took some time to route my wires carefully, using wire separators.



Driver’s side pic-



I installed my air intake and other parts removed. I started the truck, had an exhaust leak. Driver’s side collector bolts not tight enough. With the bolts warmer, I turned them in some more. Started the motor again, still leaking. I turned in the bolts a few more turns and the leak stopped. I ran the motor for a few more minutes to warm everything up. I re attached the driveshaft. I then checked the header bolts, everything was tight as could be. While it was still in the air, I took pictures of the exhaust.



I put both fender wells back in, and fixed my broken vacuum lines with some rubber hose. I put the wheels back on, and double checked everything. I took the jack stands out and let the truck down. I forgot to remove the wheel chocks and I couldn’t back up. I then removed them and backed right out. It was about 11:00 pm and I was ready to go home. I went home and filled the garage full of new header smell.

The biggest question, what is the difference over stock?

At first, not much. The first 10 miles I drove were not hardly any different than stock. I drove it the next day to work and pulled the battery cable to let the computer reset. I checked everything to make sure nothing was touching or rubbing. I put the cable back on and let the computer learn again. I set my programmer from performance to towing performance. I drove it about 30 miles and then hooked on to a 3,000 lb pop up camper and drove it back. The difference is night and day. I pulled the relatively heavy camper like a champ. Lots of power and torque that I could feel. The next day I put the programmer back to performance. The computer has figured out the new parts and it runs great. Acceleration is easier and faster. If you really get on it, it opens up and screams. Under normal driving, acceleration comes a lower RPMs effortlessly. This is only my third day since install at the time of writing this, so I will give reports over time.

Gas mileage increase?

I will post MPG, before and after, when I run a tank through under normal driving conditions. I have been logging mileage at almost every tank so that I have a good history to compare it to.

Sound?

With my custom exhaust and intake, it is great. I wouldn't say it is louder, just deeper. It has a very nice rumble, very distinct. I do have more resonance on the highway whereas I had virtually none before. I am thinking about changing to a 50 series flowmaster or something quieter. My digital camera shoots video with audio, so I will try to figure out how to get that posted after I record it.

Install Time?

Since I split the work over two days, it was much more tolerable. If you can at all, split it over two days. The warehouse I manage has a truck that I can borrow on occasion, so I was able to drive it. The first day took about four hours, and the second about 8. I had all the tools I needed there, so there was no running for parts or tools. If I had of had help, I could have gotten the inside collector bolt out without rounding it off or cutting it in two. That would have saved a couple of hours. I could do it again in eight hours fairly easily. I hope this write up helps someone install their headers.

All that being said, I have some tips for install-

Re route the hood pop cable. I found my cable had moved and touched the header. I smelled a rubber burning smell and the cable outer sheath had melted. I worked for a while and got the hood opened, rigged the cable up to work until I found a replacement. BTW, a cable from a 97 will work on an 01 even though a salvage yard may tell you otherwise. The only difference is mine had a place to put a keeper that the 97 did not have.

Buy a set of plug wire heat protectors. They make it much easier to route the plug wires and give piece of mind. Auto Zone has them for $34- I hate that place, but they were the only ones with them in stock.

Get someone to help you. I did nearly all of the work alone, which greatly added to the time. A good helper is worth a lot.

Soak your bolts ahead of time. It makes a world of difference, especially if your truck has been in the north.

Buy a tap and die to fit the collector bolts. Run the tap through the headers and the die over the bolts. Then use locktite. This will make install much easier.



Updates to follow---------



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




'97 V8

Explorer Addict
Joined
April 2, 2005
Messages
3,618
Reaction score
0
City, State
ft. knox ky
Year, Model & Trim Level
'97 mounty 5.0 4x4 baby!!
great write up.





celly

disturber of the peace
Joined
July 28, 2004
Messages
6,858
Reaction score
5
City, State
calgary
Year, Model & Trim Level
99 eb 5.0 awd
What a superb post! :thumbsup:

(and yet again confirms I will NEVER do this install myself and will most likely be paying for it when the time comes).





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
celly said:
What a superb post! :thumbsup:

(and yet again confirms I will NEVER do this install myself and will most likely be paying for it when the time comes).

Id do the job for you, just drive it down here to AR....... ;)





celly

disturber of the peace
Joined
July 28, 2004
Messages
6,858
Reaction score
5
City, State
calgary
Year, Model & Trim Level
99 eb 5.0 awd
mountaineergree said:
Id do the job for you, just drive it down here to AR....... ;)

Next time I'm in the neighbourhood, I'll take you up on that. :thumbsup:





rizzjc

Scubajoe - Radio Mod
Staff member
Moderator
Elite Explorer
Joined
July 13, 2005
Messages
3,885
Reaction score
16
Location
NC
City, State
Garner, NC
Year, Model & Trim Level
2019 F150
Callsign
N1LVN
Nice thanks. I REALLY want a set of these things!









south59

Well-Known Member
Joined
June 30, 2004
Messages
306
Reaction score
1
City, State
Houston TX
Year, Model & Trim Level
99 5.0
Great Writeup, Saving this on my site for the summertime install!





rcpasq

Elite Explorer
Joined
September 3, 2004
Messages
120
Reaction score
13
Location
Palmdale, CA
City, State
Palmdale, CA
Year, Model & Trim Level
2016 F150 Sport 2.7 TT
Great Install and Review! Thanks.





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
great post. I hope you did a review of this product in our new review section! :thumbsup:

-Drew





xman98

Well-Known Member
Joined
July 8, 2005
Messages
337
Reaction score
0
City, State
home-Norwalk, CT school-Springfield, MA
Year, Model & Trim Level
98 XLT
very nice write up, mabey a addition to my X in the future





wpurple

Explorer Addict
Joined
July 16, 1999
Messages
1,095
Reaction score
2
City, State
CT
Year, Model & Trim Level
97 Explorer 12 Escape
Excellent write up, I didn't take any piks during my install as I thought V8boatbuilder covered it all, but you added in some nice detail to an already awesome write up by V8 boatbuilder.

....I just wish I installed these sooner!

BTW: How the &**&@^ were you able to cut that exhaust bolt off? I couldn't imagine anyone getting in there to cut it....I just used a few extensions and ran parallel to the transmission until the extension was long enough to put a air ratchet on the end without the use of a universal. (about 3') I stared at those bolts for at least 15 minutes contiplating how to tackle them.

Congrads!!! :thumbsup:





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
wpurple said:
Excellent write up, I didn't take any piks during my install as I thought V8boatbuilder covered it all, but you added in some nice detail to an already awesome write up by V8 boatbuilder.

....I just wish I installed these sooner!

BTW: How the &**&@^ were you able to cut that exhaust bolt off? I couldn't imagine anyone getting in there to cut it....I just used a few extensions and ran parallel to the transmission until the extension was long enough to put a air ratchet on the end without the use of a universal. (about 3') I stared at those bolts for at least 15 minutes contiplating how to tackle them.

Congrads!!! :thumbsup:
Well, I tried what you said, about three feet of extensions. I didnt get on the bolt well enough, couldnt see that I wasnt on the bolt, and rounded the corners off of it. If someone had of been there to help me and tell me I wasnt on the bolt, It could have been avioided.

But after I rounded the head off I had to get the bolt out. I had everything removed except for that bolt. I took a pipe wrench and hooked it onto the manifold and spun it around as far as possible. The bolt that was in the back is now on top. I may could have used a wrench then but, it was rounded off. So a small hacksaw did the trick. It is a plastic frame and I had to cut some of the blade off to make it short enough to get in there and cut the bolt. I think it is an Ace Hardware "Handy Hack". If I had to do it again, I would spin the manifold around first and then take the bolt out. :confused:









wpurple

Explorer Addict
Joined
July 16, 1999
Messages
1,095
Reaction score
2
City, State
CT
Year, Model & Trim Level
97 Explorer 12 Escape
Removing the bolt was a 2 person job, I held the socket firmly on the bolt while my buddy had the impact wrench. It didn't take much to have the socket slip.





TheJMan

Well-Known Member
Joined
April 5, 2003
Messages
546
Reaction score
0
City, State
Scottsdale, AZ
Year, Model & Trim Level
2009 Mazda 3 Hatchback
I just bought a set of Torque Monster headers and will install them next week (spring break). I've got a couple of questions.

In the directions for the headers, one of the options for tightening the passenger rear engine mount nut was to use a 3-foot extension with a 18mm universal socket. This seems like it would be the easiest. Does this work or does one of those offset wrenches work better?

My other question is regarding polishing the block. I don't have an air compressor, so are there any electric tools I can purchase that will adequately polish the block?

Has anyone bought a replacement EGR tube from Ford? I've looked on FastPartsNetwork and can't find a part number or price. Just too lazy to get up to the dealer. I just want a backup in case I damage the one on there now.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
TheJMan said:
I just bought a set of Torque Monster headers and will install them next week (spring break). I've got a couple of questions.

In the directions for the headers, one of the options for tightening the passenger rear engine mount nut was to use a 3-foot extension with a 18mm universal socket. This seems like it would be the easiest. Does this work or does one of those offset wrenches work better?

My other question is regarding polishing the block. I don't have an air compressor, so are there any electric tools I can purchase that will adequately polish the block?

Has anyone bought a replacement EGR tube from Ford? I've looked on FastPartsNetwork and can't find a part number or price. Just too lazy to get up to the dealer. I just want a backup in case I damage the one on there now.

I hadn't looked into using a extension and socket to tighten the rear engine motor mount nut. Seems like a good idea. You can use an electric drill with a wire brush to clean the block. You could also use a hand brush to clean things up, but power tools are much more fun. ;)

As for an EGR tube, I wouldnt buy one from Ford. I talked to Bob about the tube, and he is developing a custom fit tube. You can shape your tube with a vise and some time. I would look to v8boatbuilders write up for the proper bend. Click Here

Good luck with the install.





TheJMan

Well-Known Member
Joined
April 5, 2003
Messages
546
Reaction score
0
City, State
Scottsdale, AZ
Year, Model & Trim Level
2009 Mazda 3 Hatchback
Thanks for your help. I'll definitely have your writeup by my side when I'm installing the headers next week.





MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
TheJMan said:
Thanks for your help. I'll definitely have your writeup by my side when I'm installing the headers next week.
Id fix a bottle like is in my first pic and you can start to soak your bolts now. You can use the hose to reach most bolts without removing anything except for the rubber flaps inside your fenderwells. It is worth the effort to not have any stuck bolts to take out. PM or email me if you need any help during the install. Good Luck!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




wpurple

Explorer Addict
Joined
July 16, 1999
Messages
1,095
Reaction score
2
City, State
CT
Year, Model & Trim Level
97 Explorer 12 Escape
On my passenger side, I just used a razer blade to clean up the head, the drivers side, I didn't clean at all, the gasket came right off clean, and I was just left with a graphite lube.

I used a stubby open end to tighten up the motor mounts, couldn't figure out how Bob used a universal and a socket to get to the bolts. Just a little turn at a time.

It took me several hours to get the bends right on the EGR, after all the hours of installing the headers, my patience was running thin, if I had waited till the next day to do the EGR tube, it may have been easier, but the next day was Monday :(

The only thing I used a 3' extension for was to remove the exhaust bolt on the passenger side.
