Solved Torque Specifications for the 5.0

Post number 2 has been selected as best answered.

Prefix for threads that contain problems that have been resolved, and there is an answer within the thread.
I've been around the forum and haven't seen it anywhere. Does anybody know where I can find all of the torque specifications for the explorer 5.0?

I need...
Lower intake bolts
Upper intake bolts
Elbow to upper intake bolts
Throttle body to elbow bolts
Coolant elbow to lower intake bolts
Timing Cover bolts
Water pump bolts
Valve cover bolts
Oil Pan bolts
Oil pump bolts
Oil cooler mount bolt

I have a Haynes manual and it has none of these in it that I can find.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





If you remind me I'll bring you a copy of the Ford Service CD when I pick up my stuff.


Lower intake bolts - tighten in sequence below, first to 5-10 ft-lbs then 23-25 ft-lbs
Upper intake bolts - 12-18 ft - lbs (see diagram below for sequence)
Elbow to upper intake bolts - 12-18 ft lbs
Throttle body to elbow bolts - 12-18 ft lbs
Coolant elbow to lower intake bolts - 12-18 ft lbs
Timing Cover bolts - 12-18 ft lbs
Water pump bolts - 15-21 ft lbs
Valve cover bolts - 12-15 ft lbs
Oil Pan bolts - tighten four end bolts to 15 ft-lbs first, then tighten rest of smaller bolts to 11 ft lbs
Oil pump bolts - 23-31 ft-lbs for pump, 12-18 for pick up tube
Oil cooler mount bolt - 39 ft lbs










Thanks Brad.

Jon, maybe sticky this?































I have all these around somewhere in a quick reference. If I find it I will throw it all up on here. Cougar seems to have all of Chris's list covered so that is a start.

I have Alldata Pro so I might take a look on there for some more info for you guys.







If you remind me I'll bring you a copy of the Ford Service CD when I pick up my stuff.

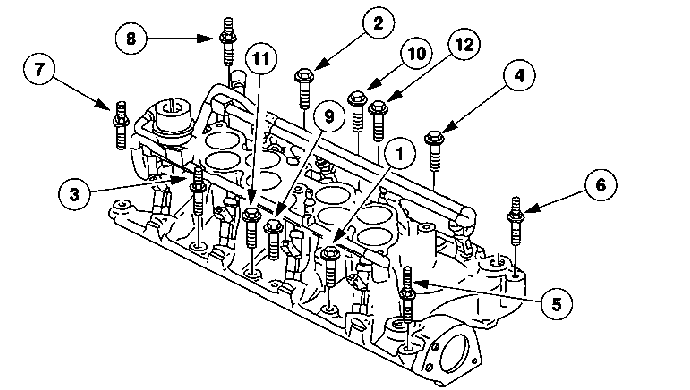

Lower intake bolts - tighten in sequence below, first to 5-10 ft-lbs then 23-25 ft-lbs

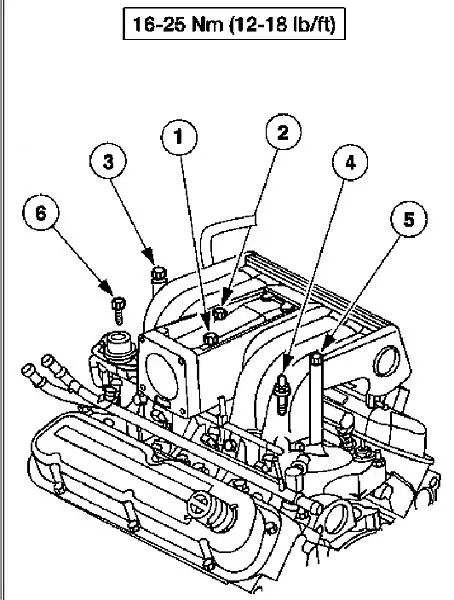

Upper intake bolts - 12-18 ft - lbs (see diagram below for sequence)
Elbow to upper intake bolts - 12-18 ft lbs
Throttle body to elbow bolts - 12-18 ft lbs
Coolant elbow to lower intake bolts - 12-18 ft lbs
Timing Cover bolts - 12-18 ft lbs
Water pump bolts - 15-21 ft lbs
Valve cover bolts - 12-15 ft lbs
Oil Pan bolts - tighten four end bolts to 15 ft-lbs first, then tighten rest of smaller bolts to 11 ft lbs
Oil pump bolts - 23-31 ft-lbs for pump, 12-18 for pick up tube
Oil cooler mount bolt - 39 ft lbs

View attachment 42373

View attachment 42374
Thank you for this a big help and very appreciated 2 thumbs up....First On Race Day!!!!!
