Solved Transmission fluid is leaking but is not visible.

VA7LFD

Active Member
Joined
July 12, 2015
Messages
50
Reaction score
5
City, State
Langley
Year, Model & Trim Level
1994 Limited Edition Expl
I have a 1994 Explorer LE I have a problem with losing transmission fluid somewhere but cannot locate it. There is not a single drop visible on the ground. I have but a cardboard below the engine and transmission and cannot locate a single drop. But everytime my level goes down and I have to add some Mercon about a quart every week. There is no visible signs of leakage anywhere. Can I be losing fluid when I am driving? I have 371,xxx km on the car. I am just stumped...



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




VA7LFD

Active Member
Joined
July 12, 2015
Messages
50
Reaction score
5
City, State
Langley
Year, Model & Trim Level
1994 Limited Edition Expl
I have a 1994 Explorer LE I have a problem with losing transmission fluid somewhere but cannot locate it. There is not a single drop visible on the ground. I have but a cardboard below the engine and transmission and cannot locate a single drop. But everytime my level goes down and I have to add some Mercon about a quart every week. There is no visible signs of leakage anywhere. Can I be losing fluid when I am driving? I have 371,xxx km on the car. I am just stumped...
Sorry correction about a quarter of a quart every week. Not the whole container but a quarter of it..





trozei123

Well-Known Member
Joined
March 1, 2015
Messages
106
Reaction score
3
Year, Model & Trim Level
1992 Explorer XLT 4x4
when do you notice the fluid loss? if its when you first shift to drive, and you have to rev the engine a bit before it drops into gear, its the vacuum modulator that is failing. same thing happened to me. one easy way to check is to pull the vacuum hose and see if its soaked inside.





974X4BLACKSPORT

Well-Known Member
Joined
May 21, 2018
Messages
963
Reaction score
231
Location
FL
City, State
hudson
Year, Model & Trim Level
BLACK 1997 SPORT 4 BY 4
Also check your cooling system. If the transmission oil cooler in the radiator malfunctions it can leak transmission fluid under pressure into the engine coolant. But, as above stated, check the vacuum modulator first. I have had vacuum modulators leak transmission fluid into the intake manifold before in large enough quantities to emit plumes of whitish smoke out the exhaust pipe.





~X~

Elite Explorer
Joined
October 21, 2014
Messages
99
Reaction score
43
Location
Shady cove, Oregon
City, State
Southern Oregon
Year, Model & Trim Level
6 Explorers & a 91 Ranger
Another thing to look at is your transfer case level. Trans fluid leaking into transfer case has been known to happen. That would also explain why you don't see it leaking on the ground.





VA7LFD

Active Member
Joined
July 12, 2015
Messages
50
Reaction score
5
City, State
Langley
Year, Model & Trim Level
1994 Limited Edition Expl
Absolutely confirmed the problem. It's my modulator. As soon as I pulled a vacuum hose from the top of the engine I noticed the red tranny oil. Now next question is this something I can tackle my self to repair with basic sockets, wrenches etc? Do I need to take other things apart to access the modulator? I am so happy with the help of everyone on this thread that I found out the problem. Are there any photos or images that I can look at to make life easier in replacing this part?





~X~

Elite Explorer
Joined
October 21, 2014
Messages
99
Reaction score
43
Location
Shady cove, Oregon
City, State
Southern Oregon
Year, Model & Trim Level
6 Explorers & a 91 Ranger
Glad you found it, the modulator is easy to replace.
When you get the new one take note if it is adjustable or not. If its adjustable pay attention to how it adjusts, read the directions.

Behind the modulator there will be a rod that the modulator actuates, don't lose track of it. Get under there & take a look.......simple job, you can do it.









massacre

Elite Explorer
Joined
January 24, 2018
Messages
969
Reaction score
248
Year, Model & Trim Level
‘94 Explorer
‘19 Nautilus
I did it from below, I had to use an inspection mirror to see everything properly. Try not to lose the pin if you can help it





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,053
Reaction score
668
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
Hold a magnet under the modulator when you remove & install a new one to catch the pin just in case it falls out. A drop of Vaseline could hold the pin in place in the new modulator during installation.





VA7LFD

Active Member
Joined
July 12, 2015
Messages
50
Reaction score
5
City, State
Langley
Year, Model & Trim Level
1994 Limited Edition Expl

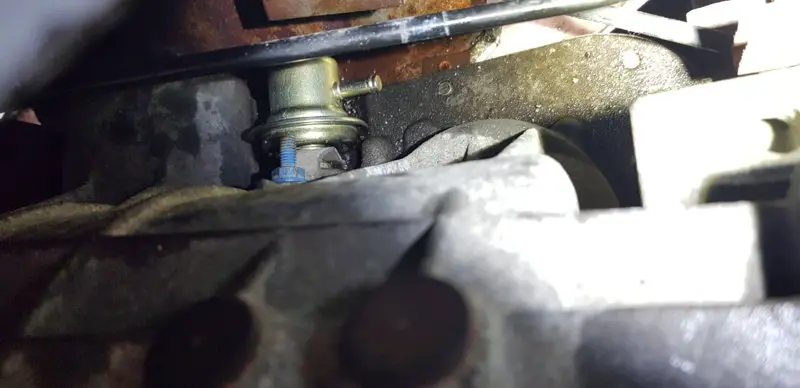

I would like to thank everyone who helped me solve the problem with my transmission on my 94 Limited Edition. I replaced the modulator, installed new filter and fluid. Absolutely runs great. When I installed modulator the new one was slightly different than the old one. New one had a fixed set screw which I did not touch at all. Here are some photos of my install.....Photos can be shared to help others....Also have a video which I will post online.....Again thank you to everyone. Up here in Vancouver BC this would of been a $800 repair. LOL!
