Gmanpaint's sliders are finished being built now, finally.

Tomorrow they will get a good coat of winkle black.

We have gone with a u bracket, so, no drilling required. This takes a while to mock up.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Turdle Works

--kinda has a ring to it.

Honestly, besides a lot of prep work ( flap discs are all that) , all I have done so far was drill the holes in the brackets, hold things--and speculate on building these as a bolt on kit. I wish I could take the credit for the fabrication.

I do think it is a go though, as, we have the issues worked out. Varying degrees of body lift will be the only hangup

<



<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
<



wisekise

Well-Known Member
Joined
August 19, 2007
Messages
476
Reaction score
1
City, State
kentucky
Year, Model & Trim Level
1998 sport
very nice:thumbsup:
i wish i had time to build me a set. i have the 2x4x1/4 and 2.5x2.5x1/4 steel but no round tubing, and i need to figure out the mounting.
since mine is a 2dr could i get away with only 2 braces back to the frame, if built very stout?

<



IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,722
Reaction score
32
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
since mine is a 2dr could i get away with only 2 braces back to the frame, if built very stout?
Not to hijack the thread but yes - as long as you move them in closer towards the center (maybe a foot away from each edge of the slider). The reason is that 99% of the time, the obstacle will almost never impact near the slider's edge because the obstacles you'll climb over are not 90 degree ledges built out of concrete or bricks. So as the tire rolls over it, the vehicle is moving forward and so most of the scratches you'll see is closer towards the center than the edges.

<



<



CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,252
Reaction score
2,623
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Is there space to run a cross member between the frame rails, to strengthen the mounting brackets? Even one cross member near the middle where most impact would happen will help, for far outer edge impacts.

You might get away with using the OEM running board holes for the end mounts, that would simplify those. No, scratch that, if you ever dropped the slider on a rock next to the tire, the body wouldn't like that. I'd still make a frame mount at the ends also. The body mounting would be very helpful for the running board, step forces. I see some triangulated frame brackets in my head.

<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Drilling the front brackets, in line, was made easier by tack welding the 2 plates together--

My idea-:D


Attachments

  • front brcket drill.jpg
    front brcket drill.jpg
    70.9 KB · Views: 1,607
<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
I wedged a couple chunks of metal in the middle and rear brackets , also to drill the holes in line


Attachments

  • middle bracket drill.jpg
    middle bracket drill.jpg
    68.7 KB · Views: 1,574
<



<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Is there space to run a cross member between the frame rails, to strengthen the mounting brackets? Even one cross member near the middle where most impact would happen will help, for far outer edge impacts.

You might get away with using the OEM running board holes for the end mounts, that would simplify those. No, scratch that, if you ever dropped the slider on a rock next to the tire, the body wouldn't like that. I'd still make a frame mount at the ends also. The body mounting would be very helpful for the running board, step forces. I see some triangulated frame brackets in my head.

Then you should approve of this--:D


Attachments

  • triangulation bracket.jpg
    triangulation bracket.jpg
    58.8 KB · Views: 3,484
<



<



Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,723
Reaction score
1,209
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty

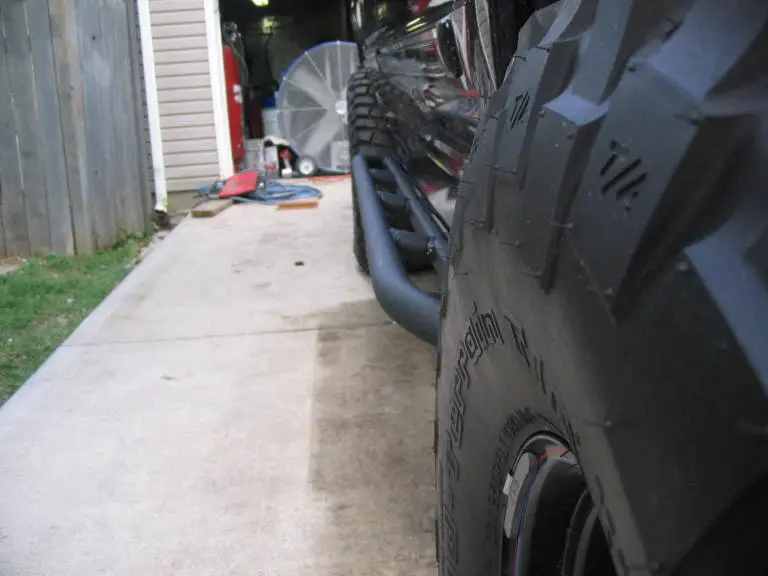

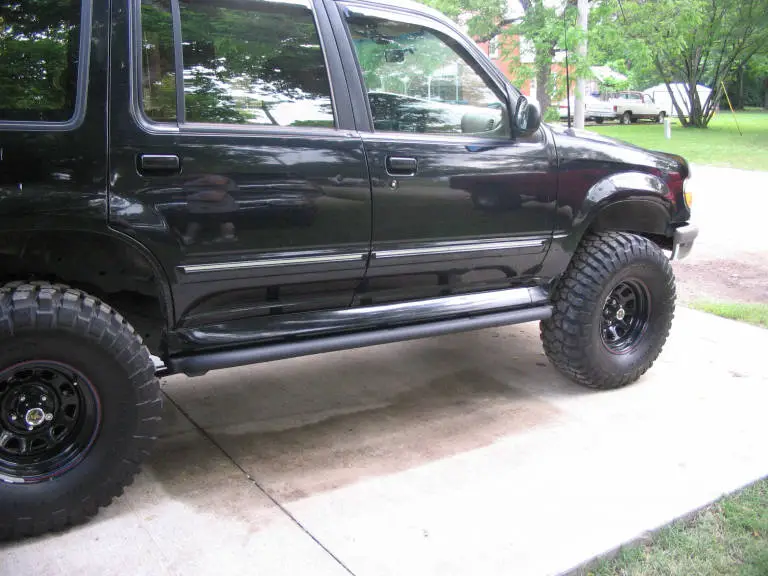

Here is a close up of the finished product

The goal was wrinkle black in visible areas, glossy on the hidden ones.


Attachments

  • finished slider.jpg
    finished slider.jpg
    75.4 KB · Views: 3,973
<



<



<



<



<
