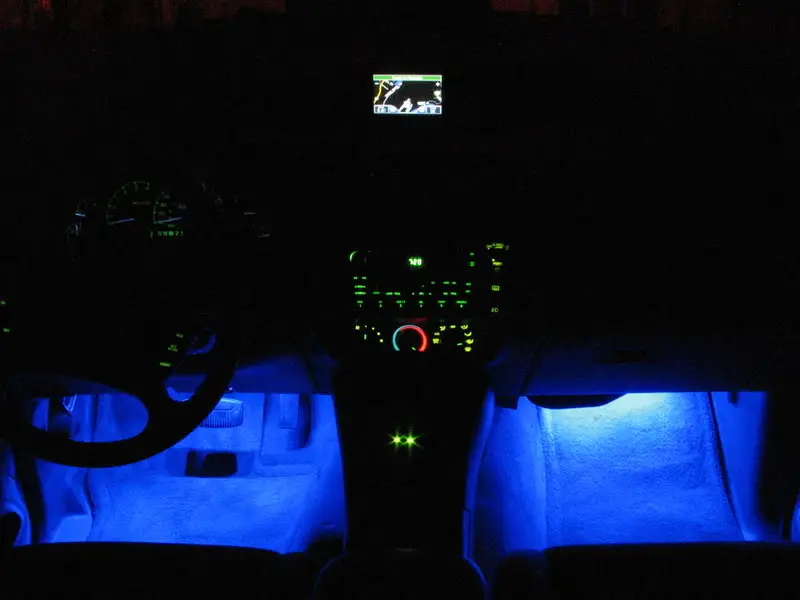

I wanted to do this for a long time, and I finally got some time last week. Very cheap only cost about $8.00 used 5 15,000 MCD 5mm Blue LEDs on each side, mounted on project boards that can be found at Radio Shack. I Highly recommend this, it gets a lot of attention and is a nice accent to any vehicle. This is practice for my chassis under glow project Im doing this spring. What do you guys think?




Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




vroomzoomboom

Elite Canuck STOCK SUCKS!
Elite Explorer
Joined
January 22, 2007
Messages
9,718
Reaction score
971
City, State
selkirk, manitoba
Year, Model & Trim Level
98 supercharged 347 sport
cool, i just did L.E.D.'s in the dash, and door switches. the cluster is another story, i messed that one up!













bigapple

Explorer Addict
Joined
September 11, 2006
Messages
1,119
Reaction score
0
City, State
Baton Rouge LA
Year, Model & Trim Level
'02 XLS Touring
:thumbsup:very nice touch... pretty clean... i commend ur work... looks pretty professional





vroomzoomboom

Elite Canuck STOCK SUCKS!
Elite Explorer
Joined
January 22, 2007
Messages
9,718
Reaction score
971
City, State
selkirk, manitoba
Year, Model & Trim Level
98 supercharged 347 sport
i scraped the coating off the back side, so the green parts were white, i then painted them with modeling paint. when i put it all back together, it was all streaky looking with brush marks. i probably could take it all apart again, and remove the paint, but that is for another day (i just finished it tonight, and don't really want to look at it anymore) plus to add insult to injury, the needles on the gauges are off, so they don't read correctly at the moment.......great :fire::frustrate:mad:





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
What, are you driving a civic? only interior mods on an X should be switches and gages.

I was unaware that Explorers had limitations on what work could be done on them. Perhaps you should take a look around this website to see what can be done with some creativity.





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
what is the focal degree's on the led's, wide is each board? how did you mont them?
those looks sweet btw

The LEDs were originally 60 degree focus, but they only made a spotlight, so I ground off the tips to make them disperse the light evenly. I mounted the passenger side with some double sided tape, and on the drivers side I used a zip tie and electrical tape (only temporary). As for the board length I bought the biggest one Radio Shack had and then cut them with the Dremel.

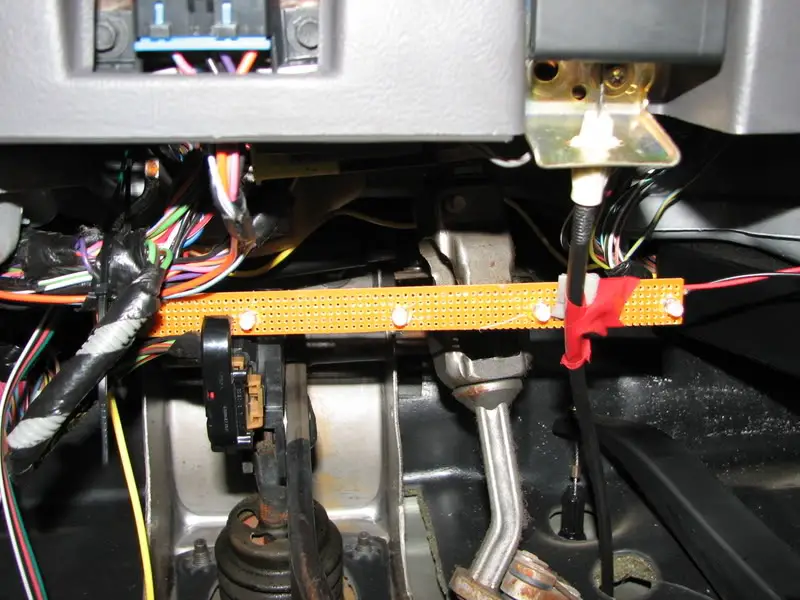

Drivers Side
