Underdrive Pulley Installation: 4.0 SOHC Motor

Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
I'm referring to the three/ four bolts that screw into the pulley itself that you pull on to remove the pulley, not the center bolt on the crank.

I am having trouble determining the size of the bolts needed to screw into the pulley itself, not the crank.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
Found the right bolt size: two quantities of Metric size 8mmx1.25x100 (4" long) approximately. I will have to wait for the bolt specialty store to open Monday to pick up the two bolts so I can resume the project next weekend, as my puller kit does contains the right bolt, but just not long enough to work (about 1/2" too short).

I finally discovered that not all holes in the stock pulley are the same. There are a total of four, each of the same size in bore, and equal distant from each other, however they are not all threaded to the same size and pitch. 8mmx1.25 threads into two of the holes, I don't know what fits into the other two holes, metric 8mmx1.25 certainly does not.

That is what was throwing me off the entire time- the two different size threaded holes. I was just fitting my bots into one hole, not trying all of them as I just did today.

Let this be a reference for anyone else whom undertakes this task who has the different type of harmonic balanceer on their 4.0 than Aldive's in his picture.

I will post a picture of my stock pulley once I get it off to show the difference.

<



Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
Okay, I just got the UDP installed. Turn out the two long skinny bolts that ASP shipped with the UDP pulley were the correct size after all. I was just sticking them in the wrong hole, as I mentioned before. Boy, I can do well in Cal 1&2, and both of my other engineering classes, but I couldn't figure out which hole the bolt goes in!:banghead:

<



<



Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS

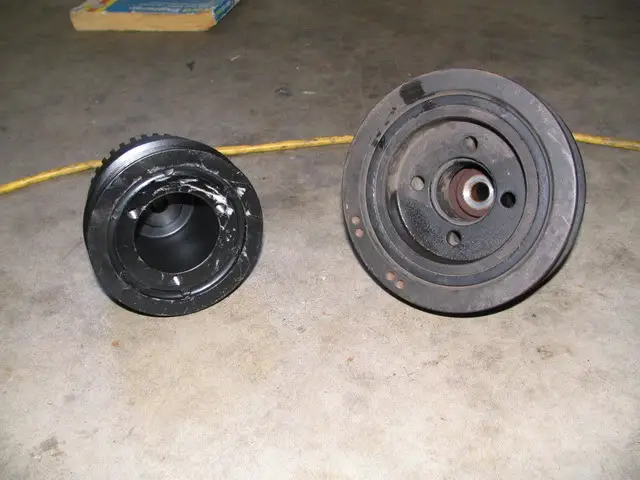

Just for reference, here is the second type of factory harmonic balancer that exists, different from Aldive's. Only two of the holes are threaded for 8mm metric bolts.



left-UDP; right- stock pulley
Perhaps this was a 3rd gen specific change?

EDIT
: see the link below for my registry. Scroll to the bottom of the thread for pictures of my installation.

<



CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,389
Reaction score
2,735
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
I think so, that is also bigger than the 97-01 part.

<



ranger7ltr

Elite Explorer
Joined
November 17, 2001
Messages
1,305
Reaction score
18
City, State
Great State of Texas
Year, Model & Trim Level
1999 Sport

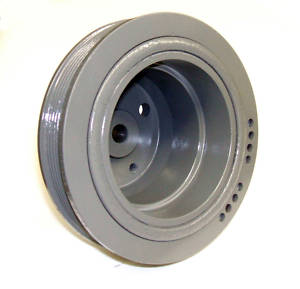

This is the balancer from my 99 OHV...

I don't think the one on the right is any larger than my new balancer...


Attachments

  • harmonicbalancer.jpg
    10.3 KB · Views: 1,178
<



ranger7ltr

Elite Explorer
Joined
November 17, 2001
Messages
1,305
Reaction score
18
City, State
Great State of Texas
Year, Model & Trim Level
1999 Sport
Is the UDP from ASP also for pre 02 4 liter?

Just for reference, here is the second type of factory harmonic balancer that exists, different from Aldive's. Only two of the holes are threaded for 8mm metric bolts.



left-UDP; right- stock pulley
Perhaps this was a 3rd gen specific change?

EDIT
: see the link below for my registry. Scroll to the bottom of the thread for pictures of my installation.

I have been kinda following this and just wonder if the ASP part would also fit an earlier engine...I looked at their site and they don't even list anything for the Explorer... I think a call is in order this week...

<



Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
The UDP that ASP manufactures is the same for both the v6 OHV and SOHC. I further suspect that both engines also share the same circumference stock harmonic balancer as well.

<



CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,389
Reaction score
2,735
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
It just looks bigger, the belt will need work.

<



rokr1292

Well-Known Member
Joined
January 11, 2011
Messages
290
Reaction score
1
City, State
richardsville va
Year, Model & Trim Level
'01 Explorer Sport Trac
Very helpful, finally got myself the truck I wanted, but with gas getting more and more expensive again, going from a 2.3 ranger to a 4.0 sport trac was a bit of a wallet shock. What is the approximate net mpg increase from just the crank pulley install?

<



Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
17
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
Well, with just me in the truck cruising down the highway @ 65mph I can get about 24mpg.

<



iBangKaty

Active Member
Joined
January 6, 2008
Messages
87
Reaction score
0
City, State
Little Neck, New York
Year, Model & Trim Level
98 XLT V6 SOHC
where can i buy under drive pulley's?????

<



Ronin8002

Explorer Addict
Joined
March 23, 2003
Messages
4,419
Reaction score
12
City, State
Virginia
Year, Model & Trim Level
2008 XLT Ironman
where can i buy under drive pulley's?????

I think Zabteck or Henson Performance might still sell the crank pulleys. Not sure if you can get the other ones anymore. Try some of the 4.0 SOHC mustang forums...they'll know for sure.

<



kindred4x

Well-Known Member
Joined
January 13, 2007
Messages
167
Reaction score
0
Year, Model & Trim Level
1996 sport
James Henson at Hensonperformance.com sells the pulley. I just put one on my truck and am very pleased with it. The best bolt on I have done to my truck

<
