v-8 70mm Throttle body Install-working out the bugs


RubySlow

Active Member
Joined
March 18, 2007
Messages
497
Reaction score
1
City, State
Pacifica Ca to be S'Pacific
Year, Model & Trim Level
BAYDESTRIAN
Okay so I purchased a 70mm T-Body From Dynamic racing. It looks fine and all... its for a 1987-93 Im thinking this is the problem?
Well I took the old one off and then compared the 2 and everything is different. The TPS Bolts, the throttle hookup, the IAC so What should I do?
It would be alot of modd.. just to get it to work.
Or Do I need another type of throttle body?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




boominXplorer

Elite Ranger
Elite Explorer
Joined
September 16, 2002
Messages
9,173
Reaction score
642
City, State
Virginia Beach, Va
Year, Model & Trim Level
00 4x4 Mounty
I think you might need one for 94-95 or one fore a gt40 upper. I am curious also.

This is the only bolt-on I am missing.





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,565
Reaction score
1,076
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
there are 2 bolt patterns-94-95 mustang is a rectangular shape pattern-explorer and 89-93 mustang is square.
Which do you have?













Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,565
Reaction score
1,076
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
To be honest-I encountered the same issues-plus some as I even changed the egr elbow on mine--
I used the proper TPS and wired the proper connector to my harness--the IAC will mount although it looks backwards and a bit tight-I used a ball adapter to the linkage and the throttle cable clipped right on it-
Now, to be honest I still have throttle bracket issues-but you shouldn't encounter this using the stock elbow.Hopefully my issues are soon to be sorted.

You might post up some pictures of your problem areas-





RubySlow

Active Member
Joined
March 18, 2007
Messages
497
Reaction score
1
City, State
Pacifica Ca to be S'Pacific
Year, Model & Trim Level
BAYDESTRIAN
Ok I was thinking the same thing with the tps maybe one off a mustang? and the IAC. But like you said.. the Ball adapter Is at the top of the new tbody and On the Original its at the bottom SO I just have to figure out how to adapt the throttle hookup. because when I went to connect the cables the throttle is pulling in the opposite direction. WHen you hit the gas it want to close the Tbody





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,565
Reaction score
1,076
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Ok I was thinking the same thing with the tps maybe one off a mustang? and the IAC. But like you said.. the Ball adapter Is at the top of the new tbody and On the Original its at the bottom SO I just have to figure out how to adapt the throttle hookup. because when I went to connect the cables the throttle is pulling in the opposite direction. WHen you hit the gas it want to close the Tbody
Yeah--
I was able to find a threded post with the ball on the end-Maybe you could drill a new hole for it on the opposite side?

I am thinking for mine-(just for ideas for you) I am going to cut the lever off, and weld it on into a slightly different angle-mine won't pull all the way open-

I had to convert to front pull because of this-but to be honest I need a picture of yours to refresh my memory--lol

I used a 95 mustang cobra TPS--it is a bit higher$$ but the 95 mustang TPS goes to 4.2v. cobra goes to 4.9v Believe it or not.





Xan

Active Member
Joined
May 2, 2007
Messages
788
Reaction score
5
City, State
Lincoln, NE
Year, Model & Trim Level
01, mountaneer
if you guys could post pics on how to convert this thing i'll probaily be doing it, a bigger throttlebody is a really great mod to boost up throttle response.













RubySlow

Active Member
Joined
March 18, 2007
Messages
497
Reaction score
1
City, State
Pacifica Ca to be S'Pacific
Year, Model & Trim Level
BAYDESTRIAN
ok so couldn't you just hook it up to that ball then you may have to bend or move your throttle bracket back a bit so i opens all the way?

No I thought about that, And the bracket is pretty ridgid its made not to flex a whole lot...

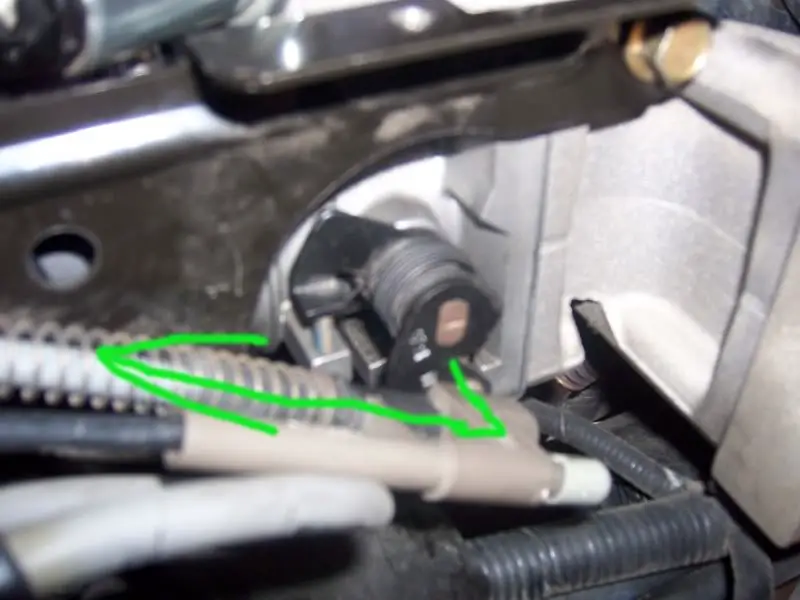

And the original bends like



And the New one Bends like



you would need to adjust the cables and then re locate the bracket..
It would seem easier to re-locate the ball to the the location It is on the Original T-Body to the new T-body

Last edited:












chriswells78

Well-Known Member
Joined
November 4, 2005
Messages
2,452
Reaction score
1
Location
Central Ohio
City, State
Powell(Columbus), OH
Year, Model & Trim Level
2013 Limited
I'm gonna be getting my head arount this soon too. I just bought a 75mm Edelbrock from Ebay and I'm gonna have to jerry-rig it to work right too. I may just fabricate my own arm and screw it to the existing arm, then cut off any excess arm parts sticking out where I don't want them.





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,565
Reaction score
1,076
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
i wanna see how the mustang set up looks like...
hmm you think you could get a junkyard mustang bracket and cable and bolt it on?
I have those-on the shelf if that gives an idea how well I think it will work--

I'll dig it out and get pictures---remind me if I don't do this by this evening--





Xan

Active Member
Joined
May 2, 2007
Messages
788
Reaction score
5
City, State
Lincoln, NE
Year, Model & Trim Level
01, mountaneer
right right, theres a nut holding the arm on. Hmm you think if you took off the arm and fliped it and put it on backwards, then switched the side where the ball is (probaily saw off the other side of the arm) it would work?
Either that or make a new arm or rip the old one off the stocker.?









RubySlow

Active Member
Joined
March 18, 2007
Messages
497
Reaction score
1
City, State
Pacifica Ca to be S'Pacific
Year, Model & Trim Level
BAYDESTRIAN
Ok so I got it on and It works......

So I had that ball cut and re welded in a new position...









And here what it looks like once I first get it on..










Now the tps sensor on.. Had a mustang one lying around...




Now the Throttle bracket and cables hooked up..






Put the Old intake tube on





I need to fine tune it still having a minor issue with the kickdowncable but it works. Nothing is ever just "Bolt-on"
