Solved Vacuum line solution!

natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
When I got my Exploder I had vacuum leaks that I found in the hoses and fixed them. Ordered new rubber boots from the local parts store and cut out holes that had been worn by rubbing. Fast forward a few months and the boots were cracking again and I found more holes in the plastic lines.

Annoyed, I set out to solve this with some silicone tubing. I went out and measured the various vacuum fittings and found the smallest one (air box) and got some silicone hose based on that fitting. I purchased 10 feet of 3/16" (5mm) ID silicone tubing and went to work:

https://dl.dropboxusercontent.com/u/464376/vehicles/1991 Explorer/Pictures/IMG_20140613_173115.jpg
https://dl.dropboxusercontent.com/u/464376/vehicles/1991 Explorer/Pictures/IMG_20140613_173122.jpg
https://dl.dropboxusercontent.com/u/464376/vehicles/1991 Explorer/Pictures/IMG_20140613_173135.jpg


I like the look, the ease of working with it and it seems to be the right size for most all of the fittings, even stretching to fit the trans vacuum line. Unlike rubber, I don't feel like it's going to crack if I stretch it over a fitting.

My only gripe is that it doesn't feel quite tight enough on the air box thermostatic control valve. I think it will work ok but if you're thinking of trying this, 5/32" ID silicone hose might be worth a try. All the other fittings felt great, even the fuel pressure regulator.

Also, worth noting is that I had 2 left over vacuum ports on the manifold. I'll be using one later for a vacuum gauge but for now, I just cut a short section of hose and hooked them to each other so I don't have to use a cap (which often crack too soon).

All in all, $10 and a little bit of time. I'm very pleased and best of all, don't have to deal with the plastic lines again.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Got Trq

Active Member
Joined
September 19, 2013
Messages
55
Reaction score
1
City, State
Ogden, UT
Year, Model & Trim Level
1993 Ford Explorer LTD
Hmm... Good idea! I need to replace the one on my FPR, it keeps coming off, the rubber boot part just doesn't really hold itself on very well anymore.





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
Exactly. Mine was easy on, easy off. The factory rubber is excellent in that it doesn't crack but it gets hard and isn't as tight as it once was (joke in there somewhere). Aftermarket boots lasted all of a couple weeks before seeing stress cracks in them. Months later there weren't any holes but it still doesn't inspire confidence.

The silicone is unbelievably flexible (think spark plug wires) and is a lot more forgiving when you get 1 size for various size ports. Silicone is silicone but rubber can have different blends and temperature ratings.

Also, 10 feet allowed me to do all the vacuum lines up top plus one into the cab for a vacuum gauge with about 8" left over.





SLewis

Active Member
Joined
October 2, 2002
Messages
82
Reaction score
0
City, State
Shawnee, OK
Year, Model & Trim Level
92 Explorer/89 Bronco II
ok so where did you get the tubing?


Steve





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers




Got Trq

Active Member
Joined
September 19, 2013
Messages
55
Reaction score
1
City, State
Ogden, UT
Year, Model & Trim Level
1993 Ford Explorer LTD
I wonder if the stuff I use for my paintball gun would work...





SLewis

Active Member
Joined
October 2, 2002
Messages
82
Reaction score
0
City, State
Shawnee, OK
Year, Model & Trim Level
92 Explorer/89 Bronco II
Thank you.


Steve





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
Thank you.


Steve
Not a problem :) This site's been a valuable resource to me, I try to give back when I can, even if it's something small.

I wonder if the stuff I use for my paintball gun would work...
As long as it's the right ID, silicone is silicone. I will say I like the stuff I got because it's incredibly thick-walled unlike other silicone tubing I've gotten. It feels beefy and would take forever for something to rub through it unlike the thin factory plastic lines.





Got Trq

Active Member
Joined
September 19, 2013
Messages
55
Reaction score
1
City, State
Ogden, UT
Year, Model & Trim Level
1993 Ford Explorer LTD
So my guns use Polyethylene tubing, I wonder how the different materials would hold up. Doing a little research it looks like Nylon tubing would also be a good option.





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
As far as I know, silicone has the highest heat and electrical resistance and long life. It's why the stuff is used in cop cars and spark plug wires.





Got Trq

Active Member
Joined
September 19, 2013
Messages
55
Reaction score
1
City, State
Ogden, UT
Year, Model & Trim Level
1993 Ford Explorer LTD
Yeah, I think nylon would be too hard to use.. It's not the most flexible stuff, but it's supposed to be very resistant to oil and such.





x5050160

Active Member
Joined
May 20, 2013
Messages
79
Reaction score
0
City, State
Saint Joseph
Year, Model & Trim Level
1994 Explorer XLT




natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
That is the same thing, just more colors and sizes available. Scroll down a bit and find the chart, anything between 0.08" and 15/32" has a 3mm wall thickness, as does the stuff I got. I don't think it will collapse. It's very flexible but the wall is thicker than I thought it would be. I would be more concerned with regular rubber hose collapsing over tight bends and with age than I would with silicone.





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
In the process of going through and updating my more informative posts with images attached directly to the forum, I found this thread again and wanted to report that these lines are still working great. The only "issue" I've had is that I cut a small piece for the evap to throttle body connection and that piece has discolored slightly. It hasn't cracked or split though and it at least tells me that my evap system is working.

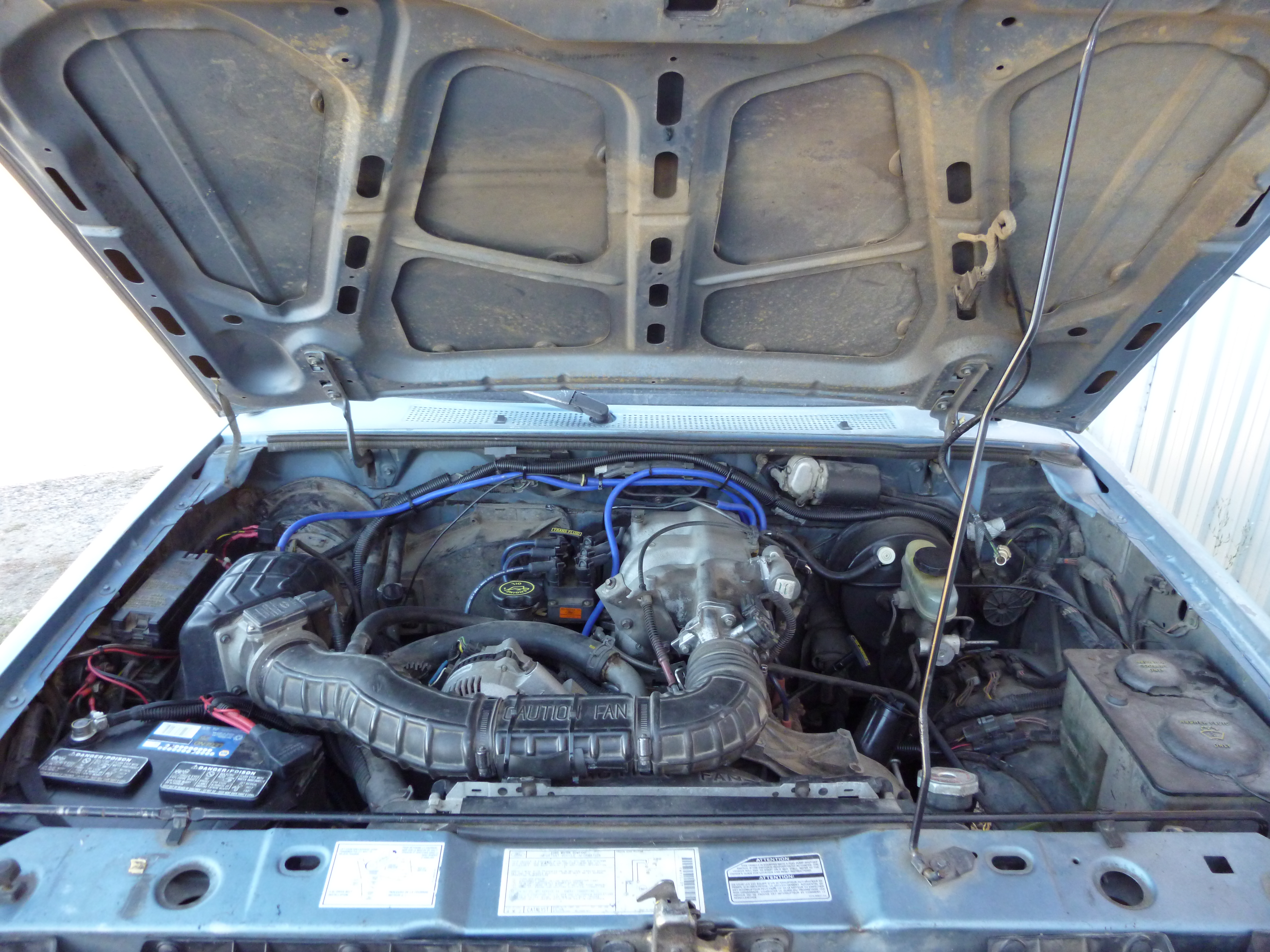

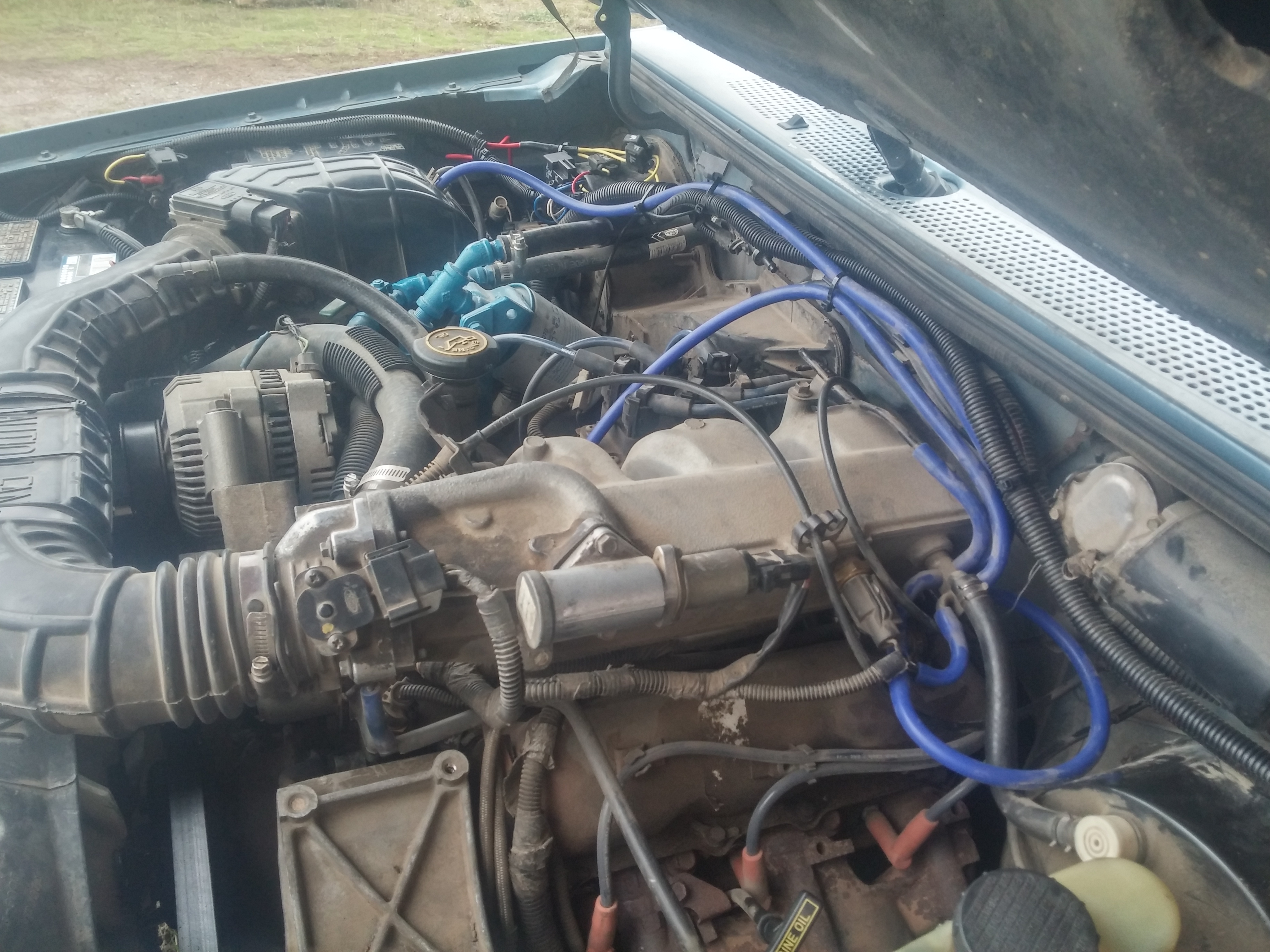

Here's some newer pictures after a lot of other work has been done:
